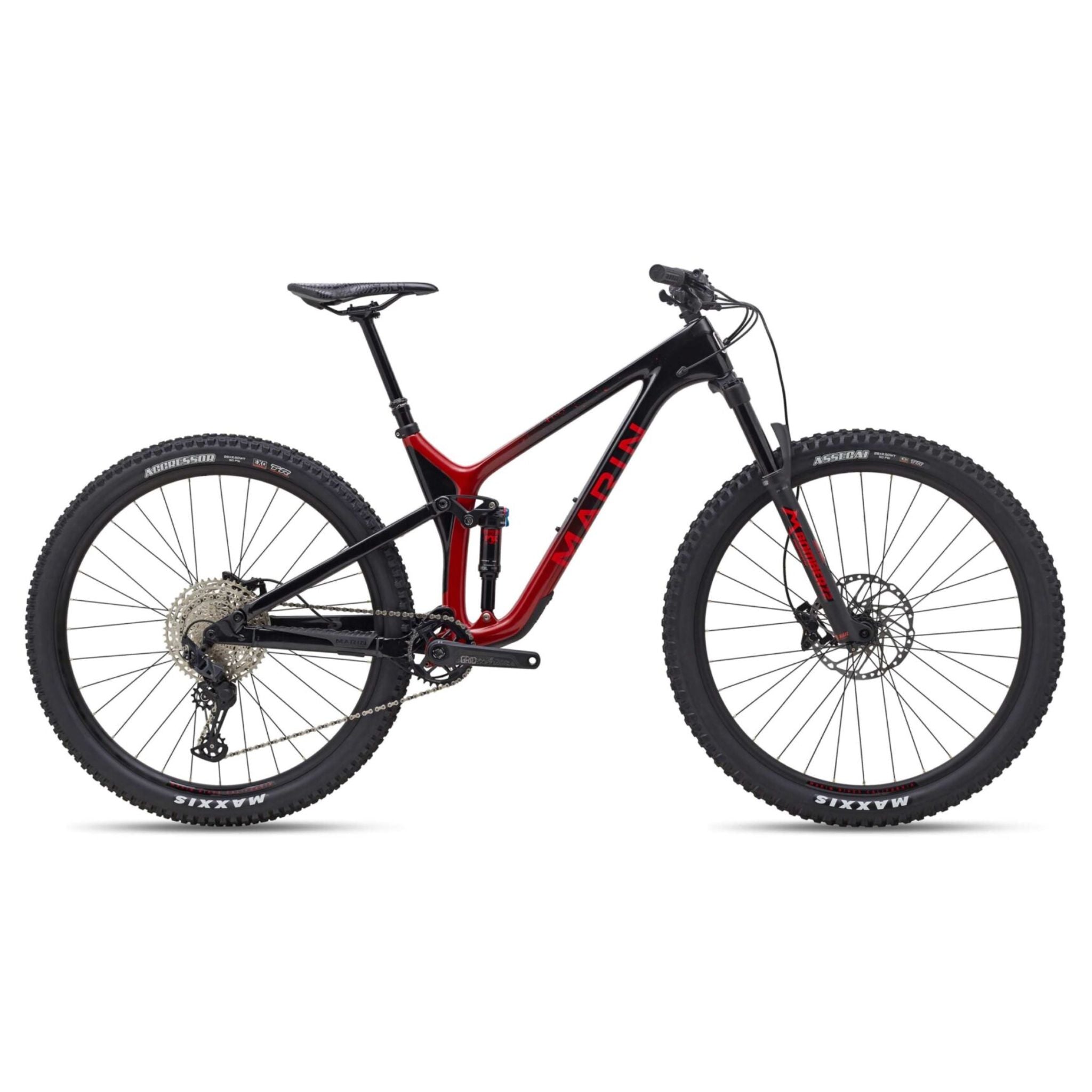

The Rift Zone Carbon 1 takes Marin's agile, playful Rift Zone platform, adds speed-focused 29" wheels and a stiff unidirectional carbon front triangle. The result is a long, low, slack and aggressive trail bike with 130mm of travel up front and 125mm at the rear.
The Rift Zone is one of our best-selling mountain bikes and puts a smile on the face of riders of all kinds. The moderate travel keeps the bike planted yet poppy, making every ride engaging, while modern geometry puts you in a comfortable, stable position. It goes faster and hits harder than you'd expect; you'd need to take it somewhere properly scary to find its limits.
The carbon front triangle is paired with a Series 4 alloy rear end and Marin's MultiTrac suspension. The build includes a Marzocchi Bomber Z2 fork and Fox Float DPS shock, Shimano SLX 12-speed shifting, Shimano 4-piston brakes with a 203mm front rotor, an X-Fusion dropper and a grippy Maxxis Assegai and Aggressor tyre combination.
Features
- Unidirectional carbon front triangle with Series 4 alloy rear end
- 130mm front and 125mm rear travel on 29" wheels
- MultiTrac suspension platform
- Marzocchi Bomber Z2 fork and Fox Float DPS Performance shock
- Shimano SLX 12-speed shifting with 10-51T cassette
- Shimano MT420 4-piston brakes with 203mm front and 180mm rear rotors
- Maxxis Assegai front and Aggressor rear tyres
- X-Fusion Manic dropper post
Sizing
- S: 5'3" - 5'6"
- M: 5'6" - 5'10"
- L: 5'10" - 6'1"
- XL: 6'1" - 6'4"
Specifications
DisciplineTrail
MaterialCarbon
Front Travel130mm
Rear Travel125mm
Wheel Size29"
Warranty5 Years (frame)
Frame - Unidirectional carbon fibre front triangle, Series 4 alloy rear end, 29" wheels, 125mm travel, MultiTrac suspension platform, 148x12mm Boost thru-axle, 73mm threaded BB with ISCG05 tabs
Fork - Marzocchi Bomber Z2 29", Rail damper with Sweep adjustment, 130mm travel, Kabolt bolt-on axle, 44mm offset
Rear shock - Fox Float DPS Performance, EVOL air spring, 3-position compression adjust, rebound adjust, custom tune, 210x50mm
Rims - Marin aluminium double wall, 29mm inner, sleeved joint, tubeless compatible
Front hub - Forged alloy, 110x15mm, disc, 32H
Rear hub - Forged alloy, 148x12mm, quad sealed bearings, disc, 32H, standard freehub body
Spokes - 14g black stainless steel
Front tyre - Maxxis Assegai 29x2.5", 3C MaxxTerra, EXO, tubeless compatible
Rear tyre - Maxxis Aggressor 29x2.5", 3C MaxxTerra, EXO, tubeless compatible
Rear derailleur - Shimano SLX, 12-speed, SGS
Shift lever - Shimano SLX SL-M7100-R, 12-speed
Crankset - FSA Grid, modular 1x, 32T direct mount chainring, MegaTooth, MegaExo spindle, Boost spacing
Bottom bracket - FSA MegaExo 73mm BSA
Chain - KMC X12
Cassette - Shimano Deore M6100, 12-speed, 10-51T
Front brake - Shimano BR-MT420, 4-piston hydraulic disc, metallic pads, 203mm rotor
Rear brake - Shimano BR-MT420, 4-piston hydraulic disc, metallic pads, 180mm rotor
Brake levers - Shimano MT4100, I-Spec EV compatible
Handlebar - Marin Mini-Riser, 6061 double butted aluminium, 780mm width, 28mm rise, 5° up, 9° back
Stem - Marin 3D forged alloy, 35mm
Grips - Marin Grizzly single clamp locking
Headset - FSA No.42/47, sealed cartridge bearings, 1 1/8" x 1 1/2"
Seatpost - X-Fusion Manic dropper, 1x composite remote, 30.9mm, 125mm (S), 150mm (M-L), 170mm (XL)
Saddle - Marin Speed Concept
Extras - Bolt-on thru-axle
Rift Zone Carbon 1 2023
- Trail
- 130 / 125mm travel
- 29″ wheels
- Carbon frame
