Break into the unknown, challenge yourself, take small steps or go for the home run — the Four Corners 1 is ready for it. It's Marin's do-it-all steel adventure bike, equally happy on the commute, a midweek escape or a fully-loaded multi-day bike-packing trip, and all without emptying your wallet.
A custom-butted 4130 chromoly steel frame and fork deliver that famously smooth, washboard-comfortable ride without giving up the strength you need when loaded up. Mounts for bottles, accessories, fork cages and mudguards mean you can carry everything you need, and Marin's size-specific wheels keep the handling balanced — XS and S roll on 650b, while M to XL get 700c.
The build is dependable and easy to live with. Shimano's CUES 2x9 drivetrain gives a wide, versatile gear range for loaded climbs and fast flats alike, Tektro mechanical disc brakes provide all-weather stopping, and wide 45mm tyres roll comfortably across tarmac, gravel and rougher tracks.
Features
- Custom-butted 4130 chromoly steel frame and fork
- Size-specific wheels — 650b (XS/S) and 700c (M-XL)
- Shimano CUES 2x9 drivetrain with a wide 46/32T range
- Tektro Spyre mechanical disc brakes
- Bottle, accessory, fork-cage and mudguard mounts for touring and bikepacking
- Wide 45mm Vee Tire tyres
- Compact flared drop bar for comfortable control
Specifications
-
Discipline - Gravel / Adventure
-
Frame Material - Chromoly Steel
-
Fork - Chromoly Steel
-
Wheel Size - 700c / 650b
-
Drivetrain - Shimano CUES 2x9
- Warranty - Lifetime (frame)
Frame - Series 1 CrMo, Size-Specific Wheels (XS/S 650b, M-XL 700c), Fender & Rack Mounts, Disc
Fork - 4130 Chromoly Steel, Disc, Fork-Cage Mounts
Crankset - Shimano CUES FCU6030-2, 46/32T
Chain - Shimano LinkGlide LG500
Front Derailleur - Shimano CUES FDU6030
Rear Derailleur - Shimano CUES RDU3020, 9-Speed
Shifters - Shimano CUES Dual Control STU3030, 2x9
Brake Calipers - Tektro Spyre-C Mechanical Disc
Brake Levers - Shimano CUES w/ Integrated Shifters
Rotors - 160mm front & rear
Headset - FSA No.8D Sealed Cartridge
Handlebar - Marin Butted Alloy, 16° Flared Compact Drop
Stem - Marin 3D Forged Alloy
Bar Tape - Marin Comfort w/ Gel Pads
Seatpost - Marin Alloy, 27.2mm
Saddle - Marin MTB
Pedals - Nylon Platform
Front Hub - Forged Alloy, Disc, 32H
Rear Hub - Forged Alloy, Disc, 32H
Rims - Marin Aluminium Double Wall, Disc Specific
Tyres - Vee Tire Co. QuickStyk, 700/650x45mm
Colour - Purple

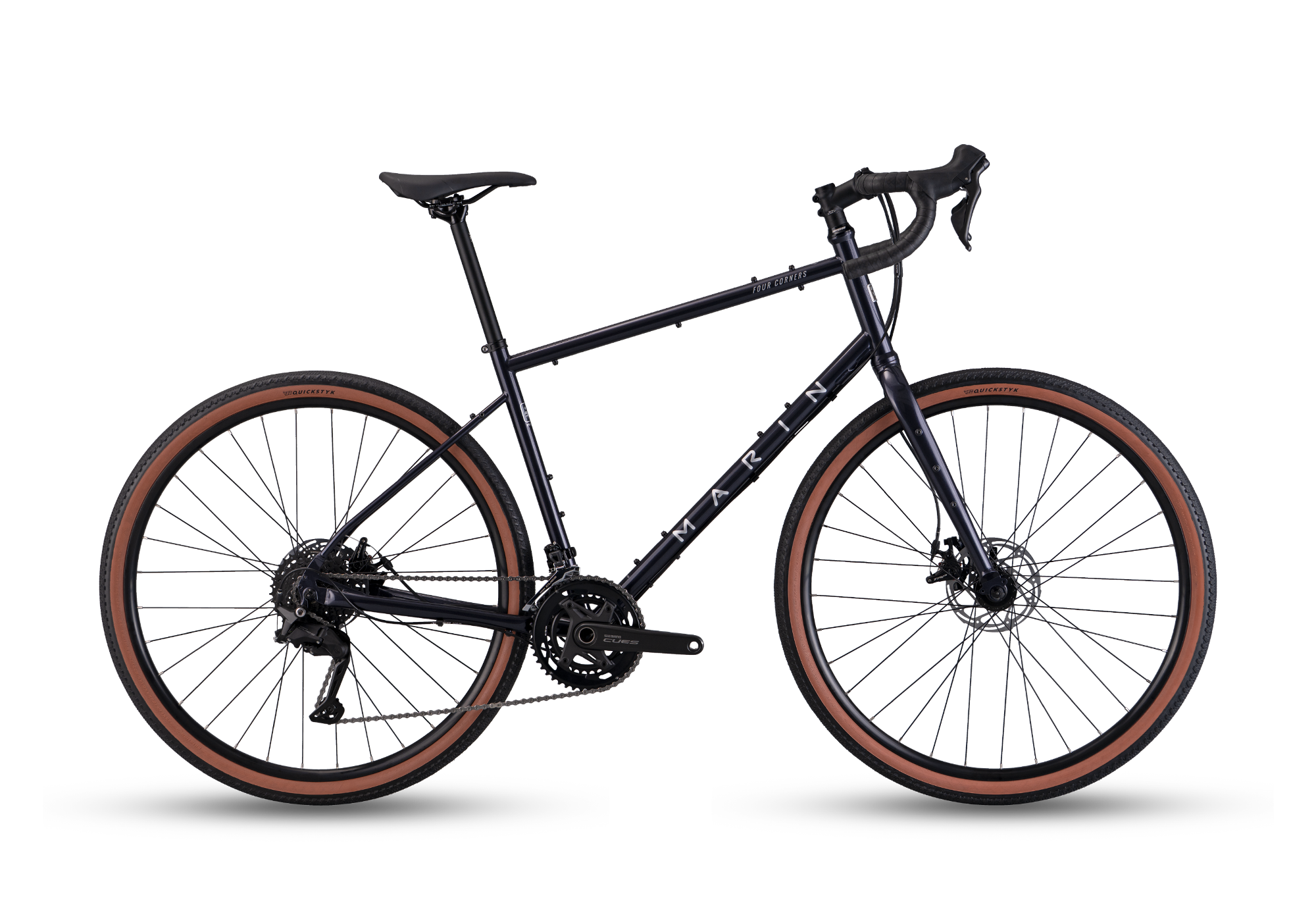

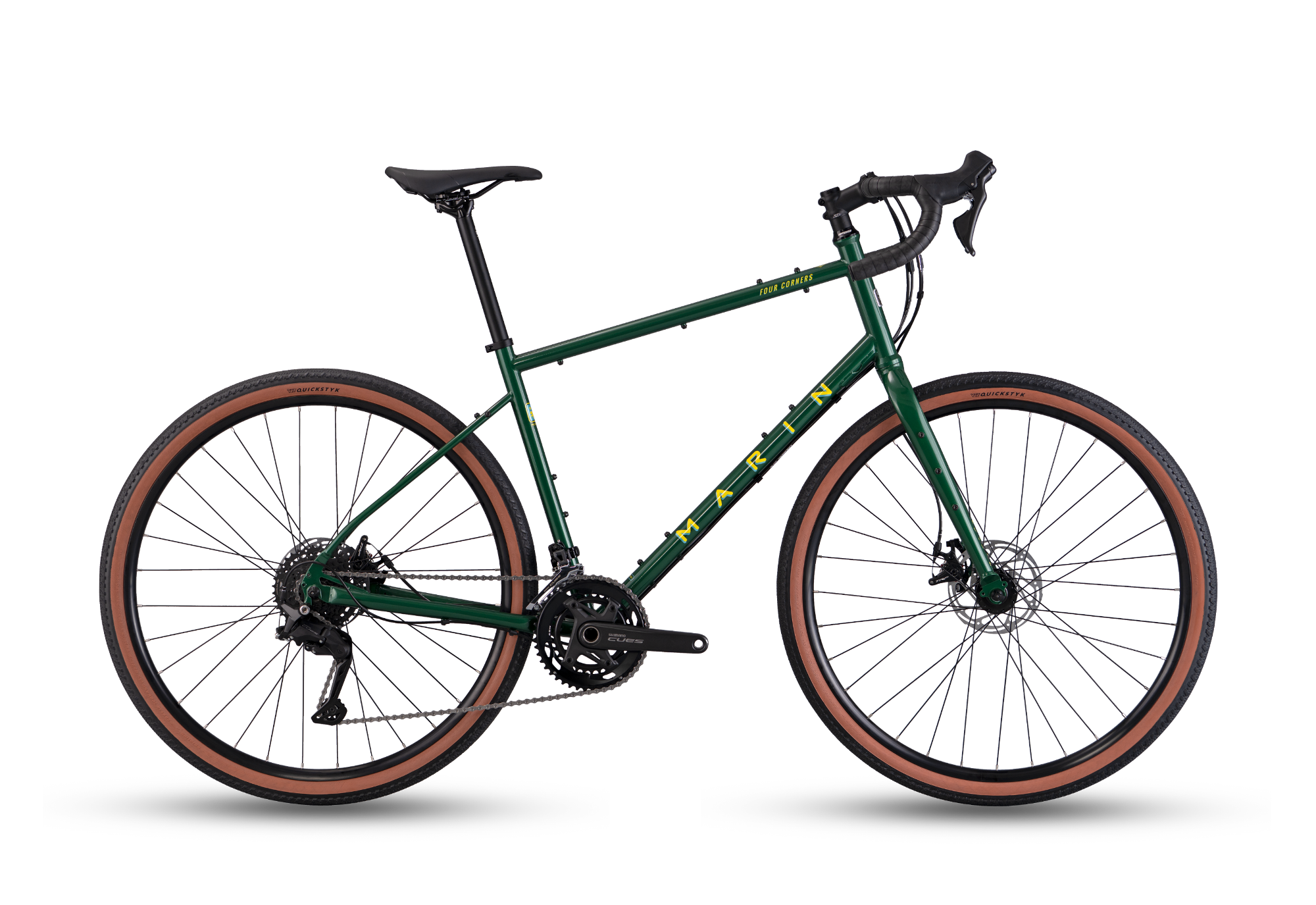

Four Corners 1 2027
Order within [time] for delivery by [date]
90 Day Returns
