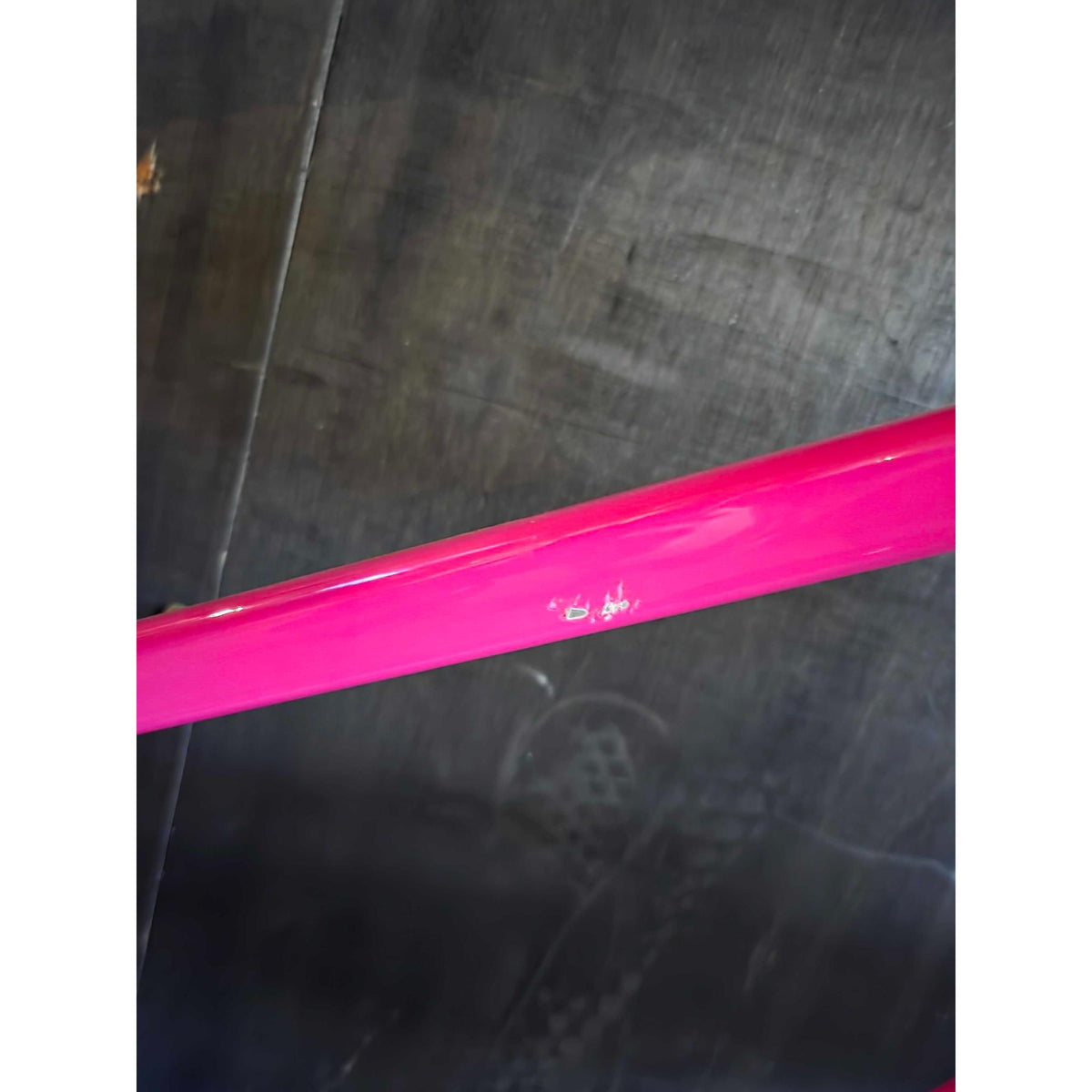

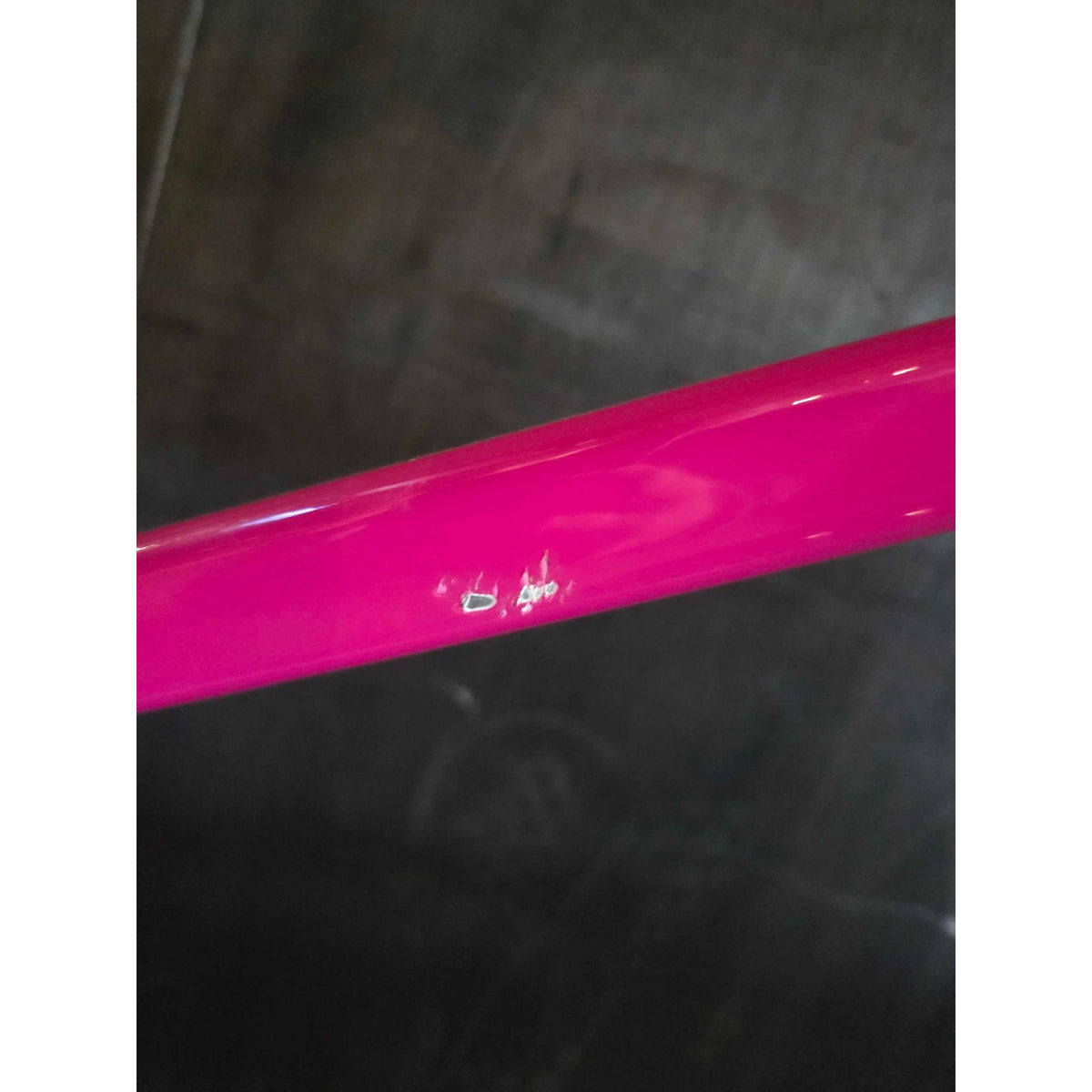

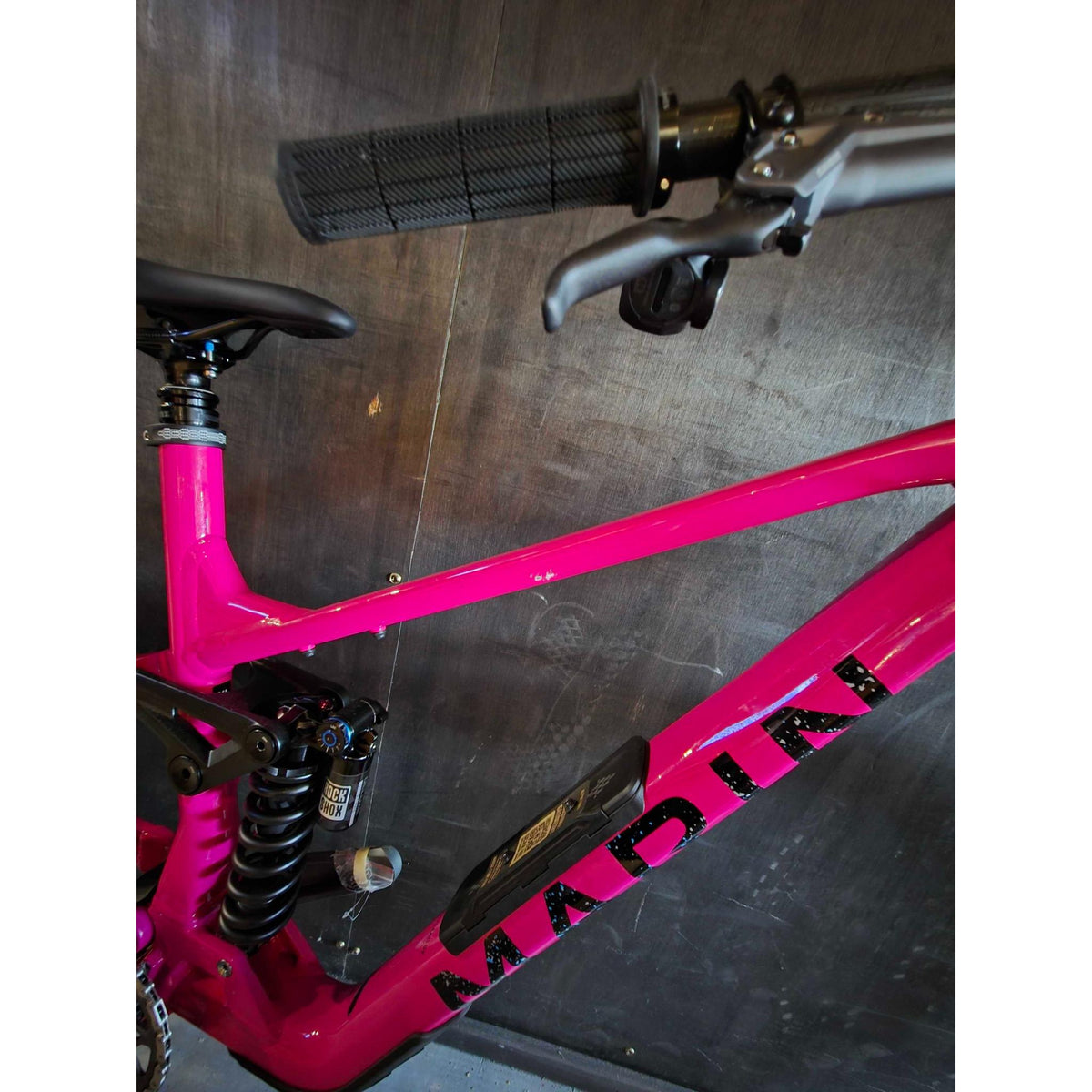

Ex-Display bike, has some marks. Please see images.
The Alpine Trail XR AXS is the top-spec version of Marin's big-hitting enduro bike, made for the roughest, rowdiest trails, enduro race runs and furious bike park laps. With 170mm of travel up front, 160mm at the rear, a mixed-wheel setup and SRAM's wireless GX Eagle AXS T-Type drivetrain, it's a complete enduro package at a very strong price, and consistently one of the Biketart team's favourite enduro bikes.
The Series 4 6061 aluminium frame uses Marin's MultiTrac LT suspension platform, with an adjustable headset for tuning the head angle and adjustable chainstay length and bottom bracket height, so you can set the bike up for the terrain you ride. A 29" front wheel rolls over rough ground while the 27.5" rear keeps the back end nimble in tight sections. There's integrated downtube storage, full internal cable routing and a threaded bottom bracket with ISCG05 tabs.
Alongside the wireless T-Type drivetrain, the build includes a RockShox Zeb Ultimate fork and Super Deluxe Coil Ultimate shock, SRAM Code Bronze 4-piston brakes with 200mm rotors, Formula-hubbed wheels with Maxxis Assegai tyres and a TranzX dropper. It was named Pinkbike's 2024 Value Bike of the Year, and you can read the full review here.
Features
- Series 4 6061 aluminium frame with MultiTrac LT suspension
- 170mm front and 160mm rear travel
- Mixed-wheel setup: 29" front, 27.5" rear
- Adjustable head angle, chainstay length and BB height
- RockShox Zeb Ultimate fork and Super Deluxe Coil Ultimate shock
- SRAM GX Eagle AXS T-Type wireless 12-speed drivetrain
- SRAM Code Bronze 4-piston brakes with 200mm rotors front and rear
- Integrated downtube storage with storage bag included
Sizing
- S: 5'3" - 5'6"
- M: 5'6" - 5'10"
- L: 5'10" - 6'2"
- XL: 6'2" - 6'4"
Specifications
-
DisciplineEnduro
-
MaterialAluminium
-
Front Travel170mm
-
Rear Travel160mm
-
Wheel SizeMX (29"/
27.5") -
Warranty5 Years (frame)
Frame - Series 4 6061 aluminium, 160mm travel MultiTrac LT suspension platform, integrated downtube storage, adjustable headset, chainstay length and BB height, full internal cable routing, chainstay-mounted post mount disc brake, 148x12mm Boost thru-axle, 73mm threaded BB with ISCG05 tabs
Fork - RockShox Zeb Ultimate, 170mm travel, 29", 110x15mm Maxle Stealth, 44mm offset
Rear shock - RockShox Super Deluxe Coil Ultimate, 205x65mm, custom tune, spring rates 350lbs (S-M), 400lbs (L-XL)
Rims - Marin double wall alloy, 29mm inner, sleeved joint, 32H, tubeless compatible
Front hub - Formula DC-711, 110x15mm, 6-bolt disc, 32H
Rear hub - Formula DCL-3482, 148x12mm, 4 sealed bearings, 6-bolt disc, XD driver, 32H
Spokes - 14g black stainless steel
Tyres - Maxxis Assegai MaxxGrip, 29x2.5" EXO+ front, 27.5x2.5" DoubleDown rear, tubeless compatible
Rear derailleur - SRAM GX Eagle AXS T-Type
Shift lever - SRAM AXS Pod, MMX
Crankset - SRAM GX Eagle, 32T, 55mm chainline, 170mm
Bottom bracket - SRAM DUB MTB 73mm
Chain - SRAM GX Eagle T-Type
Cassette - SRAM GX 1275 T-Type, 10-52T
Front brake - SRAM Code Bronze, 4-piston hydraulic disc, HSC 200mm rotor
Rear brake - SRAM Code Bronze, 4-piston hydraulic disc, HSC 200mm rotor
Brake levers - SRAM Code Bronze Stealth
Handlebar - Marin Trail, 7000 alloy, 35mm clamp, 800mm width, 20mm rise, 5° up, 8° back
Stem - Marin CNC, 35mm length, 35mm clamp
Grips - Marin Grizzly lock-on
Headset - FSA custom, adjustable head angle design
Seatpost - TranzX YSP39 dropper, 1x remote, 34.9mm, 150mm (S), 170mm (M-L), 200mm (XL)
Saddle - Marin Speed Concept
Pedals - Not included
Extras - Bolt-on 12mm rear thru-axle, downtube storage bag
Alpine Trail XR AXS 2025 - Ex-Display
- Enduro
- 170 / 160mm travel
- MX wheels
- Alloy frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
Ex-Display bike, has some marks. Please see images.
The Alpine Trail XR AXS is the top-spec version of Marin's big-hitting enduro bike, made for the roughest, rowdiest trails, enduro race runs and furious bike park laps. With 170mm of travel up front, 160mm at the rear, a mixed-wheel setup and SRAM's wireless GX Eagle AXS T-Type drivetrain, it's a complete enduro package at a very strong price, and consistently one of the Biketart team's favourite enduro bikes.
The Series 4 6061 aluminium frame uses Marin's MultiTrac LT suspension platform, with an adjustable headset for tuning the head angle and adjustable chainstay length and bottom bracket height, so you can set the bike up for the terrain you ride. A 29" front wheel rolls over rough ground while the 27.5" rear keeps the back end nimble in tight sections. There's integrated downtube storage, full internal cable routing and a threaded bottom bracket with ISCG05 tabs.
Alongside the wireless T-Type drivetrain, the build includes a RockShox Zeb Ultimate fork and Super Deluxe Coil Ultimate shock, SRAM Code Bronze 4-piston brakes with 200mm rotors, Formula-hubbed wheels with Maxxis Assegai tyres and a TranzX dropper. It was named Pinkbike's 2024 Value Bike of the Year, and you can read the full review here.
Features
- Series 4 6061 aluminium frame with MultiTrac LT suspension
- 170mm front and 160mm rear travel
- Mixed-wheel setup: 29" front, 27.5" rear
- Adjustable head angle, chainstay length and BB height
- RockShox Zeb Ultimate fork and Super Deluxe Coil Ultimate shock
- SRAM GX Eagle AXS T-Type wireless 12-speed drivetrain
- SRAM Code Bronze 4-piston brakes with 200mm rotors front and rear
- Integrated downtube storage with storage bag included
Sizing
- S: 5'3" - 5'6"
- M: 5'6" - 5'10"
- L: 5'10" - 6'2"
- XL: 6'2" - 6'4"
Specifications
-
DisciplineEnduro
-
MaterialAluminium
-
Front Travel170mm
-
Rear Travel160mm
-
Wheel SizeMX (29"/
27.5") -
Warranty5 Years (frame)
Frame - Series 4 6061 aluminium, 160mm travel MultiTrac LT suspension platform, integrated downtube storage, adjustable headset, chainstay length and BB height, full internal cable routing, chainstay-mounted post mount disc brake, 148x12mm Boost thru-axle, 73mm threaded BB with ISCG05 tabs
Fork - RockShox Zeb Ultimate, 170mm travel, 29", 110x15mm Maxle Stealth, 44mm offset
Rear shock - RockShox Super Deluxe Coil Ultimate, 205x65mm, custom tune, spring rates 350lbs (S-M), 400lbs (L-XL)
Rims - Marin double wall alloy, 29mm inner, sleeved joint, 32H, tubeless compatible
Front hub - Formula DC-711, 110x15mm, 6-bolt disc, 32H
Rear hub - Formula DCL-3482, 148x12mm, 4 sealed bearings, 6-bolt disc, XD driver, 32H
Spokes - 14g black stainless steel
Tyres - Maxxis Assegai MaxxGrip, 29x2.5" EXO+ front, 27.5x2.5" DoubleDown rear, tubeless compatible
Rear derailleur - SRAM GX Eagle AXS T-Type
Shift lever - SRAM AXS Pod, MMX
Crankset - SRAM GX Eagle, 32T, 55mm chainline, 170mm
Bottom bracket - SRAM DUB MTB 73mm
Chain - SRAM GX Eagle T-Type
Cassette - SRAM GX 1275 T-Type, 10-52T
Front brake - SRAM Code Bronze, 4-piston hydraulic disc, HSC 200mm rotor
Rear brake - SRAM Code Bronze, 4-piston hydraulic disc, HSC 200mm rotor
Brake levers - SRAM Code Bronze Stealth
Handlebar - Marin Trail, 7000 alloy, 35mm clamp, 800mm width, 20mm rise, 5° up, 8° back
Stem - Marin CNC, 35mm length, 35mm clamp
Grips - Marin Grizzly lock-on
Headset - FSA custom, adjustable head angle design
Seatpost - TranzX YSP39 dropper, 1x remote, 34.9mm, 150mm (S), 170mm (M-L), 200mm (XL)
Saddle - Marin Speed Concept
Pedals - Not included
Extras - Bolt-on 12mm rear thru-axle, downtube storage bag
