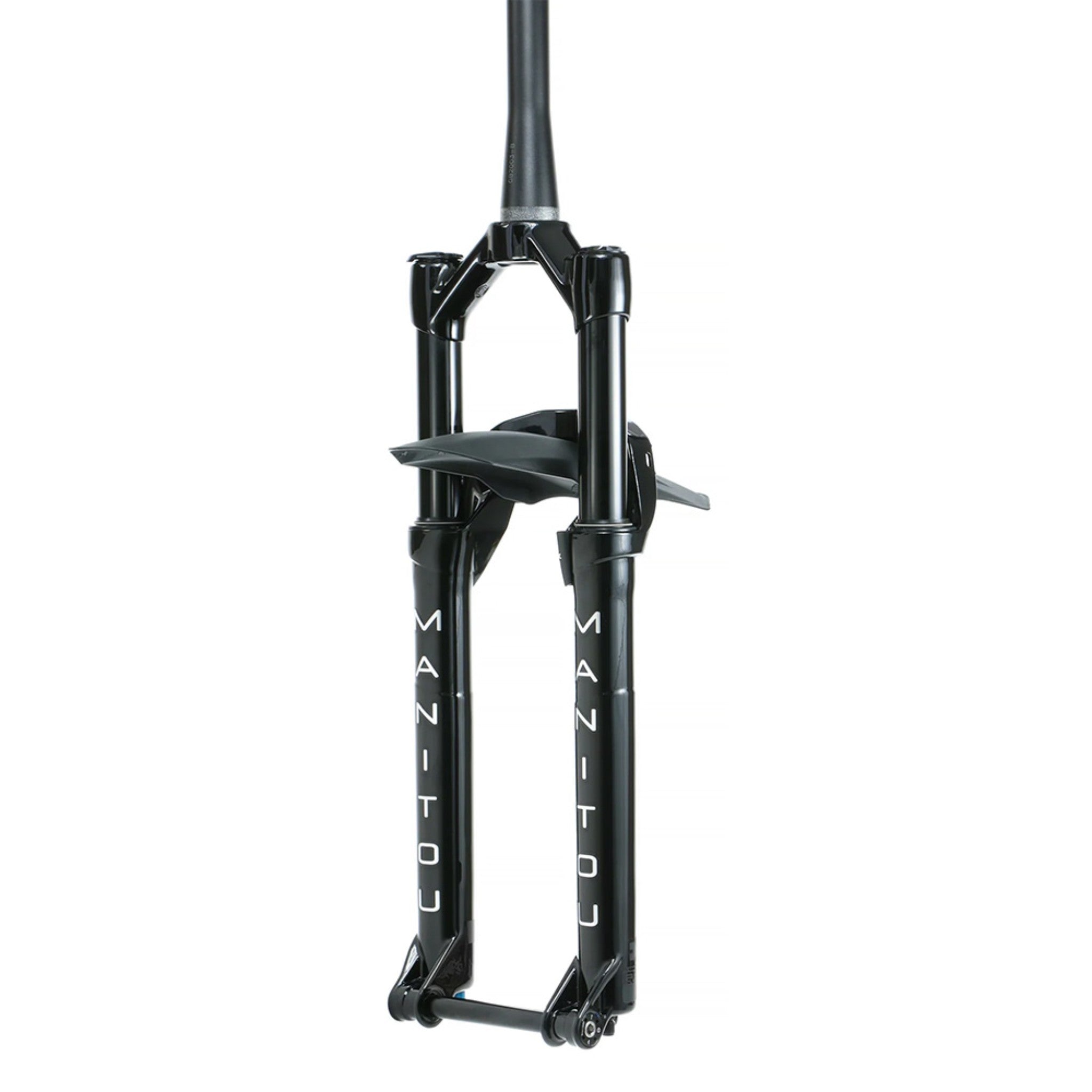

Rebirth of an Icon

The R7 has a vast history of combining a lightweight chassis with performance and reliability. And this latest incarnation of the icon is no different. The new R7 expert pairs superior damping thanks to Manitou's 3-position dual piston VTT damper with a lightweight and stiff 32mm chassis.

Specifications 27.5":

• Wheel Size: 27.5"
• Weight: 1789g
• Offset: 37/44OS
• Ride Height: 471-511mm

• Travel: 80-120mm Internally adjustable in 10mm increments
• Spring: Expert Air
• Compression Damping: VTT
• Rebound Damping: in-leg adjustable TPC
• Adjustments: Air, Rebound, 3-position Compression (Open, Trail, Lock)
• Steerer: 1.5" Tapered
• Crown: Forged Aluminum, Hollow Bore Gloss Black
• Leg Diameter: 32mm
• Leg Material: 6000- Series Straight Wall Aluminum
• Brake Post Mount: 160mm (203mm Max)
• Axle: 15mm x 110mm Hexlock
• Max Tire Size: 68mm
• Options: QR15, Fender Kit, IVA, Remote Lockout
• E-Pac: No

Specifications 29":

• Wheel Size: 29"
• Weight: 1812g
• Offset: 44/51OS
• Ride Height: 485-525mm
• Travel: 80-120mm (Internally adjustable in 10mm increments)
• Spring: Expert Air
• Compression Damping: VTT
• Rebound Damping: in-leg adjustable TPC
• Adjustments: Air, Rebound, 3-position Compression (Open, Trail, Lock)
• Steerer: 1.5" Tapered
• Crown: Forged Aluminum, Hollow Bore Gloss Black
• Leg Diameter: 32mm
• Leg Material: 6000- Series Straight Wall Aluminum
• Brake Post Mount: 160mm (203mm Max)
• Axle: 15mm x 110mm Hexlock
• Max Tire Size: 68mm
• Options: QR15, Fender Kit, IVA, Remote Lockout
• E-Pac: No
