Description
RIDE AT YOUR BEST
THE NEW KEO 2 MAX IS THE PRODUCT THAT WILL GIVE YOU THE CONFIDENCE YOU NEED TO GO BEYOND YOUR PERSONAL LIMITS.
The LOOK design team has completely remodelled the shape of the KEO 2 MAX, giving it a new, slimmed down line yet a wider contact surface, increasing its style and efficiency.
TECHNOLOGIES
OPTIMIZED CONTACT SURFACE
The pedal’s surface area has substantial symbolic importance. It is part of the brand’s identity and acts as an indelible signature on the product.
The contact surface of the new KEO 2 MAX preserves the strong lines on which its history was built. Its width has been increased to 60 mm to provide a larger platform and improved foot stability during pedalling. This creates a feeling of unrivalled comfort not found in any other pedal.
We also sought to optimize power transfer thanks to its new 500 mm² of usable surface (+25% increase). The shape of the stainless-steel plate has been revised to match that of the cleat and to keep, regardless of the position of your foot (depending upon the angular float you use), the same amount of contact for consistent performance.
Increasing the pedal’s usable contact surface, without any additional weight gain, improves the Power to Weight ratio, making the product even better and allowing you to perform at your best.
IMPROVED SPINDLE PROFILE
The spindle profile of the new KEO 2 MAX has also been optimized. Built around an oversized «Chromoly Plus» steel axle, it is composed of an axle with an inner ball bearing and a needle roller bearing, located under the contact surface, to handle the load and distribute it optimally.
A new component has been added between these two bearings. A serrated washer, previously used to hold the needle roller bearing in place, has been replaced with a conical spacer. This technical solution reduces friction, increases fluidity, and by consequence, decreases the geometrical tolerances of the pedal body and play.
The sole purpose of the sum of these improvements has been to guarantee you irreproachable reliability.
BODY & PLATFORM
Technology Spring
Body material Composite
Platform material Stainless steel
Platform area 500 mm²
Platform width 60 mm
Total stack height (pedal + cleat) 17,3 mm (11 + 6.3 mm)
Q Factor 53 mm
WEIGHT & ACCESSORIES
Pedal 130 g
Weight pair + cleats 328 g
RETENSION & CLEATS
Retention 8 to 12
Cleats KEO grip
AXE
Spindle material Chromoly +

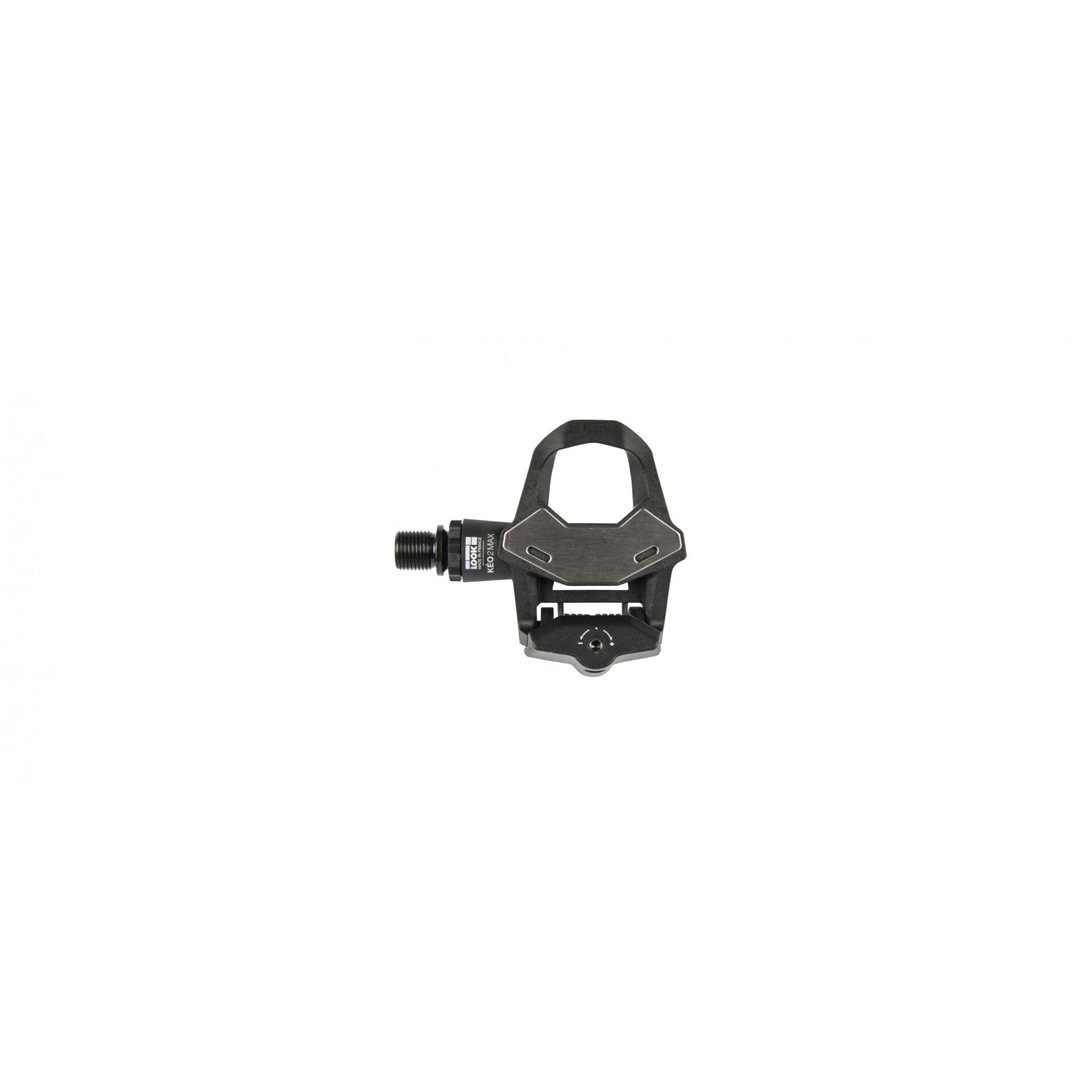

Look Keo 2 Max Pedals
RIDE AT YOUR BEST
THE NEW KEO 2 MAX IS THE PRODUCT THAT WILL GIVE YOU THE CONFIDENCE YOU NEED TO GO BEYOND YOUR PERSONAL LIMITS.
The LOOK design team has...
Order within [time] for delivery by [date]
90 Day Returns -
Description
RIDE AT YOUR BEST
THE NEW KEO 2 MAX IS THE PRODUCT THAT WILL GIVE YOU THE CONFIDENCE YOU NEED TO GO BEYOND YOUR PERSONAL LIMITS.
The LOOK design team has completely remodelled the shape of the KEO 2 MAX, giving it a new, slimmed down line yet a wider contact surface, increasing its style and efficiency.
TECHNOLOGIES
OPTIMIZED CONTACT SURFACE
The pedal’s surface area has substantial symbolic importance. It is part of the brand’s identity and acts as an indelible signature on the product.
The contact surface of the new KEO 2 MAX preserves the strong lines on which its history was built. Its width has been increased to 60 mm to provide a larger platform and improved foot stability during pedalling. This creates a feeling of unrivalled comfort not found in any other pedal.
We also sought to optimize power transfer thanks to its new 500 mm² of usable surface (+25% increase). The shape of the stainless-steel plate has been revised to match that of the cleat and to keep, regardless of the position of your foot (depending upon the angular float you use), the same amount of contact for consistent performance.
Increasing the pedal’s usable contact surface, without any additional weight gain, improves the Power to Weight ratio, making the product even better and allowing you to perform at your best.
IMPROVED SPINDLE PROFILE
The spindle profile of the new KEO 2 MAX has also been optimized. Built around an oversized «Chromoly Plus» steel axle, it is composed of an axle with an inner ball bearing and a needle roller bearing, located under the contact surface, to handle the load and distribute it optimally.
A new component has been added between these two bearings. A serrated washer, previously used to hold the needle roller bearing in place, has been replaced with a conical spacer. This technical solution reduces friction, increases fluidity, and by consequence, decreases the geometrical tolerances of the pedal body and play.
The sole purpose of the sum of these improvements has been to guarantee you irreproachable reliability.
BODY & PLATFORM
Technology Spring
Body material Composite
Platform material Stainless steel
Platform area 500 mm²
Platform width 60 mm
Total stack height (pedal + cleat) 17,3 mm (11 + 6.3 mm)
Q Factor 53 mm
WEIGHT & ACCESSORIES
Pedal 130 g
Weight pair + cleats 328 g
RETENSION & CLEATS
Retention 8 to 12
Cleats KEO grip
AXE
Spindle material Chromoly +
