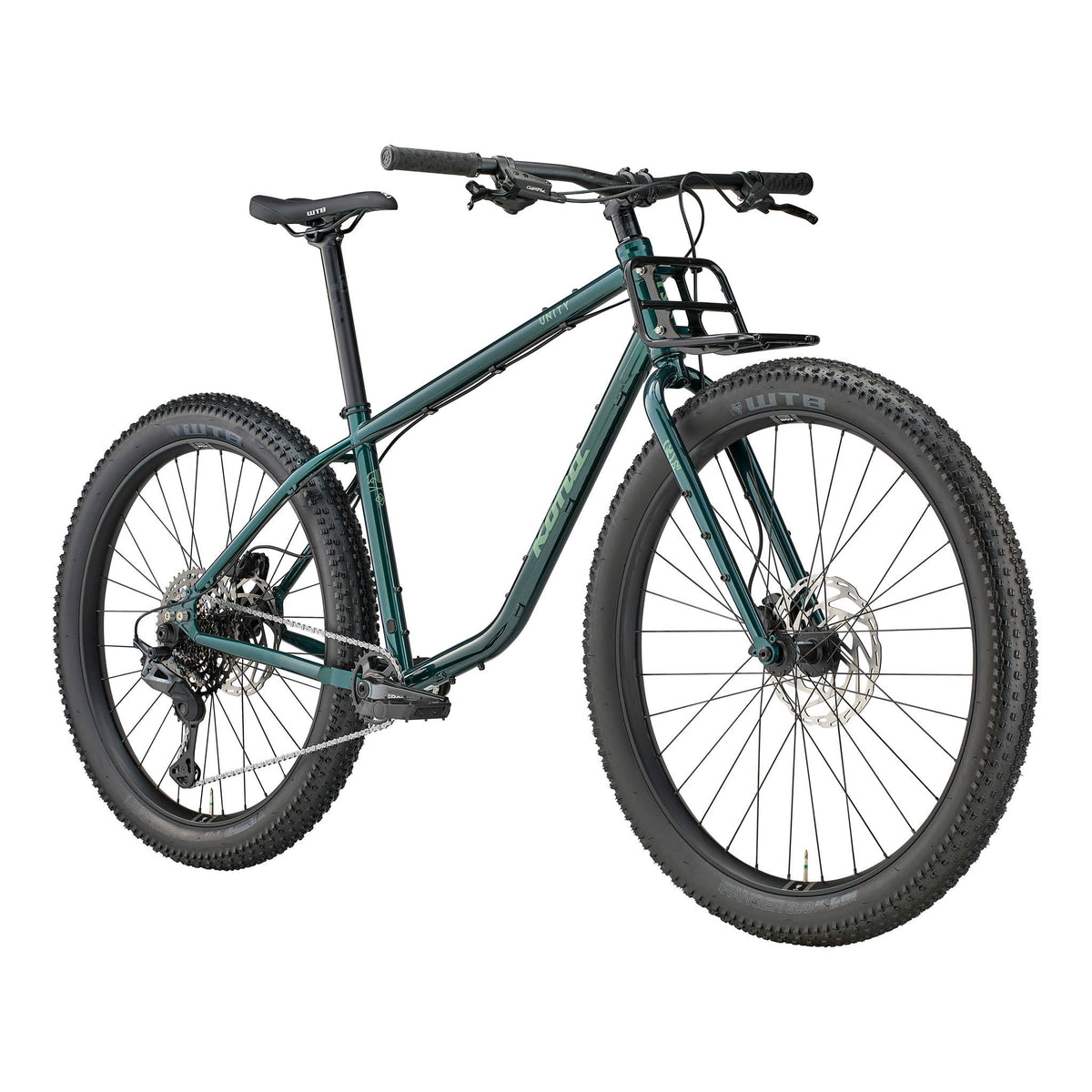

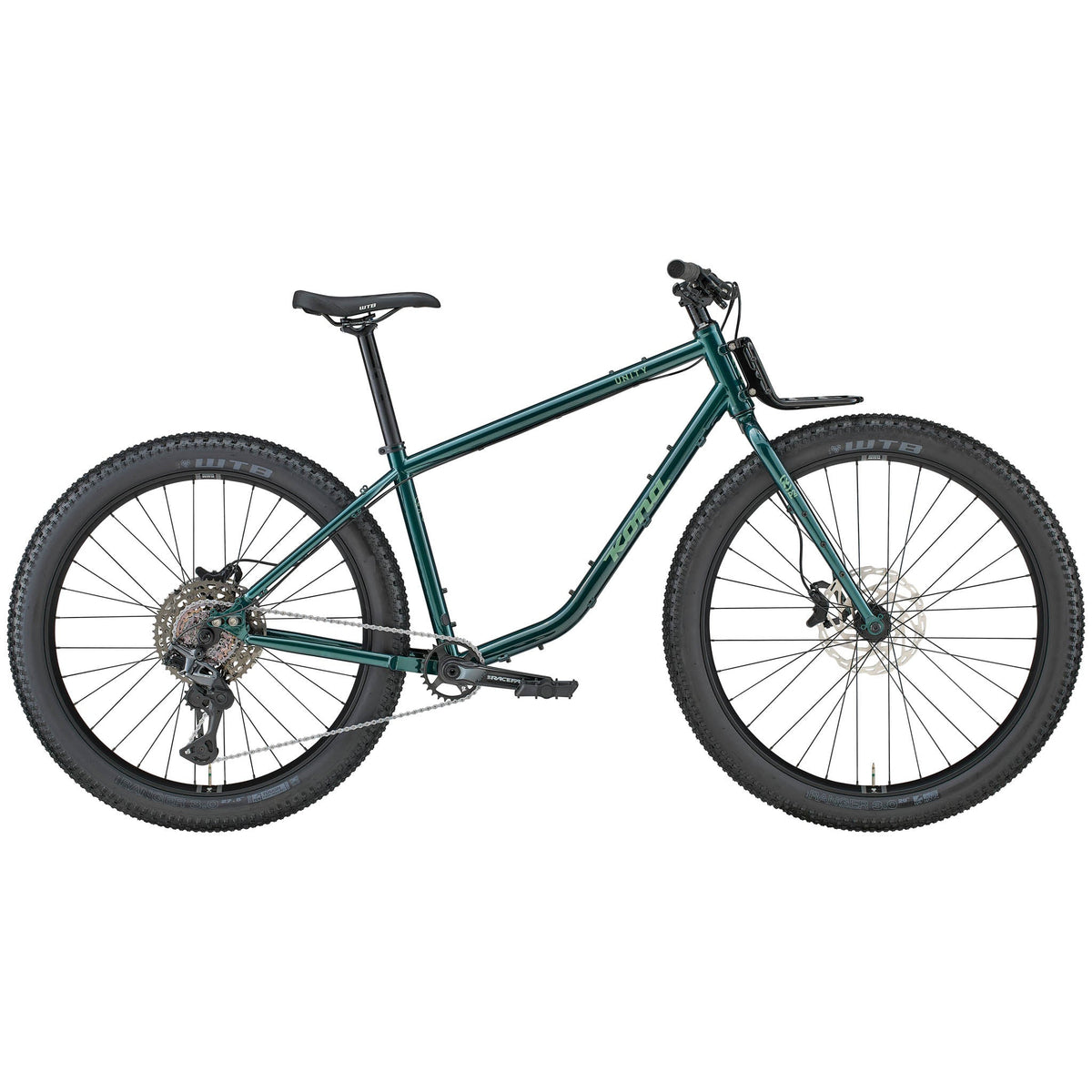

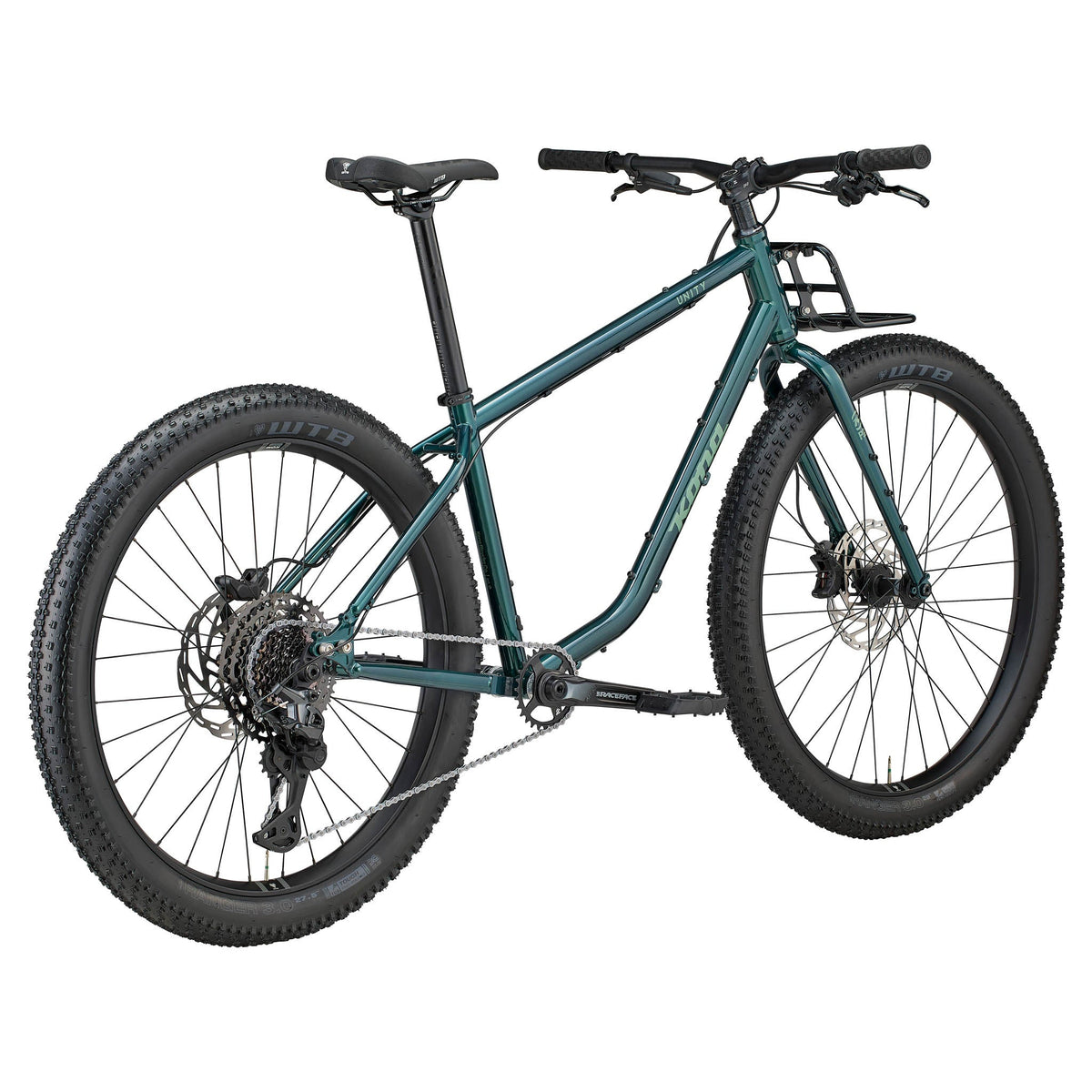

The Unity is a rigid steel mountain bike built for carrying a load into remote places, and it's unapologetically different. Everything about it is designed around bikepacking, from the geometry tuned for loaded riding to the big front triangle that swallows a frame bag and the head-tube-mounted aluminium front rack.
A butted Cromoly frame and fork give a comfortable, durable ride, while mixed wheels, a 29" front and 27.5" rear, both wrapped in 3.0" WTB Ranger TCS Tough tyres on i40 rims, deliver huge grip and flotation on loose or soft ground. Sliding dropouts keep wheel and drivetrain set-up flexible.
The parts are chosen to keep working a long way from a bike shop: Shimano XT 11-speed Linkglide with an 11-50t cassette, Tektro Gemini four-piston brakes on thick 2.3mm 203mm rotors, and DT Swiss 370 hubs with an upgraded 36t ratchet. For 2027 it comes in Gloss Metallic Everglade.
Features
- Kona butted Cromoly frame and fork with multiple mounts

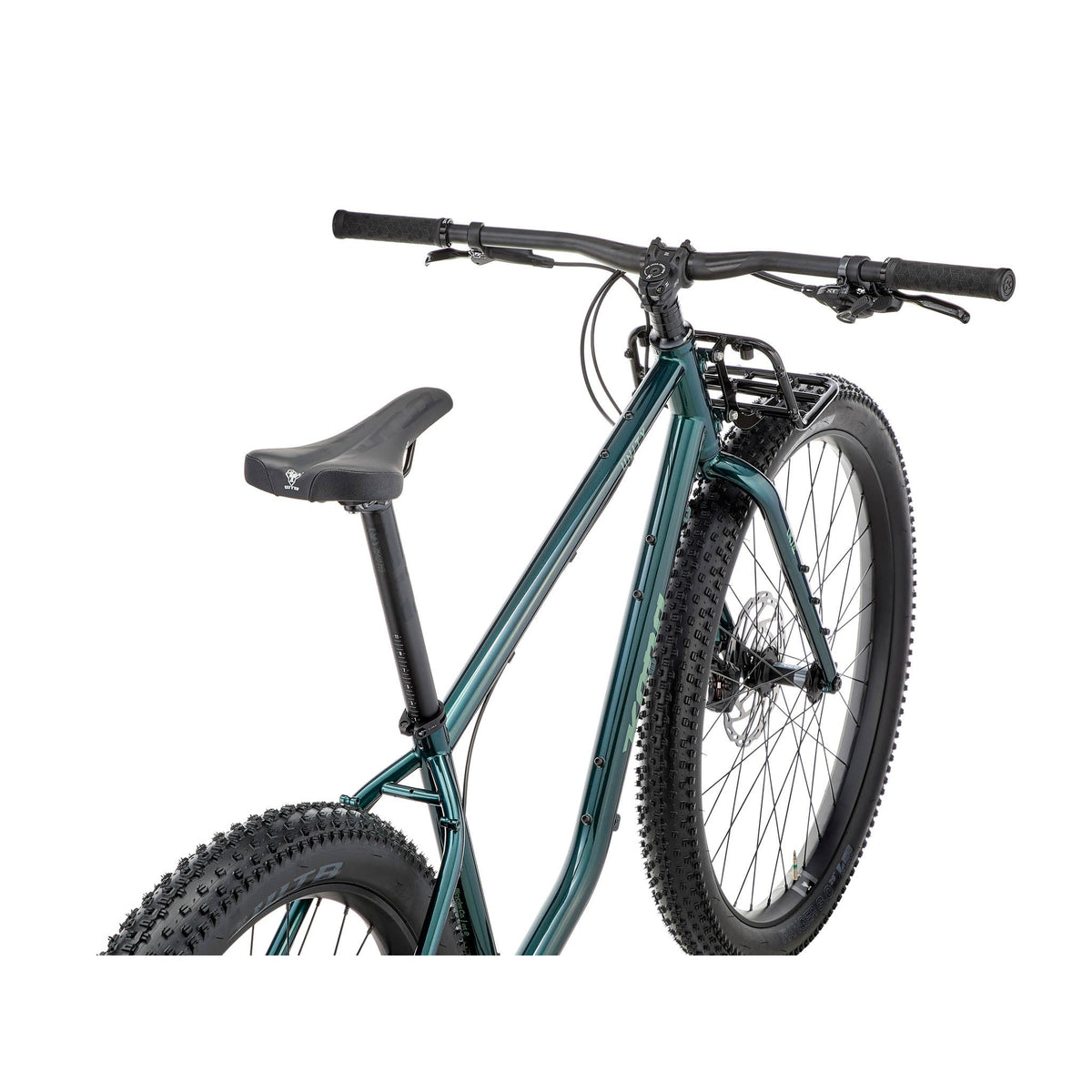

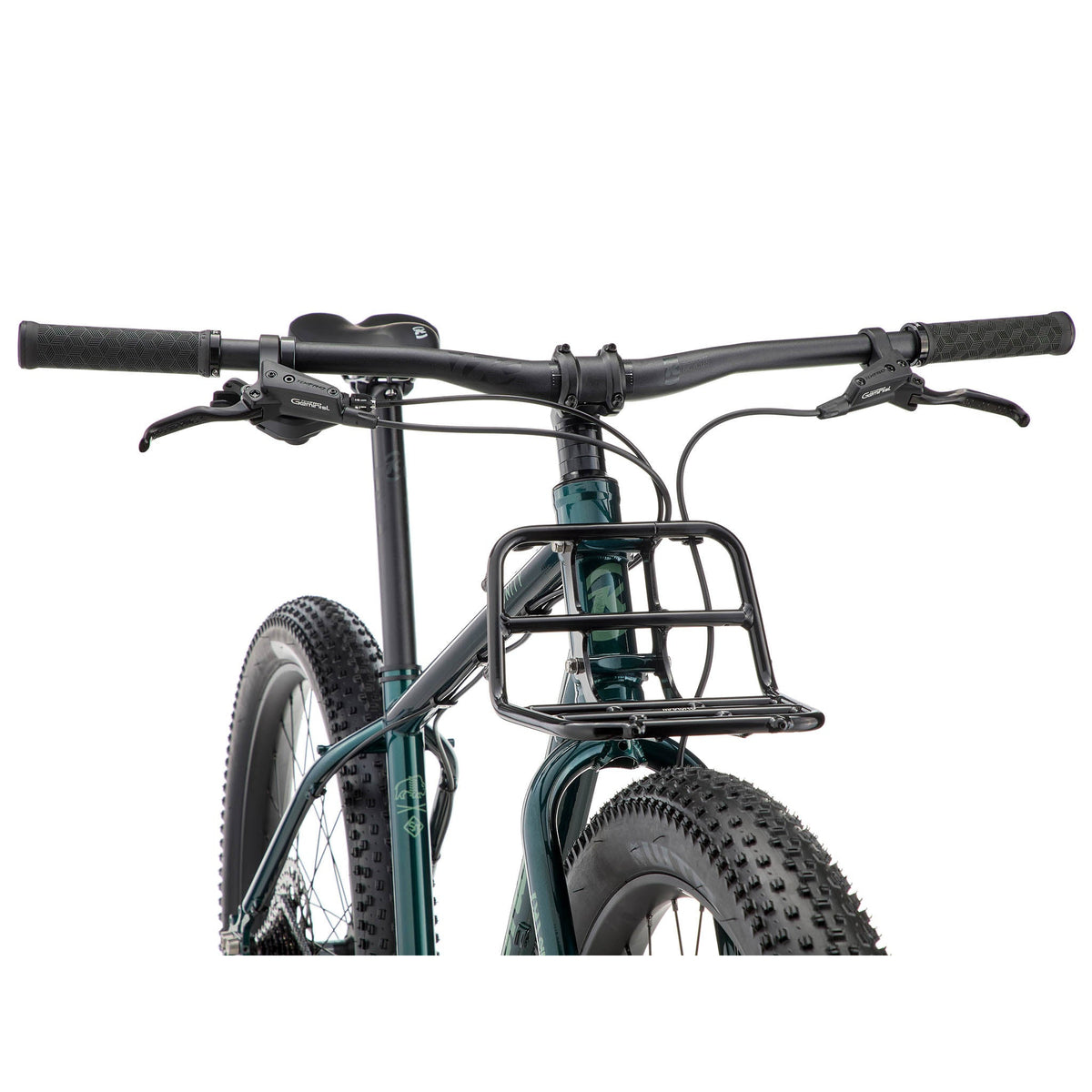

- Kona Unity 6061 aluminium front rack
- Sliding dropouts
- Shimano XT 11-speed Linkglide drivetrain, 11-50t
- Tektro Gemini 4-piston brakes with 2.3mm 203mm rotors
- DT Swiss 370 hubs with 36t ratchet
- WTB KOM i40 Tough rims, 29" front / 27.5" rear
- WTB Ranger TCS Tough 3.0" tyres
Specifications
Bikepacking
Cromoly Steel
Rigid
29" /
27.5"
Frame - Kona Butted Cromoly
Fork - Kona Cromoly

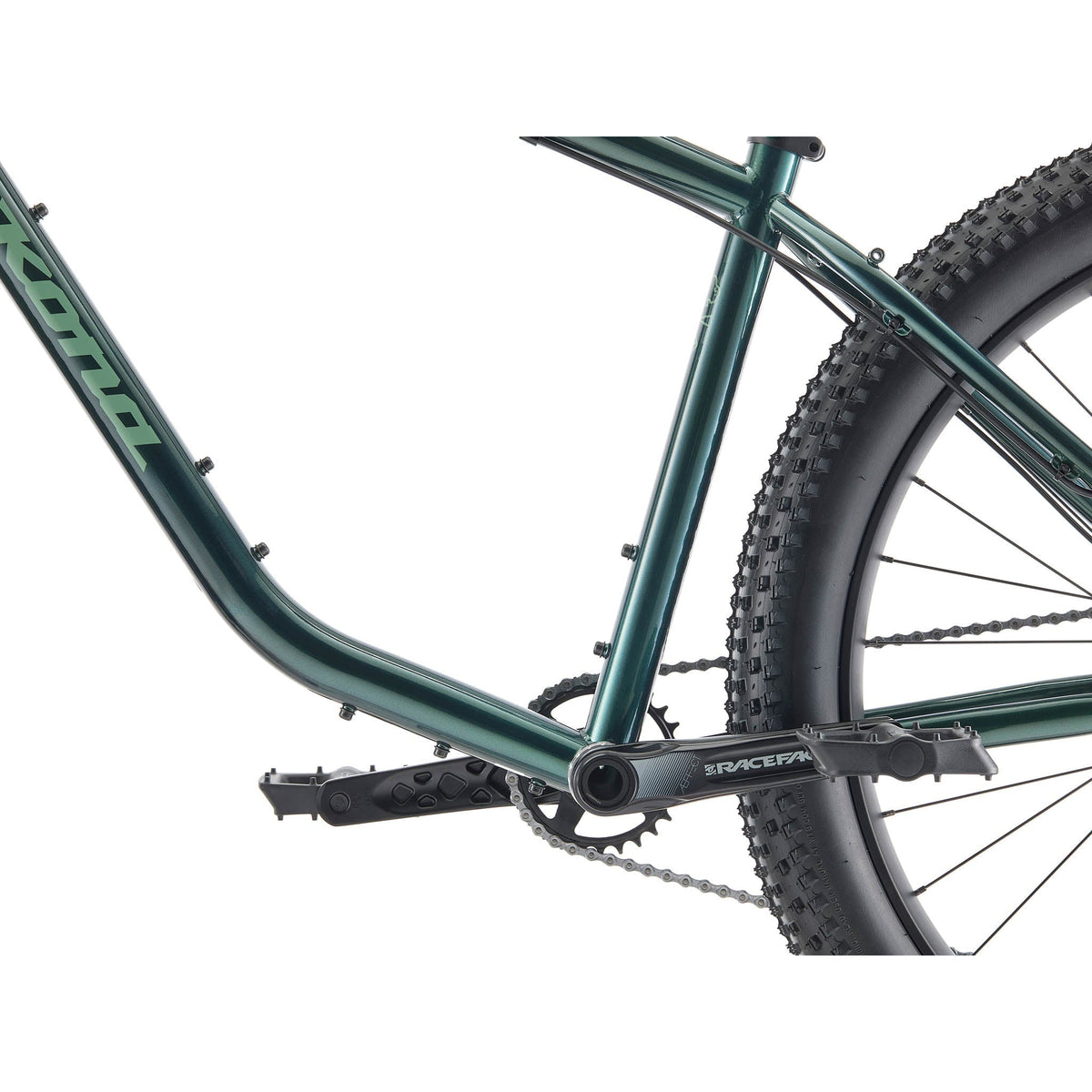

Crankset - RaceFace Aeffect Cinch 28t, S 165mm / M-L 170mm / XL 175mm
Bottom Bracket - RaceFace BSA 73
Pedals - Kona JS2
Chain - KMC eGlide Turbo
Cassette - Shimano XT 11-50t 11-speed Linkglide
Rear Derailleur - Shimano XT
Shifter - Shimano XT
Brakes - Tektro Gemini M535 4-piston
Rotors - Tektro 203mm 6-bolt 2.3mm front and rear
Headset - FSA No.10 ZS44/ZS44
Handlebar - Kona 31.8mm, 9° back, 5° up, 15mm rise, 780mm
Stem - Kona 31.8mm, 0° rise, 35-45mm
Seatpost - Kona Thumb with offset 31.6mm, 375mm
Seat Clamp - Kona Clamp 34.9mm
Grips - Kona Key Grip Lock-on
Saddle - WTB Volt Medium
Front Hub - DT Swiss 370 15x110mm
Rear Hub - DT Swiss 370 12x148mm HG, 36t ratchet
Spokes - Stainless 2.0mm Black
Rims - WTB KOM i40 Tough, 29" front / 27.5" rear
Front Tyre - WTB Ranger TCS Tough 29x3.0"
Rear Tyre - WTB Ranger TCS Tough 27.5x3.0"
Extras - Kona Unity Front Rack, 6061 aluminium
Colour - Gloss Metallic Everglade with Aspen decals
Unity 2027
- Bikepacking/Adventure
- 27.5″ / 29″ wheels
- Steel frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Unity is a rigid steel mountain bike built for carrying a load into remote places, and it's unapologetically different. Everything about it is designed around bikepacking, from the geometry tuned for loaded riding to the big front triangle that swallows a frame bag and the head-tube-mounted aluminium front rack.
A butted Cromoly frame and fork give a comfortable, durable ride, while mixed wheels, a 29" front and 27.5" rear, both wrapped in 3.0" WTB Ranger TCS Tough tyres on i40 rims, deliver huge grip and flotation on loose or soft ground. Sliding dropouts keep wheel and drivetrain set-up flexible.
The parts are chosen to keep working a long way from a bike shop: Shimano XT 11-speed Linkglide with an 11-50t cassette, Tektro Gemini four-piston brakes on thick 2.3mm 203mm rotors, and DT Swiss 370 hubs with an upgraded 36t ratchet. For 2027 it comes in Gloss Metallic Everglade.
Features
- Kona butted Cromoly frame and fork with multiple mounts
- Kona Unity 6061 aluminium front rack
- Sliding dropouts
- Shimano XT 11-speed Linkglide drivetrain, 11-50t
- Tektro Gemini 4-piston brakes with 2.3mm 203mm rotors
- DT Swiss 370 hubs with 36t ratchet
- WTB KOM i40 Tough rims, 29" front / 27.5" rear
- WTB Ranger TCS Tough 3.0" tyres
Specifications
Bikepacking
Cromoly Steel
Rigid
29" /
27.5"
Frame - Kona Butted Cromoly
Fork - Kona Cromoly
Crankset - RaceFace Aeffect Cinch 28t, S 165mm / M-L 170mm / XL 175mm
Bottom Bracket - RaceFace BSA 73
Pedals - Kona JS2
Chain - KMC eGlide Turbo
Cassette - Shimano XT 11-50t 11-speed Linkglide
Rear Derailleur - Shimano XT
Shifter - Shimano XT
Brakes - Tektro Gemini M535 4-piston
Rotors - Tektro 203mm 6-bolt 2.3mm front and rear
Headset - FSA No.10 ZS44/ZS44
Handlebar - Kona 31.8mm, 9° back, 5° up, 15mm rise, 780mm
Stem - Kona 31.8mm, 0° rise, 35-45mm
Seatpost - Kona Thumb with offset 31.6mm, 375mm
Seat Clamp - Kona Clamp 34.9mm
Grips - Kona Key Grip Lock-on
Saddle - WTB Volt Medium
Front Hub - DT Swiss 370 15x110mm
Rear Hub - DT Swiss 370 12x148mm HG, 36t ratchet
Spokes - Stainless 2.0mm Black
Rims - WTB KOM i40 Tough, 29" front / 27.5" rear
Front Tyre - WTB Ranger TCS Tough 29x3.0"
Rear Tyre - WTB Ranger TCS Tough 27.5x3.0"
Extras - Kona Unity Front Rack, 6061 aluminium
Colour - Gloss Metallic Everglade with Aspen decals
