Kona's Lava Dome is the perfect versatile mountain bike. It’s awesome in the dirt. It’s awesome to rally around town. It’s awesome poking around neighbourhood singletrack, and it does it all in a dependable way.
The all-new Lava Dome features an easy-to-use 9-speed drivetrain with a clutch rear derailleur as well as sleek internal cable routing and dropouts. Available for smaller riders in a 26” wheeled XS version, a 27.5” wheel for size S, and 29” wheel for sizes M-XL. These strong wheels can accept up to a 2.6” tires–this bike is ready for everything in its path!
Key Features -
- Kona 6061 Aluminium Butted frame
- Inclusive wheel sizes (XS–26”, S–27.5”, M to XL–29”)
- Suntour XCM 32 suspension fork, 100mm travel
- Microshift Advent 1x9 drivetrain
- Shimano MT200 hydraulic disc brakes
- WTB Trailboss 2.25” tires
Sizing -
- XS; 4'10 - 5'1
- S: 5'0 - 5'4
- M: 5'5 - 5'10
- L: 5'11 - 6'1
- XL: 6'1+
SPECIFICATION -
Frame Material - Kona 6061 Aluminium Butted
Fork - Suntour XCM32 100mm
Crankarms - Prowheel Charm
Chainrings - Prowheel 30t
B/B - Fei Min 73mm
Pedals - Kona JS2
Chain - KMC X9
Cassette - Microshift Advent 11-46t 9spd
R/D - Microshift Advent w/ Clutch
Shifters - Microshift Advent
Brake Calipers - Shimano MT200
Front Brake Rotor - Shimano SM-RT26 180mm
Rear Brake Rotor - Shimano SM-RT26 160mm
Brake Levers - Shimano MT200
Headset - Feimen HP-H868B
Handlebar - Kona XC/BC Riser
Stem - Kona XC
Seatpost - Kona Thumb 31.6mm
Seat Clamp - Kona QR
Grips - Kona Key Grip Slip on
Saddle - Kona XC
Front Hub - Joytech 100x9mm
Rear Hub - Joytech 135x10mm
Spokes - Stainless Black 14g
Rims - HL i27 (XS=26, SM=27.5", MD-XL=29")
Front Tire - WTB Trail Boss 2.25" (XS=26, SM=27.5", MD-XL=29")
Rear Tire - WTB Trail Boss 2.25" (XS=26, SM=27.5", MD-XL=29")

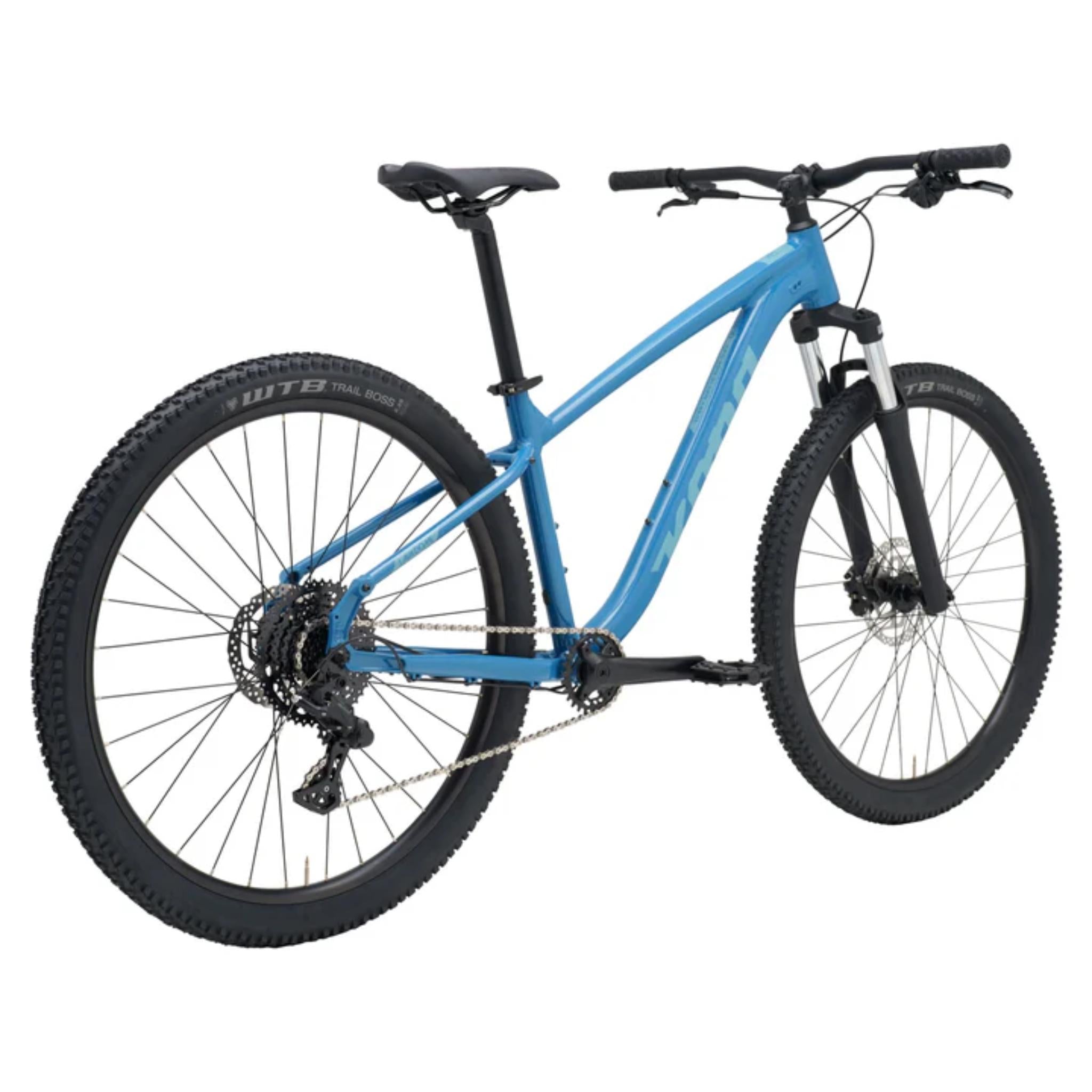

Lava Dome 2026
- Trail
- Hardtail · 100mm fork
- Alloy frame
