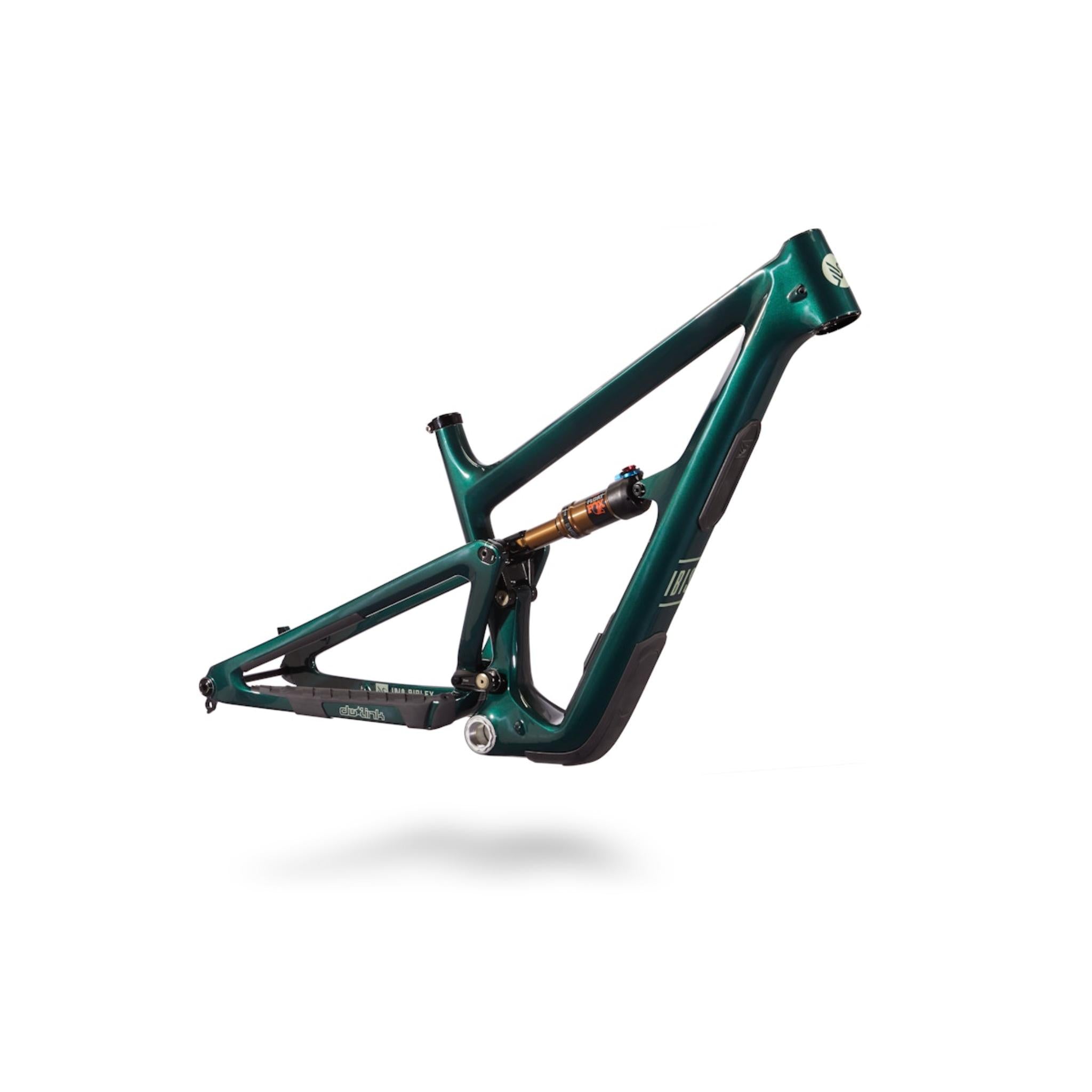

The Ibis Ripley is the trail bike that's game for anything. This award-winning frame has been updated with more travel and slacker geometry, making it even more capable and fun. It climbs with remarkable speed yet stays snappy and playful on the way down, thanks to 130mm of ultra-efficient dw-link rear travel paired with a 140mm fork.
dw-link's inherent efficiency means you don't need an overdamped shock to climb well. Less damping lets the wheels stay planted, giving more traction and the hover-bike feel Ibis frames are known for. A new flip chip lets you run full 29" or mixed 27.5"/29" (MX) wheels on every size without compromising the geometry, and an expanded size range means everyone gets a good fit.
The Ripley also gains internal frame storage. The latch works easily even with cold, muddy gloves, and the door is water-resistant, rattle-free and robust. Inside go two bags made with Cotopaxi from remnant and dead-stock fabric, so each is colourful and unique.
Features
- V5 carbon fibre monocoque frame, 7.3lbs (XM with Fox Float)
- 130mm dw-link rear travel, designed around a 140mm fork
- Flip chip for 29" or MX mixed wheels on all sizes
- Internal frame storage with two Cotopaxi bags included
- SRAM UDH, threaded 73mm BSA bottom bracket
- Lifetime frame warranty and lifetime bushing replacement
Sizing
- S: 5'0" - 5'6"
- M: 5'5" - 5'9"
- XM: 5'8" - 6'0"
- L: 5'11" - 6'3"
- XL: 6'2" - 6'7"
Specifications
DisciplineTrail
MaterialCarbon
Front Travel140mm (recommended)
Rear Travel130mm
Wheel Size29" (MX optional)
WarrantyLifetime (frame)
Version - V5
Frame - Carbon fibre monocoque
Frame Weight - 7.3lbs (XM with Fox Float)
Wheel Size - 29" (MX optional via flip chip)
Shock Size - 210 x 52.5mm
Axles - Boost, 148mm rear / 110mm front
Seatpost Diameter - 34.9mm
Rear Brake - 180mm post mount, 220mm max rotor
Chainstay Length - 433-438mm
Bottom Bracket - Threaded 73mm BSA
Chainline - 55mm
Derailleur Hanger - SRAM UDH
ISCG 05 - Tab mount available separately
Headset - ZS44 upper / ZS56 lower
Bottle Mounts - 22oz on Small, 26oz on all other sizes
Frame Storage - Large internal storage with access door, two Cotopaxi bags
Colours - Blue Hour, Green Flash
Sizes - S, M, XM, L, XL
Warranty - Lifetime frame and wheels, lifetime bushing replacement
