Description
Evil mountain bikes are known for their unique look, ride and attitude. Even among it's hard hitting brethren the Insurgent shines as a wild animal of a mountain bike.
The Insurgent has evolved from is original form to the versatile beast we see now, buildable as an MX (29" front/27.5" rear) wheel bike for a blend of speed and agility or as a full 27.5" bike for bikepark playfulness. The LS (Lightly Salted) version represents the fully tuned and refined iteration of this supremely awesome trail slayer in a exclusive new colourway.
Designed to be fitted with either a 170mm 29”, or 180mm 27.5” fork up front and Evil's unique Delta linkage makes for 168mm of smooth, reliable travel on the back. This is Evils biggest travel bike, pedalling is definitely do-able thanks to the superb suspension platform though gravity assisted riding is where the Insurgent truly lets loose.
Build quality is, as expected, exceptional on all Evil frames and as well as a lifetime frame warranty Evil now offer a free set of replacement linkage bearings once per year, for the frames original owner.
Contact us at support@biketart.com to discuss components, availability or to arrange your own fully built custom Evil Insurgent.
Biketart's recommended sizing guide is as follows -
Small = 5'3" to 5'6"
Medium = 5'6" to 5'10"
Large = 5'10" to 6'2"
XL = 6'2"+
SPECIFICATION -
Wheel Travel - 168mm
Rear Shock - Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320 (Push ElevenSix option available - contact for details)
Shock Hardware - Trunnion Upper, 20x8mm Lower
Fork Offset - 44mm
Headtube - Tapered 1 1/8" - 1 1/2"
Headset - Works Components 1 Degree Angleset
Seatpost Diameter - 30.9mm
Seatclamp Diameter - 34.9mm
Rear Wheel Diameter - 27.5"
Maximum Rear Tire Size - 27.5" x 2.6" (Varies By Brand)
Bottom Bracket Shell - 73mm Threaded
Chainline - 55mm-56.5mm
Chainguide Mount - Evil Proprietary Upper, ISCG05 Lower
Maximum Chainring Size - 36T Single Ring
Minimum Chainring Size - 30T
Rear Wheel Spacing - 157mm x 12mm
Derailleur Hanger - SRAM Universal Derailleur Hanger
Rear Brake Mount Type - Post Mount 180mm
Maximum Rear Rotor Size - 203mm
Recommended to be paired with a 170mm 29”, or 180mm 27.5” fork
Included with the frame -
- Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65
- Headset - Works Components 1 Degree Angleset
- Rear axle
- Evil Seat Clamp
- UDH mech hanger
- Rubber sound cancelling chainstay protection

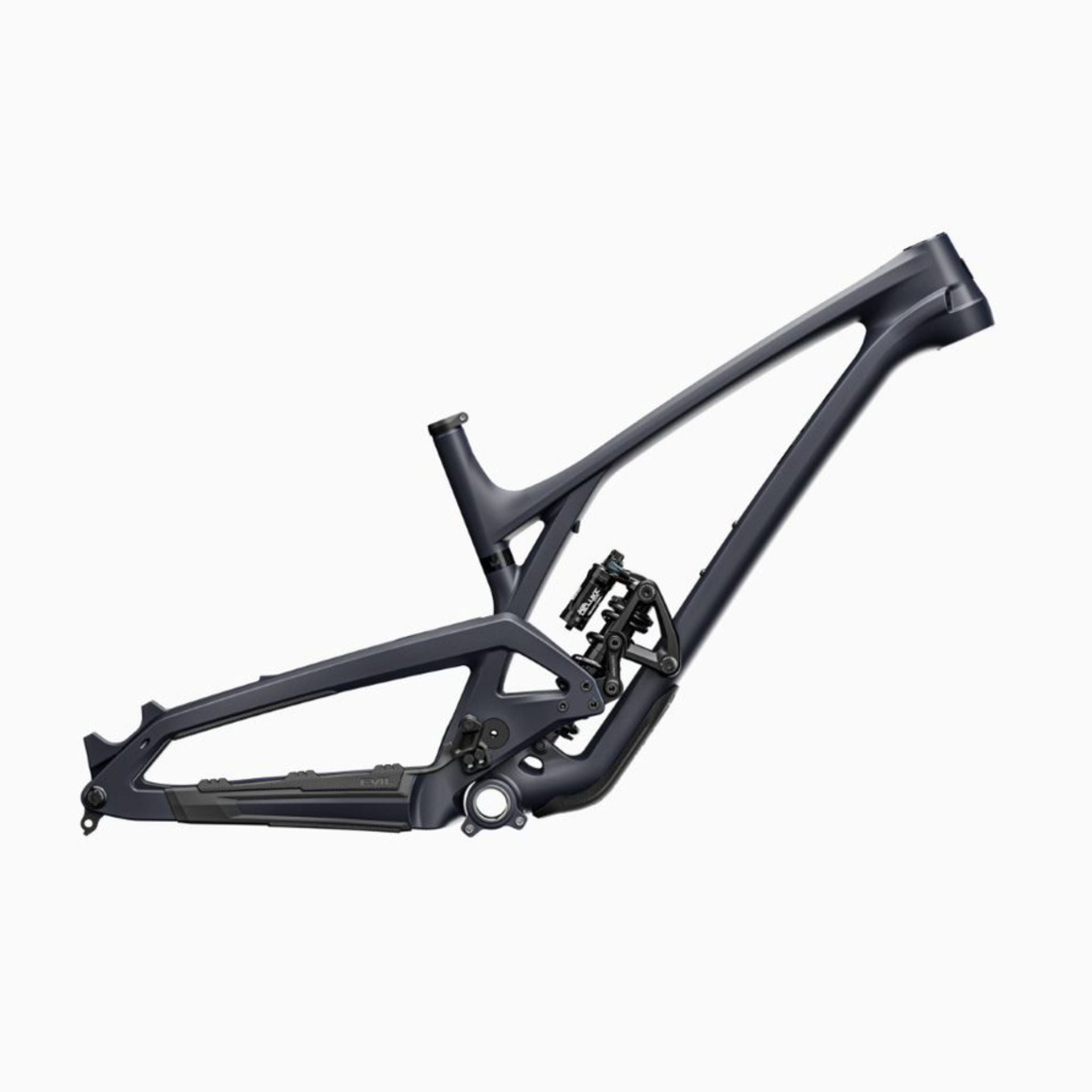

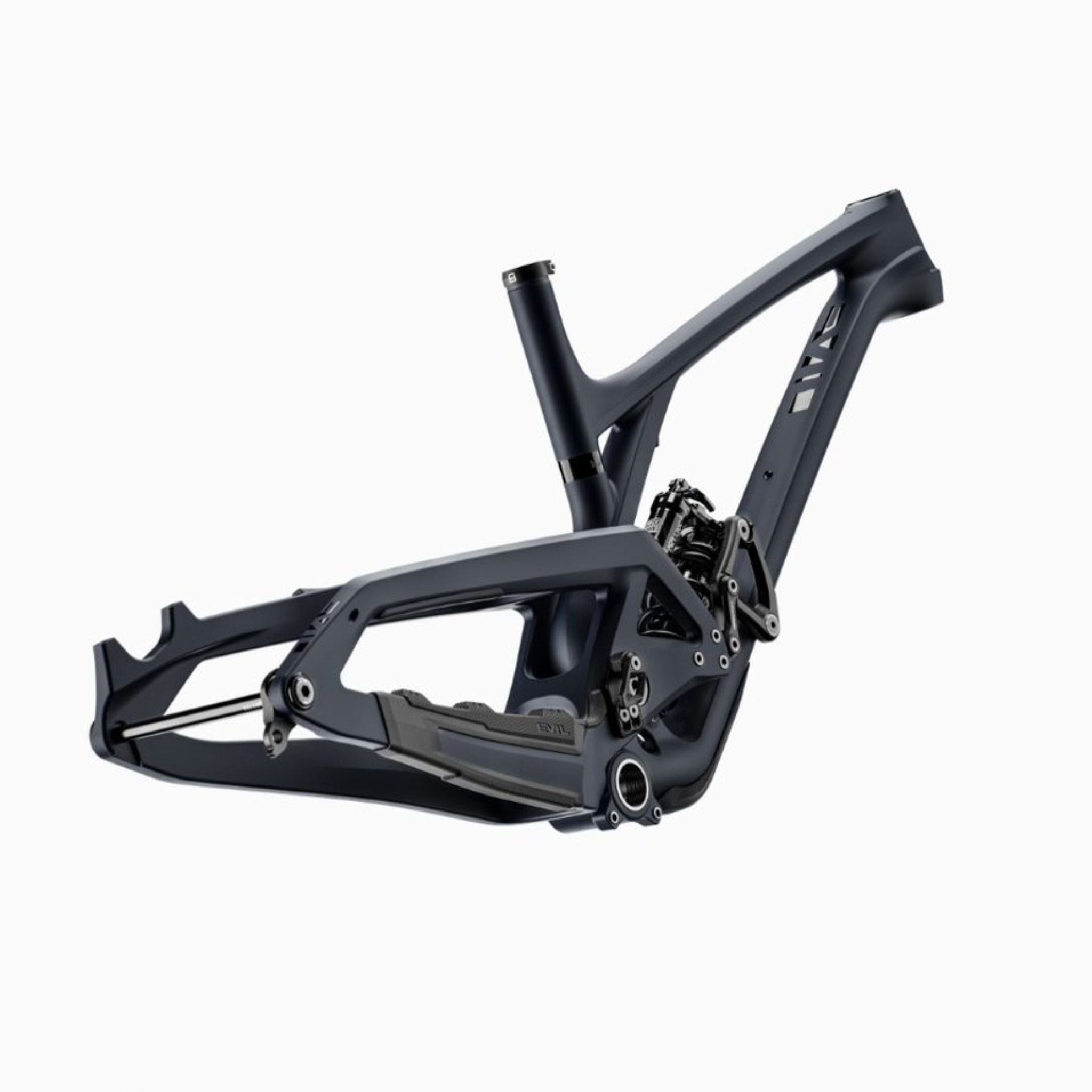

Evil Insurgent LS Frame
Evil mountain bikes are known for their unique look, ride and attitude. Even among it's hard hitting brethren the Insurgent shines as a wild animal of a mountain bike.
The...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Evil mountain bikes are known for their unique look, ride and attitude. Even among it's hard hitting brethren the Insurgent shines as a wild animal of a mountain bike.
The Insurgent has evolved from is original form to the versatile beast we see now, buildable as an MX (29" front/27.5" rear) wheel bike for a blend of speed and agility or as a full 27.5" bike for bikepark playfulness. The LS (Lightly Salted) version represents the fully tuned and refined iteration of this supremely awesome trail slayer in a exclusive new colourway.
Designed to be fitted with either a 170mm 29”, or 180mm 27.5” fork up front and Evil's unique Delta linkage makes for 168mm of smooth, reliable travel on the back. This is Evils biggest travel bike, pedalling is definitely do-able thanks to the superb suspension platform though gravity assisted riding is where the Insurgent truly lets loose.
Build quality is, as expected, exceptional on all Evil frames and as well as a lifetime frame warranty Evil now offer a free set of replacement linkage bearings once per year, for the frames original owner.
Contact us at support@biketart.com to discuss components, availability or to arrange your own fully built custom Evil Insurgent.
Biketart's recommended sizing guide is as follows -
Small = 5'3" to 5'6"
Medium = 5'6" to 5'10"
Large = 5'10" to 6'2"
XL = 6'2"+
SPECIFICATION -
Wheel Travel - 168mm
Rear Shock - Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320 (Push ElevenSix option available - contact for details)
Shock Hardware - Trunnion Upper, 20x8mm Lower
Fork Offset - 44mm
Headtube - Tapered 1 1/8" - 1 1/2"
Headset - Works Components 1 Degree Angleset
Seatpost Diameter - 30.9mm
Seatclamp Diameter - 34.9mm
Rear Wheel Diameter - 27.5"
Maximum Rear Tire Size - 27.5" x 2.6" (Varies By Brand)
Bottom Bracket Shell - 73mm Threaded
Chainline - 55mm-56.5mm
Chainguide Mount - Evil Proprietary Upper, ISCG05 Lower
Maximum Chainring Size - 36T Single Ring
Minimum Chainring Size - 30T
Rear Wheel Spacing - 157mm x 12mm
Derailleur Hanger - SRAM Universal Derailleur Hanger
Rear Brake Mount Type - Post Mount 180mm
Maximum Rear Rotor Size - 203mm
Recommended to be paired with a 170mm 29”, or 180mm 27.5” fork
Included with the frame -
- Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65
- Headset - Works Components 1 Degree Angleset
- Rear axle
- Evil Seat Clamp
- UDH mech hanger
- Rubber sound cancelling chainstay protection
