Description
Evil mountain bikes are known for their unique look, ride and attitude. Even among it's hard hitting brethren the Insurgent shines as a wild animal of a mountain bike.
The Insurgent has evolved from is original form to the versatile beast we see now, buildable as an MX (29" front/27.5" rear) wheel bike for a blend of speed and agility or as a full 27.5" bike for bikepark playfulness. The LS (Lightly Salted) version represents the fully tuned and refined iteration of this supremely awesome trail slayer in a exclusive new colourway.
Designed to be run with either a 170mm 29”, or 180mm 27.5” fork up front (MX 29"/27.5" set-up as standard) and Evil's unique Delta linkage makes for 168mm of smooth, reliable travel on the back. This is Evils biggest travel bike, pedalling is definitely do-able thanks to the superb suspension platform though gravity assisted riding is where the Insurgent truly lets loose.
Geometry is adjustable via flip-chip - Choose LOW mode for everyday trail-slaying geometry, or flip to XLOW mode for a gravity-fed, park eating ride.
Thoughtful quality of life features including and integrated sag meter, rubber sound cancelling chainstay protector, internal cable routing and UDH mech hanger make the Insurgent pleasant to live with.
Build quality is, as expected, exceptional on all Evil frames and as well as a lifetime frame warranty Evil now offer a free set of replacement linkage bearings once per year, for the frames original owner.
Available as standard as an MX wheel bike. 27.5" front and rear is also possible, please get in contact for details if this is your required set-up.
The bike can be equipped with either the RockShox Super Deluxe coil or the Fox X2 air shock.
Please note - images are not available for all build kits and options. Please check listed spec or contact us at support@biketart.com with any queries.
Biketart's recommended sizing guide is as follows -
Small = 5'3" to 5'6"
Medium = 5'6" to 5'10"
Large = 5'10" to 6'2"
XL = 6'2"+
Specifications
-
Discipline Bikepark/Freeride
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 168mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Frame: Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing Integrated Chain Guide, Threaded BB, UDH Compatible
Shock: Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Headset: Works Components 1 Degree Angleset
Headset Spacers: Poly Spacers 5mm black
Fork: Rockshox ZEB Ultimate, Charger 2.1 RC2, 170mm Travel, 44mm Offset
Handlebar: Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Stem: Evil 12 Gauge, Clamp: 35mm, Length: 35mm
Grips: Evil Palmela Handerson lock-on
Brake - Front: SRAM G2 RS
Brake - Rear: SRAM G2 RS
Rotor - Front: SRAM Center Line, 200mm
Rotor - Rear: SRAM Center Line, 180mm
Brake Adapter: SRAM Post Mount 20mm
Shifter: SRAM GX Eagle, 12sp
Rear Derailleur: SRAM GX Eagle, 12sp
Cassette: SRAM XG-1275-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Chain: SRAM GX Eagle w/Powerlock
Crankset: SRAM GX Eagle DUB, SUPERBOOST+, 170mm Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket: SRAM DUB 73mm BSA
Wheelset - Front: eThirteen 29 Hub: 110x15mm
Wheelset - Rear: eThirteen 27.5 Hub: 157x12mm
Tire - Front: Maxxis Minion DHF EXO TR, 29x2.5
Tire - Rear: Maxxis Minion DHF EXO TR, 27.5x2.3
Tubes: Stan's No Tubes Tubeless Sealant
Seatpost: Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm
Saddle: WTB Volt Pro
-
Discipline Bikepark/Freeride
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 168mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Frame: Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing Integrated Chain Guide, Threaded BB, UDH Compatible
Shock: Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Headset: Works Components 1 Degree Angleset
Headset Spacers: Poly Spacers 5mm black
Fork: Rockshox ZEB Ultimate, Charger 2.1 RC2, 170mm Travel, 44mm Offset
Handlebar: Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Stem: Evil 12 Gauge, Clamp: 35mm, Length: 35mm
Grips: Evil Palmela Handerson lock-on
Brake - Front: SRAM G2 RS
Brake - Rear: SRAM G2 RS
Rotor - Front: SRAM Center Line, 200mm
Rotor - Rear: SRAM Center Line, 180mm
Brake Adapter: SRAM Post Mount 20mm
Shifter: SRAM GX Eagle, 12sp
Rear Derailleur: SRAM GX Eagle, 12sp
Cassette: SRAM XG-1275-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Chain: SRAM GX Eagle w/Powerlock
Crankset: SRAM GX Eagle DUB, SUPERBOOST+, 170mm Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket: SRAM DUB 73mm BSA
Wheelset - Front: Industry Nine Enduro S Hydra 29 Internal Width: 30.5mm, Hub: 110x15mm
Wheelset - Rear: Industry Nine Enduro S Hydra 27.5 Internal Width: 30.5mm, Hub: 157x12mm
Tire - Front: Maxxis Minion DHF EXO TR, 29x2.5
Tire - Rear: Maxxis Minion DHF EXO TR, 27.5x2.3
Tubes: Stan's No Tubes Tubeless Sealant
Seatpost: Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm
Saddle: WTB Volt Pro
-
Discipline Bikepark/Freeride
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 168mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Frame: Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing Integrated Chain Guide, Threaded BB, UDH Compatible
Shock: Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Headset: Works Components 1 Degree Angleset
Headset Spacers: Poly Spacers 5mm black
Fork: Rockshox ZEB Ultimate, Charger 2.1 RC2, 29 170mm Travel, 44mm Offset
Handlebar: Evil Boomstick Carbon, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm
Stem: Evil 12 Gauge, Clamp: 35mm, Length: 35mm
Grips: Evil Palmela Handerson lock-on
Brake - Front: SRAM Code RSC
Brake - Rear: SRAM Code RSC
Rotor - Front: SRAM HS2, 200mm
Rotor - Rear: SRAM HS2, 180mm
Brake Adapter: SRAM Post Mount 20mm
Shifter: SRAM AXS Controller
Rear Derailleur: SRAM X01 Eagle AXS, 12spd
Cassette: SRAM X01 XG-1295 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Chain: SRAM X01 Eagle w/Powerlock
Crankset: SRAM X01 Eagle DUB, SUPERBOOST+, 170mm Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket: SRAM DUB 73mm BSA
Wheelset - Front: Industry Nine Enduro S Hydra 29 Internal Width: 30.5mm, Hub: 110x15mm
Wheelset - Rear: Industry Nine Enduro S Hydra 27.5 Internal Width: 30.5mm, Hub: 157x12mm
Tire - Front: Maxxis Minion DHF EXO TR, 29x2.5
Tire - Rear: Maxxis Minion DHF EXO TR, 27.5x2.3
Tubes: Stan's No Tubes Tubeless Sealant
Seatpost: Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm
Saddle: WTB Volt Pro

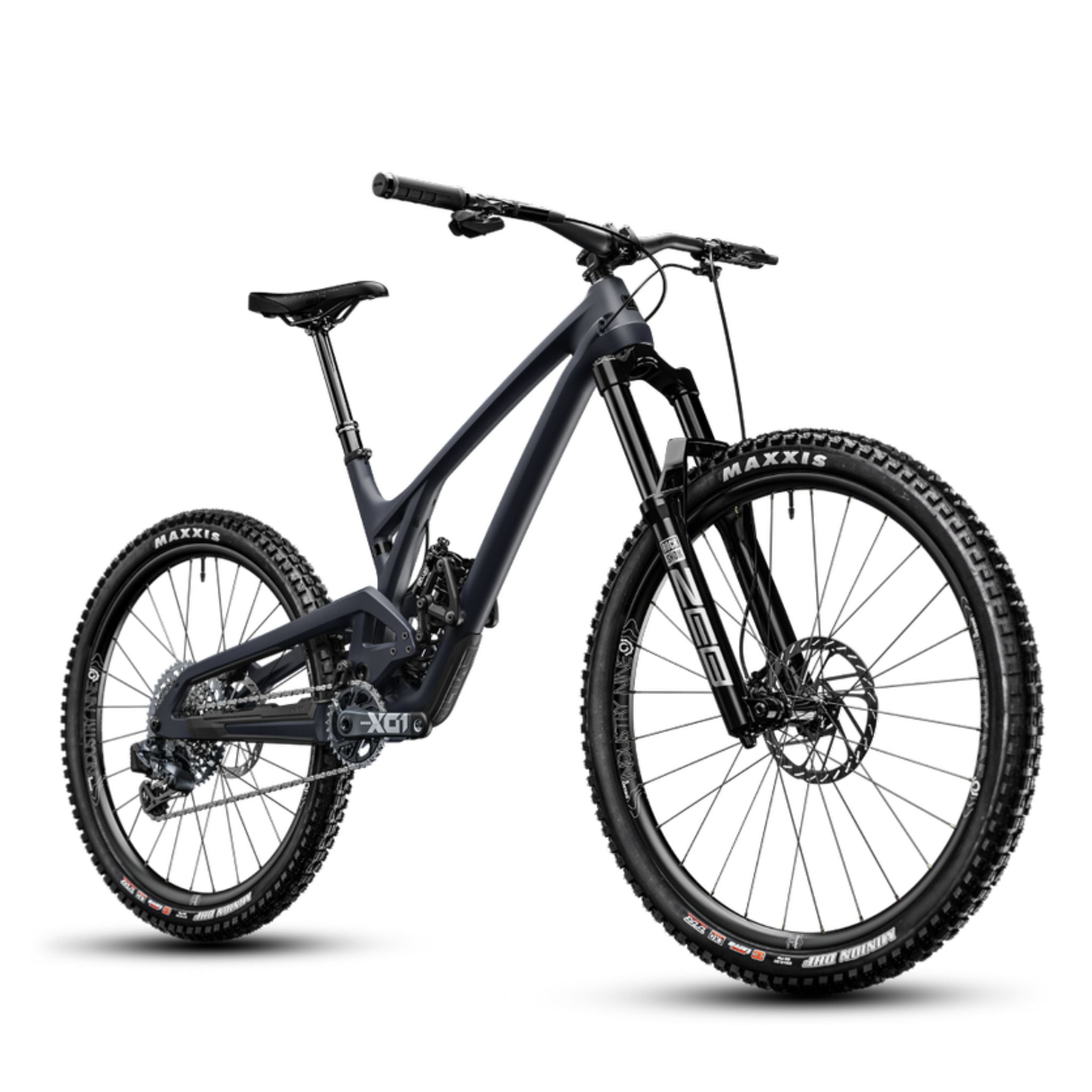

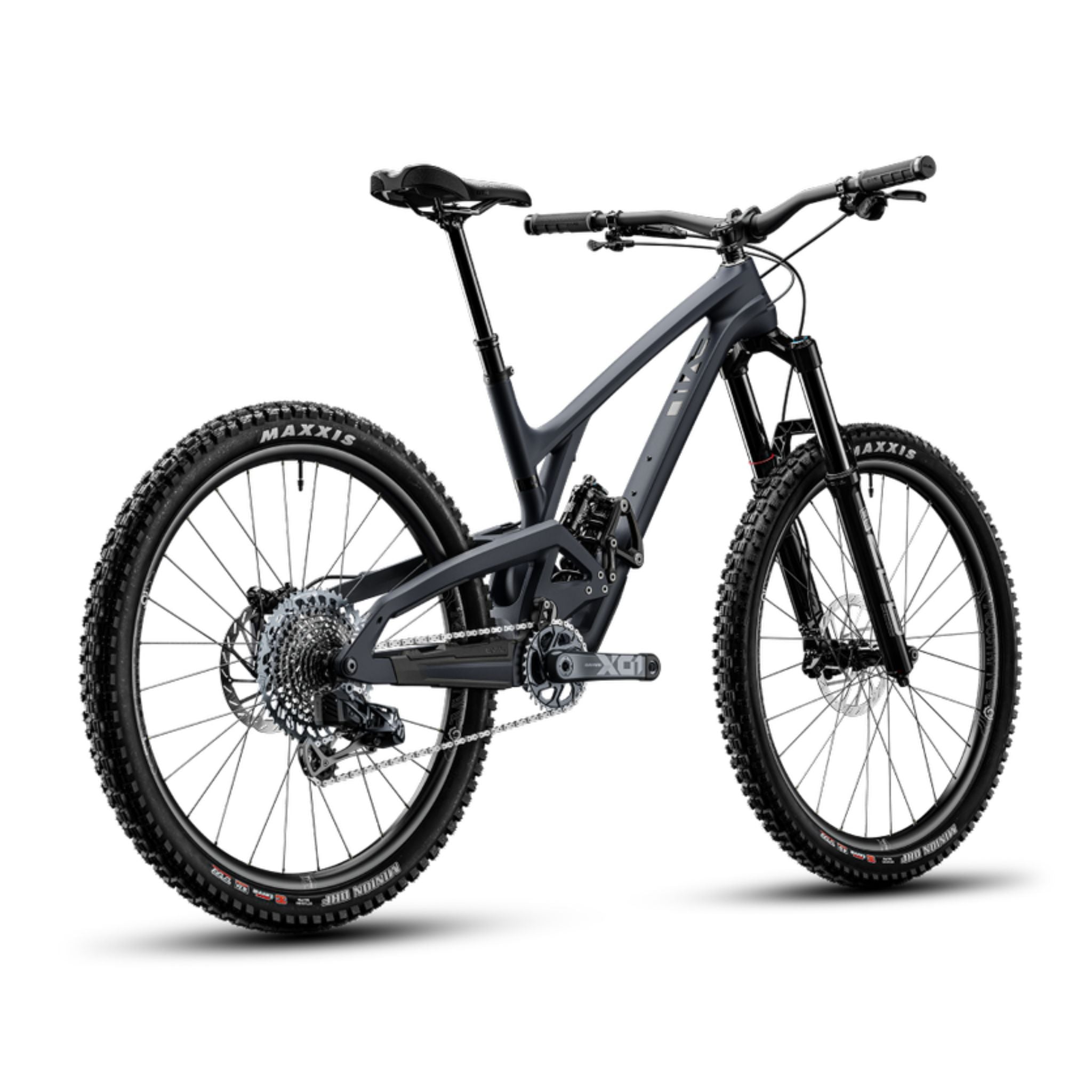

Evil Insurgent LS
Evil mountain bikes are known for their unique look, ride and attitude. Even among it's hard hitting brethren the Insurgent shines as a wild animal of a mountain bike.
The...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Evil mountain bikes are known for their unique look, ride and attitude. Even among it's hard hitting brethren the Insurgent shines as a wild animal of a mountain bike.
The Insurgent has evolved from is original form to the versatile beast we see now, buildable as an MX (29" front/27.5" rear) wheel bike for a blend of speed and agility or as a full 27.5" bike for bikepark playfulness. The LS (Lightly Salted) version represents the fully tuned and refined iteration of this supremely awesome trail slayer in a exclusive new colourway.
Designed to be run with either a 170mm 29”, or 180mm 27.5” fork up front (MX 29"/27.5" set-up as standard) and Evil's unique Delta linkage makes for 168mm of smooth, reliable travel on the back. This is Evils biggest travel bike, pedalling is definitely do-able thanks to the superb suspension platform though gravity assisted riding is where the Insurgent truly lets loose.
Geometry is adjustable via flip-chip - Choose LOW mode for everyday trail-slaying geometry, or flip to XLOW mode for a gravity-fed, park eating ride.
Thoughtful quality of life features including and integrated sag meter, rubber sound cancelling chainstay protector, internal cable routing and UDH mech hanger make the Insurgent pleasant to live with.
Build quality is, as expected, exceptional on all Evil frames and as well as a lifetime frame warranty Evil now offer a free set of replacement linkage bearings once per year, for the frames original owner.
Available as standard as an MX wheel bike. 27.5" front and rear is also possible, please get in contact for details if this is your required set-up.
The bike can be equipped with either the RockShox Super Deluxe coil or the Fox X2 air shock.
Please note - images are not available for all build kits and options. Please check listed spec or contact us at support@biketart.com with any queries.
Biketart's recommended sizing guide is as follows -
Small = 5'3" to 5'6"
Medium = 5'6" to 5'10"
Large = 5'10" to 6'2"
XL = 6'2"+
Specifications
-
Discipline Bikepark/Freeride
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 168mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Frame: Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing Integrated Chain Guide, Threaded BB, UDH Compatible
Shock: Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Headset: Works Components 1 Degree Angleset
Headset Spacers: Poly Spacers 5mm black
Fork: Rockshox ZEB Ultimate, Charger 2.1 RC2, 170mm Travel, 44mm Offset
Handlebar: Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Stem: Evil 12 Gauge, Clamp: 35mm, Length: 35mm
Grips: Evil Palmela Handerson lock-on
Brake - Front: SRAM G2 RS
Brake - Rear: SRAM G2 RS
Rotor - Front: SRAM Center Line, 200mm
Rotor - Rear: SRAM Center Line, 180mm
Brake Adapter: SRAM Post Mount 20mm
Shifter: SRAM GX Eagle, 12sp
Rear Derailleur: SRAM GX Eagle, 12sp
Cassette: SRAM XG-1275-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Chain: SRAM GX Eagle w/Powerlock
Crankset: SRAM GX Eagle DUB, SUPERBOOST+, 170mm Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket: SRAM DUB 73mm BSA
Wheelset - Front: eThirteen 29 Hub: 110x15mm
Wheelset - Rear: eThirteen 27.5 Hub: 157x12mm
Tire - Front: Maxxis Minion DHF EXO TR, 29x2.5
Tire - Rear: Maxxis Minion DHF EXO TR, 27.5x2.3
Tubes: Stan's No Tubes Tubeless Sealant
Seatpost: Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm
Saddle: WTB Volt Pro
-
Discipline Bikepark/Freeride
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 168mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Frame: Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing Integrated Chain Guide, Threaded BB, UDH Compatible
Shock: Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Headset: Works Components 1 Degree Angleset
Headset Spacers: Poly Spacers 5mm black
Fork: Rockshox ZEB Ultimate, Charger 2.1 RC2, 170mm Travel, 44mm Offset
Handlebar: Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Stem: Evil 12 Gauge, Clamp: 35mm, Length: 35mm
Grips: Evil Palmela Handerson lock-on
Brake - Front: SRAM G2 RS
Brake - Rear: SRAM G2 RS
Rotor - Front: SRAM Center Line, 200mm
Rotor - Rear: SRAM Center Line, 180mm
Brake Adapter: SRAM Post Mount 20mm
Shifter: SRAM GX Eagle, 12sp
Rear Derailleur: SRAM GX Eagle, 12sp
Cassette: SRAM XG-1275-B1 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Chain: SRAM GX Eagle w/Powerlock
Crankset: SRAM GX Eagle DUB, SUPERBOOST+, 170mm Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket: SRAM DUB 73mm BSA
Wheelset - Front: Industry Nine Enduro S Hydra 29 Internal Width: 30.5mm, Hub: 110x15mm
Wheelset - Rear: Industry Nine Enduro S Hydra 27.5 Internal Width: 30.5mm, Hub: 157x12mm
Tire - Front: Maxxis Minion DHF EXO TR, 29x2.5
Tire - Rear: Maxxis Minion DHF EXO TR, 27.5x2.3
Tubes: Stan's No Tubes Tubeless Sealant
Seatpost: Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm
Saddle: WTB Volt Pro
-
Discipline Bikepark/Freeride
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 168mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Frame: Insurgent 168mm of travel, UD Carbon, Full Internal Cable Routing, SB+ 157mm Rear Spacing Integrated Chain Guide, Threaded BB, UDH Compatible
Shock: Rockshox Super Deluxe Coil Ultimate, Trunnion 205x65, ML 320
Headset: Works Components 1 Degree Angleset
Headset Spacers: Poly Spacers 5mm black
Fork: Rockshox ZEB Ultimate, Charger 2.1 RC2, 29 170mm Travel, 44mm Offset
Handlebar: Evil Boomstick Carbon, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm
Stem: Evil 12 Gauge, Clamp: 35mm, Length: 35mm
Grips: Evil Palmela Handerson lock-on
Brake - Front: SRAM Code RSC
Brake - Rear: SRAM Code RSC
Rotor - Front: SRAM HS2, 200mm
Rotor - Rear: SRAM HS2, 180mm
Brake Adapter: SRAM Post Mount 20mm
Shifter: SRAM AXS Controller
Rear Derailleur: SRAM X01 Eagle AXS, 12spd
Cassette: SRAM X01 XG-1295 Eagle, 10-52T, 10,12,14,16,18,21,24,28,32,36,42,52
Chain: SRAM X01 Eagle w/Powerlock
Crankset: SRAM X01 Eagle DUB, SUPERBOOST+, 170mm Direct Mount 32t, 56.5mm Chainline, Lunar
Bottom Bracket: SRAM DUB 73mm BSA
Wheelset - Front: Industry Nine Enduro S Hydra 29 Internal Width: 30.5mm, Hub: 110x15mm
Wheelset - Rear: Industry Nine Enduro S Hydra 27.5 Internal Width: 30.5mm, Hub: 157x12mm
Tire - Front: Maxxis Minion DHF EXO TR, 29x2.5
Tire - Rear: Maxxis Minion DHF EXO TR, 27.5x2.3
Tubes: Stan's No Tubes Tubeless Sealant
Seatpost: Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm
Saddle: WTB Volt Pro
