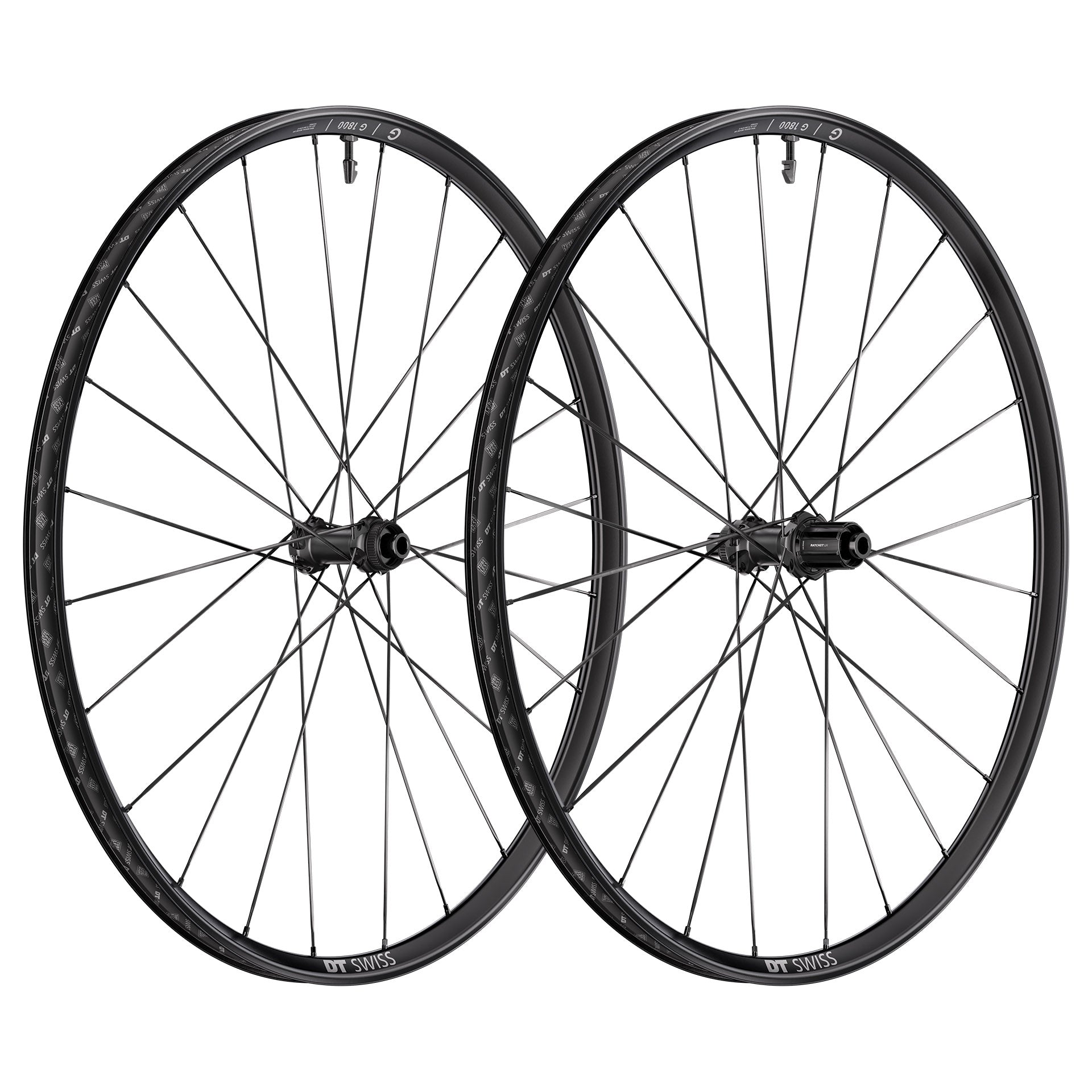

The G 1800 SPLINE Front Wheel is a versatile gravel wheel built to take the rough with the smooth. Its wide alloy rim is designed around big, grippy gravel tyres for confident handling on loose, mixed terrain.

The rim runs 20mm deep with a 26mm internal width, giving 700c gravel tyres a broad, stable footprint for traction and comfort. A new angular rim shape sheds weight while adding durability when the terrain gets demanding. It uses a hooked bead and a sleeved joint and is tubeless ready with tape already fitted, so you can drop pressures for grip and see off thorns and sharp edges once set up.

DT Swiss laces the wheel with aero straight-pull spokes onto the proven 370 straight-pull hub with the 36T Ratchet LN System, running a 100x12mm thru-axle with a Center Lock disc mount. Also available with a front dynamo hub (350 straight-pull with a Shutter Precision PL-7 generator, 6V3W StVZO output) for powering lights and USB devices on long adventures.

Features

• Wide gravel alloy rim with 26mm internal width
• New angular rim profile, 20mm deep
• Hooked bead, sleeved joint, tubeless ready (tape fitted)
• DT Swiss 370 straight-pull hub with 36T Ratchet LN System
• Aero straight-pull spokes, 24h 2-cross
• 100x12mm thru-axle, Center Lock disc
• Standard or front dynamo hub option

Specification

• Position: Front
• Wheel size: 700c
• Rim material: Aluminium
• Rim depth: 20mm
• Internal rim width: 26mm
• Tyre type: Hooked, tubeless ready
• Hub: DT Swiss 370 straight-pull, 36T Ratchet LN System (dynamo: 350 straight-pull, Shutter Precision PL-7, 6V3W)
• Spokes: Aero straight-pull, 24h 2-cross
• Axle: 100x12mm thru-axle
• Brake: Center Lock disc
• Claimed weight (wheelset): from 1,681g
• Max system weight: 130kg
• Included: Tubeless tape (fitted), tubeless valve (dynamo: wire connector)
