Description
DT's all conquering XC race programme, which has seen DT suspension take multiple XCO World championships and both the MTB Golds at Rio 2016, was tasked with creating a new superlight race-worthy fork that would perform both as a XC race weapon and a Downcountry singletrack slayer.
Mathias Flückiger rolled up to the Albstadt start line with a new secret weapon; a blacked out F 232, 83 minutes of horrendous mud and rain later the new fork had taken its first UCI World Cup victory in emphatic style.
A careful balance of XC World Cup winning race performance and downcountry practicality, the F232 weighs just 1480 grams but is stiffer than many heftier trail forks and unlike many of its racing peers it features clearance for a proper 2.4 inch front tyre even with the included integrated front fender installed.
The LINÉ-AIR spring offers the lightweight adjustability of air with a linear curve that blends lower initial resistance with steady, coil-like progression that offers better support to the fork throughout its travel rather than a sudden ramp at the end.
The spring's characteristics can be adjusted easily with the included APT internal volume spacers as required.
The IN-CONTROL damper offers a supportive mid-stroke with supple initial travel for traction and long distance comfort.

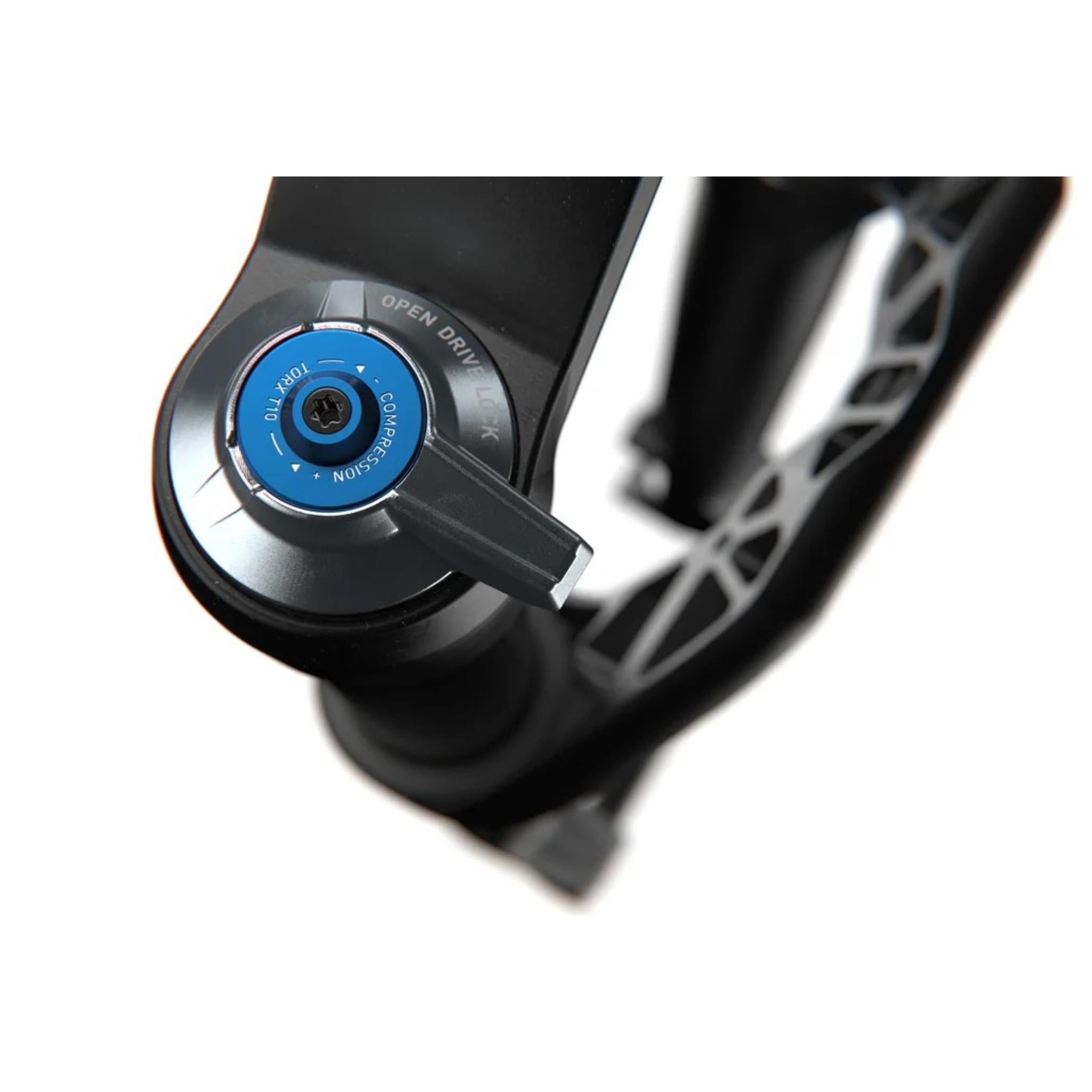

An Open/Drive/Lock crown lever or remote allows you to stiffen the fork for long climbs on smoother terrain.
With legendary SKF seals from Sweden fitted as standard, oversized bushings and high quality all-metal internals DT Swiss are able to offer the best service intervals in the business with a full service only required every 200 riding hours or annually.
Includes DT Swiss 110 x 15 mm BOOST axle, custom bolt-on fender, APT volume spacers, cable guide kit and Top cap with star-nut.
Specifications
- Travel: 100, 110 & 120mm
- Axle: 15 x 110mm Boost
- Wheel Size: 29" / 700c
- Steerer: 1.1/8"-1.5" Tapered
- Stanchion: 32mm
- Offset: 44 & 51mm
- Steerer tube length: 230 mm
- Lockout: 3 levels (Open, Drive, Lock) adjustable on the remote lever
- Brake mount: Postmount PM6 (160 mm)
- Max brake disc size: 203 mm
- Max system weight: 130 kg
- Material fork crown/shaft: aluminium
- Material fork tubes: Magnesium cast alloy

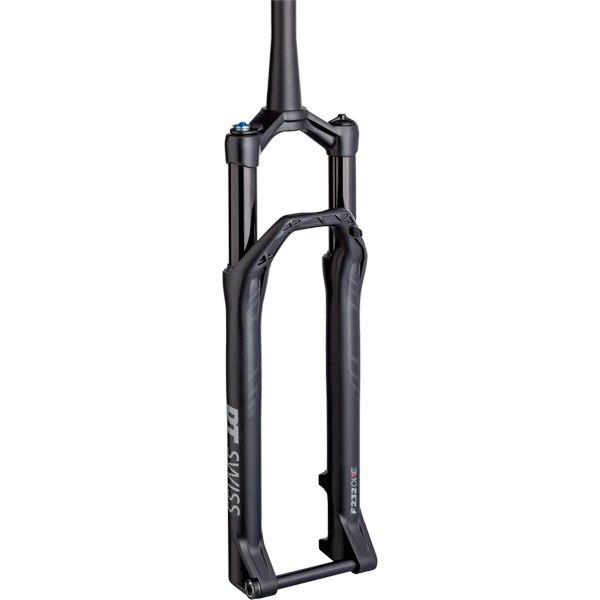

DT Swiss F232 ONE XC Suspension Forks
