The Lead Is Not Given — It’s Taken.
Take It with the DT Swiss ARC 1100 DICUT

The DT Swiss ARC range has earned its place at the top of elite road and triathlon racing. The 2nd generation ARC wheels were already proven at the highest levels — so how do you improve a proven champion?

Enter the 3rd Generation ARC 1100 DICUT

Produced in DT’s European facility, the latest ARC 1100 wheels feature a fully proprietary carbon rim developed in collaboration with the aerodynamic specialists at Swiss Side. Each rim is extensively tested in the GST wind tunnel, ensuring cutting-edge aero performance.

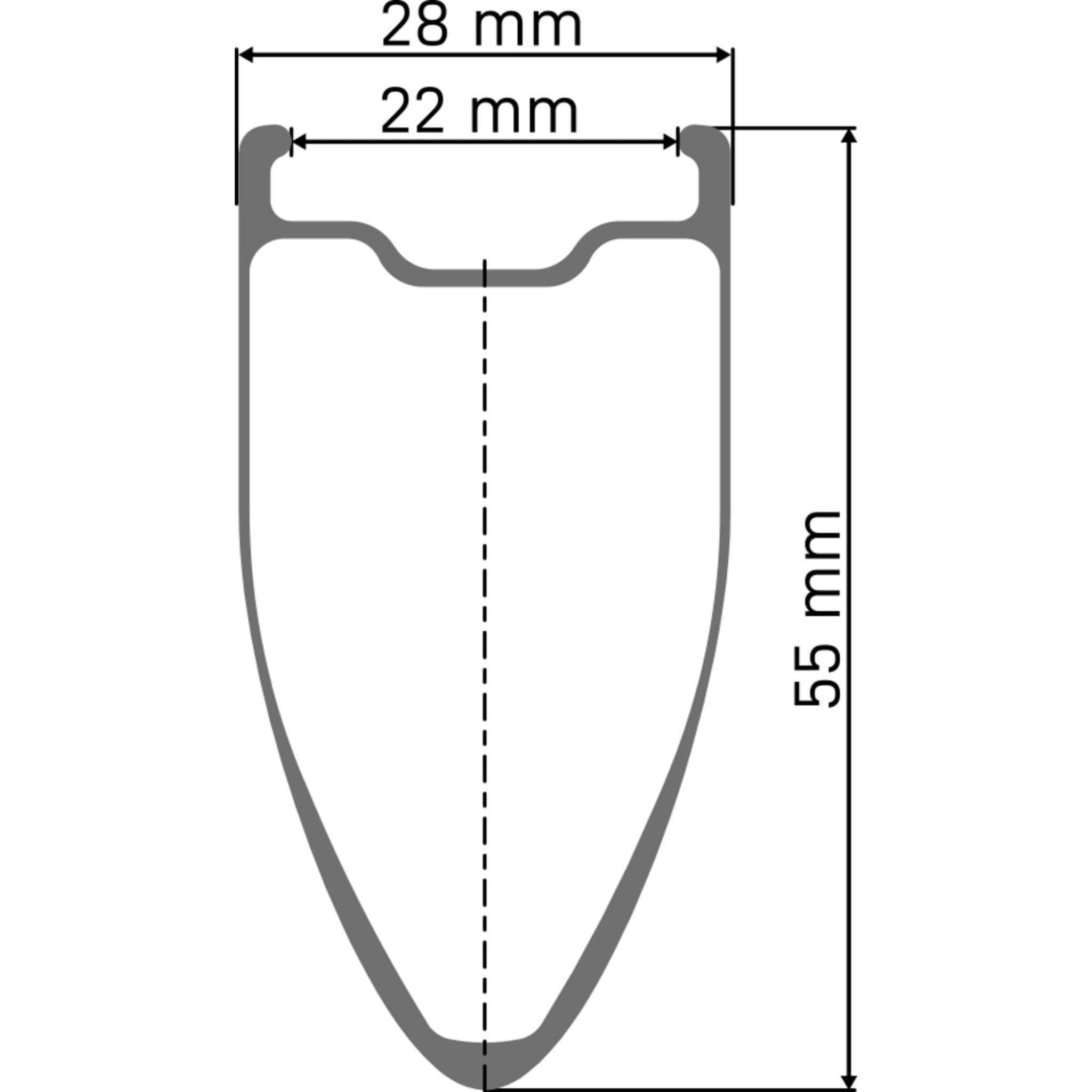

The updated rim design includes a 22 mm internal width, optimised specifically for 28–30 mm tyres, and a unique hybrid V-shape profile. This allows the use of deeper rims while delivering outstanding crosswind stability — even better than previous, shallower designs.

Light, Fast, and Built to Win

Thanks to advances in DT's in-house carbon manufacturing, the new rim construction features a refined lay-up and a flawless “out-of-mould” finish, eliminating the need for cosmetic veneers. Each rim is individually scanned to ensure every carbon layer is precisely placed before assembly.

The result? A weight saving of up to 158 grams per pair compared to the previous generation — despite being both wider and deeper.

Class-Leading Hubs and Spokes

Built around DT’s ultra-reliable DICUT 180 hubs, the ARC 1100 features:

• 36-tooth Ratchet EXP drive system

• SiNC ceramic bearings

This combination delivers outstanding efficiency, reduced drag, and DT’s legendary ease of servicing.

Complementing the hubs are the Aerolite II spokes, developed with Swiss Side to reduce rotational drag and maximise aerodynamic performance.

Ready to Roll

• Front axle: 12 x 100 mm thru-axle

• Rear axle: 12 x 142 mm thru-axle

• Maximum system weight: 110 kg

• Includes: wheel bags, tubeless rim tape, lightweight tubeless valves

• Freehub compatibility: Shimano Road & SRAM XDR (included with rear wheels)

Confidence, Guaranteed

The ARC 1100 wheels are backed by a lifetime warranty against manufacturing defects and a 10-year crash replacement programme.

Wheel Weights by Rim Depth (per pair)

• 55 mm: 1471 g

Specifications

• Product Type: Rear Wheel

• Disciplines: Road / Time Trial / Triathlon

• Colour: Black

• Size: 700c

• Axle Type: 12 mm Thru-Axle

• Brake Type: Centre Lock Disc

• Freehub: Shimano HG Road, SRAM XDR (both included)

• Hub Width: 142 mm

• Rim Depth: 51–60 mm

• Rim Type: Carbon Clincher

• Internal Rim Width: 22 mm

• Tyre Compatibility: 28–30 mm

• Wheel Diameter: 700c
