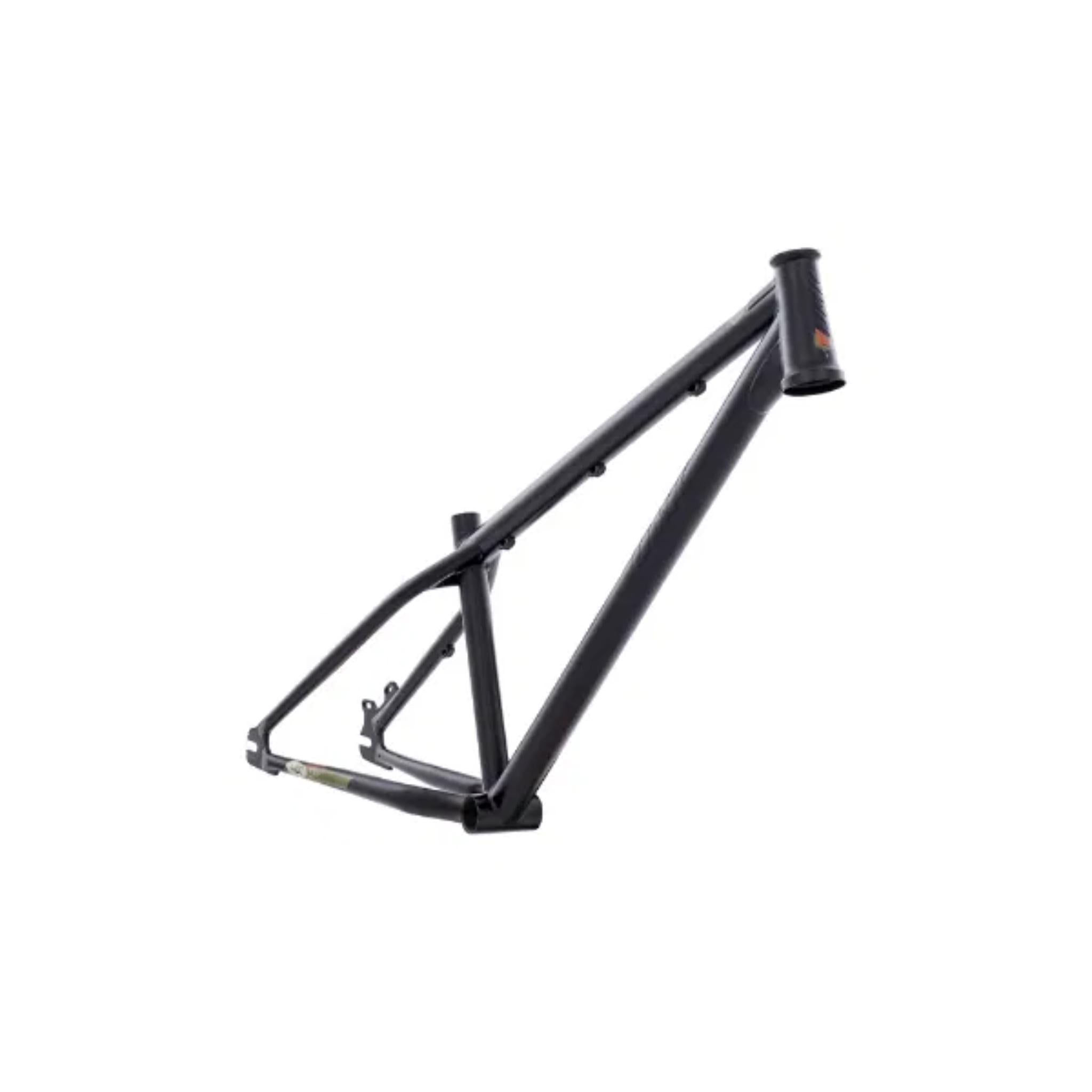

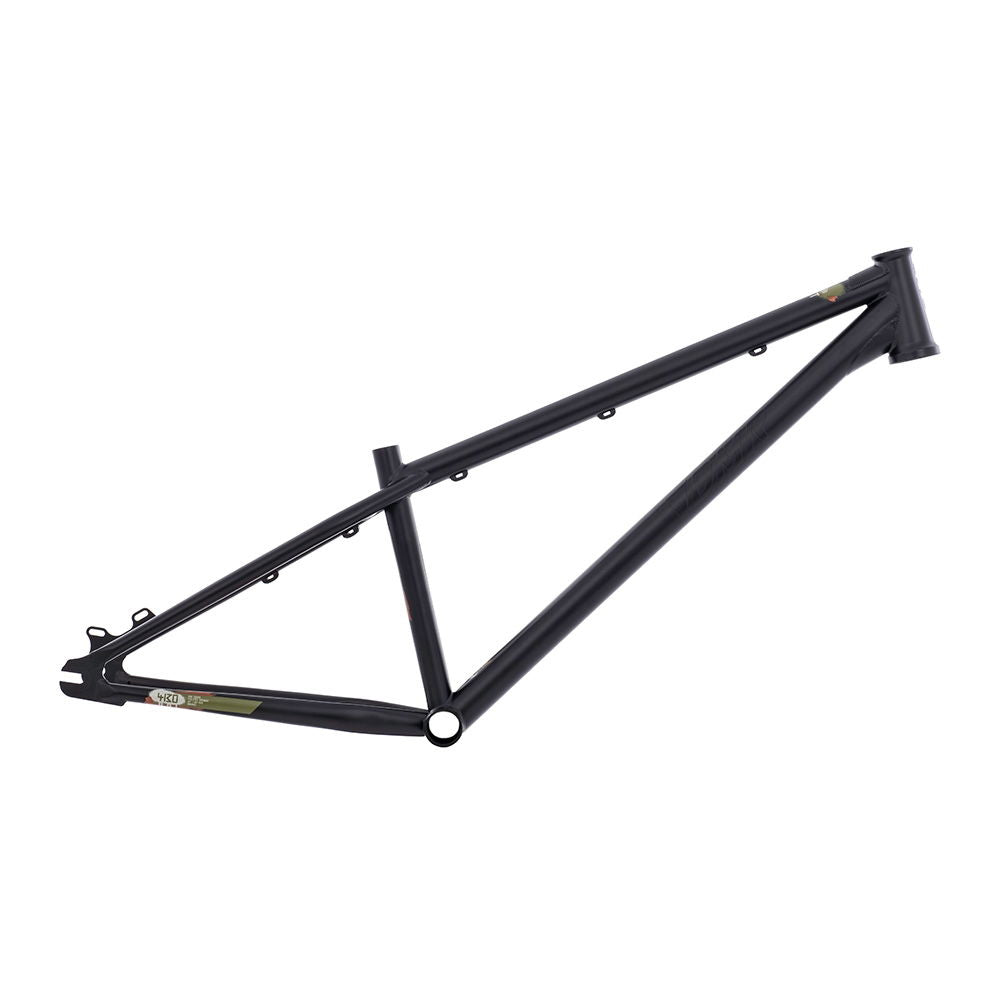

The Sect 24" is a trail and dirt jump frame built from a fully heat-treated, double-butted 4130 chromoly tubeset for maximum strength at minimum weight. With nearly three decades of experience building chromoly frames, DMR has put all that know-how into the Sect.

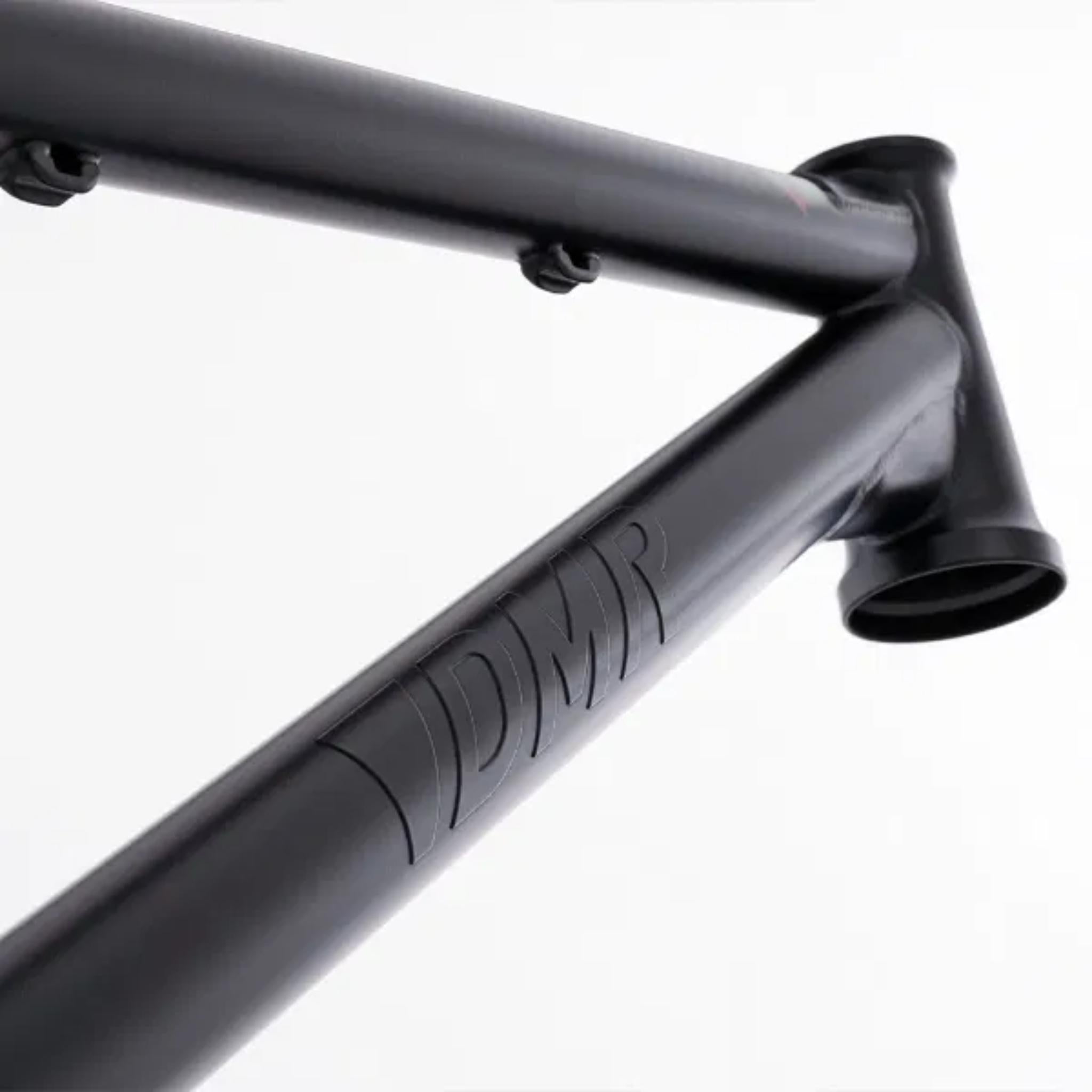

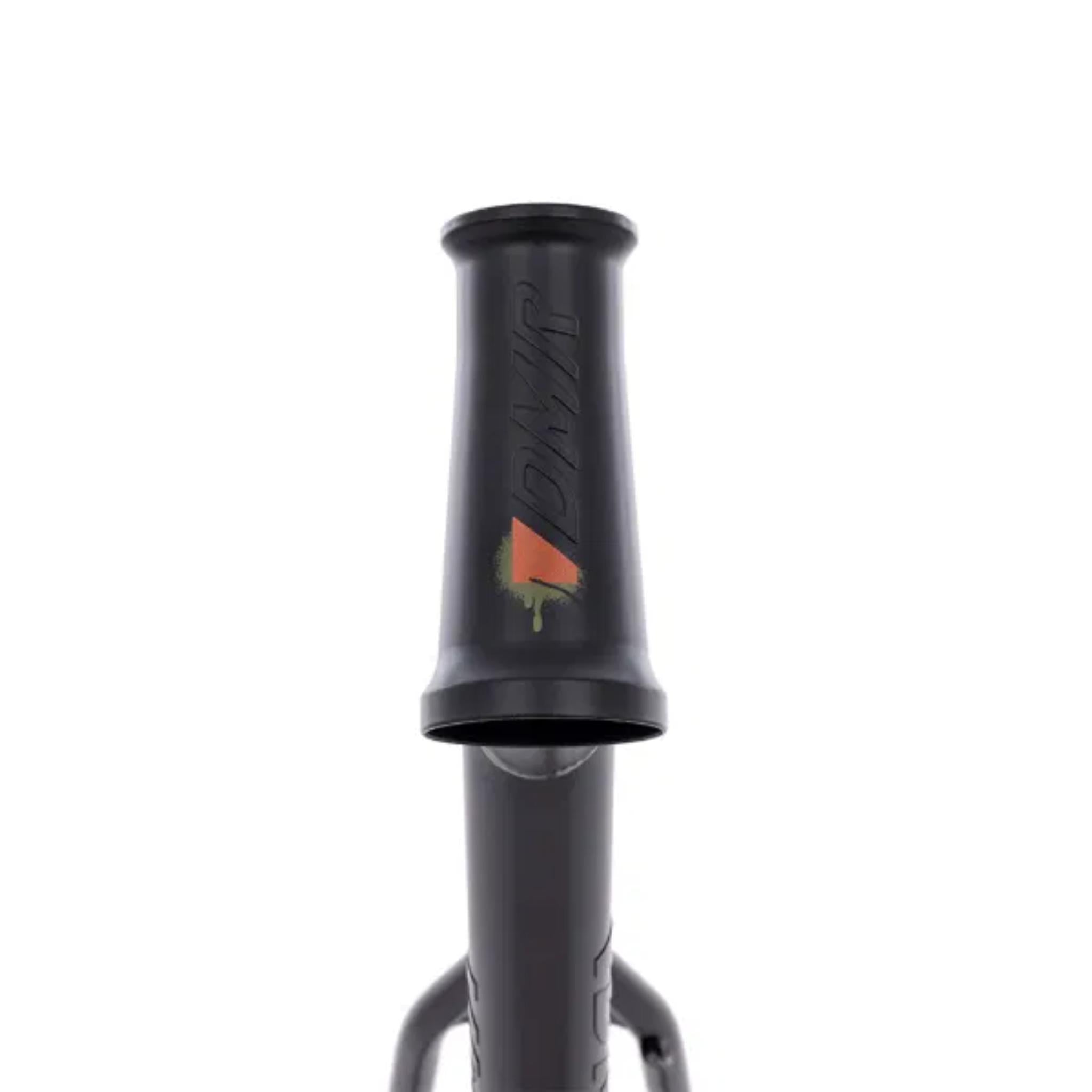

A light, stiff investment-cast tapered head tube lets you run lighter, stiffer forks, and the 69° head angle is the sweet spot for stability at speed while still spinning easily, so it feels safe on big jumps without being twitchy. There's room up front for barspins without moving your feet, even with 175mm cranks and a 24" front wheel. The standover is designed to show minimal seatpost without the saddle touching the tyre, keeping the seat low for step-through tricks and proper tables.

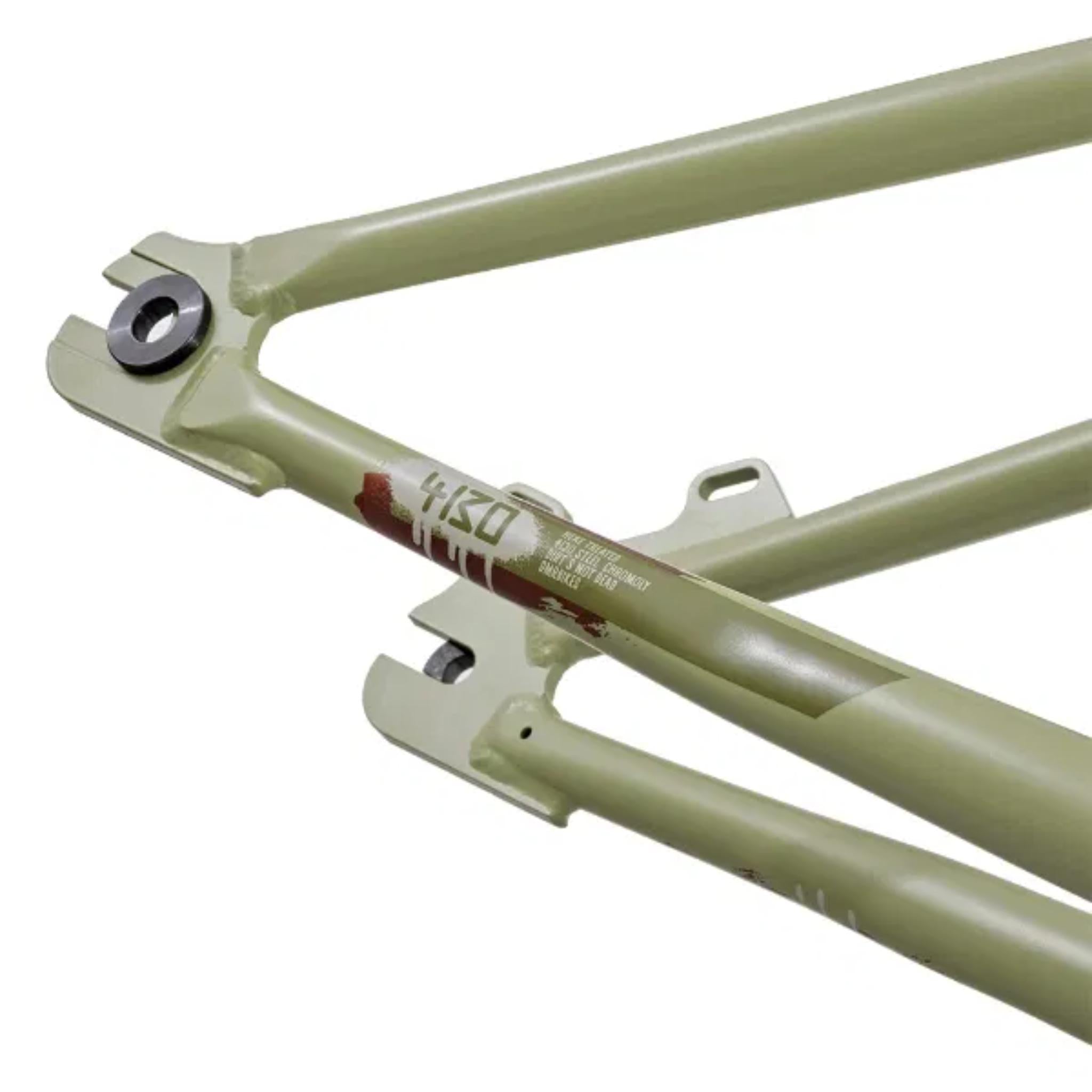

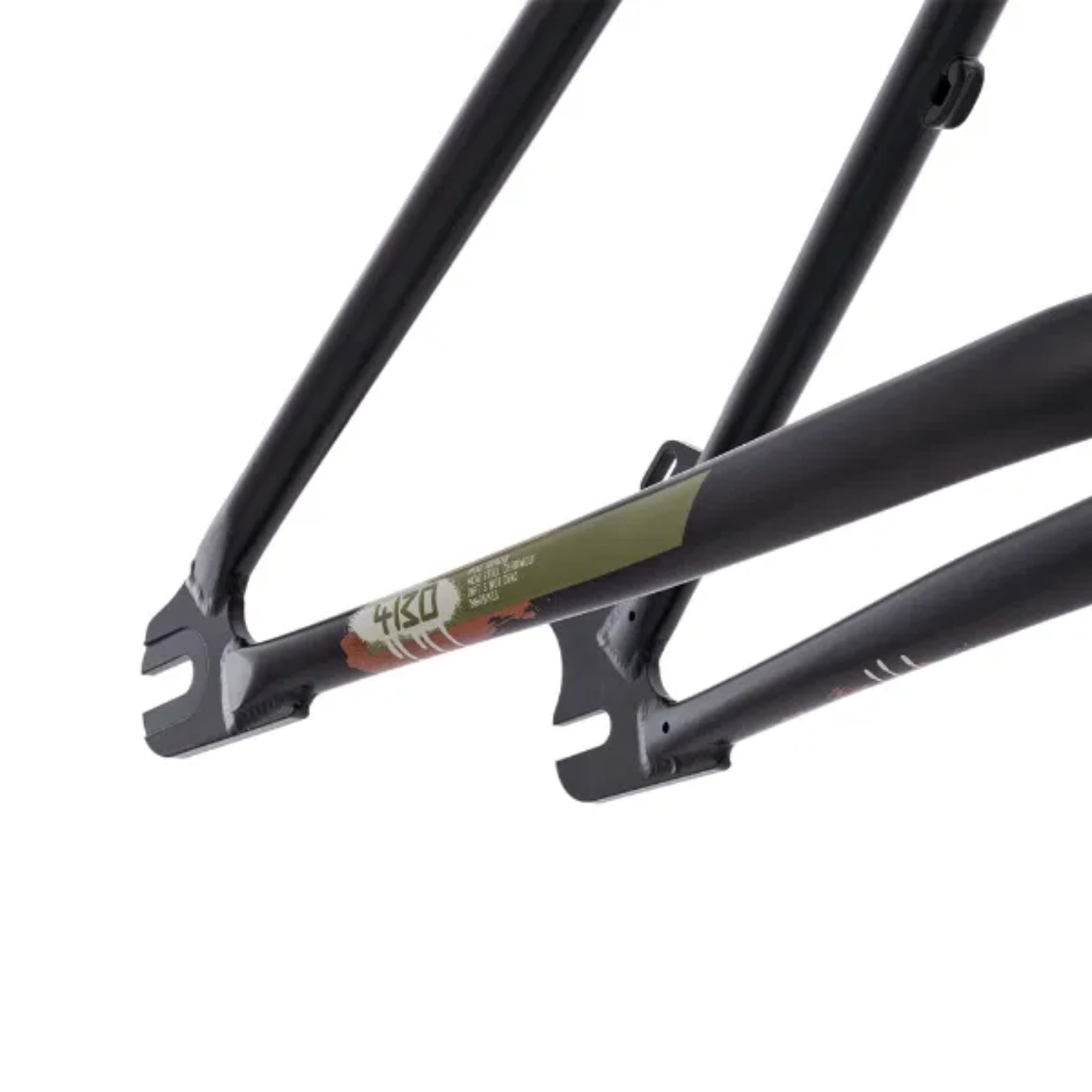

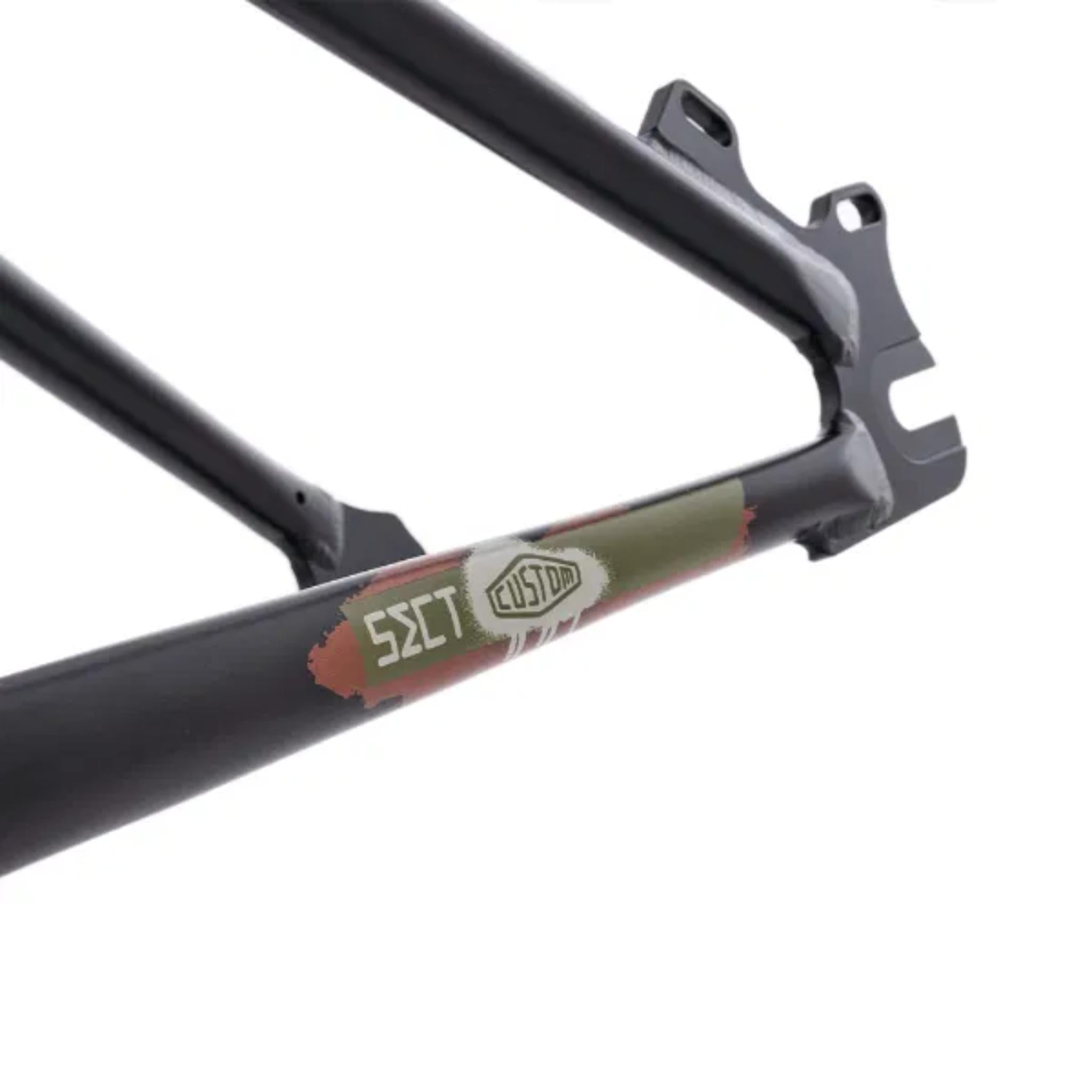

The very short 390mm rear end makes spinning and manualling easy, and DMR's patented Taperlock dropouts mean no chain tugs are needed: once the axle is tight, the wheel can't move, however big you case it. It weighs 2.37kg and comes with 3D graphics and a special 30-year anniversary sticker kit. From the trails, for the trails.
Features
- 100% heat-treated, double-butted 4130 chromoly tubeset
- 24" wheel specific dirt jump geometry with super-short rear end
- 69° head angle for stability on fast trails
- Generous toe clearance for barspins and X-ups
- Low standover for step-throughs, tables and tailwhips
- Patented Taperlock dropouts, no chain tugs needed
- Geared mech hanger available separately
Specifications
DisciplineDirt Jump/
Trail Material4130 Chromoly
Rear TravelHardtail
Wheel Size24"
Frame - Heat treated, double butted chromoly tubeset
Head Tube - DMR investment cast, tapered
Head Angle - 69°

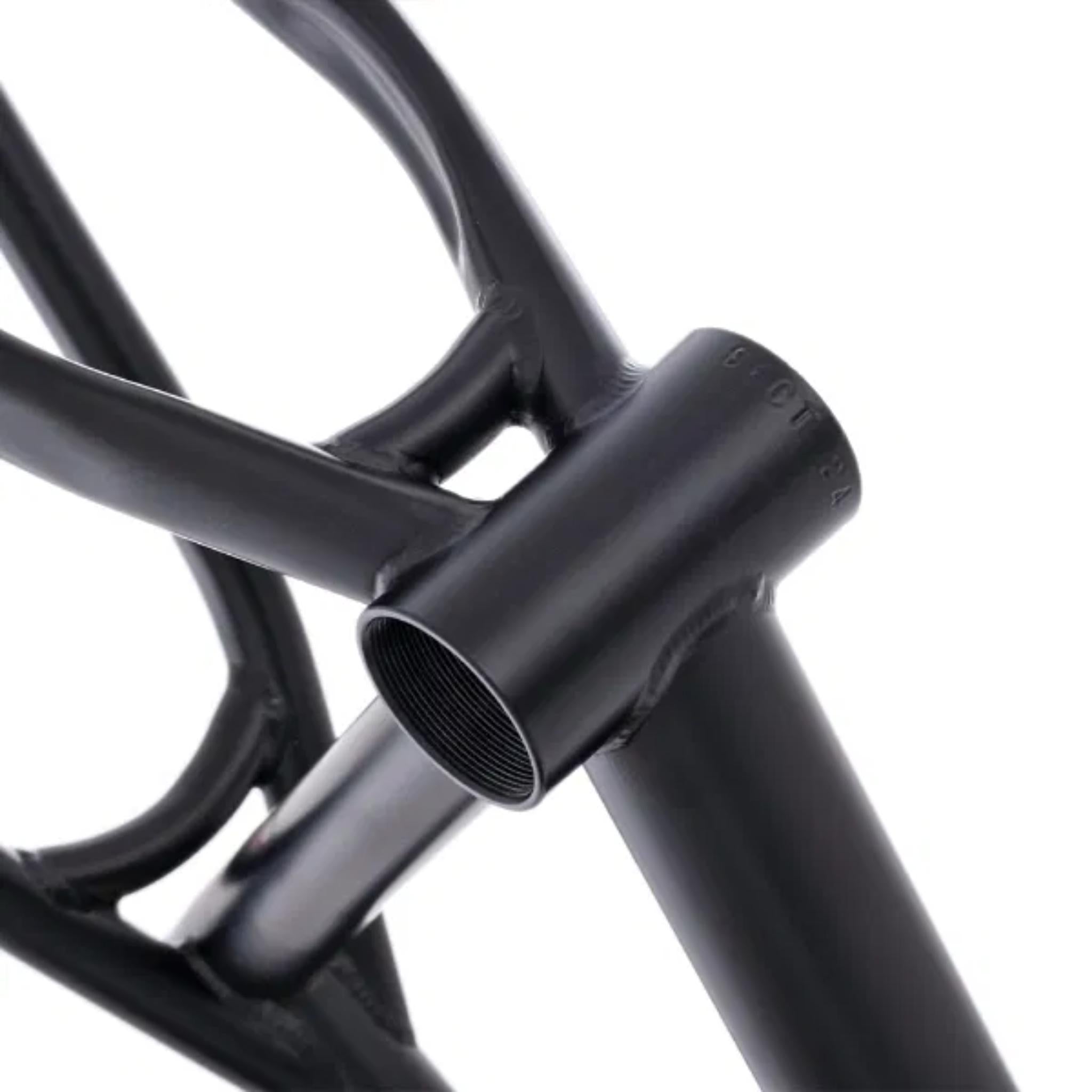

Bottom Bracket - Euro threaded / BSA
Chainstay - 390mm
Dropouts - Patented Taperlock
Rear Spacing - 135mm

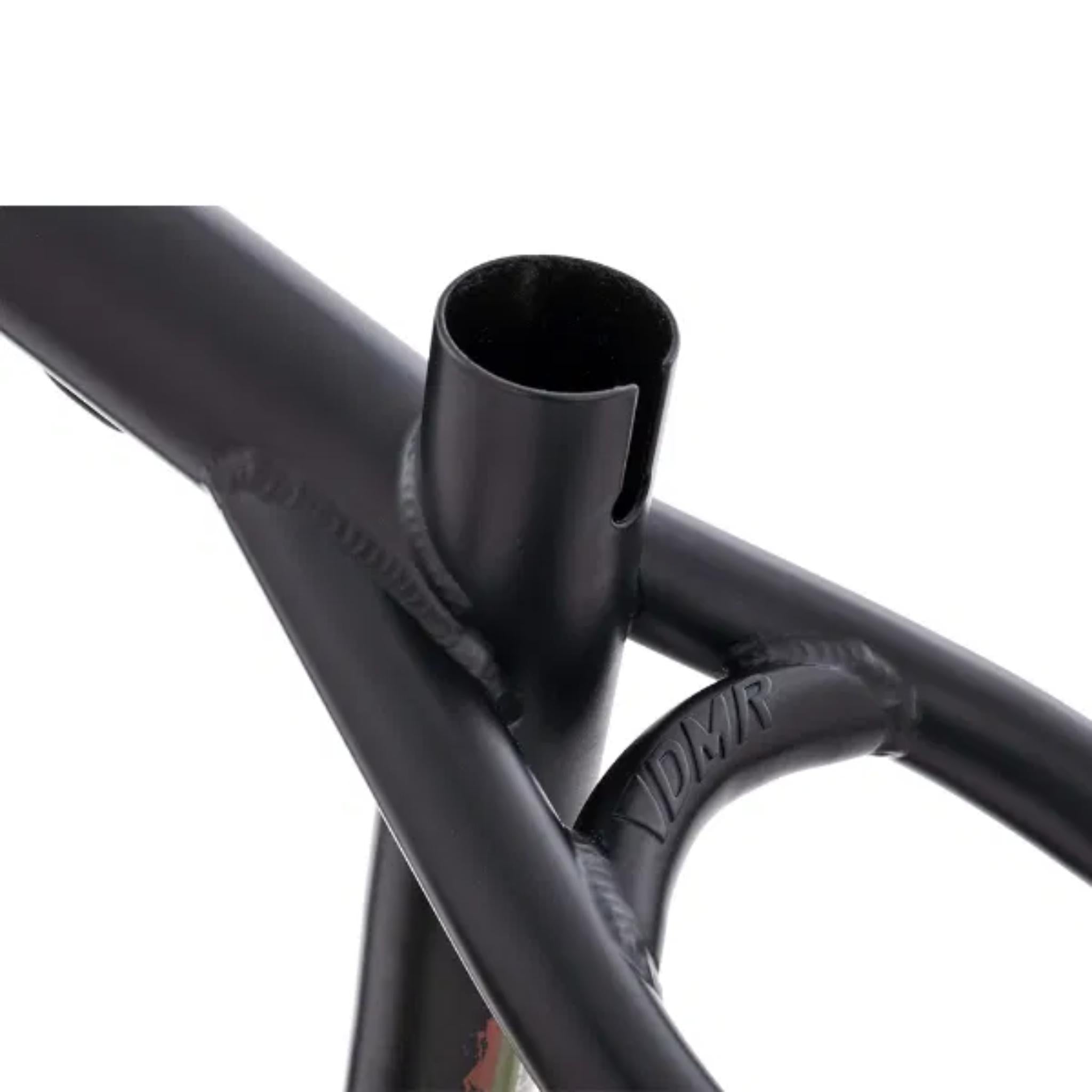

Seat Clamp Required - 30.0mm
Seatpost Diameter - 27.2mm
Mech Hanger - Available separately for geared builds

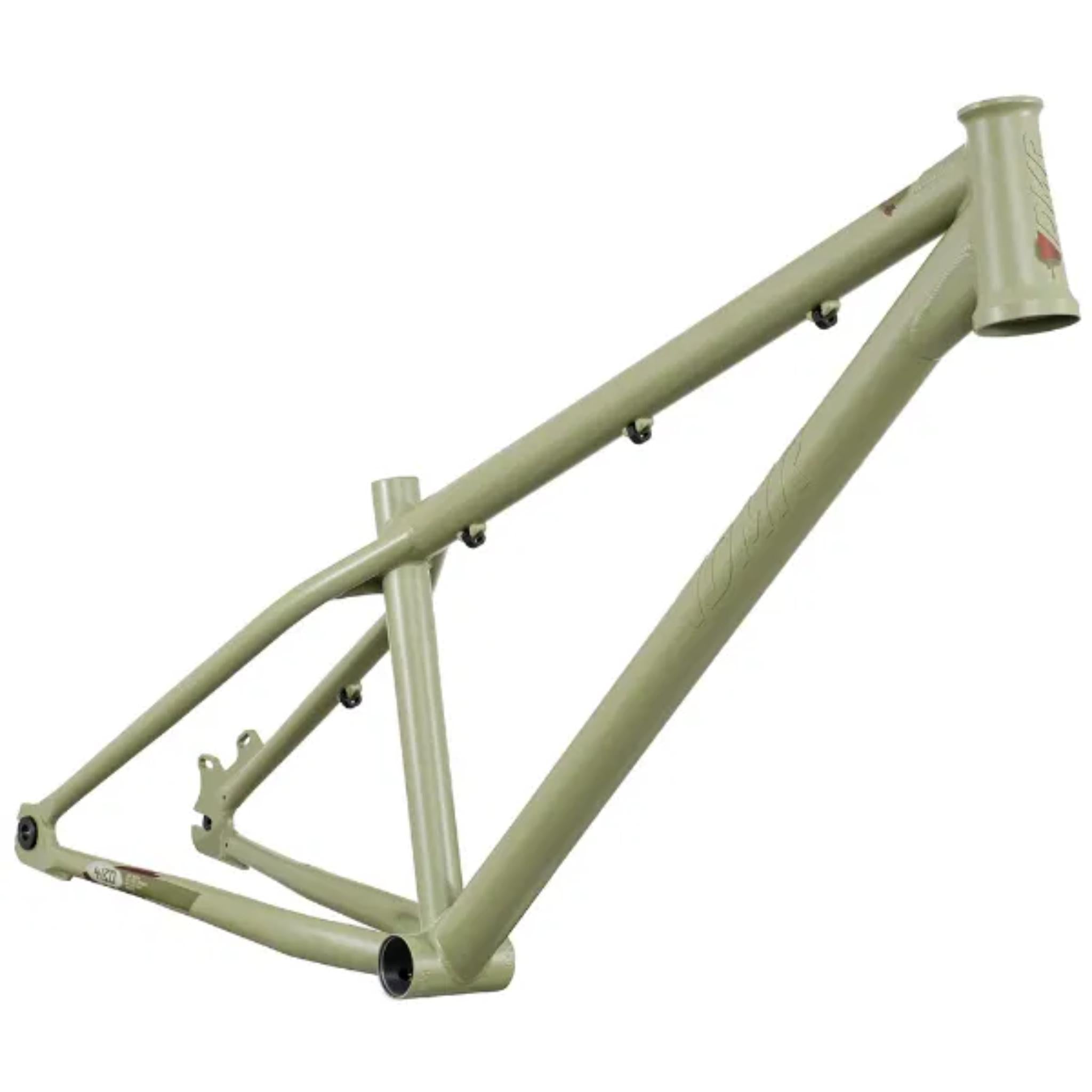

Colours - Matt Black, Pistachio Green
Weight - 2.37kg
