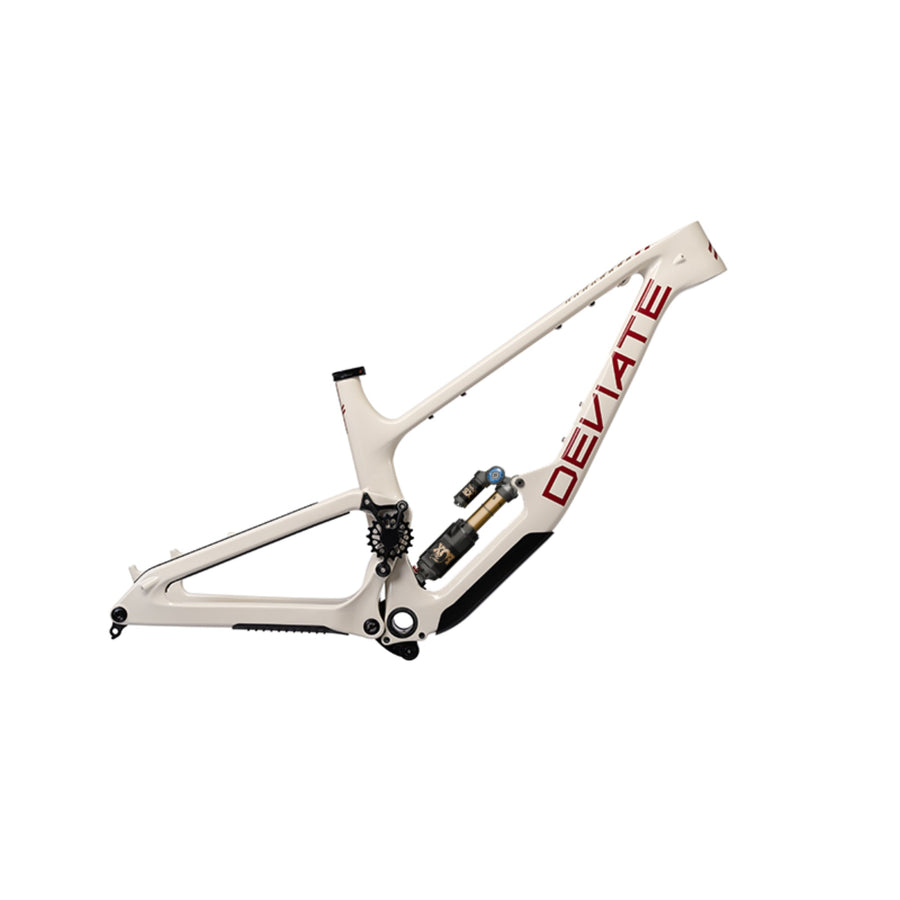

Designed in the shadow of the stunning Scottish mountains, the Deviate Claymore has been made to be the ultimate enduro mountain bike. Named after the devastating two-handed sword used by medieval warriors the big travel Claymore is ready to take on any challenge.
The Deviate Claymore frame can be purchased as a all-out speed 29" wheel or agile MX wheel (29" front / 27.5" rear) set-up - this listing is for the MX version. Travel wise, Deviate recommend you fit 170mm or 180mm forks, the rear-end has 165mm travel to play with. Big numbers for big, technical features.
Deviate frames are made to exceptionally high quality and are as such covered by a lifetime warranty. Also, as a Deviate owner your benefit from lifetime frame bearing replacement.
Key Features -
- Full Carbon frame
- High-pivot suspension
- 170/180mm front (recommended)
- 165mm rear travel
- MX wheel ready set-up
- Threaded 73mm BB shell
- ZS44/28.6 upper and ZS56/40 lower headset sizing
- Internal dropper routing 34.9”
- Fully Sealed Bearings
- Bearing Grease Ports
- 18T Chain Idler
- Downtube Protector
Contact us at support@biketart.com if you wish to discuss components or to arrange your own custom built dream enduro bike
SIZING -
- M: 5'6 - 5'11
- L: 5'10 - 6'2
- XL: 6'1 - 6'5
Pinkbike’s ‘Enduro Race Bike of Choice 2022’ - “This is a bike I genuinely want to race - I thought that from the first ride. I got on and was like “I want to take this to an Enduro race.” - Alicia Leggett, Pinkbike
Specifications
-
Discipline Enduro/Race
-
Material Carbon
-
Front Travel 170mm/180mm
-
Rear Travel 165mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Rear Wheel: 27.5”, Boost: 148mm x 12mm
Fork Compatibility: 29” 170 or 180mm with 44/42mm offset | Fork crown interference with downtube MUST be checked before fitting forks
Shock: Fox Float X2
Bottom Bracket: 73mm BSA Threaded
Headset: ZS44/28.6 upper and a ZS56/40 lower headset cup
Cranks: Minimum Q-factor of 168mm
Chainline: 52mm or 55mm options available
Chain length: 126 links (widely available, no need to join chains)
Max Chainring: 36t
Shock Size: Metric 230*60mm
Shock Hardware: Front: 40*8mm | Rear: Eyelet bushing
Brake Mount: Post Mount 180mm
Seatpost: Internal dropper routing 34.9”
Seat Collar: 38.5mm
Mech hanger: UDH
Rear Axle UDH : M12xP1 | 185mm long | Thread length is 14.5mm

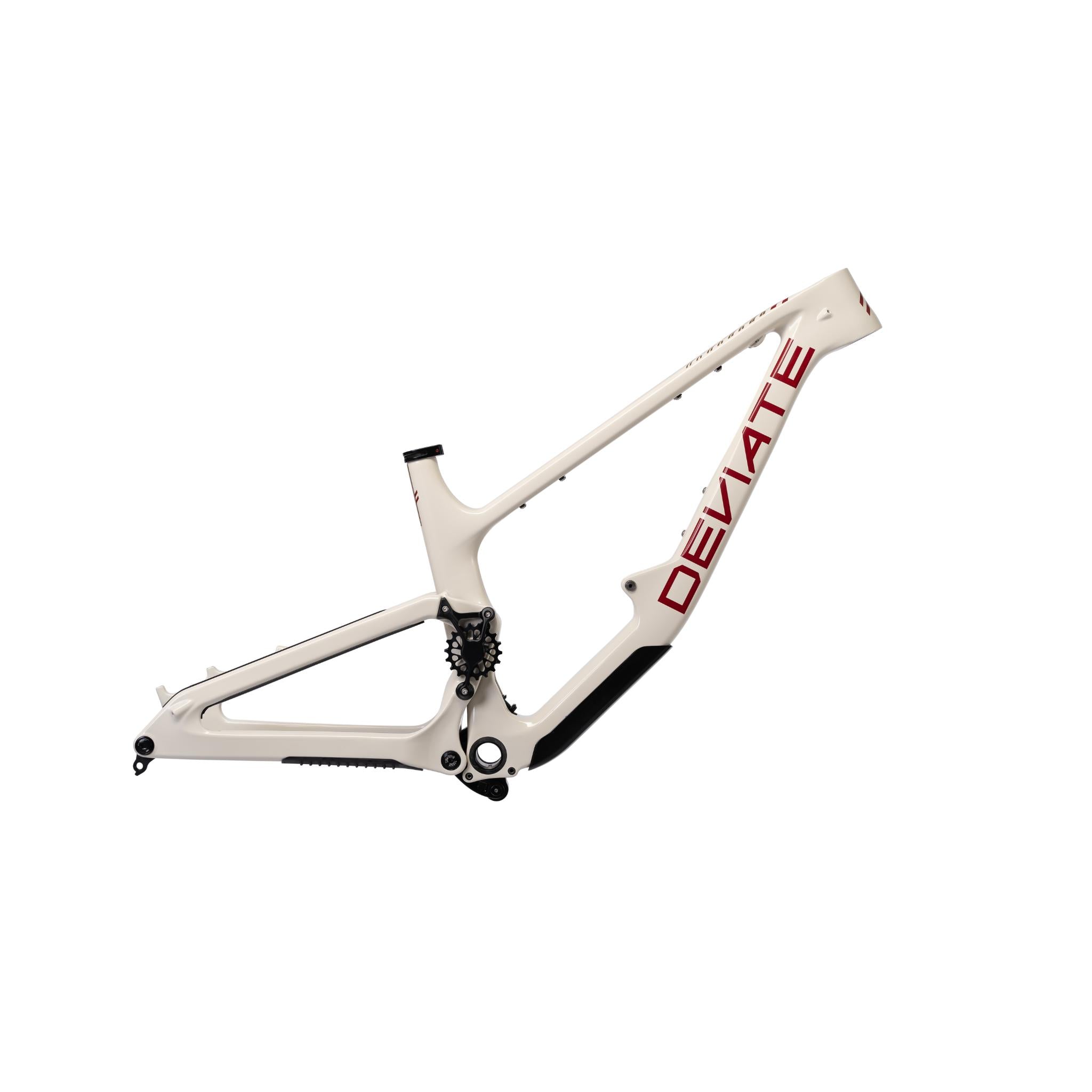

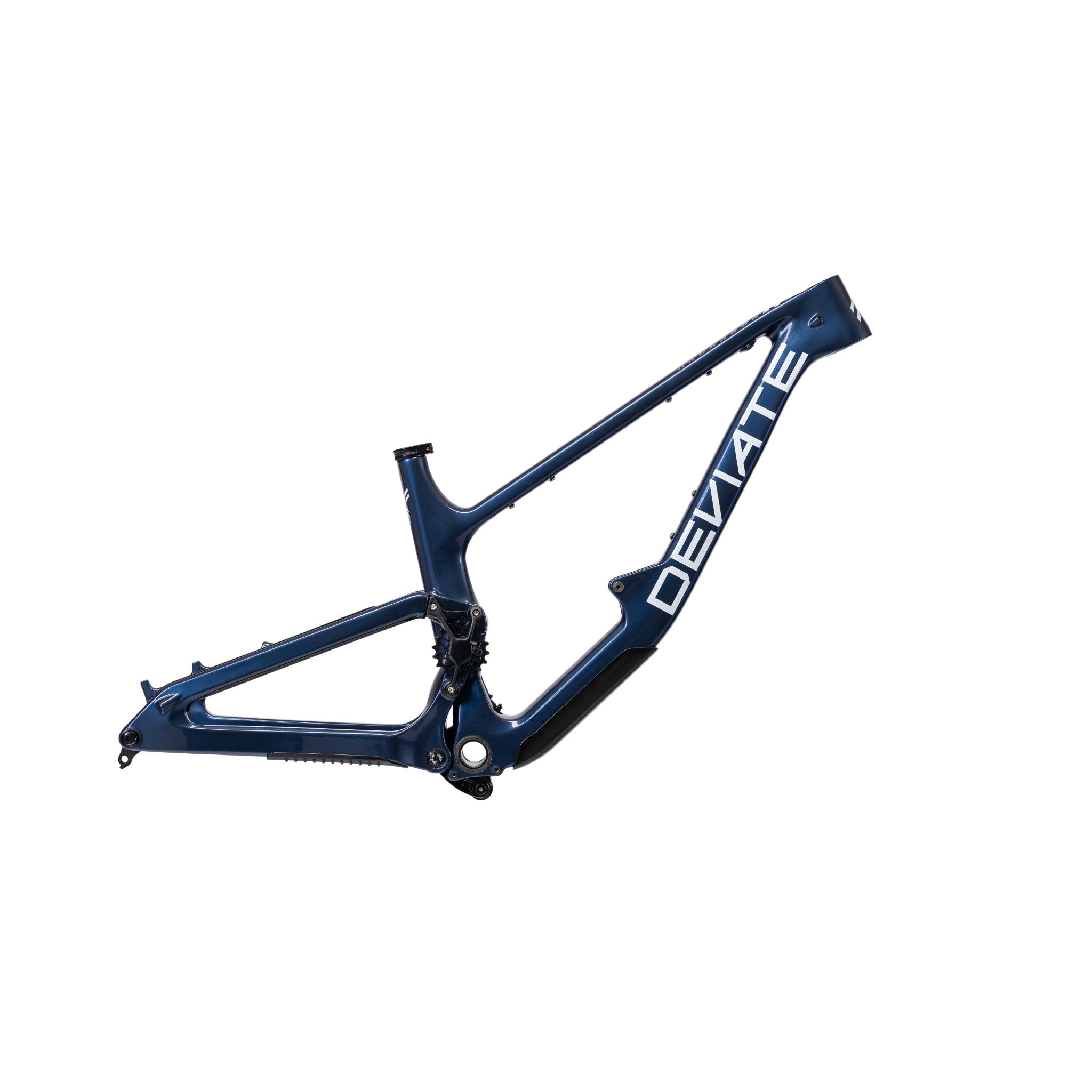

Deviate Claymore MX Carbon Frame
