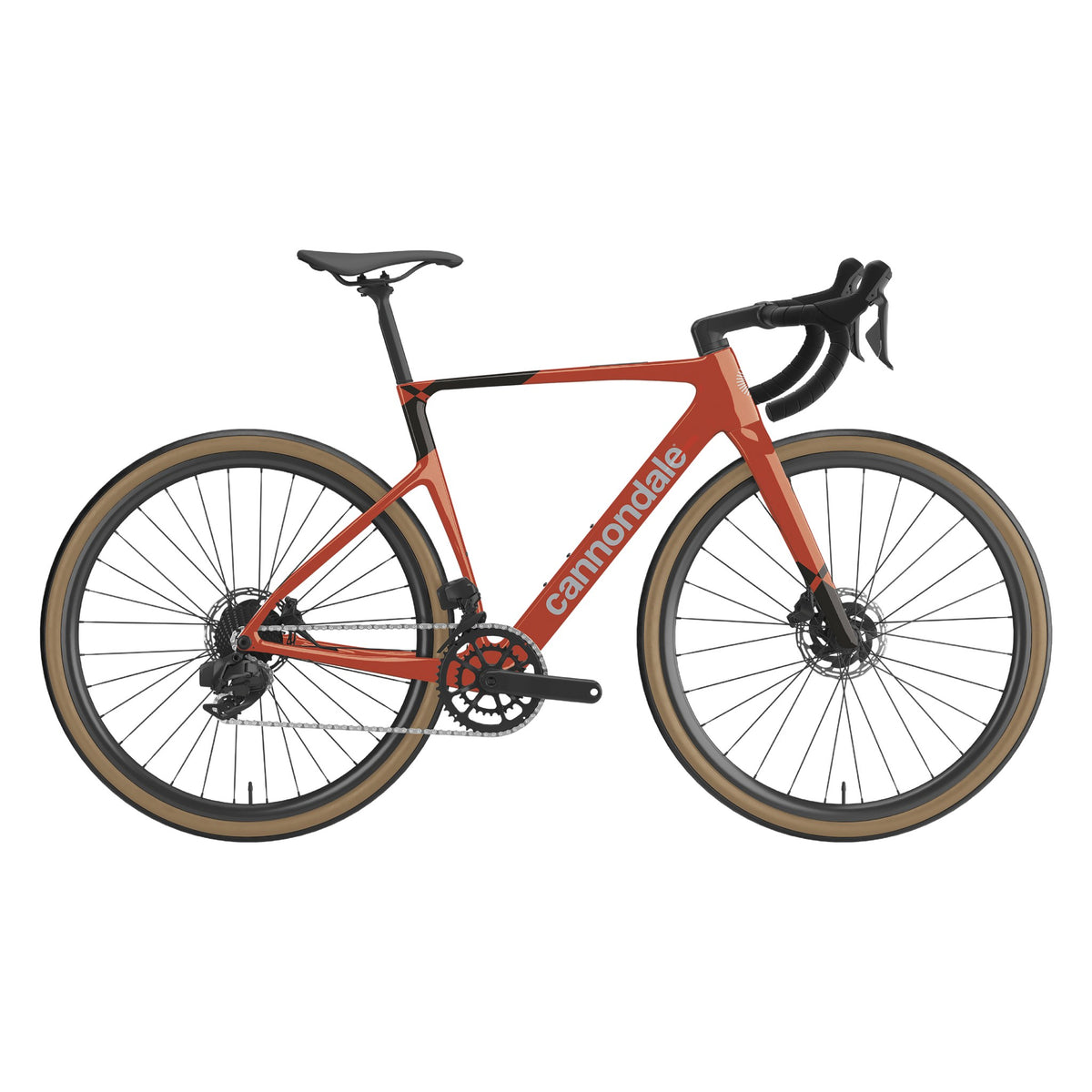

The SuperX 4 AXS is the entry point to Cannondale's carbon SuperX range, a quick and nimble gravel and cyclocross bike with wireless shifting.
It shares the SuperX Carbon frame and fork with the rest of the range, so you get the same sharp handling and Proportional Response construction. UDH and a threaded BSA bottom bracket make it easy to look after.
SRAM Apex XPLR AXS 1x12 keeps things simple with wireless shifting and an 11-44 range, and DT Swiss G540 wheels on 370 hubs are tough and tubeless ready. With 40mm Vittoria Terreno T50 tyres and hydraulic disc brakes, it's as happy on a cross course as it is on a fast gravel loop.
Features
- SuperX Carbon frame and fork with Proportional Response construction
- SRAM Apex XPLR AXS 1x12 wireless shifting, 11-44 cassette
- DT Swiss G540 wheels with DT Swiss 370 hubs
- SRAM Apex hydraulic disc brakes with 160mm rotors
- Vittoria Terreno T50 700x40c tubeless tyres
- UDH and BSA threaded bottom bracket
Specifications
DisciplineGravel Race
MaterialCarbon
Wheel Size700c
GroupsetSRAM Apex XPLR AXS, 1x12
Frame - SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
Fork - SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
Headset - Integrated, 1-1/8" - 1.5"
Wheels - DT Swiss G540, 24mm inner width, 28h, tubeless ready
Hubs - (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
Spokes - DT Swiss Champion
Tyres - Vittoria Terreno T50, 700x40c, tubeless ready
Crankset - SRAM Apex 1 Wide, 40T: 165mm (46cm), 170mm (51-54cm), 172.5 (56-58cm), 175mm (61cm)
Bottom Bracket - SRAM DUB BSA Road 68 Wide
Chain - SRAM Apex, 12-speed
Rear Derailleur - SRAM Apex AXS XPLR, 12-speed
Cassette - SRAM Apex XPLR PG-1231, 11-44, 12-speed
Shifters - SRAM Apex AXS, 12-speed
Handlebar - Vision Trimax Aero Alloy: 400mm (46-51cm), 420mm (54-61cm)
Grips/Tape - Cannondale Bar Tape, 3.5mm
Stem - Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46-51m), 100mm (54-56cm), 110mm (58-61cm)
Brake Levers - SRAM Apex AXS hydraulic disc
Brakes - SRAM Apex hydraulic disc, Centerline 160/160mm centerlock rotors
Pedals - Not included
Saddle - Fizik Vento Argo X5, S-Alloy rails, 140mm
Seatpost - Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)
Extras - Tubeless valves, SRAM AXS charger, Conceal Stem accessory/computer mount (Garmin/Wahoo/Hammerhead)
SuperX 4 AXS 2026
- Gravel
- 700c wheels
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
Free product with this bike
Make your choice below
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free courier deliveryFree UK delivery on every bike
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The SuperX 4 AXS is the entry point to Cannondale's carbon SuperX range, a quick and nimble gravel and cyclocross bike with wireless shifting.
It shares the SuperX Carbon frame and fork with the rest of the range, so you get the same sharp handling and Proportional Response construction. UDH and a threaded BSA bottom bracket make it easy to look after.
SRAM Apex XPLR AXS 1x12 keeps things simple with wireless shifting and an 11-44 range, and DT Swiss G540 wheels on 370 hubs are tough and tubeless ready. With 40mm Vittoria Terreno T50 tyres and hydraulic disc brakes, it's as happy on a cross course as it is on a fast gravel loop.
Features
- SuperX Carbon frame and fork with Proportional Response construction
- SRAM Apex XPLR AXS 1x12 wireless shifting, 11-44 cassette
- DT Swiss G540 wheels with DT Swiss 370 hubs
- SRAM Apex hydraulic disc brakes with 160mm rotors
- Vittoria Terreno T50 700x40c tubeless tyres
- UDH and BSA threaded bottom bracket
Specifications
DisciplineGravel Race
MaterialCarbon
Wheel Size700c
GroupsetSRAM Apex XPLR AXS, 1x12
Frame - SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
Fork - SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
Headset - Integrated, 1-1/8" - 1.5"
Wheels - DT Swiss G540, 24mm inner width, 28h, tubeless ready
Hubs - (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
Spokes - DT Swiss Champion
Tyres - Vittoria Terreno T50, 700x40c, tubeless ready
Crankset - SRAM Apex 1 Wide, 40T: 165mm (46cm), 170mm (51-54cm), 172.5 (56-58cm), 175mm (61cm)
Bottom Bracket - SRAM DUB BSA Road 68 Wide
Chain - SRAM Apex, 12-speed
Rear Derailleur - SRAM Apex AXS XPLR, 12-speed
Cassette - SRAM Apex XPLR PG-1231, 11-44, 12-speed
Shifters - SRAM Apex AXS, 12-speed
Handlebar - Vision Trimax Aero Alloy: 400mm (46-51cm), 420mm (54-61cm)
Grips/Tape - Cannondale Bar Tape, 3.5mm
Stem - Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46-51m), 100mm (54-56cm), 110mm (58-61cm)
Brake Levers - SRAM Apex AXS hydraulic disc
Brakes - SRAM Apex hydraulic disc, Centerline 160/160mm centerlock rotors
Pedals - Not included
Saddle - Fizik Vento Argo X5, S-Alloy rails, 140mm
Seatpost - Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm)
Extras - Tubeless valves, SRAM AXS charger, Conceal Stem accessory/computer mount (Garmin/Wahoo/Hammerhead)
