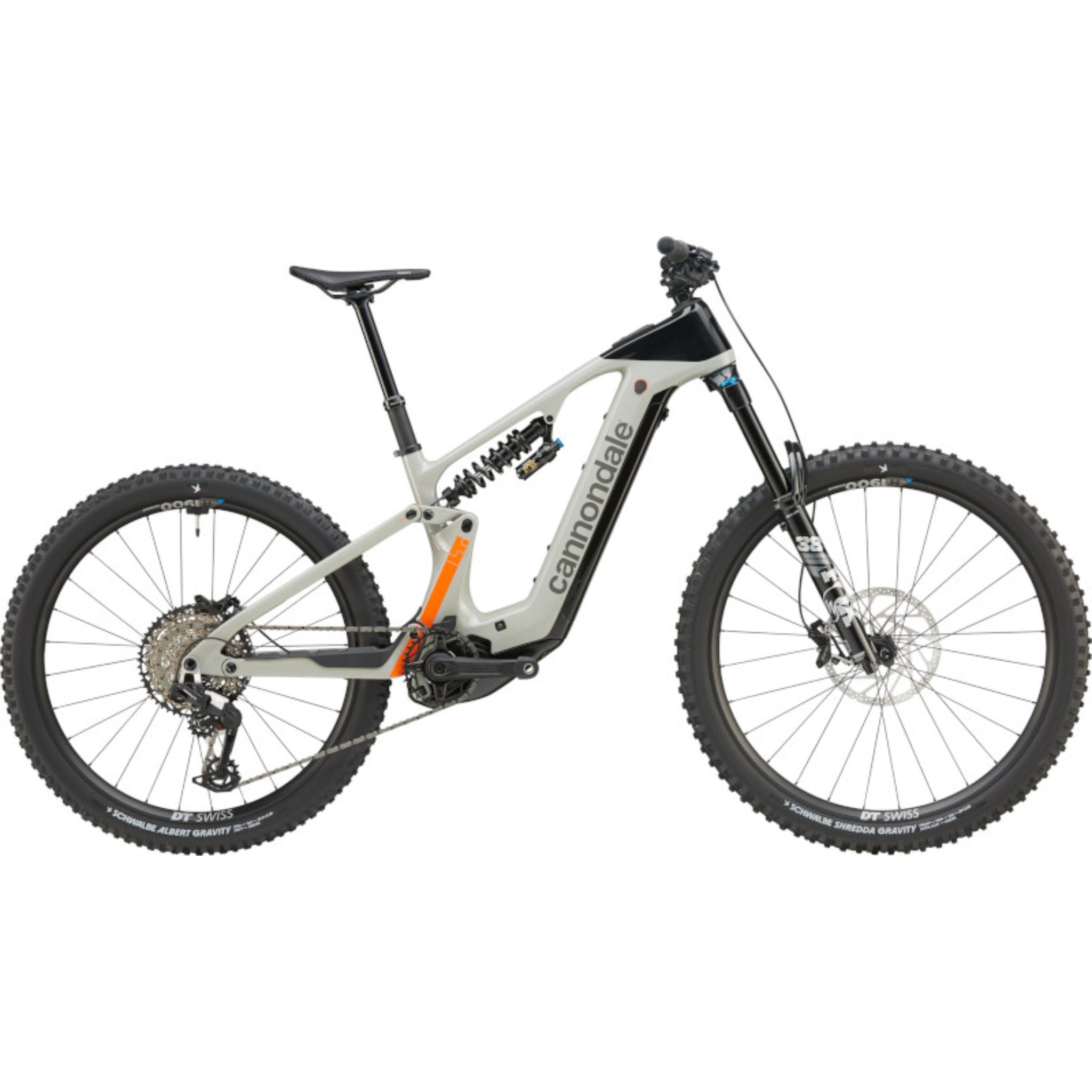

The Cannondale Moterra Carbon LT 1 is a long-travel carbon e-MTB built for riders who use the motor to get to the top and then want something properly capable for the way down. It runs 170mm of travel up front and 165mm at the rear on mixed wheels, with a Fox 38 fork and a coil-sprung Fox DHX shock for a planted, composed ride on rough, steep terrain.
Power comes from the Bosch Performance Line CX Gen 5 motor, delivering up to 120Nm and 750W peak, with an 800Wh PowerTube battery for long days in the hills. The carbon frame uses Proportional Response tuning, so the suspension layout and geometry are optimised for each size, giving every rider precise, efficient handling.
The build includes a SRAM T-Type 12-speed drivetrain, TRP brakes, DT Swiss H 1900 wheels and a Cannondale DownLow dropper, plus PowerMore range extender compatibility and a pre-installed front light cable.
Features
- Moterra LT carbon frame with 165mm of rear travel and removable downtube battery
- Bosch Performance Line CX Gen 5 motor, up to 120Nm and 750W peak
- Bosch PowerTube 800Wh battery, PowerMore range extender compatible
- Fox Float Performance 38 fork with 170mm travel and Grip damper
- Fox DHX Performance coil shock
- Mixed wheels: 29" front, 27.5" rear
- SRAM T-Type 12-speed drivetrain and TRP brakes
- Top tube System Controller with Mini Remote
Sizing
- M - 162 - 175cm
- L - 172 - 185cm
- XL - 182 - 195cm
Specifications
DisciplineEnduro
MaterialCarbon
Front Travel170mm
Rear Travel165mm
Wheel SizeMX (29"/
27.5") WarrantyLimited Lifetime
Frame - Moterra LT Carbon, 27.5" rear wheel, 29" front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5" - 1.8" tapered headtube, 40mm two-bolt kickstand compatible
Fork - Fox Float Performance 38, 170mm, Grip Damper 3-Pos, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Rear shock - Fox DHX Performance, Coil, 2-position adjust, 230x65mm
Drive unit - Bosch Performance Line CX, Gen 5, up to 120Nm, 750W peak
Battery - Bosch PowerTube, 800Wh
Display - Top Tube System Controller w/ Mini Remote
Charger - Bosch 4A
Rims - DT Swiss H 1900 Spline, 30mm inner width, tubeless ready
Hubs - (F) DT Swiss 370, 15x110mm thru-axle, (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt
Spokes - DT Swiss Competition, straight pull
Tyres - Schwalbe TBA
Pedals - Not included
Crank - e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
Chain - SRAM T-Type, 12-speed (model TBA)
Cassette - SRAM T-Type, 12-speed (model TBA)
Rear derailleur - SRAM T-Type (model TBA)
Shifter - SRAM T-Type (model TBA)
Handlebar - Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Grips - Cannondale TaperRidge
Stem - Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Headset - Acros ICR, 1.5" to 1.8", sealed bearings
Brakes - TRP (model TBA)
Brake levers - TRP (model TBA)
Saddle - Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
Seatpost - Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extras - Tubeless valve stems, pre-installed front light cable, Bosch PowerMore range extender compatible
Moterra Carbon LT 1 2026
- Electric · Enduro
- 170 / 165mm travel
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Cannondale Moterra Carbon LT 1 is a long-travel carbon e-MTB built for riders who use the motor to get to the top and then want something properly capable for the way down. It runs 170mm of travel up front and 165mm at the rear on mixed wheels, with a Fox 38 fork and a coil-sprung Fox DHX shock for a planted, composed ride on rough, steep terrain.
Power comes from the Bosch Performance Line CX Gen 5 motor, delivering up to 120Nm and 750W peak, with an 800Wh PowerTube battery for long days in the hills. The carbon frame uses Proportional Response tuning, so the suspension layout and geometry are optimised for each size, giving every rider precise, efficient handling.
The build includes a SRAM T-Type 12-speed drivetrain, TRP brakes, DT Swiss H 1900 wheels and a Cannondale DownLow dropper, plus PowerMore range extender compatibility and a pre-installed front light cable.
Features
- Moterra LT carbon frame with 165mm of rear travel and removable downtube battery
- Bosch Performance Line CX Gen 5 motor, up to 120Nm and 750W peak
- Bosch PowerTube 800Wh battery, PowerMore range extender compatible
- Fox Float Performance 38 fork with 170mm travel and Grip damper
- Fox DHX Performance coil shock
- Mixed wheels: 29" front, 27.5" rear
- SRAM T-Type 12-speed drivetrain and TRP brakes
- Top tube System Controller with Mini Remote
Sizing
- M - 162 - 175cm
- L - 172 - 185cm
- XL - 182 - 195cm
Specifications
DisciplineEnduro
MaterialCarbon
Front Travel170mm
Rear Travel165mm
Wheel SizeMX (29"/
27.5") WarrantyLimited Lifetime
Frame - Moterra LT Carbon, 27.5" rear wheel, 29" front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5" - 1.8" tapered headtube, 40mm two-bolt kickstand compatible
Fork - Fox Float Performance 38, 170mm, Grip Damper 3-Pos, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Rear shock - Fox DHX Performance, Coil, 2-position adjust, 230x65mm
Drive unit - Bosch Performance Line CX, Gen 5, up to 120Nm, 750W peak
Battery - Bosch PowerTube, 800Wh
Display - Top Tube System Controller w/ Mini Remote
Charger - Bosch 4A
Rims - DT Swiss H 1900 Spline, 30mm inner width, tubeless ready
Hubs - (F) DT Swiss 370, 15x110mm thru-axle, (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt
Spokes - DT Swiss Competition, straight pull
Tyres - Schwalbe TBA
Pedals - Not included
Crank - e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
Chain - SRAM T-Type, 12-speed (model TBA)
Cassette - SRAM T-Type, 12-speed (model TBA)
Rear derailleur - SRAM T-Type (model TBA)
Shifter - SRAM T-Type (model TBA)
Handlebar - Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Grips - Cannondale TaperRidge
Stem - Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Headset - Acros ICR, 1.5" to 1.8", sealed bearings
Brakes - TRP (model TBA)
Brake levers - TRP (model TBA)
Saddle - Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail
Seatpost - Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Extras - Tubeless valve stems, pre-installed front light cable, Bosch PowerMore range extender compatible
