Power-packed for the ultimate control on trail and enduro rides. The DEORE M6220 hydraulic disc brake pairs the BL-M6200 lever with a four-piston BR-M6220 calliper, delivering strong, controllable stopping power in a complete, ready-to-fit package. It'll slow you down — but it won't hold you back.

The lever's SERVO WAVE design gives quick pad contact and a smooth power curve, while a reformulated low-viscosity mineral oil (SM-LVOIL) keeps the feel consistent across a wide temperature range. At the calliper, a dual-diameter four-piston layout, rigid two-piece body, new piston seal and heat-resistant resin piston combine for high power and stable performance on long descents. Fully compatible with Shimano's new 2.2mm thick rotors (RT-CL750 / RT-6B750) for an even bigger upgrade, and with current Shimano pads in metal and resin (without fin). The lever is I-SPEC EV compatible.

Features

• Complete hydraulic disc brake — BL-M6200 lever with BR-M6220 four-piston calliper
• Dual-diameter four-piston design for high power and control
• SERVO WAVE for quick pad contact and an optimised power curve

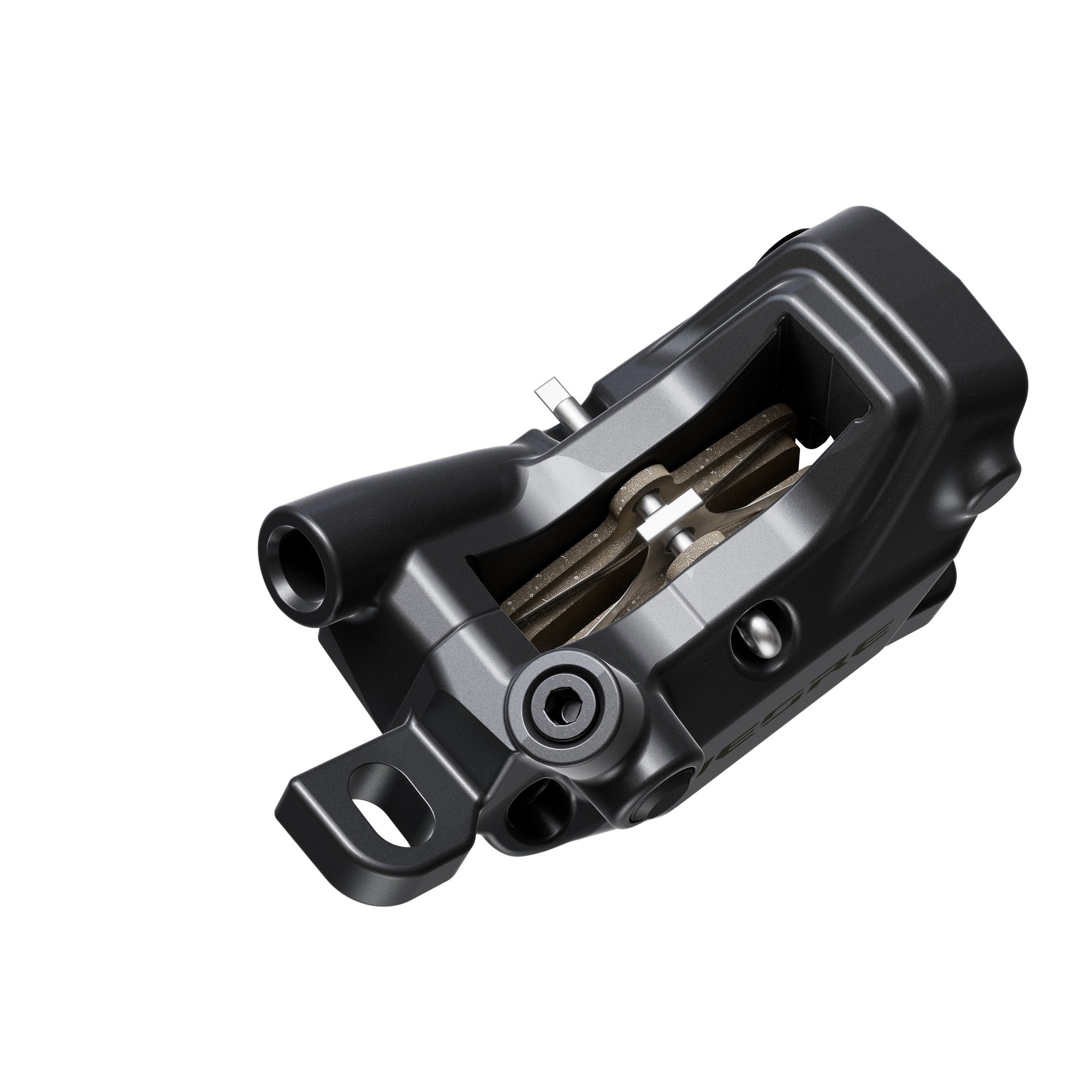

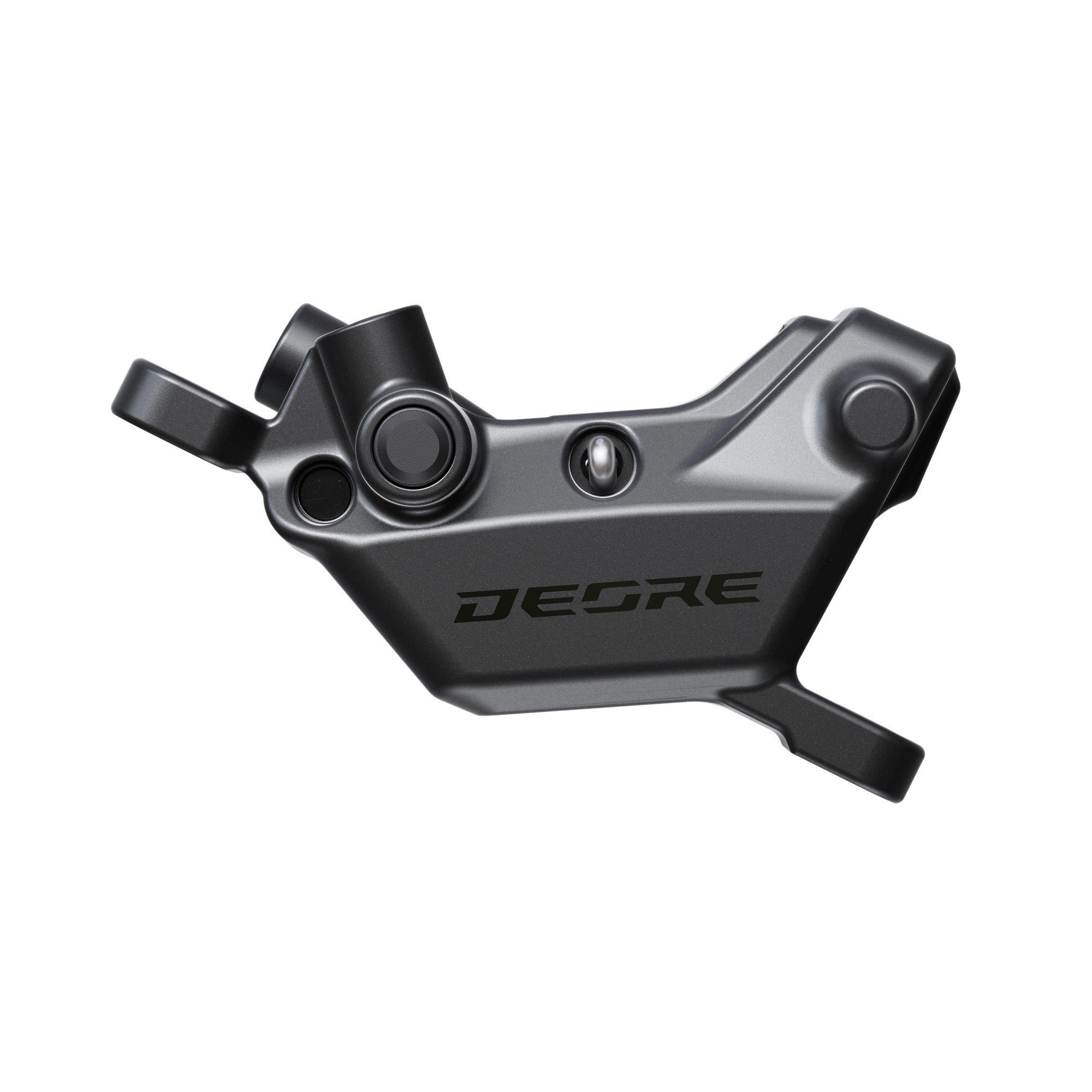

• Rigid two-piece calliper with new piston seal and heat-resistant resin piston
• Low-viscosity mineral oil (SM-LVOIL) — stable over a wider temperature range

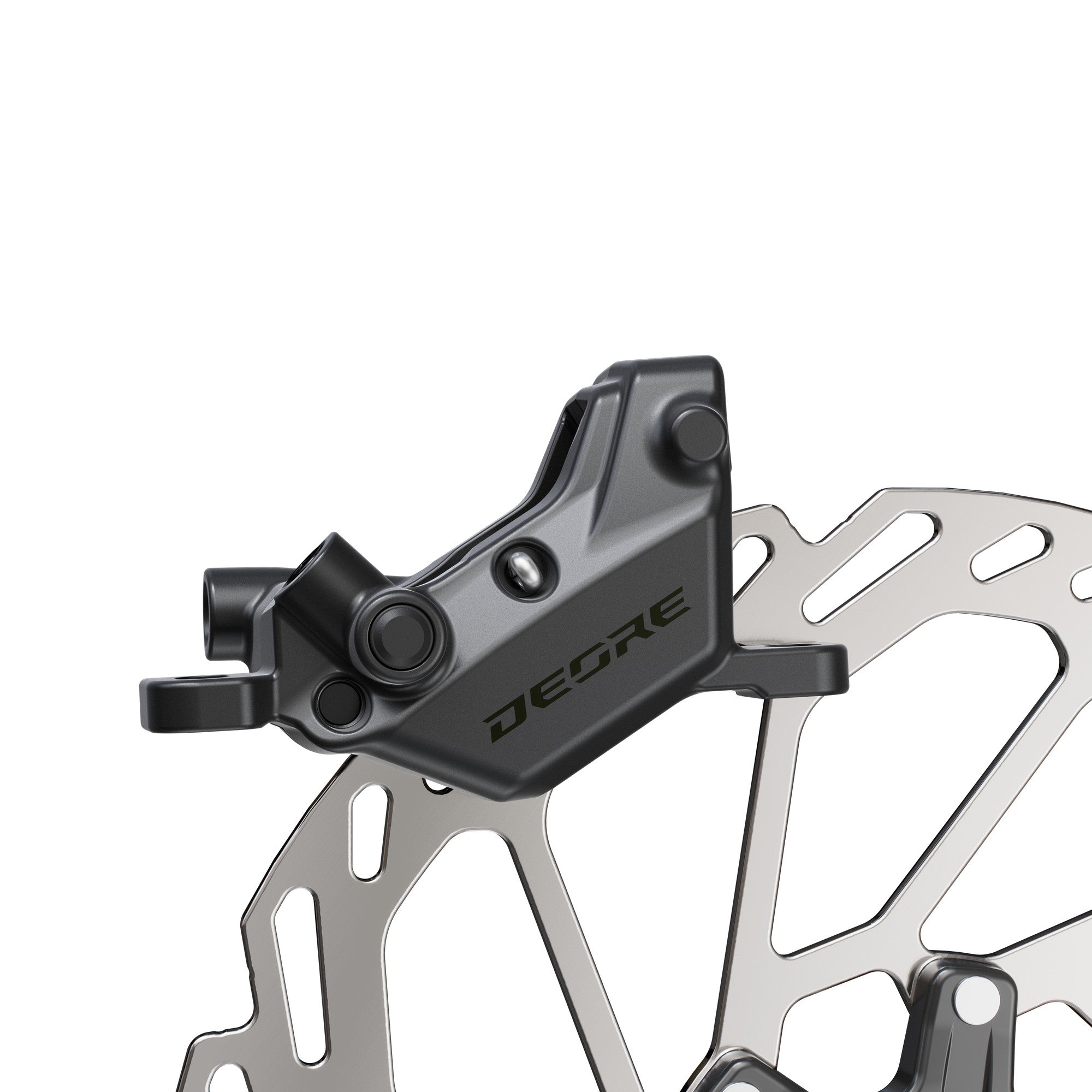

• Compatible with 2.2mm thick rotors (RT-CL750 / RT-6B750)

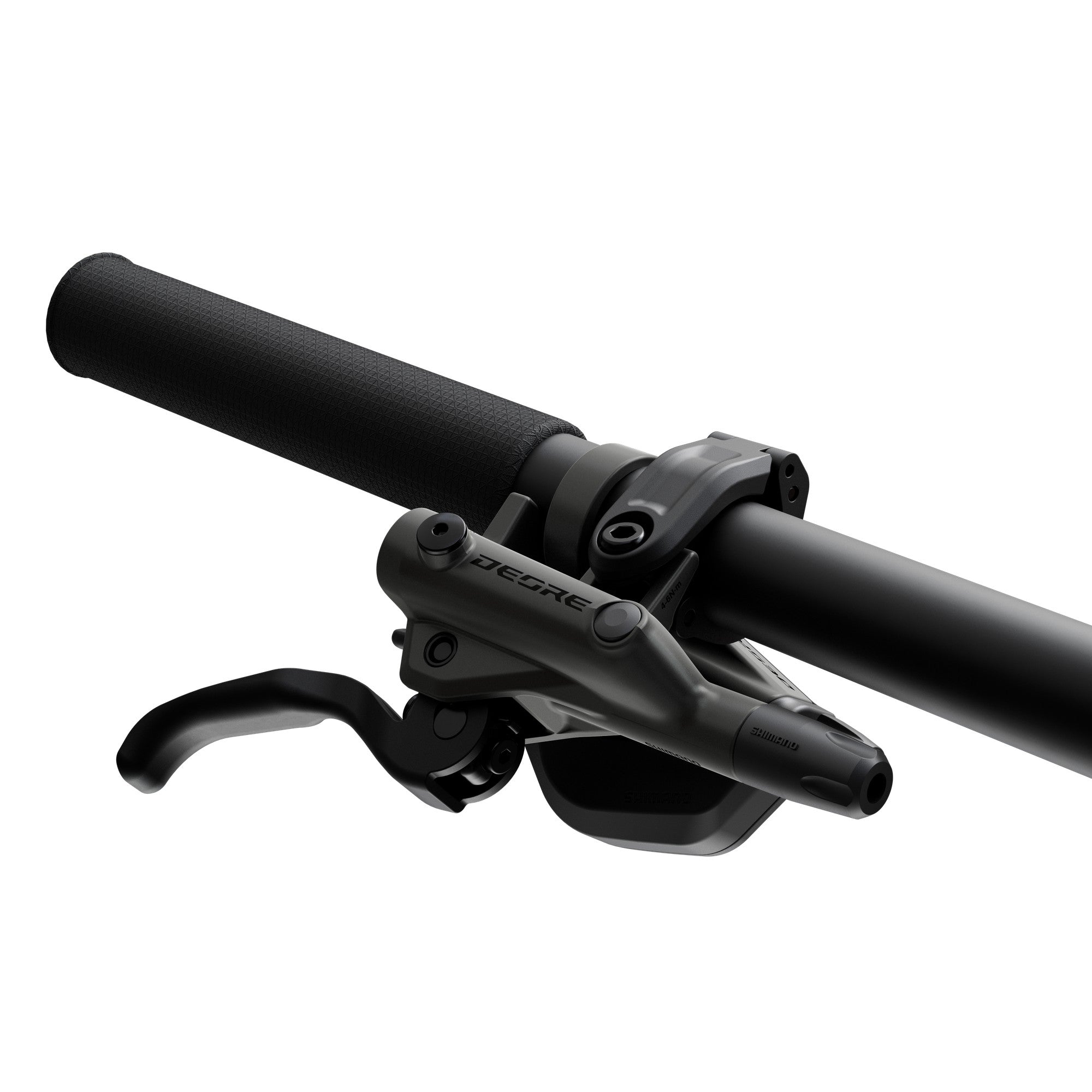

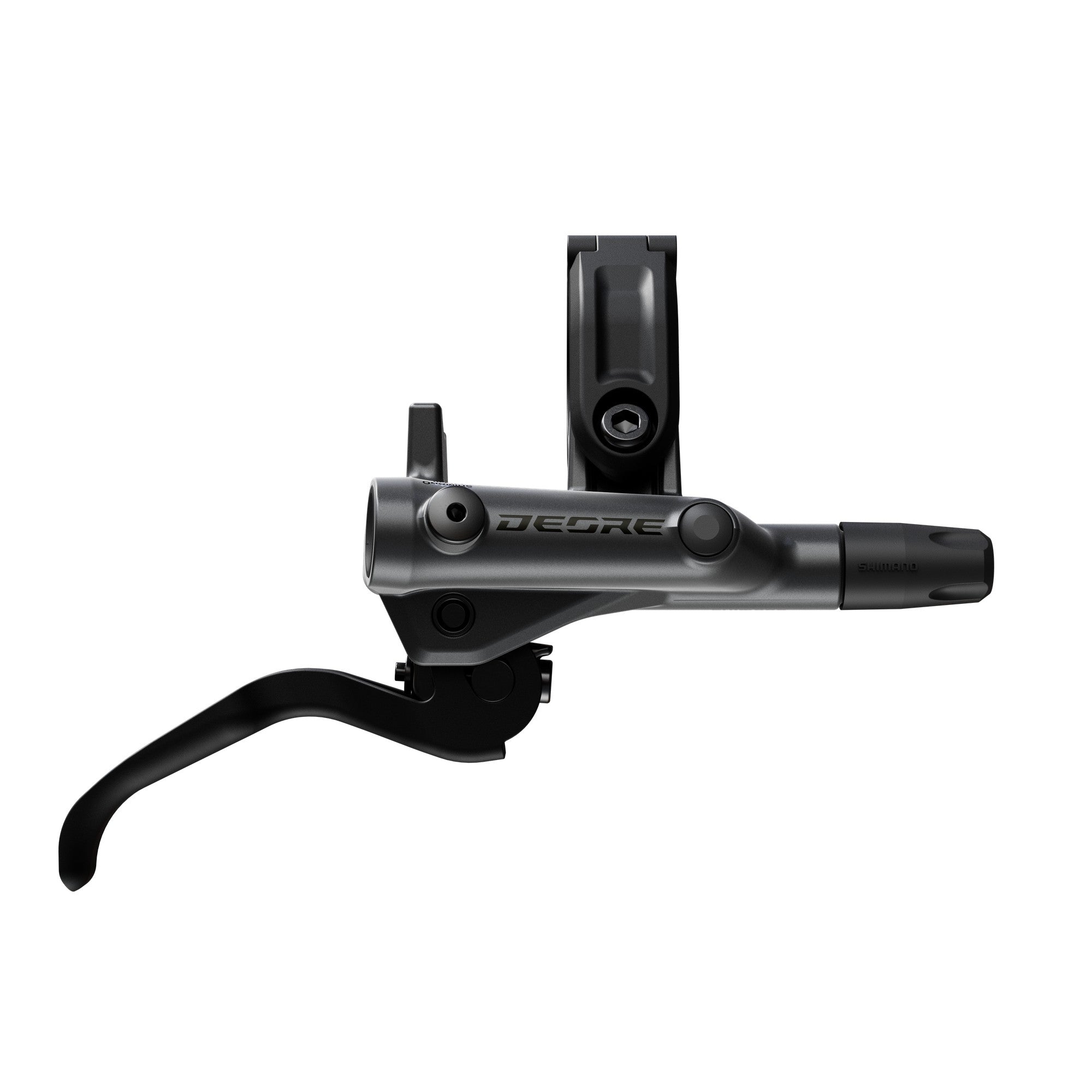

• Durable alloy lever with clean, parallel hose routing; I-SPEC EV compatible
• Compatible with current Shimano pads — metal and resin (without fin)

Specification

• Series: SHIMANO DEORE M6200

• Type: Complete hydraulic disc brake (lever + calliper)

• Pistons: 4-piston (dual diameter)

• Intended Use: Trail / Enduro

• Lever Technology: SERVO WAVE

• Fluid: Low-viscosity mineral oil (SM-LVOIL)

• Rotor Compatibility: Supports 2.2mm thick rotors

• Mounting: I-SPEC EV compatible

• Pad Compatibility: Metal / resin (without fin)
