Consistent braking, full stop — in a complete, lightweight package. The DEORE M6200 hydraulic disc brake pairs the BL-M6200 lever with a lightweight two-piston BR-M6200 calliper, shedding weight while keeping the power and modulation you want for cross-country and trail riding.

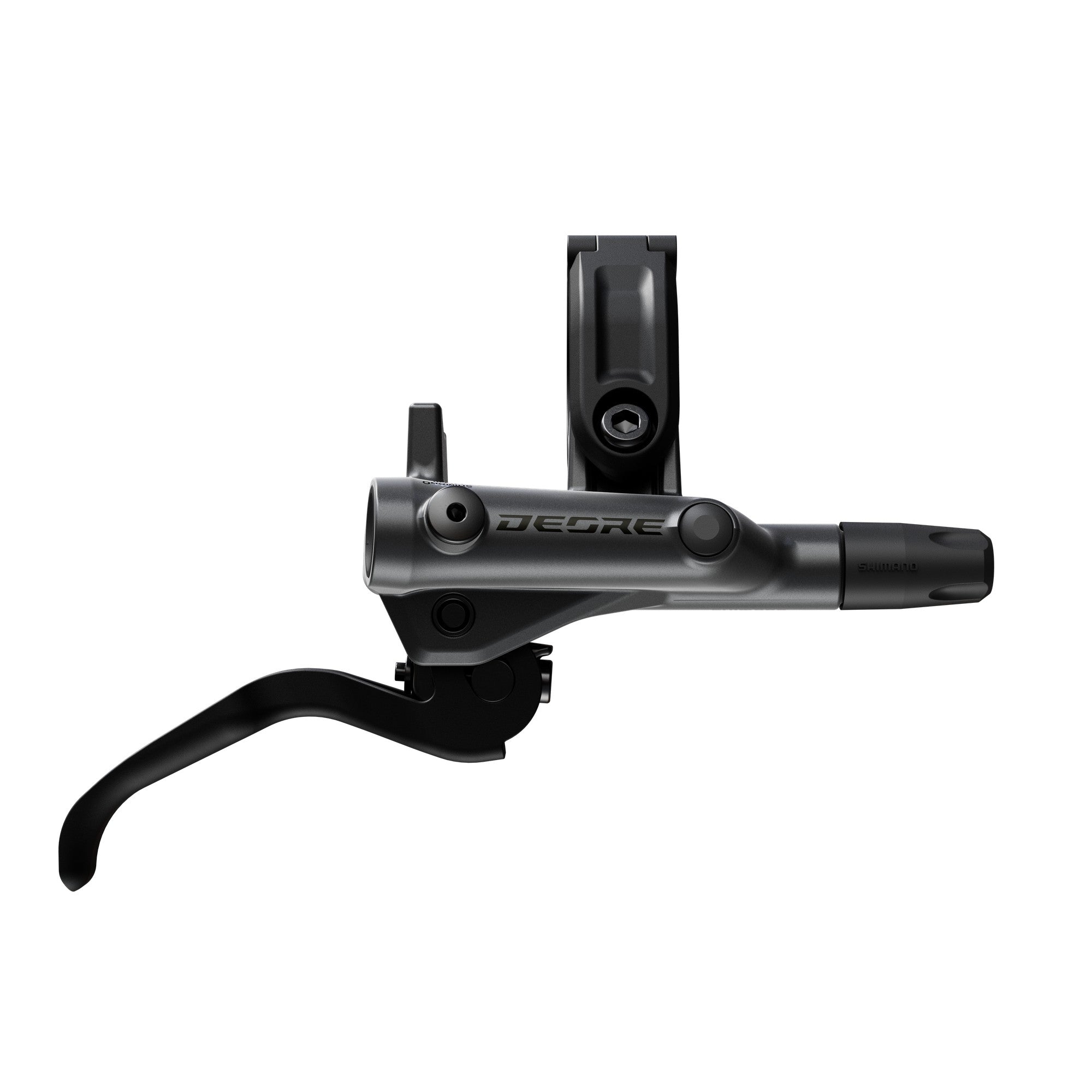

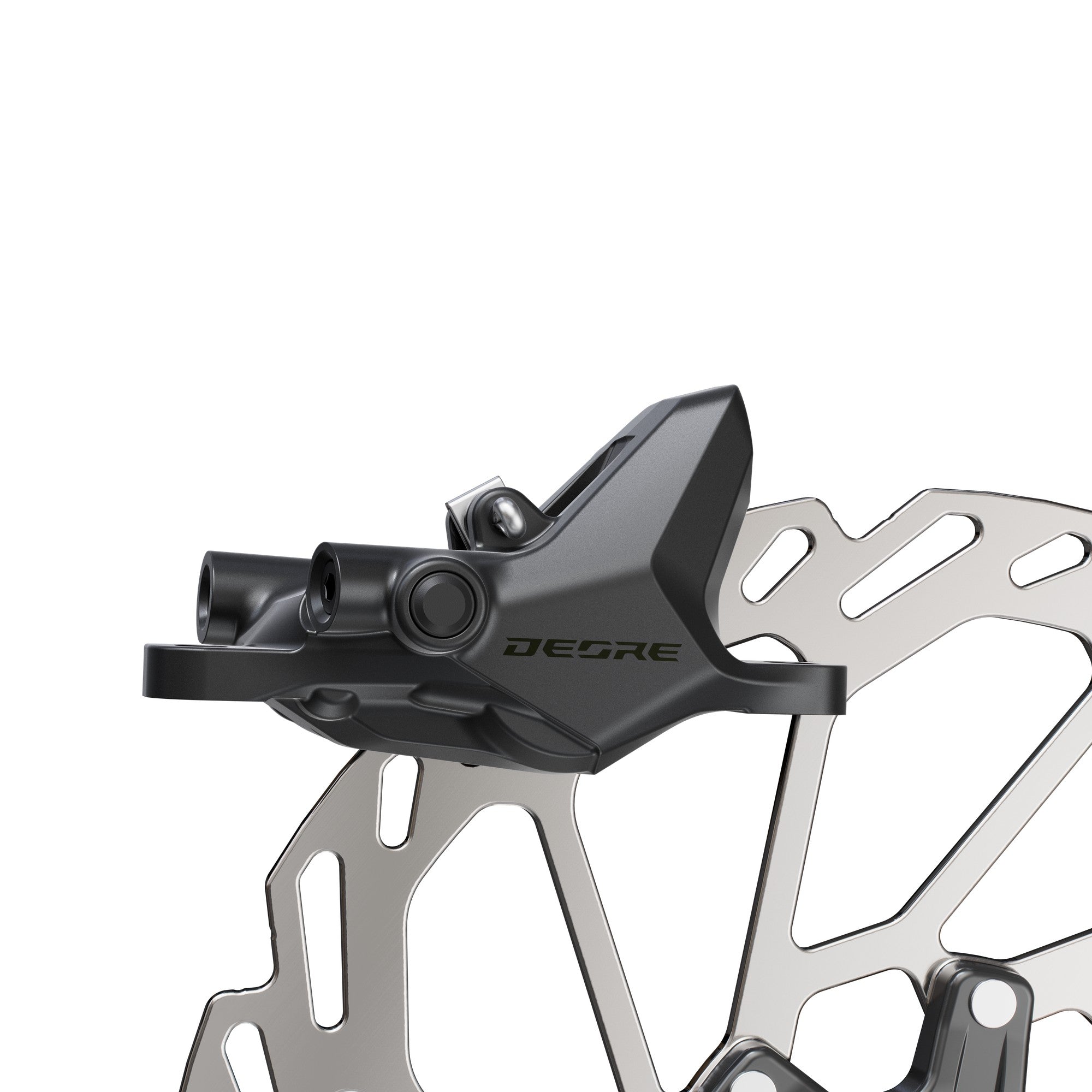

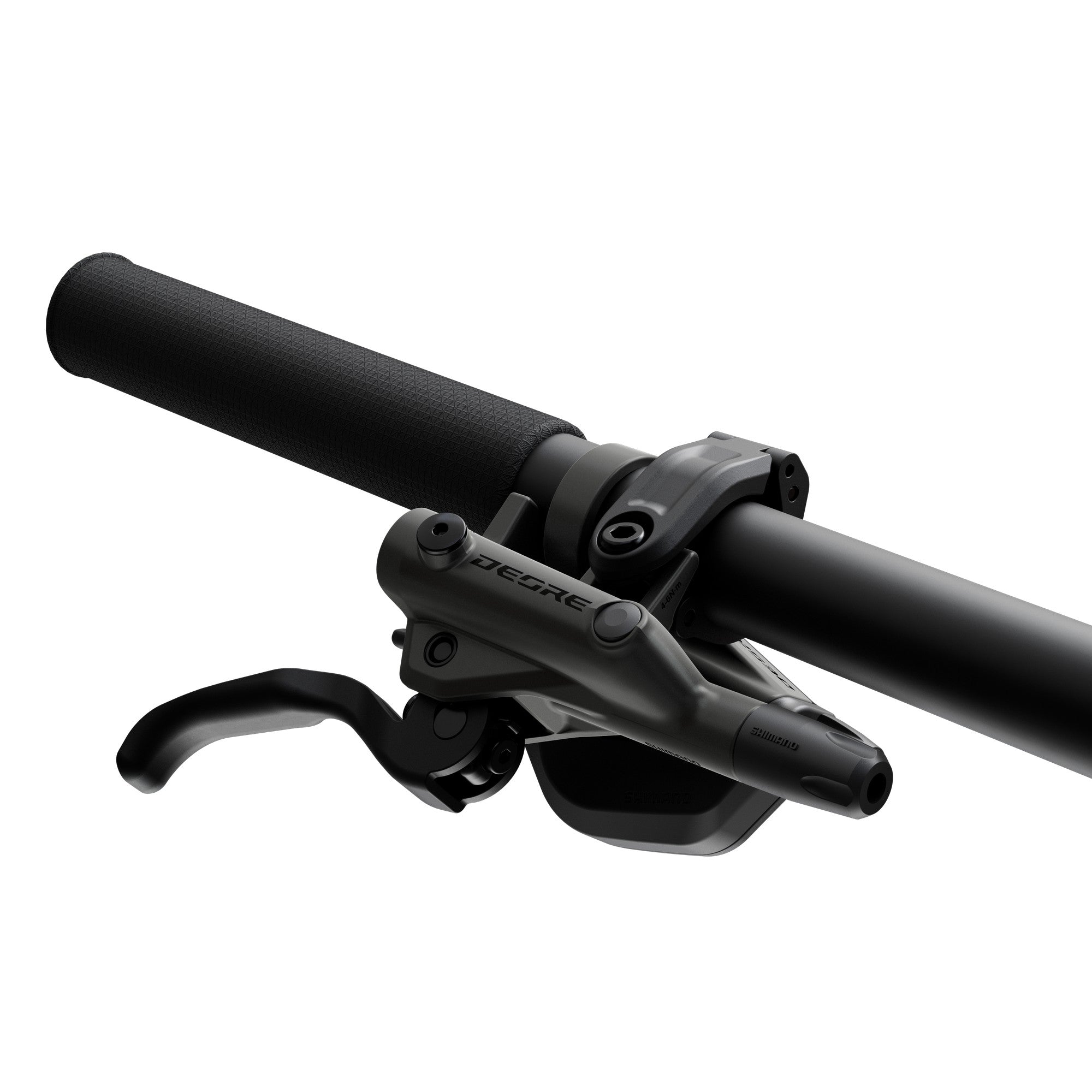

The lever uses Shimano's SERVO WAVE design for quick pad contact and a smooth, controllable power curve, with a reformulated low-viscosity mineral oil (SM-LVOIL) that stays stable across a wide temperature range. At the calliper, a rigid two-piece body, new piston seal and heat-resistant resin piston deliver consistent rebound and dependable performance descent after descent. The hose runs cleanly parallel to the bar, and the lever is I-SPEC EV compatible for a tidy cockpit. Supplied as a complete brake; compatible with current Shimano pads in metal and resin (without fin).

Features

• Complete hydraulic disc brake — BL-M6200 lever with BR-M6200 two-piston calliper
• Lightweight two-piston design for control and modulation
• SERVO WAVE for quick pad contact and an optimised power curve
• Rigid two-piece calliper with new piston seal and heat-resistant resin piston
• Low-viscosity mineral oil (SM-LVOIL) — stable over a wider temperature range
• Durable alloy lever with clean, parallel hose routing; I-SPEC EV compatible
• Compatible with current Shimano pads — metal and resin (without fin)

Specification

• Series: SHIMANO DEORE M6200

• Type: Complete hydraulic disc brake (lever + calliper)

• Pistons: 2-piston

• Intended Use: XC / Trail

• Lever Technology: SERVO WAVE

• Fluid: Low-viscosity mineral oil (SM-LVOIL)

• Mounting: I-SPEC EV compatible

• Pad Compatibility: Metal / resin (without fin)
