Amflow changed the e-MTB world with the original PL, and the PX Carbon takes things further: lighter, more powerful and more adjustable. We've been seriously impressed by Amflow bikes at Biketart. The performance is incredible, the reliability has been excellent and, most importantly, they're huge fun on the trail. It's very hard not to recommend the PX as your next all-mountain e-bike.
At its core is the DJI Avinox M2S motor, producing 105Nm of torque with 1500W peak power from a unit weighing just 2.59kg. It's powered by an integrated 700Wh battery weighing 3.18kg, and a fast charger is included. Multiple high-precision sensors and intelligent algorithms adjust output in real time for a natural, linear pedalling feel. Auto mode adapts assistance to the terrain and your riding position, and for the steepest, most challenging climbs, Boost mode delivers 150Nm and 1500W instantly.
The ultra-light 2.4kg carbon frame uses all-new progressive geometry, making it a versatile platform for everything from all-day trail rides to bike park laps. It runs 160mm of travel up front and 150mm at the rear on mixed wheels, and can be set up in 40 different configurations thanks to 5 headset angle settings, 2 bottom bracket height settings and 4 chainstay length settings.
The PX has been through rigorous reliability testing, and if you ever need help, the frame is covered by a 5-year limited warranty to the original owner, with a 2-year warranty on the Avinox motor and battery, backed by Amflow's multi-channel after-sales support.
Features
- Ultra-light 2.4kg carbon frame with progressive geometry
- DJI Avinox M2S motor, 105Nm and 1500W peak, 150Nm in Boost mode
- Integrated 700Wh battery (3.18kg) with fast charger included
- 40 possible configurations via headset angle, BB height and chainstay length
- Fox 36 Performance MY27 160mm fork and Float X Performance shock
- SRAM S1000 Eagle Transmission 12-speed with AXS Pod Controller
- Magura Gustav Pro four-piston brakes with 203mm rotors
- Mixed wheels with Schwalbe Magic Mary and Albert Gravity Pro Radial tyres
Sizing
- M - 157 - 173cm (5'2" - 5'8")
- L - 173 - 183cm (5'8" - 6'0")
- XL - 180 - 191cm (5'11" - 6'3")
- XXL - 191 - 198cm (6'3" - 6'6")
Where sizes overlap, reach is the most important measurement: a longer reach suits riders who like a more stretched, aggressive position, while a shorter reach suits a more upright position.
Geometry
| Measurement | M | L | XL | XXL |
|---|---|---|---|---|
| Reach | 455mm | 478mm | 503mm | 528mm |
| Stack height | 622.1mm | 632.2mm | 645.9mm | 659mm |
| Standover height | 780mm | 785mm | 790mm | 795mm |
| Front centre | 793.1mm | 820.9mm | 852mm | 883.9mm |
| Fork length | 570mm | 570mm | 570mm | 570mm |
| Wheelbase | 1,231.3mm | 1,259.1mm | 1,290.2mm | 1,322.1mm |
Specifications
DisciplineEnduro
MaterialCarbon
Front Travel160mm
Rear Travel150mm
Wheel SizeMX (29"/
27.5") Warranty5 Years
Drive unit - DJI Avinox M2S, 105Nm, 2-inch OLED control display
Battery - 700Wh
Rear shock - Fox Float X Performance MY27, 210x55mm, custom tune, 2-position lever w/ LSR adjustment
Fork - Fox 36 Performance MY27, 160mm travel, Grip damper, 15x110mm, 44mm rake
Rear derailleur - SRAM S1000 Eagle Transmission 12-speed
Crankset - DJI Avinox SL Crank (M/L: 155mm, XL/XXL: 160mm)
Shifter - SRAM AXS Pod Controller
Cassette - SRAM XS-1270, 11-52T
Chain - SRAM Eagle 70
Brakes - Magura Gustav Pro hydraulic disc brake, 4-piston caliper, 203mm Sensor rotors (front and rear)
Wheels - Amflow XMA-30, Alloy, 29" front, 27.5" rear, 30mm internal width, 32H, tubeless ready
Tyres - Front: Schwalbe Magic Mary, 29x2.5 Gravity Pro, Radial. Rear: Schwalbe Albert, 27.5x2.5 Gravity Pro, Radial
Handlebar - Amflow Enduro Alloy
Grips - Amflow Enduro Grip 2
Stem - Amflow Mountain Bike Split Stem
Saddle - Amflow Mountain Saddle
Seatpost - Amflow Dropper Post
Accessories - Quick start guide, torque wrench, shock pump, Amflow bottle cage, front and rear lights

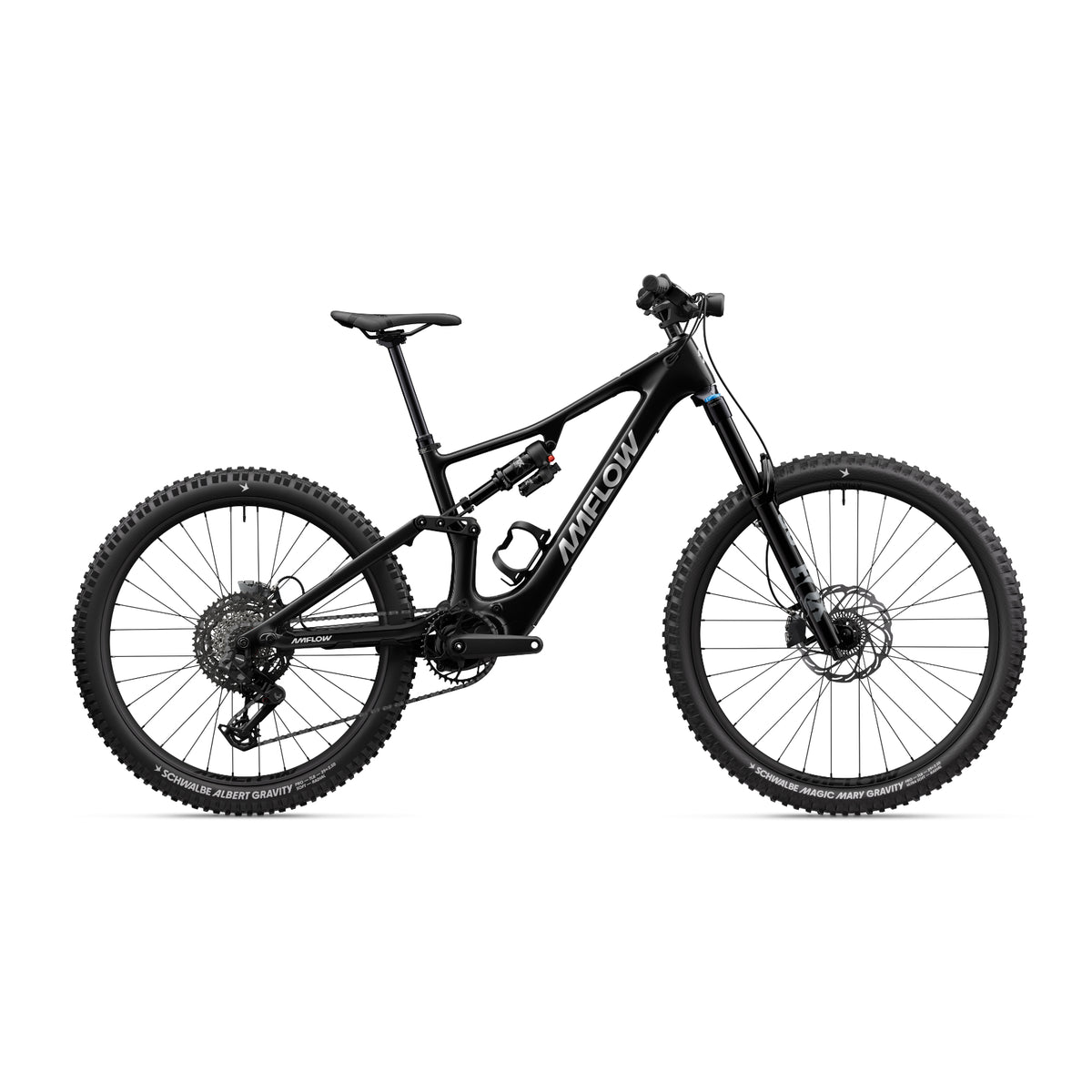

PX Carbon 2027
- Electric · Enduro
- 160 / 150mm travel
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
