Engineered by SRAM in order to keep up with the rapid evolution of mountain biking performance the Maven is a high power beast of a brake.

50% power increase over the legendary Code enduro brake thanks to huge 18 (x2) and 19.5mm (x2) pistons makes this the strongest brakes in it's class. A fantastic choice for shred hungry electric mountain bikes and downhill bikes.

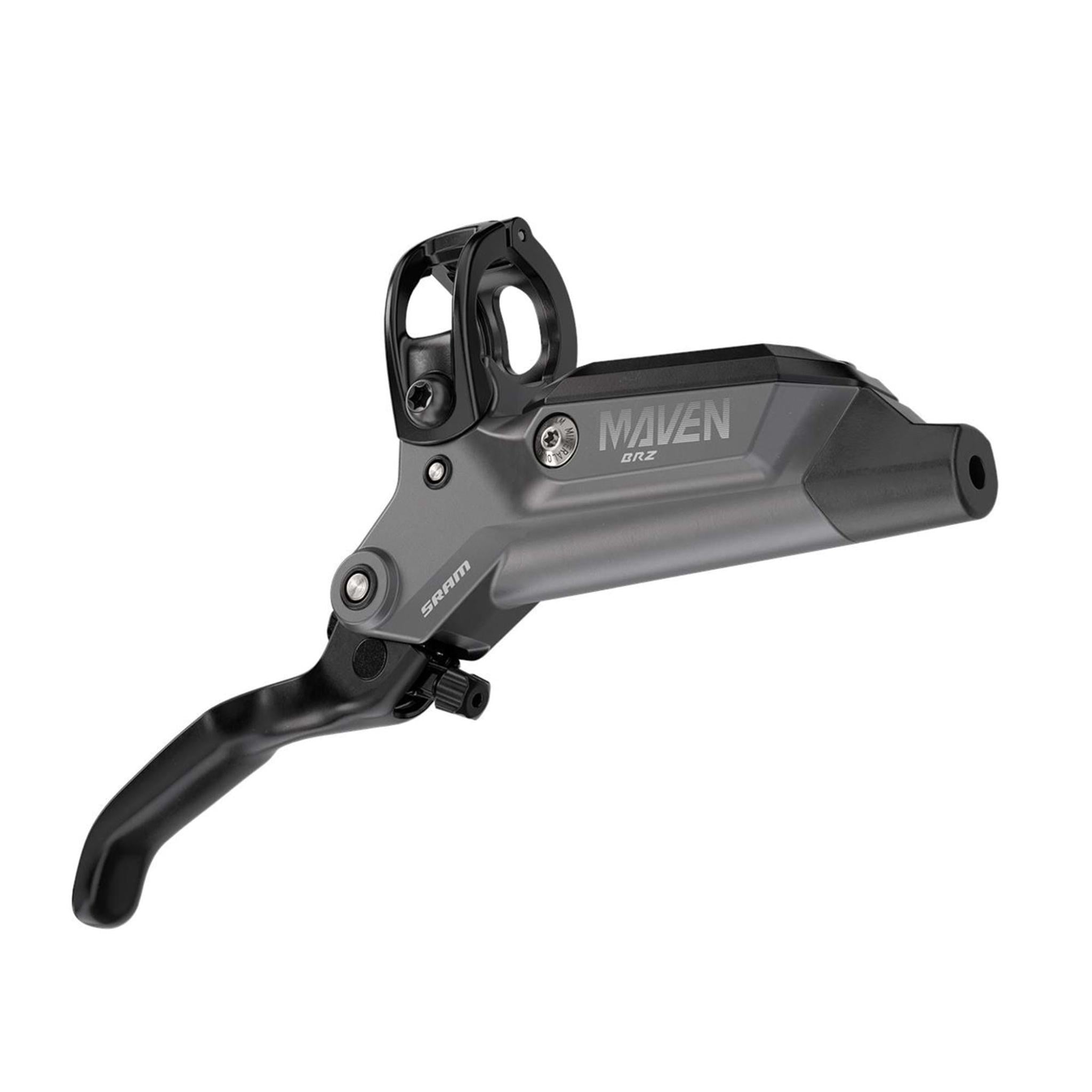

The Maven Bronze lever body houses Swinglink, which translates rider input for progressive power throughout the lever pull, maintaining SRAM’s signature ride feel.

Please note - Rotors and brake mounts are sold separately

Requires use of Maxima Mineral Oil brake fluid

Features -

• 18 and 19.5-millimeter pistons for best-in-class power.
• Swinglink for signature SRAM lever feel.

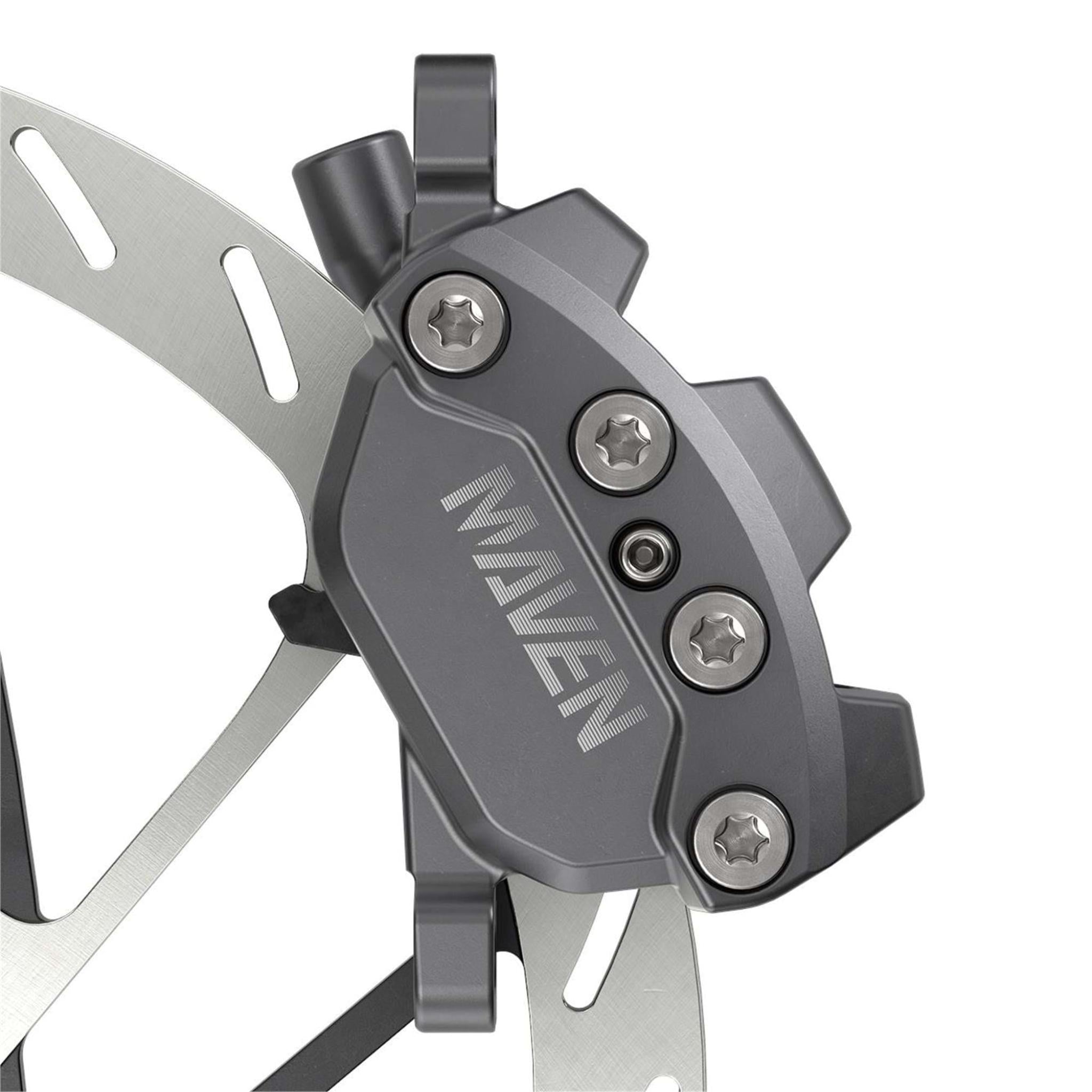

• Stiff 4-piston caliper with best heat management and easier bolt access.
• Organic pads come standard for the best modulation and the quietest ride.
• Stealth lever architecture for a sleeker, more modern ride.
• Mineral Oil for low maintenance and performance.
• Designed for use with Maxima Mineral Brake Oil only.
• Dark Polar Anodized finish.

Specification -

Application (DB) - MTB
Brake type - Hydraulic
Blade material - Aluminium
Contact adjust - No
Colour (DB) - Blast Dark Polar Anodized
Orientation - Front/Rear
Pad type (Disc) - Steel-backed organic
Bracket (Disc Brake) - Direct mount DIR
Hose length (mm) - 950mm/2000mm
Reach adjust - Tool-free
Rec discrete clamp (not included) - U-Clamp - Stainless - black
Pistons - 4
Piston material - Phenolic Plastic
Hose routing angle - Stealth Lever - Fixed Caliper
Caliper body material - Forged Aluminium
Caliper hardware - Steel
Caliper construction - 2-piece
Hydraulic fluid - SRAM Mineral Oil
Lever pivot - Bushing
Lever body material - Forged Aluminium

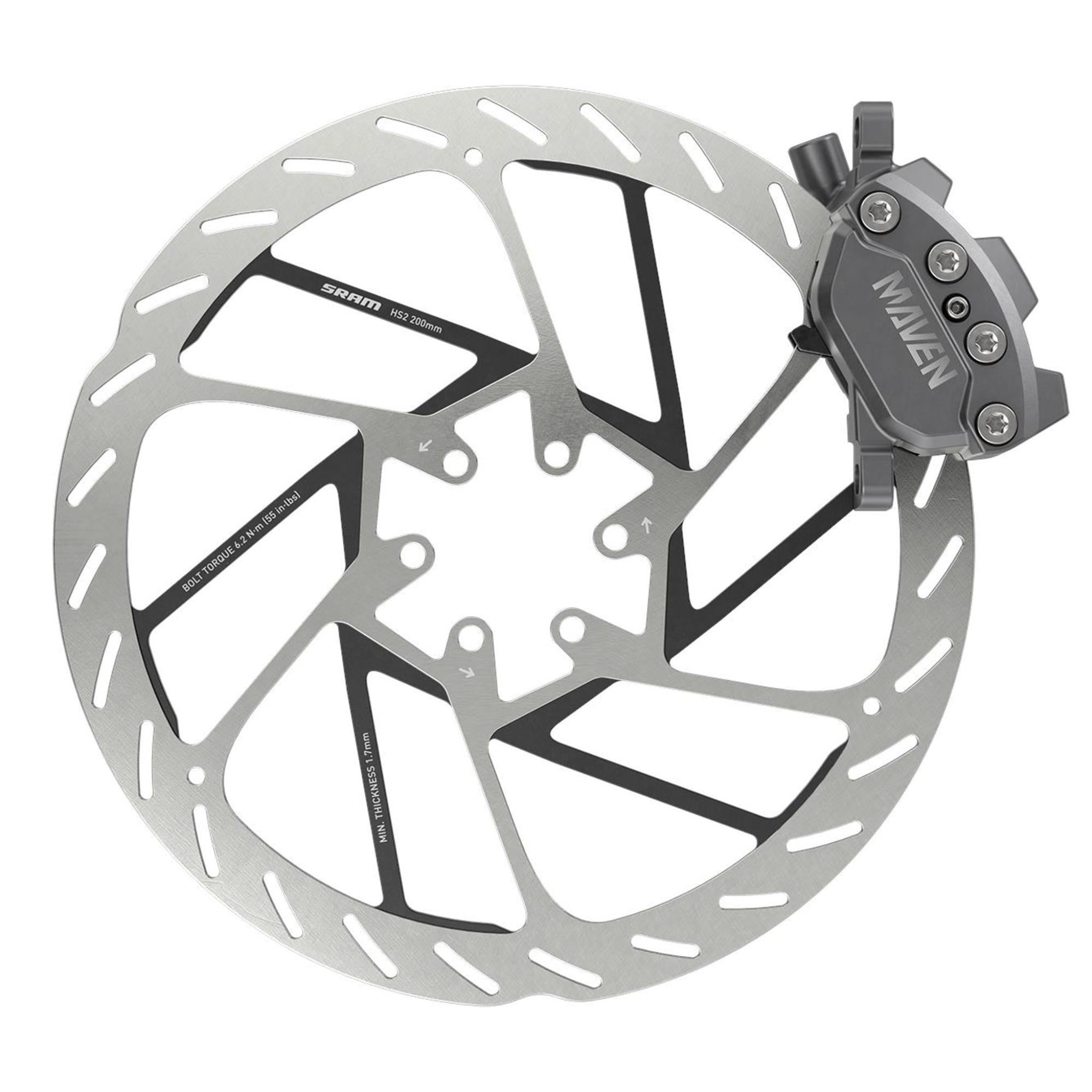

Rotor type recommended - 1-piece CenterLine
Clamp Included (DB) - Yes – MMX Clamp
Caliper Bleed Port - Bleeding Edge
