The Orbea Denna is a lightweight electric gravel bike, giving you a natural, road-like ride with a quiet, discreet boost when you want it. The slim frame hides a Shimano drive unit and an internal 420Wh battery, keeping the look clean and the weight low, so it rides like a gravel bike first and an e-bike second.
With drop-bar gravel geometry, generous tyre clearance and full internal routing, Denna is at home on backroads, gravel and the daily commute alike. The assistance simply extends your range and flattens the climbs, so you can go further and explore more.
The Denna M20i offers a smartly balanced Denna build that puts your money where it counts. It pairs Shimano XT M8260 SGS shifting with Shimano RX820 Hydraulic Disc brakes on Oquo Road Control RC30TEAM. Power comes from a Shimano EP801 drive unit with an Orbea Internal 420Wh battery.
Features
- Carbon frame
- Motor: Shimano EP801 with Orbea Internal 420Wh battery
- Drivetrain: Shimano XT M8260 SGS
- Brakes: Shimano RX820 Hydraulic Disc
- Wheels: Oquo Road Control RC30TEAM
- Tyres: Pirelli Cinturato™ GRAVEL H Classic 700X45c TLR
- Lightweight electric gravel platform with a natural ride feel
- Shimano drive unit with an internal 420Wh battery
- Discreet, integrated motor and battery for a clean look
- Drop-bar gravel geometry with generous tyre clearance
- Full internal cable routing
- Extra range and easier climbs for bigger days
Specifications
Discipline Electric Gravel
Material Carbon
Wheel Size 700c
Warranty Lifetime (frame)
Frame - Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.
Fork - Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
Headset - FSA 1-1/2" Integrated Aluminium Cup
Stem - OC Road Performance RP10, -8º
Handlebar - OC Gravel GR10 Carbon, Reach 70, Drop 110
Brakes - Shimano RX820 Hydraulic Disc
Rear Derailleur - Shimano XT M8260 SGS
Shifters - Shimano GRX Di2 RX825
Cassette - Shimano CS-M8200 10-51t 12-Speed
Chain - Shimano M6100
Chainguide - Orbea eBike chainguide
Crank - Shimano Steps EM600
Wheels - Oquo Road Control RC30TEAM
Rear Hub - Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
Front Hub - Orbea Thru Axle 12x100mm M12xP1 Hollow
Tyres - Pirelli Cinturato™ GRAVEL H Classic 700X45c TLR
Seatpost - OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle - Selle San Marco Shortfit 2.0 Start Up Off Road Xilite
Battery - Orbea Internal 420Wh
Motor - Shimano EP801
Charger - Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote - EN600-L
Handlebar Plugs - OC Components

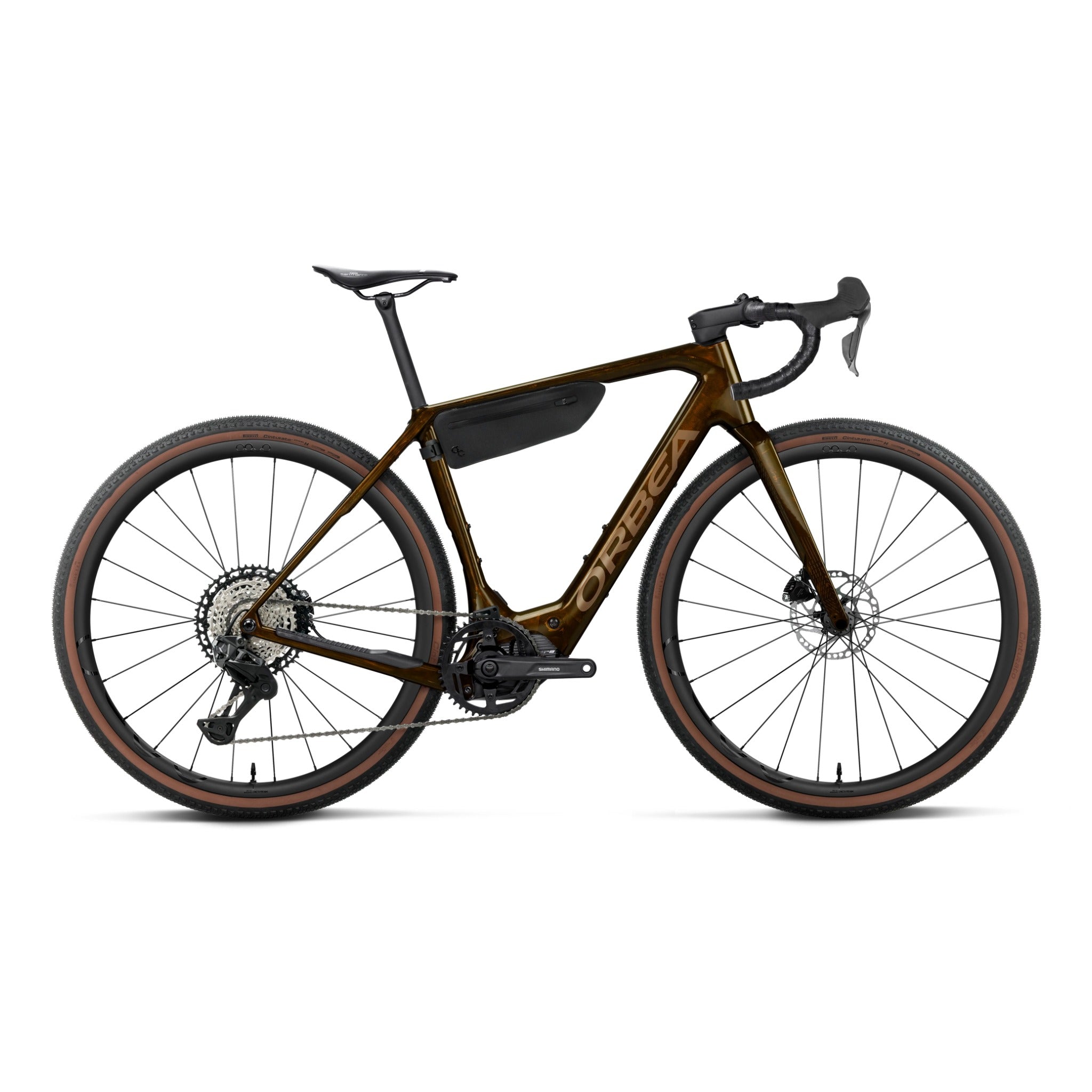

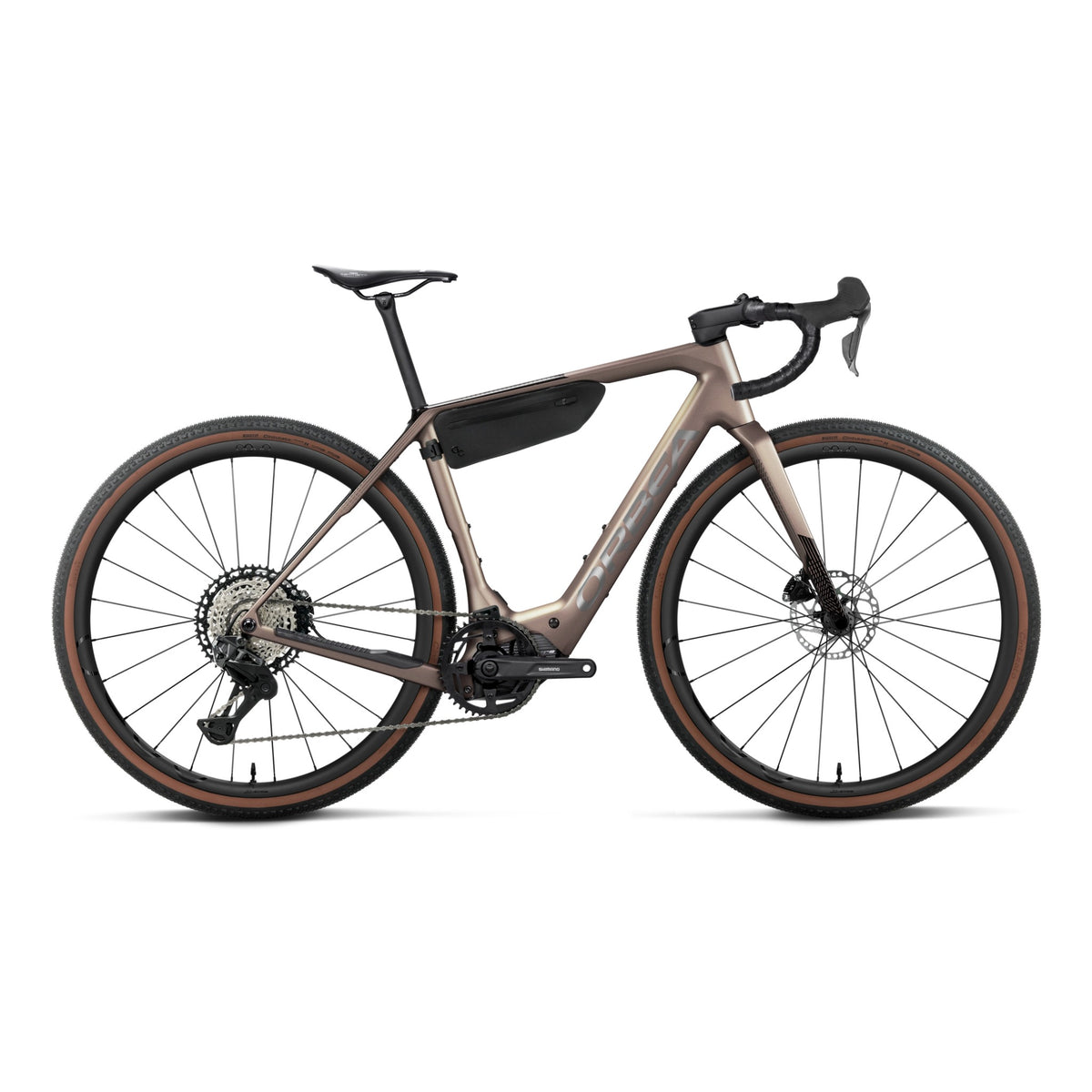

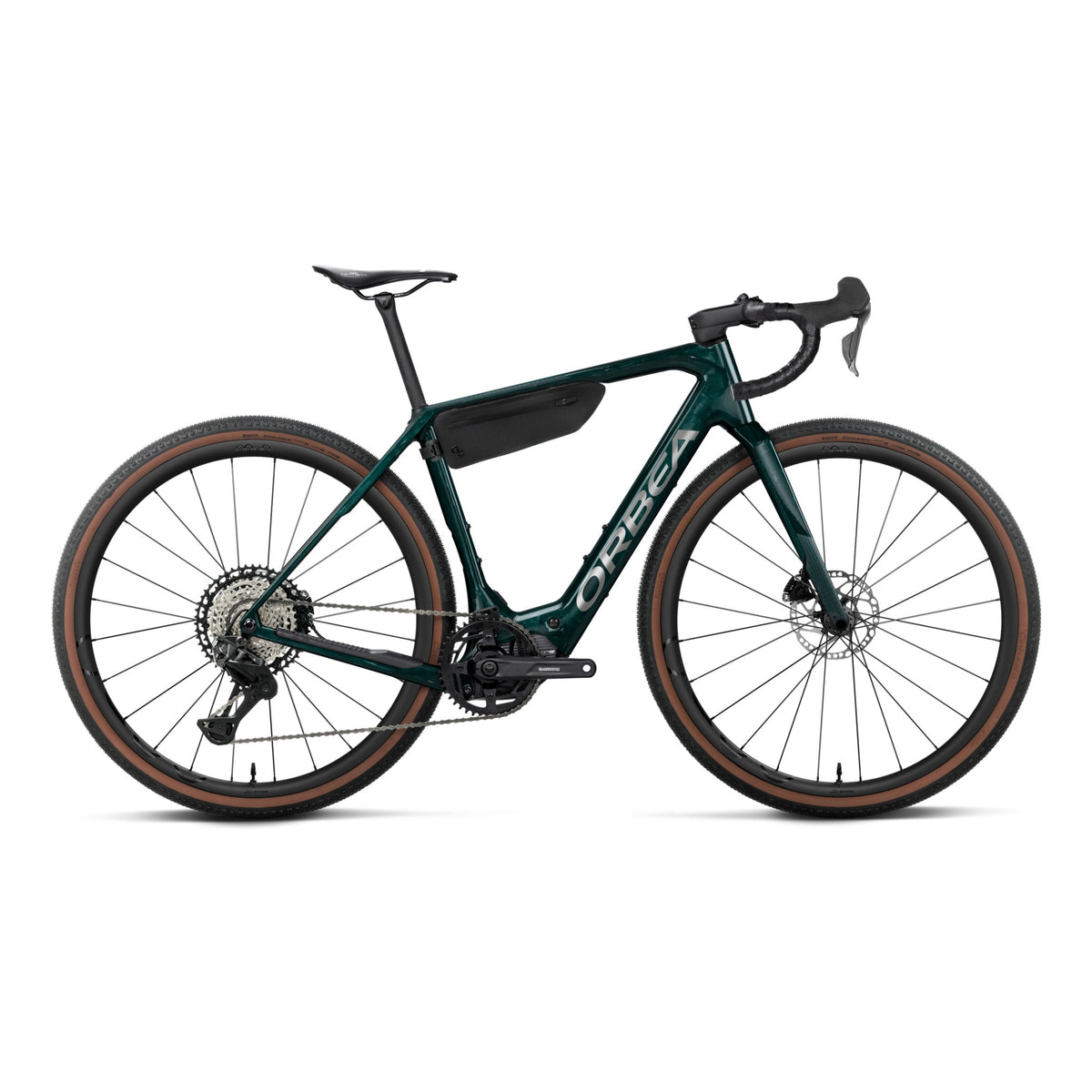

Denna M20i 2027
Order within [time] for delivery by [date]
90 Day Returns
