Description

The all-new lightweight electric mountain bike from Mondraker brings the ultimate option for riders who want the latest components paired with modern frame design ideology. Refined and finely tuned stealth carbon frame matched with the light, powerful TQ motor lays the base for an absolute weapon of an E-MTB.

Mondraker's electric MTB line-up boasts some of the best riding (and looking) bikes out there, the NEAT fits right in with the family and was designed from the ground up to be the most nimble, manoeuvrable and lightest in Mondraker's range.

At the heart of the NEAT is the TQ drive system, this remarkable system achieves the dream of small size, light weight, reliability, low noise level and most importantly real, useable power.

TQ-HPR50 -

Combining 3 natural-feeling levels of assistance and running almost silently, the TQ-HPR50 provides up to 300W of power and 50Nm of torque. A multitude of variables will always come into play when talking about range, but a rider of average weight (around 75Kg) can expect to be able to complete a ride of between 3-4 hours, with more than 1000m of altitude gain, switching between ECO and MID modes, and ride anywhere from 40 to 50km. The optional range extender can increase that by up to 50%

Via the TQ E-Bike smartphone app and Bluetooth connection you can control all the parameters of the motor to an almost limitless extent.

The middle model in the range is the NEAT RR, with a Fox 36 29 Float GRIP2 Factory Kashima fork, SRAM GX Eagle AXS transmission, SRAM Level Bronze Stealth brakes, Fox Transfer Factory Kashima seatpost and Mavic E-DeeMax SL 29 wheels

SIZING -

  • S: 160cm - 170cm
  • M: 165cm - 180cm
  • L: 175cm - 185cm
  • XL: 185cm - 190cm+





Specifications

  • Discipline Trail/AM

  • Material Carbon

  • Front Travel 160mm

  • Rear Travel 150mm

  • Wheel Size 29"

  • Warranty Lifetime (frame)

Frame - Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - Medium compression, medium rebound, air volume spacer 0.4
Fork - Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar - Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Desert, 1lock-on, 135mm
Seatpost - Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
Saddle - Fizik Terra Aidon Slim X5
Front brake - Sram Level Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram Level Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram Level Bronze, tools-free reach adjust, lever pivot bushings
Rims - Mavic E-DeeMax SL 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes - Mavic 28 straight-pull double butted spokes
Front hub - Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Front tire - Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset - E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1275, 10-52T, T-Type, 12s
Others - Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Weight - 18.3 kg - Max System Weight 150kg.
Display - TQ HPR display V01
Motor - TQ HPR-50
Battery - TQ HPR-50 360Wh integrated and removable

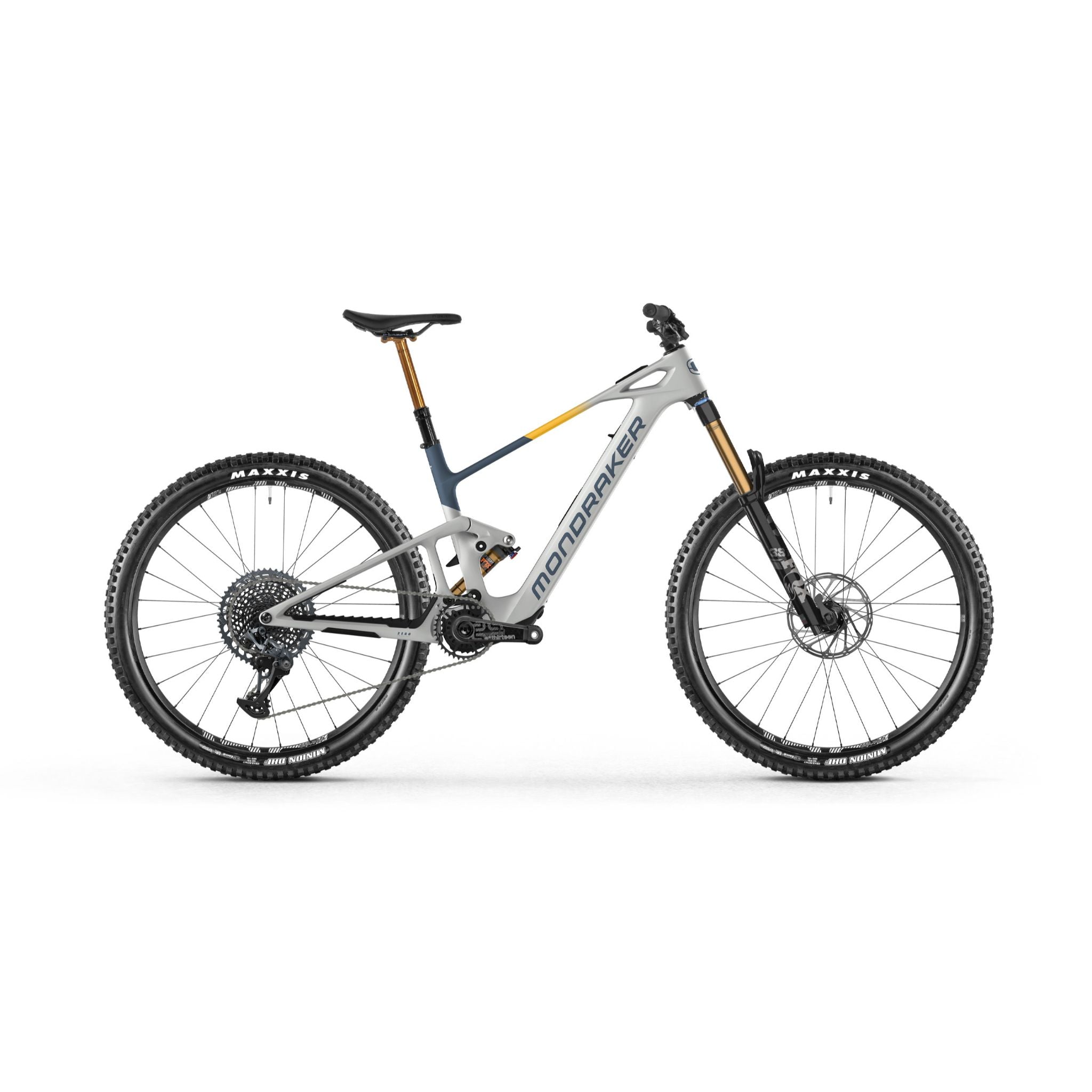

Mondraker NEAT RR 2024

SKU: 010.24249

Barcode: 8435392878579

The all-new lightweight electric mountain bike from Mondraker brings the ultimate option for riders who want the latest components paired with modern frame design ideology. Refined and finely tuned... Read more

£6,495.00 RRP £8,499.00SAVE 23%

Select Colour
  • Bunker Grey/Denim Blue/Dense Yellow  Bunker Grey/Denim Blue/Dense Yellow
Size Please select
  • S
  • M
  • L
  • XL
