Description
Mondraker's Crafty is a long-term favourite at Biketart. Fantastic choice of component spec combined with Mondraker's masterful frame design make for a carbon frame electric mountain bike that performs on rapid flowy trails or over challenging technical features. Most importantly Mondraker always nail the aesthetic design and these bikes look truly amazing!
The RR build is the top of the range, fitted with professional level, proven components for the highest possible performance. Fitted to the RR spec you will find the iconic Fox factory suspension with it's much loved gold finish and sublime performance. SRAM AXS wireless 12-speed shifting, Mavic E-Deemax wheels and Maxxis rubber. All boosted by the Bosch Gen5 drive unit.
Bosch Gen5 Smart System -
The latest Bosch motor is a Performance Line CX GEN5 (BDU384Y) unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 800Wh battery that allows you to enjoy even more miles of trail on a single charge.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- M/L: 175cm - 185cm
- L: 180cm - 195cm
- XL: 190cm+
Specifications
-
Discipline Trail/Enduro
-
Material Stealth Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel
Rear shock - Fox Float-X Factory EVOL, 185x55mm
Shock settings - CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
Fork - Fox 38 29 Float GRIPX2 factory, 160mm, e-bike tuned
Headset - Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube
Stem - Onoff S6 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff S6 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Desert Pro, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle - Ergon SM-10
Brakes - Sram Maven Bronze
Rims - Mavic E-Deemax 29, 30mm internal width
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire - Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+
Rear tire - Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra
Crankset - Race Face Aeffect ebike, 160mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram GX Eagle, 12s, Powerlock
Rear derailleur - Sram GX Eagle AXS T-Type
Shift levers - Sram AXS Eagle POD
Cassette - Sram XS-1270, 10-52T, 12s
Display - Bosch Kiox 400 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX Cruise (25Km/h) GEN5 SMART SYSTEM
Battery - Bosch Powertube 800Wh

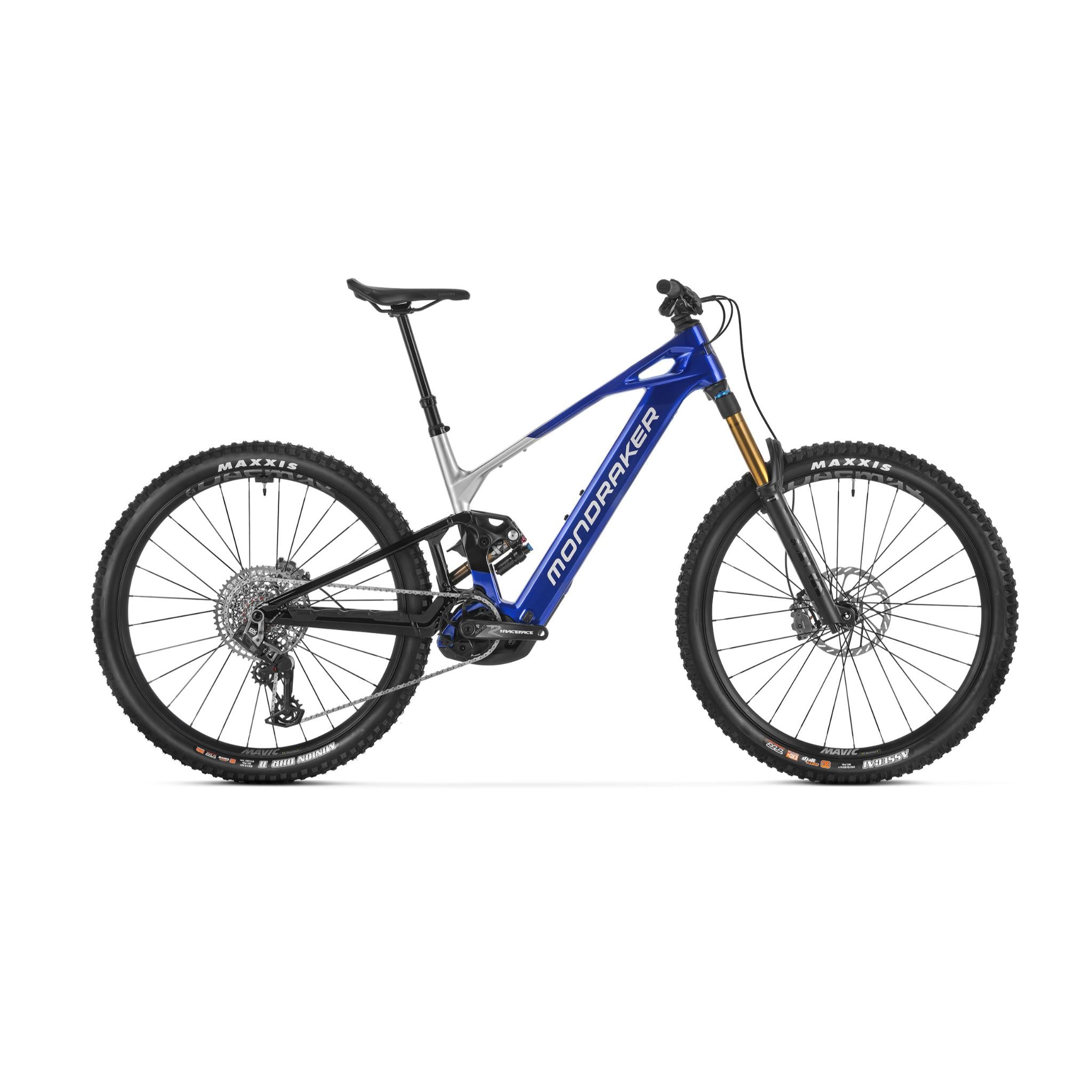

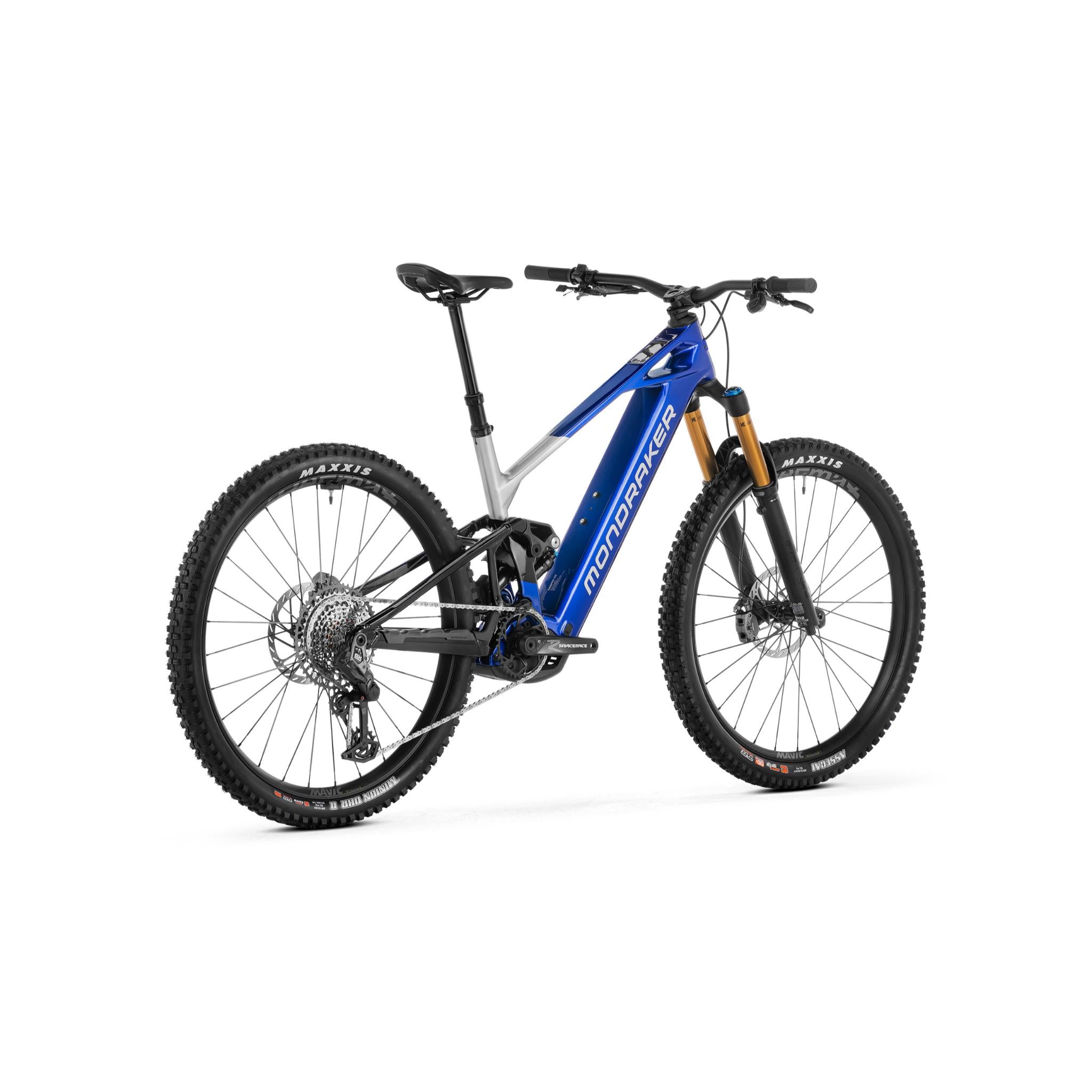

Mondraker Crafty Carbon RR 2026
