Description

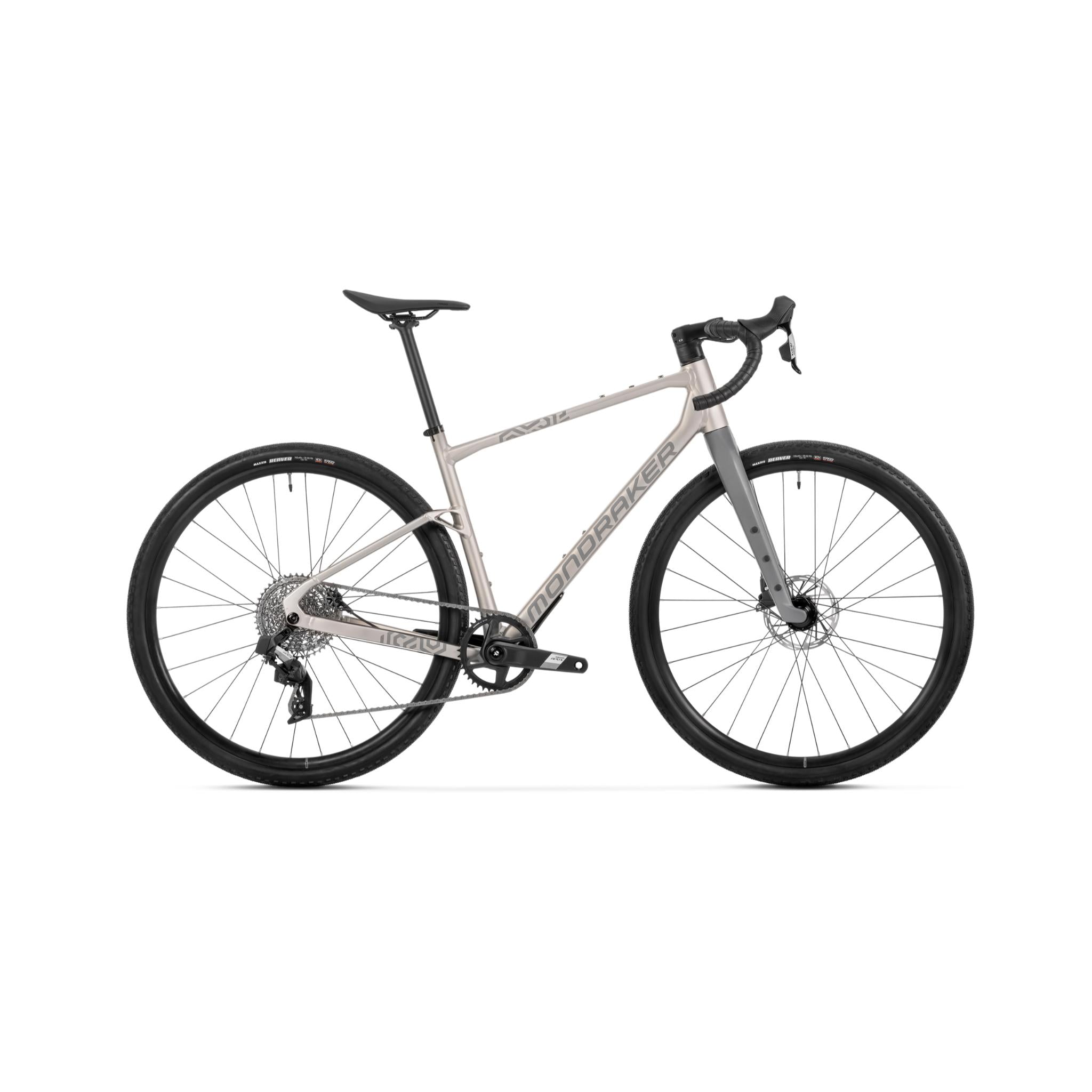

Mondraker's razor focussed gravel bike, in glorious new colour ways and awesome build kits. The Arid is the leader of the new wave of drop-bar off-road bikes, finely tuned suspension and pro level components mean the Arid is rapid, engaging and most importantly, unbeatable on the trails.
The modern frame employs the same geometry as Mondraker's premium Stealth Carbon frame Arid models, delivering a lightweight yet durable structure. Notably, the Arid features a distinctive twin-spar rear design, enhancing compliance and comfort on rough terrains.
Geometry-wise, the Arid incorporates a longer reach and slacker head angle, reminiscent of mountain bike configurations, promoting stability and confidence on challenging trails. The bike accommodates up to 50mm tires, offering adaptability across various surfaces. Practicality is further enhanced by integrated downtube storage, complete with custom-fitted pouches for essentials like spare tubes and tools.
SIZING -
- S: <165cm
- M: 165-175cm
- M/L: 170-185cm
- L: 180-190cm
- XL: 190cm+
Specifications
-
Discipline Gravel
-
Material Aluminium
-
Front Travel Rigid
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime
Frame - Arid 6061 Alloy Stealth Evo, hydroformed tubing, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Fork - Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset - Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem - Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar - Onoff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
Grips - Onoff HEX Bartape
Seatpost - Onoff S3 0-R, diameter 27,2mm, length 400mm
Saddle - Fizik Vento Argo X5 140mm
Front Brake - Sram Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Rear Brake - Sram Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake Lever - Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
Rims - Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Spokes - Mavic Steel double butted flat spokes
Front Hub - Mavic, 12x100mm, Centerlock
Rear Hub - Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, HG Freehub
Front Tire - Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear Tire - Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset - Sram Apex 1 Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
Rings - Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom Bracket - Sram DUB T47 BSA, sealed bearings, 85,5mm
Chain - Sram Apex, 12s, Powerlock
Rear Derrailleur - Sram Apex XPLR AXS D1 12s,
Shift Levers - Sram Apex AXS D1 12s,
Cassette - Sram PG-1231 11-44, 12s
Derailleur Hanger - Sram UDH
