Carbon wheels are what set the Scultura Endurance 6000 apart from the other 105 Di2 build in the range. Vision SC 45 Disc rims are 45mm deep with a 23mm internal width, Centerlock and tubeless tape ready, and they make an obvious difference to how easily the bike holds speed on rolling roads.
The chassis is the CF3 carbon endurance frame with Nano Matrix resin for impact resistance, a 142 x 12mm rear axle, a BB86 pressfit bottom bracket and a 1 1/2in lower headset bearing. Geometry follows the endurance brief: longer head tube for a more upright position, slacker head angle and a slightly longer wheelbase for stability, plus clearance for 35c tyres or 32c with mudguards.
Shifting is Shimano 105 Di2, 2 x 12, with an 11-34 cassette and 50-34 chainset. Braking is 105 hydraulic disc, the rear caliper flat mounted onto the frame's CNC machined aluminium Disc Cooler fins, which the brand says reduce operating temperatures by up to 35%.
The finishing kit is chosen for long rides rather than short ones: Maxxis RE-FUSE 32c tyres, a carbon Expert SL seatpost, an Expert SL II saddle with a minitool built in, and internal routing through the headset that leaves the cockpit clean.
Features
- CF3 carbon frame and fork with Nano Matrix resin for improved impact resistance
- Vision SC 45 Disc carbon wheels, 45mm deep, 23mm internal width, Centerlock
- Shimano 105 Di2 2 x 12 electronic shifting, 11-34 cassette and 50-34 chainset
- Shimano 105 hydraulic disc brakes, rear caliper flat mounted onto Disc Cooler fins
- Endurance geometry with a taller head tube and longer wheelbase
- Maxxis RE-FUSE 32c tyres, carbon Expert SL seatpost, minitool in the saddle
- Clearance for 35c tyres, or 32c with mudguards fitted
Specifications
Discipline Road
Material Carbon
Groupset Shimano 105 Di2 2x12
Wheels Carbon
Wheel Size 700c
Max Tyre 35c
Frame - CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 142 x12mm axle standard, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2 headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard)
Fork - Scultura Endurance CF3 Disc; carbon; 700x35C max. wheel size
Headset - Merida Team SL (SE-301 neck)
Stem - Merida Expert SL 2PII; aluminium; -9 degree rise
Handlebar - Merida Expert SL II; aluminium; (3XS-S) - 380mm, (M-L) - 400mm, XL - 420mm
Grips - Merida ROAD Expert
Brake Type - Hydraulic Disc
Brake Levers - Shimano 105
Brakes - Front: Shimano 105; Disc Rear: Shimano 105; Disc
Wheels - Rims: Vision SC 45 Disc; 100x12mm; 142x12mm; 23mm inner rim width; 45mm deep; Centerlock; carbon; Tubeless tape ready Front Hub: Merida Expert SL Rear Hub: Merida Expert SL
Tyres - Front: Maxxis RE-FUSE; 700x32C; fold Rear: Maxxis RE-FUSE; 700x32C; fold
Wheel Size - 700c
Speeds - 24
Shifters - Front: Shimano 105 disc Di2 Rear: Shimano 105 disc Di2
Front Derailleur - Shimano 105 Di2
Rear Derailleur - Shimano 105 Di2
Chainset - Shimano 105 R7100; 50-34 teeth; Crank Length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BB71-41B; Pressfit 86.5mm
Chain - Shimano M6100-12
Cassette - Shimano 105 R7101; 11-34 teeth; 12 speed
Saddle - Merida Expert SL II; V-mount; incl. Merida minitool
Seat Post - Merida Expert SL; 27.2mm diameter; in-line; Carbon

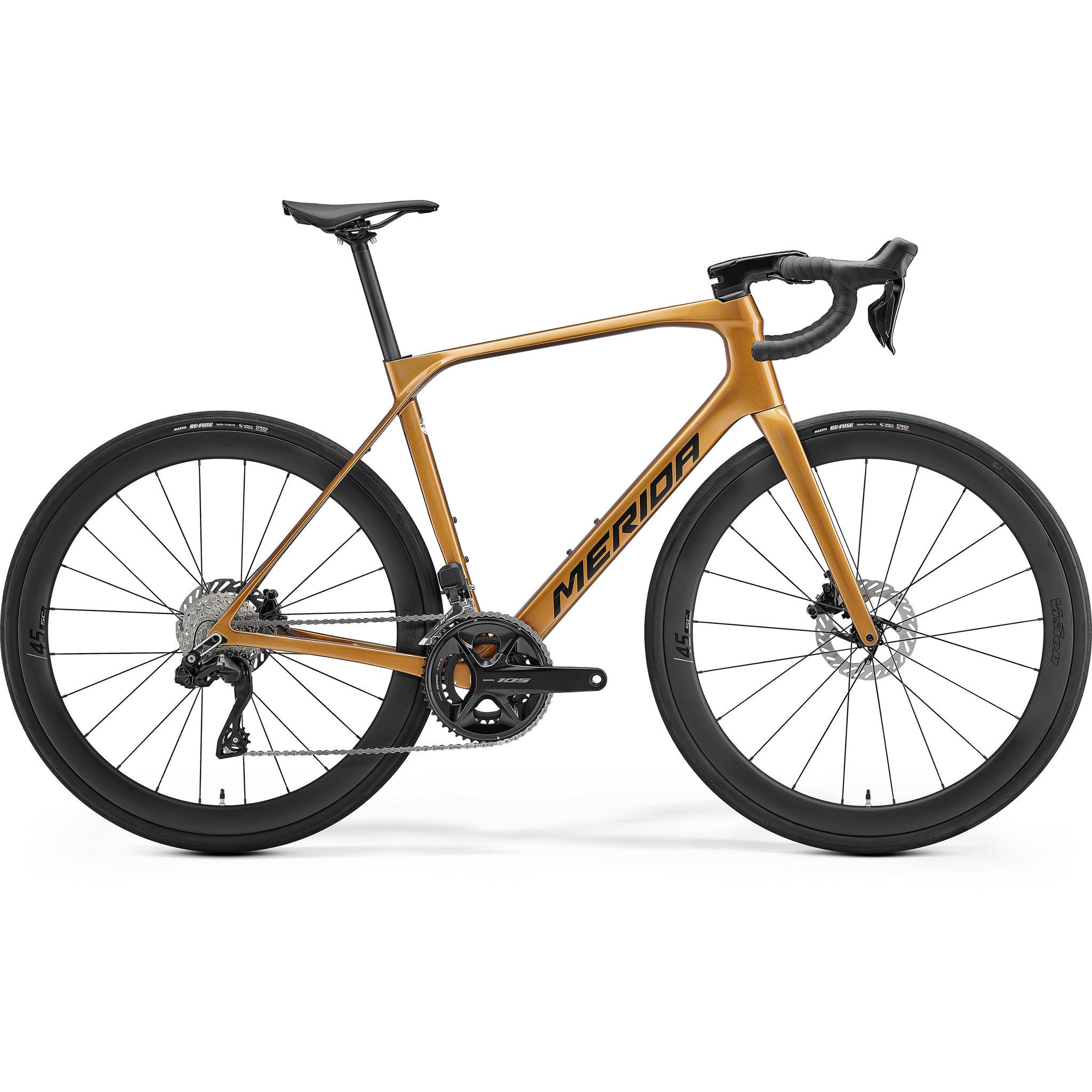

Scultura Endurance 6000 2027
