Twelve-speed Shimano 105 is the headline on the Scultura Endurance 400, the top alloy build in the endurance line-up. The 11-34 cassette and 50-34 chainset cover most British terrain, and mechanical 105 shifting with 105 hydraulic disc brakes is about as dependable as road kit gets at this level.
Underneath is the Lite Aluminium frame with a full carbon CF3 fork, 12mm bolt-through axles and a BB86 pressfit bottom bracket, built to endurance geometry - taller head tube, slacker head angle, longer wheelbase - so you sit up a little and the bike stays settled on fast descents. Wheels step up to Merida Expert SL III alloy rims on Shimano TC500 Centerlock hubs, tubeless ready front and rear, and there is clearance for 35c tyres or 32c with mudguards.
Features
- Lite Aluminium endurance frame with internal cable routing and a hidden seat clamp
- Full carbon Scultura Endurance CF3 fork, 12mm bolt-through axles front and rear
- Shimano 105 R7100 2 x 12 drivetrain, 11-34 cassette and 50-34 chainset
- Shimano 105 hydraulic disc brakes, flat mount at the rear
- Tubeless-ready Merida Expert SL III alloy wheels on Shimano TC500 Centerlock hubs
- Maxxis Detonator 32c folding tyres
- Clearance for 35c tyres, or 32c with mudguards fitted
Specifications
Discipline Road
Material Alloy
Groupset Shimano 105 2x12
Brakes Hydraulic disc
Wheel Size 700c
Max Tyre 35c
Frame - Lite Aluminium, endurance geometry. Internal cable routing, 142 x12mm axle standard, BB86, flat mount rear brakes, 1 1/2 headtube. Max tyre - 35c (32c with mudguards)
Fork - Scultura Endurance CF3 Disc; carbon; 700x35C max. wheel size
Headset - Acros ICR Merida external neck w/diecast splitring
Stem - Merida Team CC III; aluminium; 31.8mm diameter; -6° degree rise
Handlebar - Merida Expert SL II; aluminium; (4XS-S) - 380mm, (M-L) - 400mm, XL - 420mm
Grips - Merida ROAD Expert
Brake Type - Hydraulic Disc
Brake Levers - Shimano 105
Brakes - Front: Shimano 105; Hydraulic disc Rear: Shimano 105; Hydraulic disc
Wheels - Rims: Merida Expert SL III; 23mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Double Butted Black stainless Front Hub: Shimano TC500; 100x12mm; 28 spoke; Centerlock Rear Hub: Shimano TC500-HL; 12x142mm; 28 spoke; Centerlock
Tyres - Front: Maxxis Detonator; 700x32C; fold Rear: Maxxis Detonator; 700x32C; fold
Wheel Size - 700c
Speeds - 24
Shifters - Front: Shimano 105 disc Rear: Shimano 105 disc
Front Derailleur - Shimano 105
Rear Derailleur - Shimano 105; GS
Chainset - Shimano 105 R7100; 50-34 teeth; Crank Length: (4XS-3S) - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BB71-41B; Pressfit 86.5mm
Chain - Shimano M6100-12
Cassette - Shimano 105 R7101; 11-34 teeth; 12 speed
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seat Post - Merida Comp CC; 27.2mm diameter; in-line; aluminium

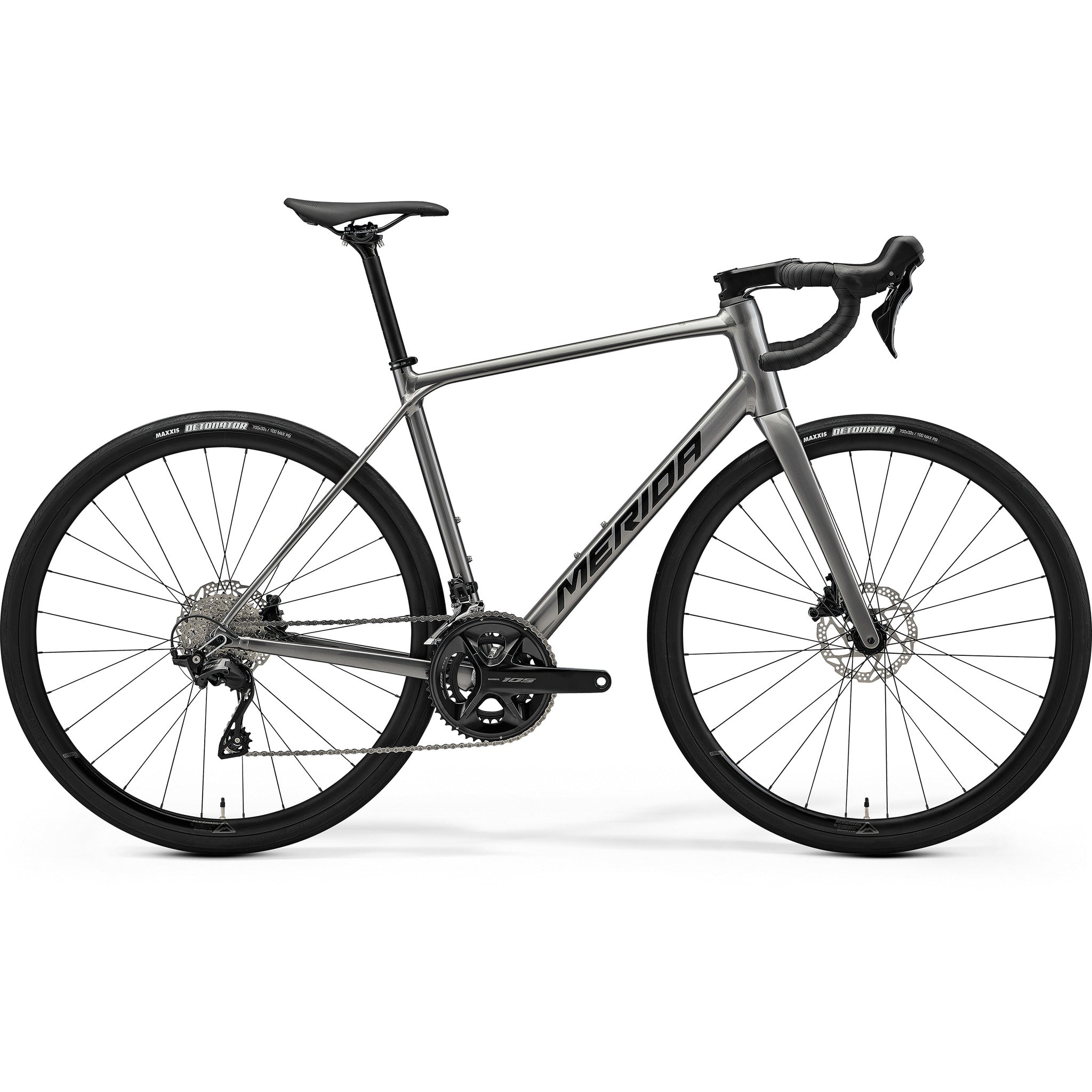

Scultura Endurance 400 2027
