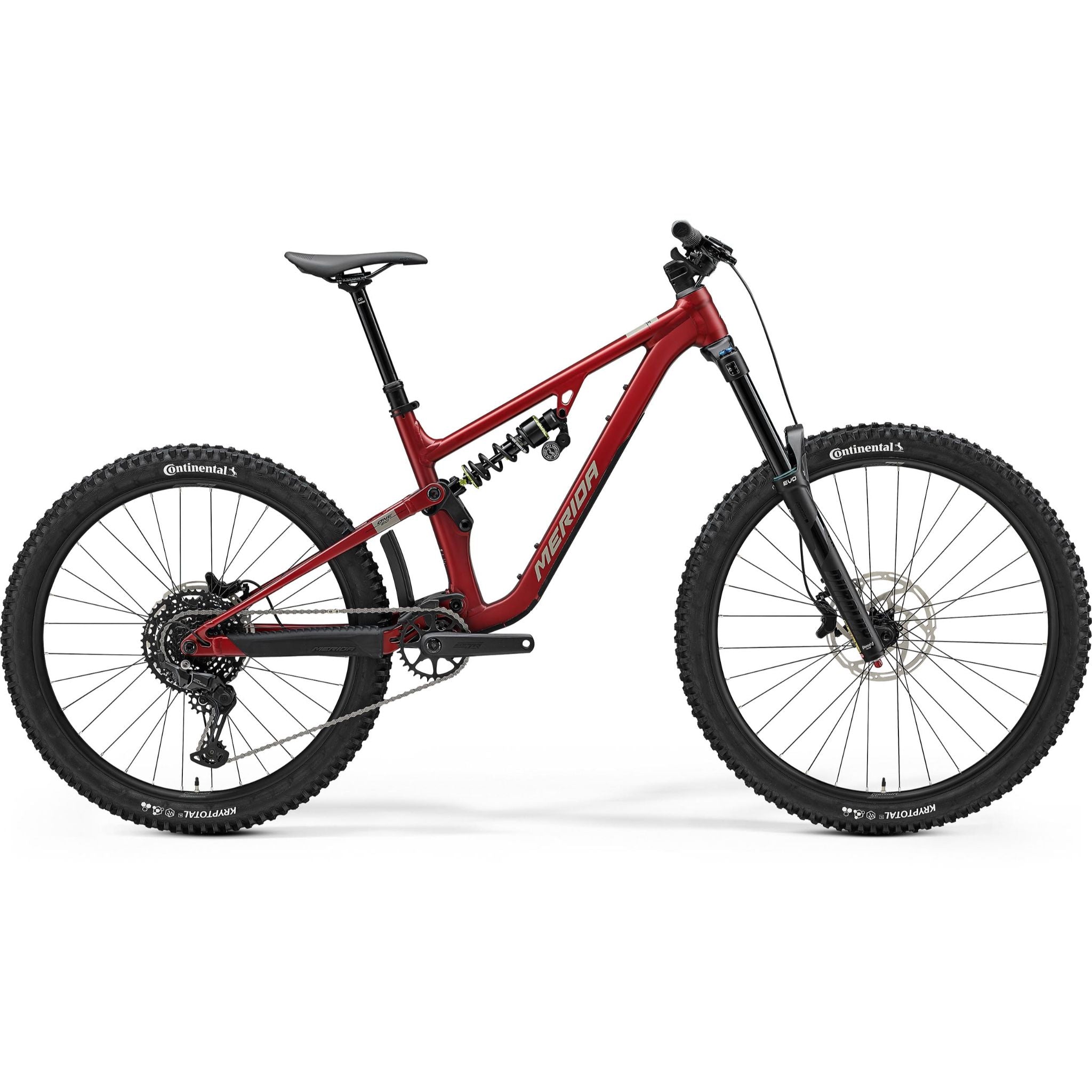

  • Merida One-Sixty FR 400 2025

Description

The hardcore cousin of the One-Sixty 6000 MBUK's Enduro Bike of the year.

Of the One-Sixty 6000 they said: it was the Merida's proportions, supportive suspension and electrifying ride feel that finally clinched it.“The fun we had riding some of the gnarliest trails around Dolceacqua, skimming over jagged rocks and drifting loose turns, meant it had to be the winner.”Totally planted, thoroughly sorted and outrageously capable.

Merida's design team have taken that prize winning pedigree and turned up the fun to 11. Built for ripping bike parks, the One-Sixty FR comes mullet across all sizes and delivers more travel;180mm up front and 171mm of coil sprung travel at the rear.

The essence of the One-Sixty FR is full on fun at a value for money price, these bikes are not garage queens, they are for endless hours of sending it, Based around a tough aluminium frame the component selection is focussed on delivering the best tyres, brakes and suspension possible at the price, not on lightweight kit that won't last the course.

The One-Sixty FR is designed for the toughest possible conditions and is rated to Category 5 and comes with a 5 year frame warranty.

The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package.

Features:

  • DVO Jade X D3 shock
  • SR Durolux 38 Air fork
  • 4 Piston Tektro Gemini brakes with 203mm rotors.
  • Continental Kryptotal 2.4"tyres
  • Shimano Cues 1x10 drivetrain



Specifications

  • One-Sixty FR 400
  • Discipline Freeride/All Mountain

  • Material Aluminium

  • Front Travel 180mm

  • Rear Travel 160MM

  • Wheel Size MX

  • Warranty Lifetime (frame)

FRAME - Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5"
SHOCK - DVO Jade X D3; coil with spring rates Xshort & Short: 300, Mid: 350, Long: 400, Xlong: 450
FORK SR Suntour Durolux 38 RC; Air; 180mm travel; Tapered; 44mm fork offset; Max tyre size: 29" x 2.6"
GEARS - 10
SHIFTERS Shimano CUES U6000
REAR DERAILLEUR - Shimano CUES U6000; GS
BOTTOM BRACKET - Samox BSA 24mm EB2401
CHAIN - KMC xGlide
CHAINSET Merida Expert TR II; 32 tooth chainset with Merida Expert TR ISCG05; Crank length - 165mm (all sizes)
CASSETTE Shimano LG300; 11-48 teeth; 10 speed
BRAKE LEVER - Tektro Gemini HD-M535
FRONT BRAKE - Tektro Gemini HD-M535; 4 piston hydraulic disc brake caliper with Tektro TR203-45; 203mm rotor
REAR BRAKE - Tektro Gemini HD-M535; 4 piston hydraulic disc brake caliper with Tektro TR203-45; 203mm rotor
GRIP Merida Comp EC
HANDLEBAR - Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
STEM Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length - 40mm (all sizes)
HEADSET - Acros ICR Merida external neck; Upper and lower IPS sealing
SADDLE Merida Comp SL; V-mount - made with 25% recycled material
SEATPOST - Merida Expert TR II; 34.9mm diameter; 0mm layback; XShort/Short: 150 mm seat post travel - Mid: 170 mm seat post travel - Long: 200 mm seat post travel - XLong: 230 mm seat post travel
WHEEL SIZE - 29" / 27.5"
RIMS Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES Double Butted Black stainless
FRONT HUB - Shimano TC500-B; 110 x 15mm; 32 spoke; Centerlock
REAR HUB - Shimano TC500-HM-B; 148 x 12mm; 32 spoke; Centerlock
FRONT TYRE - Continental Kryptotal-F; 29" x 2.4"; Kevlar bead; TR; Enduro casing; Soft Compound
REAR TYRE - Continental Kryptotal-R; 27.5" x 2.4"; Kevlar bead; TR; Enduro Casing; Soft Compound

Merida One-Sixty FR 400 2025

SKU: Q061 / Barcode: 4711256490540

The hardcore cousin of the One-Sixty 6000 MBUK's Enduro Bike of the year.

Of the One-Sixty 6000 they said: it was the Merida's proportions, supportive suspension and electrifying ride feel...

Regular price £2,800.00
Colour

Size

In stock with supplier: despatched in 2-3 days

90 Day Returns -

Description

The hardcore cousin of the One-Sixty 6000 MBUK's Enduro Bike of the year.

Of the One-Sixty 6000 they said: it was the Merida's proportions, supportive suspension and electrifying ride feel that finally clinched it.“The fun we had riding some of the gnarliest trails around Dolceacqua, skimming over jagged rocks and drifting loose turns, meant it had to be the winner.”Totally planted, thoroughly sorted and outrageously capable.

Merida's design team have taken that prize winning pedigree and turned up the fun to 11. Built for ripping bike parks, the One-Sixty FR comes mullet across all sizes and delivers more travel;180mm up front and 171mm of coil sprung travel at the rear.

The essence of the One-Sixty FR is full on fun at a value for money price, these bikes are not garage queens, they are for endless hours of sending it, Based around a tough aluminium frame the component selection is focussed on delivering the best tyres, brakes and suspension possible at the price, not on lightweight kit that won't last the course.

The One-Sixty FR is designed for the toughest possible conditions and is rated to Category 5 and comes with a 5 year frame warranty.

The Agilometer sizing concept takes account of riding style, allowing riders to run a longer or shorter reach frame independently of their height, while suspension becomes more progressive as you size up, all with long-travel dropper posts. Wire Port cable routing plus reliable threaded bottom bracket round out the package.

Features:

  • DVO Jade X D3 shock
  • SR Durolux 38 Air fork
  • 4 Piston Tektro Gemini brakes with 203mm rotors.
  • Continental Kryptotal 2.4"tyres
  • Shimano Cues 1x10 drivetrain



Specifications

  • One-Sixty FR 400
  • Discipline Freeride/All Mountain

  • Material Aluminium

  • Front Travel 180mm

  • Rear Travel 160MM

  • Wheel Size MX

  • Warranty Lifetime (frame)

FRAME - Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5"
SHOCK - DVO Jade X D3; coil with spring rates Xshort & Short: 300, Mid: 350, Long: 400, Xlong: 450
FORK SR Suntour Durolux 38 RC; Air; 180mm travel; Tapered; 44mm fork offset; Max tyre size: 29" x 2.6"
GEARS - 10
SHIFTERS Shimano CUES U6000
REAR DERAILLEUR - Shimano CUES U6000; GS
BOTTOM BRACKET - Samox BSA 24mm EB2401
CHAIN - KMC xGlide
CHAINSET Merida Expert TR II; 32 tooth chainset with Merida Expert TR ISCG05; Crank length - 165mm (all sizes)
CASSETTE Shimano LG300; 11-48 teeth; 10 speed
BRAKE LEVER - Tektro Gemini HD-M535
FRONT BRAKE - Tektro Gemini HD-M535; 4 piston hydraulic disc brake caliper with Tektro TR203-45; 203mm rotor
REAR BRAKE - Tektro Gemini HD-M535; 4 piston hydraulic disc brake caliper with Tektro TR203-45; 203mm rotor
GRIP Merida Comp EC
HANDLEBAR - Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
STEM Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length - 40mm (all sizes)
HEADSET - Acros ICR Merida external neck; Upper and lower IPS sealing
SADDLE Merida Comp SL; V-mount - made with 25% recycled material
SEATPOST - Merida Expert TR II; 34.9mm diameter; 0mm layback; XShort/Short: 150 mm seat post travel - Mid: 170 mm seat post travel - Long: 200 mm seat post travel - XLong: 230 mm seat post travel
WHEEL SIZE - 29" / 27.5"
RIMS Merida Comp TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
SPOKES Double Butted Black stainless
FRONT HUB - Shimano TC500-B; 110 x 15mm; 32 spoke; Centerlock
REAR HUB - Shimano TC500-HM-B; 148 x 12mm; 32 spoke; Centerlock
FRONT TYRE - Continental Kryptotal-F; 29" x 2.4"; Kevlar bead; TR; Enduro casing; Soft Compound
REAR TYRE - Continental Kryptotal-R; 27.5" x 2.4"; Kevlar bead; TR; Enduro Casing; Soft Compound
