Description
Trail riding is all about going further, Faster than ever before. The all-new One-Forty 500 positively encourages you to do that thanks to an all-aluminium frame with radical new trail geometry that's equally happy cleaning the toughest climbs as it is ripping down high-mountain trails. There's no point getting out there if you can't get back, which is why we've fitted high-value kit that delivers solid performance. Marzocchi and RockShox take care of the suspension, while a wide-range Shimano 11-speed drivetrain turns your effort into go and four-piston brakes turn the lightest touch into slow.
The new Merida One-Forty is the ultimate trail bike, made for the toughest trails in the world. It's the pinnacle of modern trail riding, with a super-steep 80 ° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65 ° head angle mean it's still more than capable of ripping any descent. With Merida's new Agilometer sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. Merida's engineers have focussed on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, Wire Port cable routing and a reliable threaded bottom bracket plus carbon frame models have on-board tool storage and FidLock magnetic bottle cages.
Merida Sizing -
- X-Short: 145cm - 165cm
- Short: 155cm - 175cm
- Mid: 165cm - 185cm
- Long: 175cm - 195cm
- X-Long: 185cm+
Merida's latest range of mountain bikes makes use of a slightly new approach to sizing. Merida encourage riders to consider their riding style when selecting a frame size.
For example the Mid size frame is suitable for riders of heights between 165-185cm. This means a rider of height 175cm could select a Short frame if the preference is agility, Mid for a balanced ride or Long for stability.
Contact us at support@biketart.com if you wish to discuss which may work for you.
Specifications
-
Discipline Trail/All-Mountain
-
Material Aluminium
-
Front Travel 150mm
-
Rear Travel 143mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
FRAME - Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
SHOCK - RockShox Deluxe Select+; lockout
FORK - Marzocchi Z2; Air; 150mm travel; Tapered; 44mm fork offset; Max. tyre size: 29 x 2.5"
GEARS - 11
SHIFTERS - Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever
REAR DERAILLEUR - Shimano Deore M5100 Shadow+ SGS
BOTTOM BRACKET - Race Face BSA 68/73 – 24mm
CHAIN - KMC X11
CHAINSET - Race Face Ride; 32 tooth chainset. Crank length: 170mm-S, 175mm-M up
CASSETTE - Shimano Deore M5100; 11-51 teeth; 11 speed
BRAKE LEVER - Shimano Deore M6120
FRONT BRAKE - Shimano Deore M6120; 4 piston hydraulic disc brake caliper with Shimano RT30; 203mm rotor
REAR BRAKE - Shimano Deore M6120; 4 piston hydraulic disc brake caliper with Shimano RT30; 203mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
STEM - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
HEAD SET - Merida 8158 1-1/8"-1.5" cartridge bearing
PEDAL - Not included
SADDLE - Merida Comp SL; V-mount
SEAT POST - Merida Expert TR II; 34.9mm diameter; in-line; Drop: 125mm (XS), 150mm (S), 200mm (M/L/XL)
WHEEL SIZE - 29"
RIMS - Merida Comp TR; 29mm inner rim width; Aluminium. Tubeless ready (tubeless tape and valves not included)
SPOKES - Black stainless
FRONT HUB - Shimano MT400-B; 110x15mm; 32 spokes; Center lock
REAR HUB - Shimano MT400-B; 148x12mm; 32 spokes; Center lock. With Merida Comp TR axle including removable lever, 6mm allen key
FRONT TYRE - Maxxis Minion DHF; 29" x 2.5"; Kevlar bead, folding; TR EXO 3C MaxxTera
REAR TYRE - Maxxis Dissector; 29" x 2.4"; Kevlar bead, folding; TR EXO+ MaxxTerra

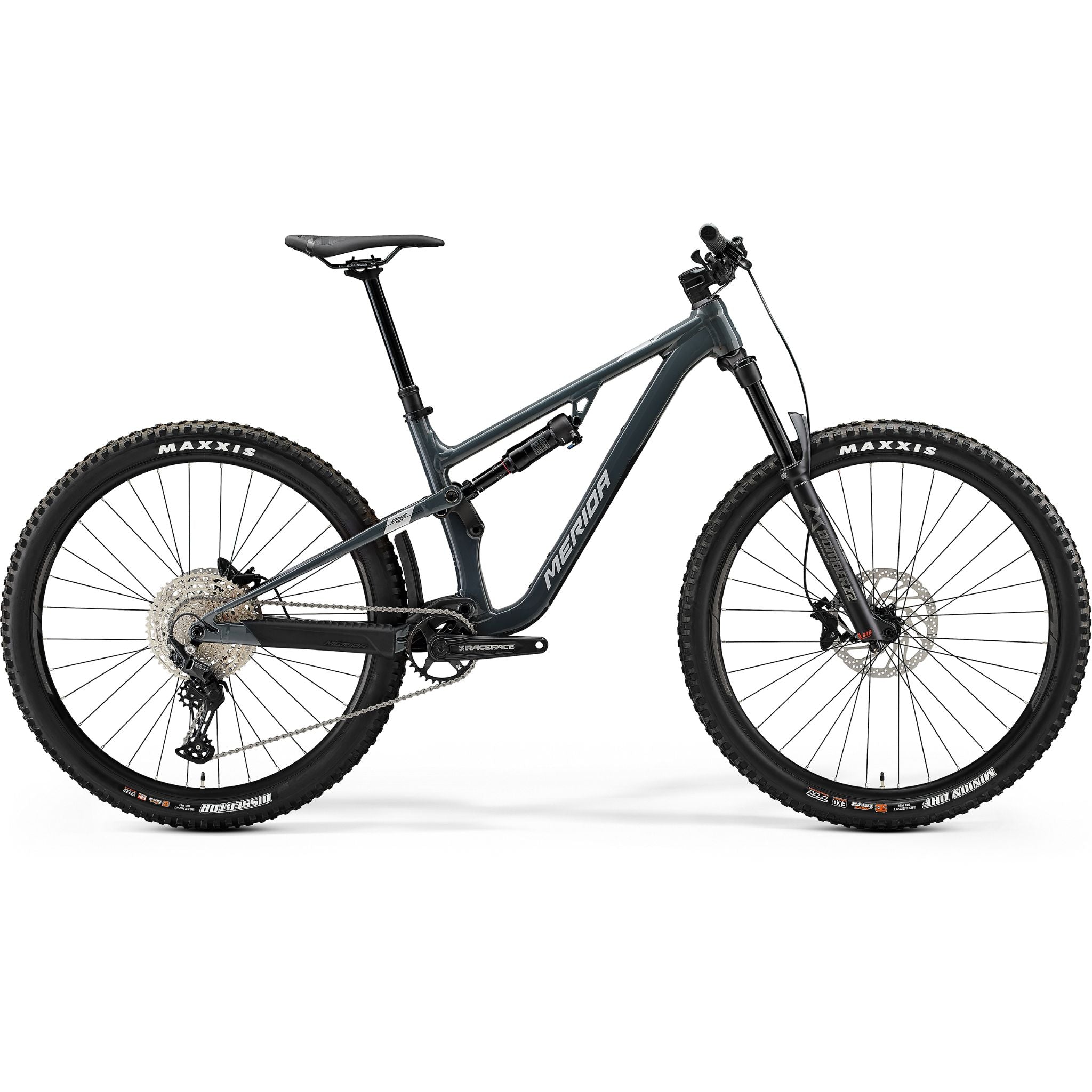

Merida One-Forty 500 2023
Trail riding is all about going further, Faster than ever before. The all-new One-Forty 500 positively encourages you to do that thanks to an all-aluminium frame with radical new trail...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Trail riding is all about going further, Faster than ever before. The all-new One-Forty 500 positively encourages you to do that thanks to an all-aluminium frame with radical new trail geometry that's equally happy cleaning the toughest climbs as it is ripping down high-mountain trails. There's no point getting out there if you can't get back, which is why we've fitted high-value kit that delivers solid performance. Marzocchi and RockShox take care of the suspension, while a wide-range Shimano 11-speed drivetrain turns your effort into go and four-piston brakes turn the lightest touch into slow.
The new Merida One-Forty is the ultimate trail bike, made for the toughest trails in the world. It's the pinnacle of modern trail riding, with a super-steep 80 ° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65 ° head angle mean it's still more than capable of ripping any descent. With Merida's new Agilometer sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders. Merida's engineers have focussed on weight reduction and rolling speed too, for improved efficiency. All bikes come with long travel dropper posts, Wire Port cable routing and a reliable threaded bottom bracket plus carbon frame models have on-board tool storage and FidLock magnetic bottle cages.
Merida Sizing -
- X-Short: 145cm - 165cm
- Short: 155cm - 175cm
- Mid: 165cm - 185cm
- Long: 175cm - 195cm
- X-Long: 185cm+
Merida's latest range of mountain bikes makes use of a slightly new approach to sizing. Merida encourage riders to consider their riding style when selecting a frame size.
For example the Mid size frame is suitable for riders of heights between 165-185cm. This means a rider of height 175cm could select a Short frame if the preference is agility, Mid for a balanced ride or Long for stability.
Contact us at support@biketart.com if you wish to discuss which may work for you.
Specifications
-
Discipline Trail/All-Mountain
-
Material Aluminium
-
Front Travel 150mm
-
Rear Travel 143mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
FRAME - Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5"
SHOCK - RockShox Deluxe Select+; lockout
FORK - Marzocchi Z2; Air; 150mm travel; Tapered; 44mm fork offset; Max. tyre size: 29 x 2.5"
GEARS - 11
SHIFTERS - Shimano Deore M5100 and Shimano SL-MT500-IL dropper post lever
REAR DERAILLEUR - Shimano Deore M5100 Shadow+ SGS
BOTTOM BRACKET - Race Face BSA 68/73 – 24mm
CHAIN - KMC X11
CHAINSET - Race Face Ride; 32 tooth chainset. Crank length: 170mm-S, 175mm-M up
CASSETTE - Shimano Deore M5100; 11-51 teeth; 11 speed
BRAKE LEVER - Shimano Deore M6120
FRONT BRAKE - Shimano Deore M6120; 4 piston hydraulic disc brake caliper with Shimano RT30; 203mm rotor
REAR BRAKE - Shimano Deore M6120; 4 piston hydraulic disc brake caliper with Shimano RT30; 203mm rotor
GRIP - Merida Expert EC
HANDLEBAR - Merida Team; TR; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
STEM - Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
HEAD SET - Merida 8158 1-1/8"-1.5" cartridge bearing
PEDAL - Not included
SADDLE - Merida Comp SL; V-mount
SEAT POST - Merida Expert TR II; 34.9mm diameter; in-line; Drop: 125mm (XS), 150mm (S), 200mm (M/L/XL)
WHEEL SIZE - 29"
RIMS - Merida Comp TR; 29mm inner rim width; Aluminium. Tubeless ready (tubeless tape and valves not included)
SPOKES - Black stainless
FRONT HUB - Shimano MT400-B; 110x15mm; 32 spokes; Center lock
REAR HUB - Shimano MT400-B; 148x12mm; 32 spokes; Center lock. With Merida Comp TR axle including removable lever, 6mm allen key
FRONT TYRE - Maxxis Minion DHF; 29" x 2.5"; Kevlar bead, folding; TR EXO 3C MaxxTera
REAR TYRE - Maxxis Dissector; 29" x 2.4"; Kevlar bead, folding; TR EXO+ MaxxTerra
