Description
Modern XC races look like a fast day on the local singletrack, requiring a light and capable bike that can maintain speed and control on every part of the trail, up or down.
The Team Marin blends the confidence and fun of a trail bike, with a lightweight frame and parts that help you keep the speed up and the fun meter maxed.
High-end Series 4 aluminium frame and fast-rolling 29” wheels with a capable RockShox Judy Silver fork, 12-speed Shimano drivetrain, Shimano hydraulic brakes and Vee Tire rubber to create a super fun, super affordable XC trail shredder.
SIZING -
- S: 5'3 - 5'6
- M: 5'6 - 5'9
- L: 5'9 - 6'0
- XL: 6'0 - 6'4
Specifications
-
Discipline XC/Trail
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel Hardtail
-
Wheel Size 29"
-
Warranty 5 Years (frame)
FRAME - Series 4 6061 Aluminium, 29" Wheels, Superlight Aluminium, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle
FRONT SUSPENSION - RockShox Judy Silver TK, 120mm Travel, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
RIM - Marin Aluminium Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible
HUB REAR - Shimano, 148x12mm, Micro Spline, Disc, 32H
HUB FRONT - Forged Aluminium, 110x15mm, Disc, 32H
SPOKES - 14g Black Stainless Steel
TYRES - Vee Tire, Rail Rocco XC, 29x2.3", Dual Control Compound, Folding Bead, Tubeless Ready
DERAILLEUR REAR - Shimano Deore, RDM6100, 12-Speed
SHIFT LEVER - Shimano Deore, SLM6100, 12-Speed
CRANKSET - Forged Alloy 1x12, Hollow Spindle, Steel Narrow Wide 32T Chainring
BOTTOM BRACKET - External Sealed Cartridge Bearings
CHAIN - KMC X12
CASSETTE - SunRace, 12-Speed, 11-51T
BRAKES FRONT - Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
BRAKES REAR - Shimano BR-MT200 Hydraulic Disc, 160mm Rotor
BRAKE LEVERS - Shimano BL-MT201
HANDLEBAR - Marin Mini-Riser, 6061 Double Butted Aluminium, 780mm Width, 4º Up, 9º Back
STEM - Marin 3D Forged Alloy, 35mm
GRIPS - Marin Single Clamp Locking
HEADSET - FSA No 42ACB, 1 1/8" x 1 1/2”
SEATPOST - Marin Alloy, 30.9mm
SADDLE - Marin Speed Concept
PEDALS - Marin OEM Nylon Platform

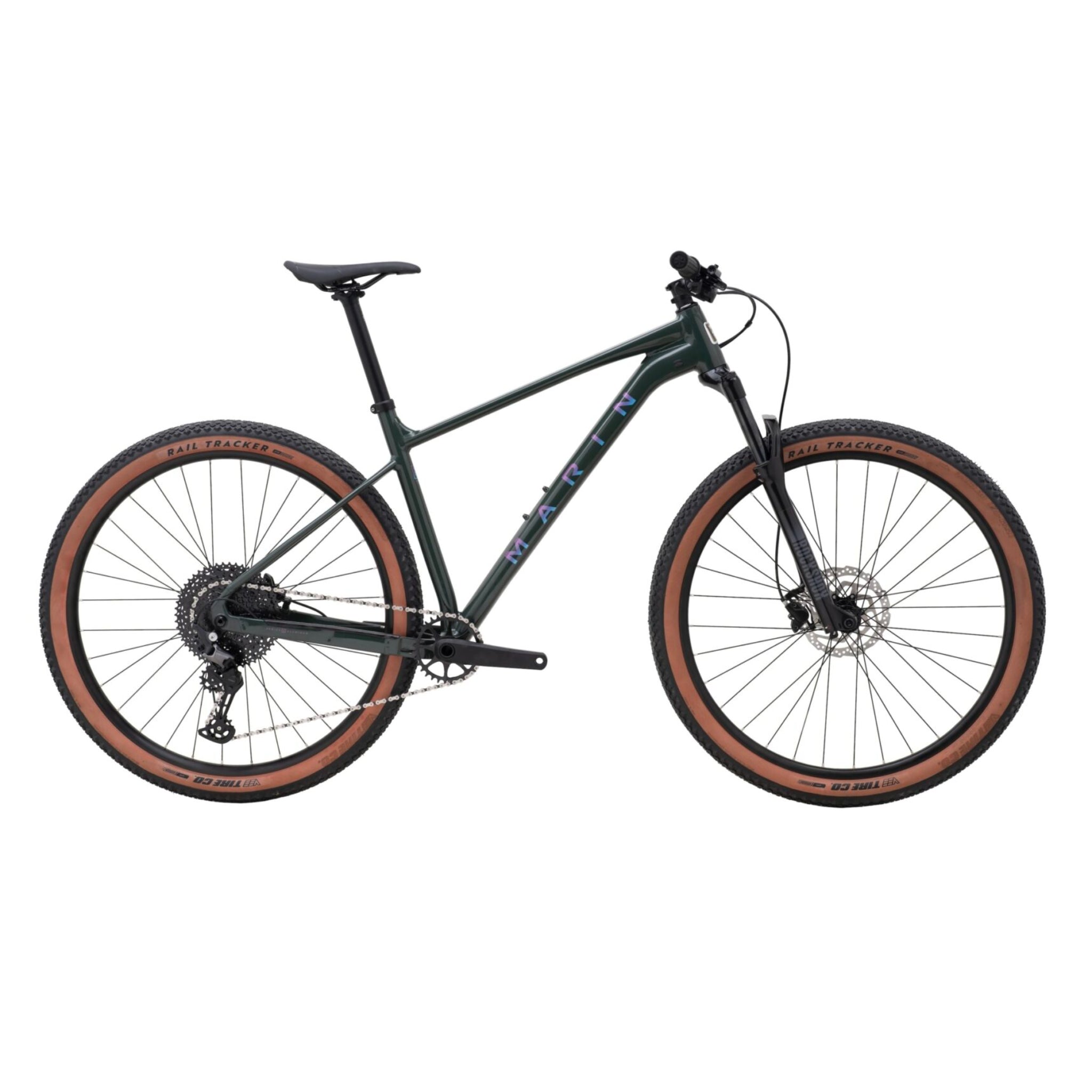

Marin Team Marin 1 2025
Modern XC races look like a fast day on the local singletrack, requiring a light and capable bike that can maintain speed and control on every part of the trail,...
Order within [time] for delivery by [date]
90 Day Returns
Description
Modern XC races look like a fast day on the local singletrack, requiring a light and capable bike that can maintain speed and control on every part of the trail, up or down.
The Team Marin blends the confidence and fun of a trail bike, with a lightweight frame and parts that help you keep the speed up and the fun meter maxed.
High-end Series 4 aluminium frame and fast-rolling 29” wheels with a capable RockShox Judy Silver fork, 12-speed Shimano drivetrain, Shimano hydraulic brakes and Vee Tire rubber to create a super fun, super affordable XC trail shredder.
SIZING -
- S: 5'3 - 5'6
- M: 5'6 - 5'9
- L: 5'9 - 6'0
- XL: 6'0 - 6'4
Specifications
-
Discipline XC/Trail
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel Hardtail
-
Wheel Size 29"
-
Warranty 5 Years (frame)
FRAME - Series 4 6061 Aluminium, 29" Wheels, Superlight Aluminium, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle
FRONT SUSPENSION - RockShox Judy Silver TK, 120mm Travel, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
RIM - Marin Aluminium Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible
HUB REAR - Shimano, 148x12mm, Micro Spline, Disc, 32H
HUB FRONT - Forged Aluminium, 110x15mm, Disc, 32H
SPOKES - 14g Black Stainless Steel
TYRES - Vee Tire, Rail Rocco XC, 29x2.3", Dual Control Compound, Folding Bead, Tubeless Ready
DERAILLEUR REAR - Shimano Deore, RDM6100, 12-Speed
SHIFT LEVER - Shimano Deore, SLM6100, 12-Speed
CRANKSET - Forged Alloy 1x12, Hollow Spindle, Steel Narrow Wide 32T Chainring
BOTTOM BRACKET - External Sealed Cartridge Bearings
CHAIN - KMC X12
CASSETTE - SunRace, 12-Speed, 11-51T
BRAKES FRONT - Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
BRAKES REAR - Shimano BR-MT200 Hydraulic Disc, 160mm Rotor
BRAKE LEVERS - Shimano BL-MT201
HANDLEBAR - Marin Mini-Riser, 6061 Double Butted Aluminium, 780mm Width, 4º Up, 9º Back
STEM - Marin 3D Forged Alloy, 35mm
GRIPS - Marin Single Clamp Locking
HEADSET - FSA No 42ACB, 1 1/8" x 1 1/2”
SEATPOST - Marin Alloy, 30.9mm
SADDLE - Marin Speed Concept
PEDALS - Marin OEM Nylon Platform
