Description

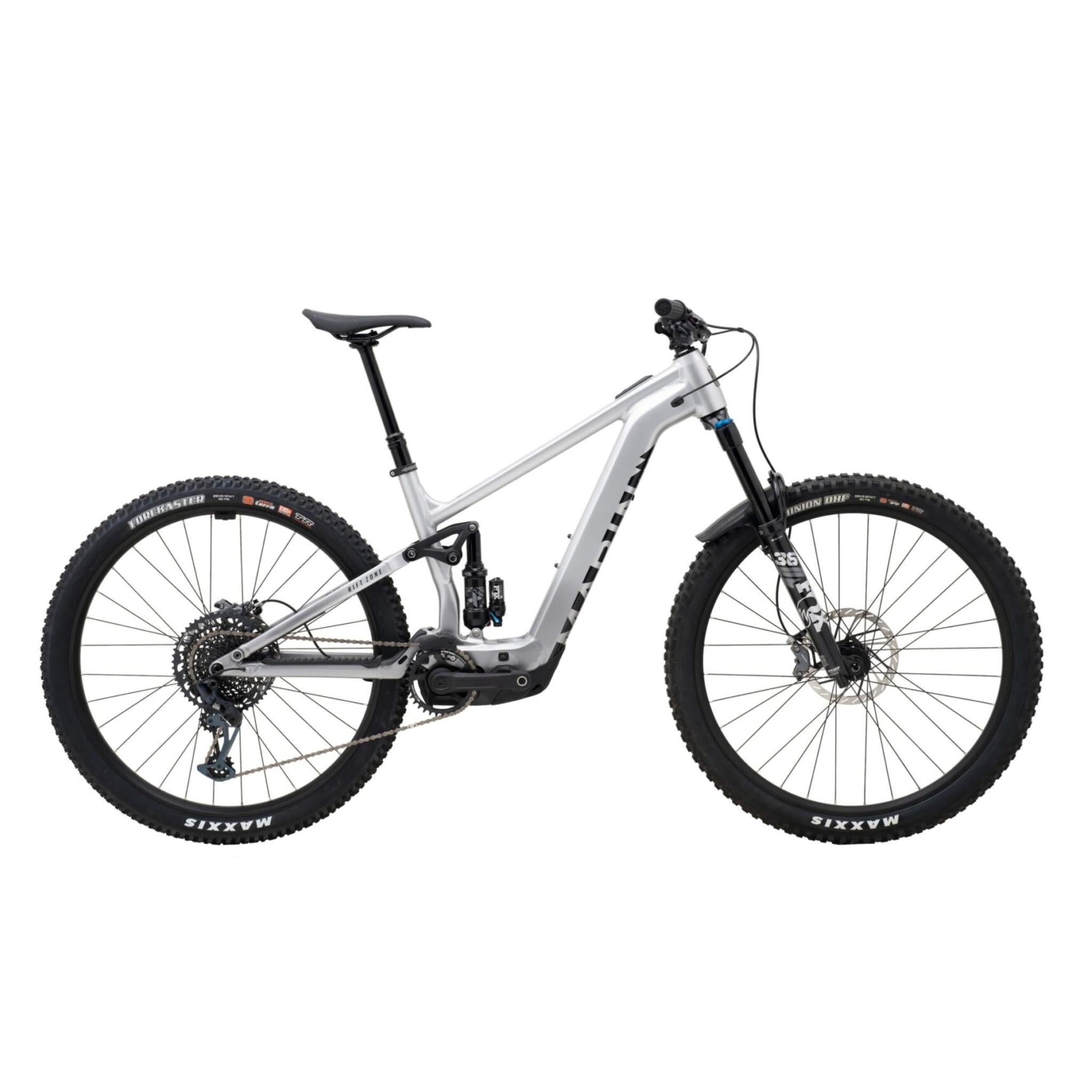

The Rift Zone EL (Electric Light) offers Marin's UK rider favourite electric mountain bike model in a lighter weight variant. With performance to match the full-powered Rift Zone E range, the EL removes some bulk for those that do not need the full range output of the more traditional E-MTB's.
The beating heart of the Rift Zone EL is Bosch's new Performance Line SX drive unit and compact 400wh internal battery. The smooth motor offers a powerful 55nm of torque, expected range is between 15-55 miles depending on terrain and level of power assistance used.
Key Features -
- Marin Lightweight Alloy E frame with MultiTrac suspension linkage
- 150mm Front, 140mm Rear travel
- Bosch Performance Line SX Motor, 600w, 55nm Torque
- 400wh Internal battery, removeable using common tools
- 6 hour charging time under optimal conditions
- Estimated range - 15-55 miles (power mode and terrain dependant)
- Fox 36 Performance fork, Fox Performance Float X shock
- SRAM GX Eagle T-Type 12-speed gearing
SIZING -
- S: 5'3 - 5'6
- M: 5'6 - 5'10
- L: 5'10 - 6'2
- XL: 6'2 - 6'4
Specifications
-
Discipline Trail/All-Mountain
-
Material Aluminium
-
Front Travel 150mm
-
Rear Travel 140mm
-
Wheel Size 29"
-
Warranty 5 Years (frame)
Frame - All New Series 4 Alloy Lightweight E Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension - Fox 36 Performance, 150mm Travel, 29", 110x15 Kabolt, 44mm Offset
Rear Suspension - Fox Float X, Performance, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, 25xM8 Upper Mount, 25xM8 Upper & Lower Mount
Rim - Marin Aluminium Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Rear - Formula DC-711, 110x15, 6-Bolt, 32H
Hub Front - Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H
Spokes - 14g Black Stainless Steel
Tires - Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+
Derailleur Rear - SRAM GX Eagle Lunar
Shift Lever - SRAM GX Eagle Lunar MMX Mount
Crankset - e*thirteen e*spec Plus, 160mm Length, 34T
Motor - Bosch Performance Line SX, 600W, 55Nm torque, 20MPH Top Assisted Speed
Chain - SRAM NX Eagle
Cassette - SRAM XG 1275 Eagle Cassette 10-52T
Brakes Front - SRAM Code Bronze, 4-Piston Hydraulic Disc, 200mm HS2 Rotor
Brakes Rear - SRAM Code Bronze, 4-Piston Hydraulic Disc, 200mm HS2 Rotor
Brake Levers - SRAM Code Bronze Stealth
Handlebar - Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Stem - Marin CNC, 35mm Length, 35mm Bar Bore
Grips - Marin Grizzly Lock On
Headset - FSA Custom, Adjustable HTA Design
Seatpost - TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
Saddle - Marin Speed Concept
Pedals - Marin MTB Plastic
Battery - Bosch CompactTube 400Wh Internal
Display - Bosch BRC3100 Systems Controller
Switch - Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Extras - e*thirteen e*Spec Chainguide
Extras - Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Bosch EB12.110.016; 2A Charger
Range, Charging Time - 15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions)
