Description

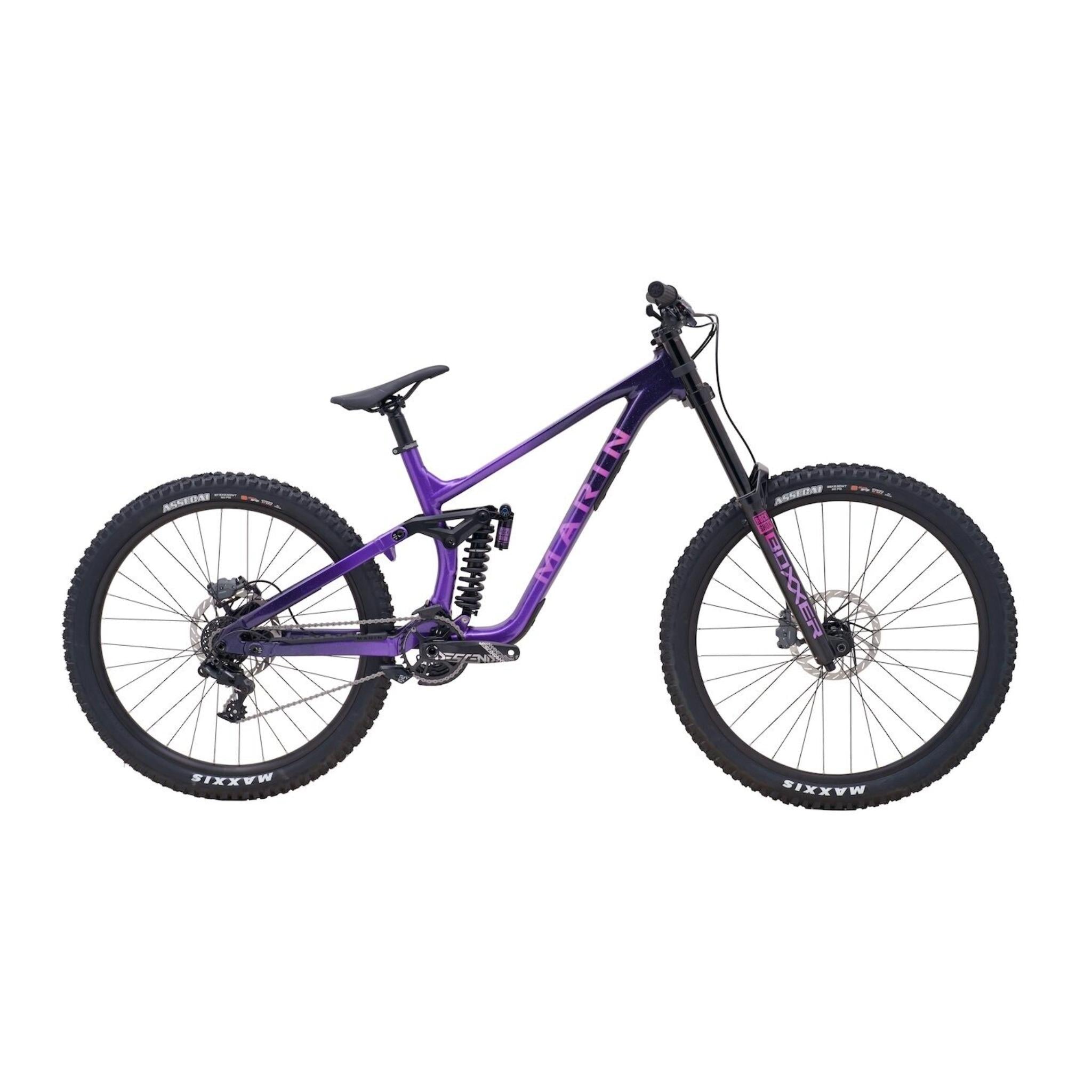

The all-new Marin Quake is made for bike park laps and Downhill courses. Developed in conjunction with some of the worlds top riders and tested at some of the gnarliest tracks on the planet, such as Darkfest and Hardline.
The alloy frame uses the Marin Series 4 MultiTrac suspension linkage actuating the 180mm rear travel. The Quake comes as standard as a MX wheel set-up, though can easily be made into a full 29", BB height and chainstay length are also adjustable thanks to a flip-chip.
Spec'd with a bullet proof list of components that are up to the tasks the Quake is intended for. Suspension is taken care of by the revered RockShox Boxxer fork and Vivid Coil Ultimate DH shock, both offering adjustability and reliability. SRAM’s gravity-specific GX DH 7-speed drivetrain has the tight range needed in gravity applications, while powerful Maven Bronze four-piston brakes and 200mm HS2 rotors rein speed. Maxxis DH-rated rubber and SRAM’s venerable Descendant crankset, handlebar, and direct-mount stem round out the stout parts mix, designed for long life in some of the harshest riding conditions.
SIZING -
- S; 4'10 - 5'5
- M: 5'5 - 6'0
- L: 6'0 - 6'4
Specifications
-
Discipline DH/Bikepark
-
Material Aluminium
-
Front Travel 200mm
-
Rear Travel 180mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
FRAME - All New Series 4 Alloy, 180mm travel MultiTrac LT Suspension, Adjustable CS Length/BB Height, 27.5" or 29" compatible, 148mm Rear Thru-Axle, & frame protection, UDH
FRONT SUSPENSION - RockShox Boxxer, 200mm Travel, 29" , 110x20mm Maxle Stealth, 52mm Offset
REAR SUSPENSION - RockShox Vivid Coil Ultimate DH, 22x5x75mm Trunnion Upper Mount, 30xM8 Lower Mount, Custom Tune
RIM - Marin Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
HUB REAR - Marin Forged, 110x20mm, 6-Bolt Disc, 32H
HUB FRONT - Formula, DDL-348S, 148x12mm, 6-Bolt Disc, 32H, Shimano Freehub Body
SPOKES - 14g Black Stainless Steel
TIRES - Maxxis Assegai, 2.5", Tubeless Ready, 3C MaxxGrip, DH Casing
CHAINGUIDE - e*thirteen Vario DH Chainguide
DERAILLEUR REAR - SRAM GX DH
SHIFT LEVER - SRAM GX DH, 7-Speed
CRANKSET - SRAM Descendant Alloy 34T, 165mm
BOTTOM BRACKET - SRAM DUB BSA
CHAIN - SRAM PC-1110
CASSETTE - SRAM GS DH, 11-25T
BRAKES FRONT - SRAM Maven Bronze, 200mm HS2 Rotor
BRAKES REAR - SRAM Maven Bronze, 200mm HS2 Rotor
BRAKE LEVERS - SRAM Maven Bronze
HANDLEBAR - SRAM Descendant DH, 31.8mm Clamp, 25mm Rise, 9 Degree Backsweep, 5 Degree Upsweep
STEM - SRAM Descendant DH Direct Mount, 31.8mm Clamp, 50mm Length
GRIPS - Marin Grizzly Lock-On
HEADSET - FSA No 74
SEATPOST - Marin Alloy, 34.9mm
SADDLE - Marin Short Nose
EXTRAS - Downtube & Shuttle Guards
Marin Quake 2025
