Description

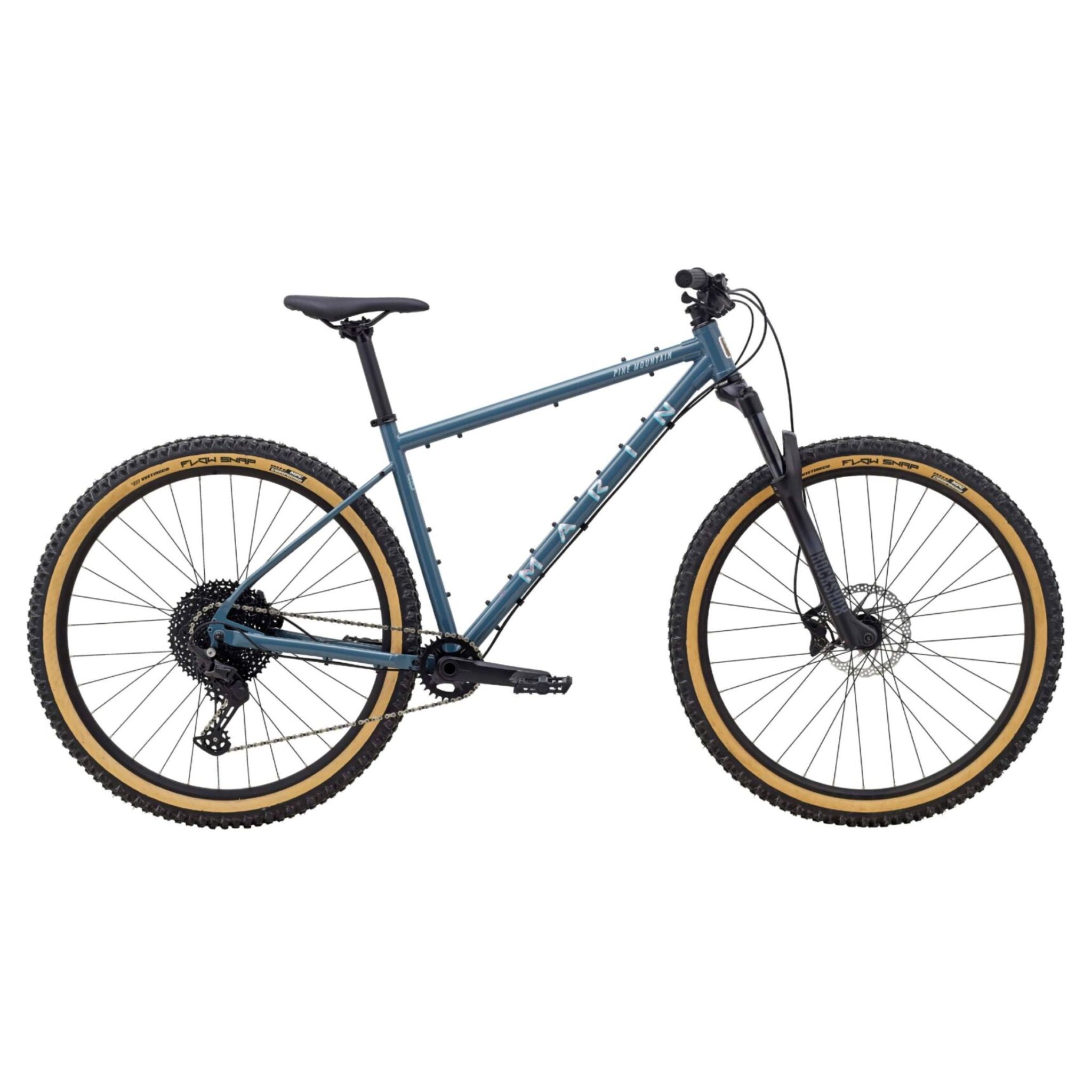

Marin's Pine Mountain is a feature packed steel mountain bike. Equipped for trail rides or bike-packing duty.
The Pine Mountain features brazed-in cargo attachment points throughout the front triangle for carrying all of the water and gear one needs for a proper adventure. The Marin-designed Bedroll Bar features a 50mm rise and a long, straight top bar for cleanly mounting handlebar packs away from cables and controls, and also mounting, lights, phones, cycle computers, or whatever else catches your fancy. Available exclusively on the Pine Mountain and Pine Mountain E series.
The Pine Mountain Trail Geometry is a mix between agility for trail riding, and all day comfort for bike-packing. Short chain-stays keep a shorter wheelbase for that active ride, while a 66.5 degree head angle makes for confident steering with or without the weight of gear.
Tubeless-ready 32mm internal dimension rims and 2.6” tires give the Pine Mountain a comfortable ride with huge traction and ability to roll up and over large obstacles, while still being light enough to pedal and fast enough to rip singletrack.
SPECIFICATION -
FRAME - Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts
FRONT SUSPENSION - RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
RIMS - Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
HUB, REAR - Forged Alloy, 141x9mm, Disc, 32H
HUB, FRONT - Forged Alloy, 110x15mm, Disc, 32H
SPOKE, NIPPLES - 14g Black Stainless Steel
TIRES - Vee Tire Flow Snap, 29x2.6", Wire Bead
DERAILLEUR, REAR - Shimano Deore 11-Speed
SHIFT LEVER - Shimano Deore 11-Speed
CRANKSET - Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, 76mm BCD
BOTTOM BRACKET - External Sealed Cartridge Bearings
CHAIN - KMC X11
CASSETTE - SunRace 11-Speed, 11-51T
BRAKE, FRONT - Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotor
BRAKE, REAR - Shimano MT400, 2-Piston, Hydraulic Disc, 160mm Rotor
BRAKE LEVERS - Shimano MT400 Hydraulic
HANDLEBAR - Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
STEM - Marin 3D Forged Alloy, 35mm
GRIPS - Marin Bear Paw Locking
HEADSET - FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST - Marin Alloy, 30.9mm
SADDLE - Marin Pine Mountain Trail
PEDALS - Nylon Platform
