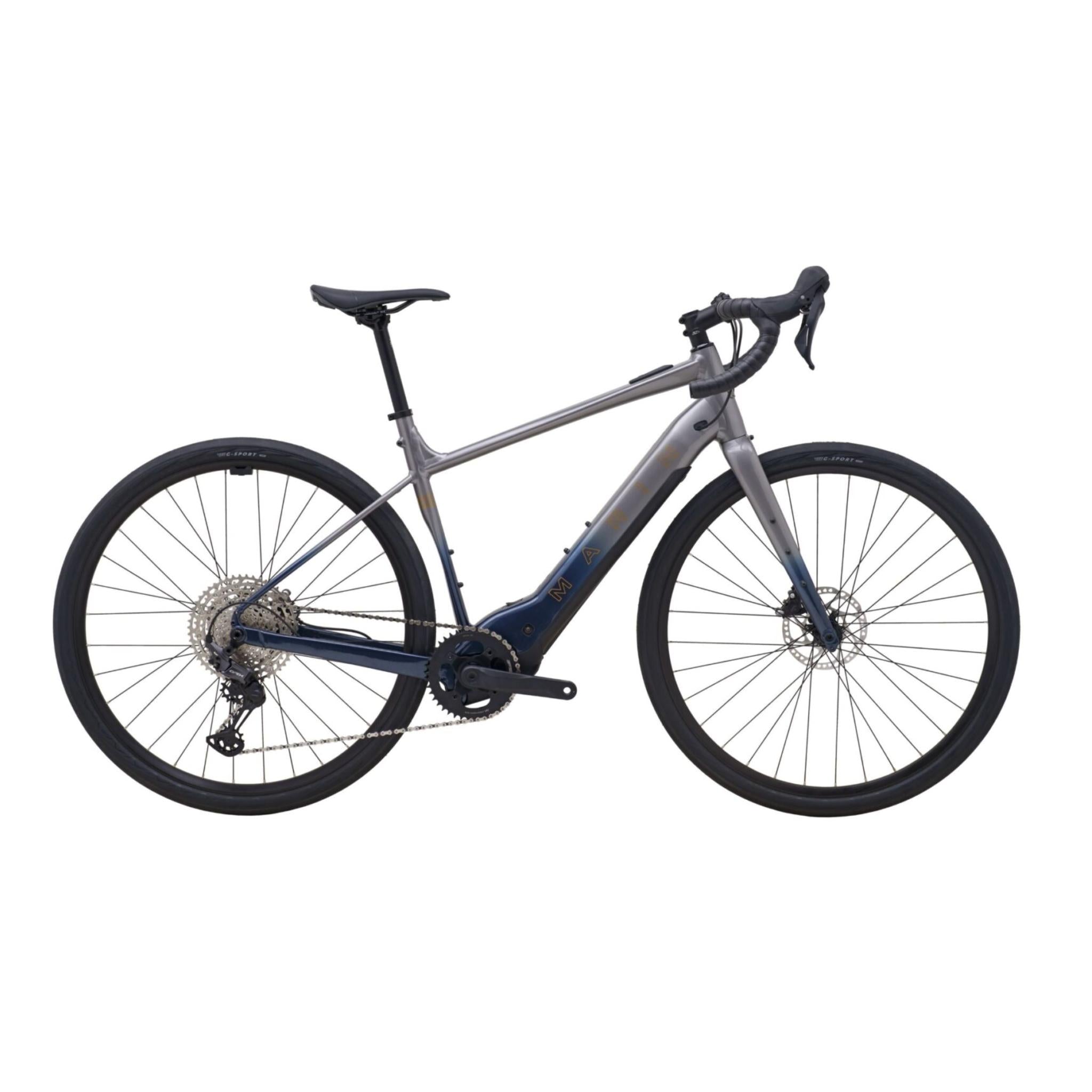

Marin's drop-bar electric bike, the Lombard, is a solid companion for the daily commute or weekend adventures. On or off the tarmac.

Efficient pedal assist comes from the reliable Bosch SX drive system. This 250w motor pumps out 55nm of torque and is powered by the 400wh battery, which is good for a range of 14-85 miles depending on terrain and level of assist used. Charge time is approximately 3.5 hours.

The Lombard is designed to handle all weathers, making it a great choice for UK riders, and is fitted with hydraulic disc brakes, wide range gearing and high volume tyres.

SIZING -

• S: >5'6"
• M: 5'6 - 5'9
• L: 5'10 - 6'1
• XL: 6'2+

SPECIFICATION -

FRAME - All-New Series 4 Beyond Road E, 6061 Aluminium, One-Piece Hydroformed Downtube & amp; Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

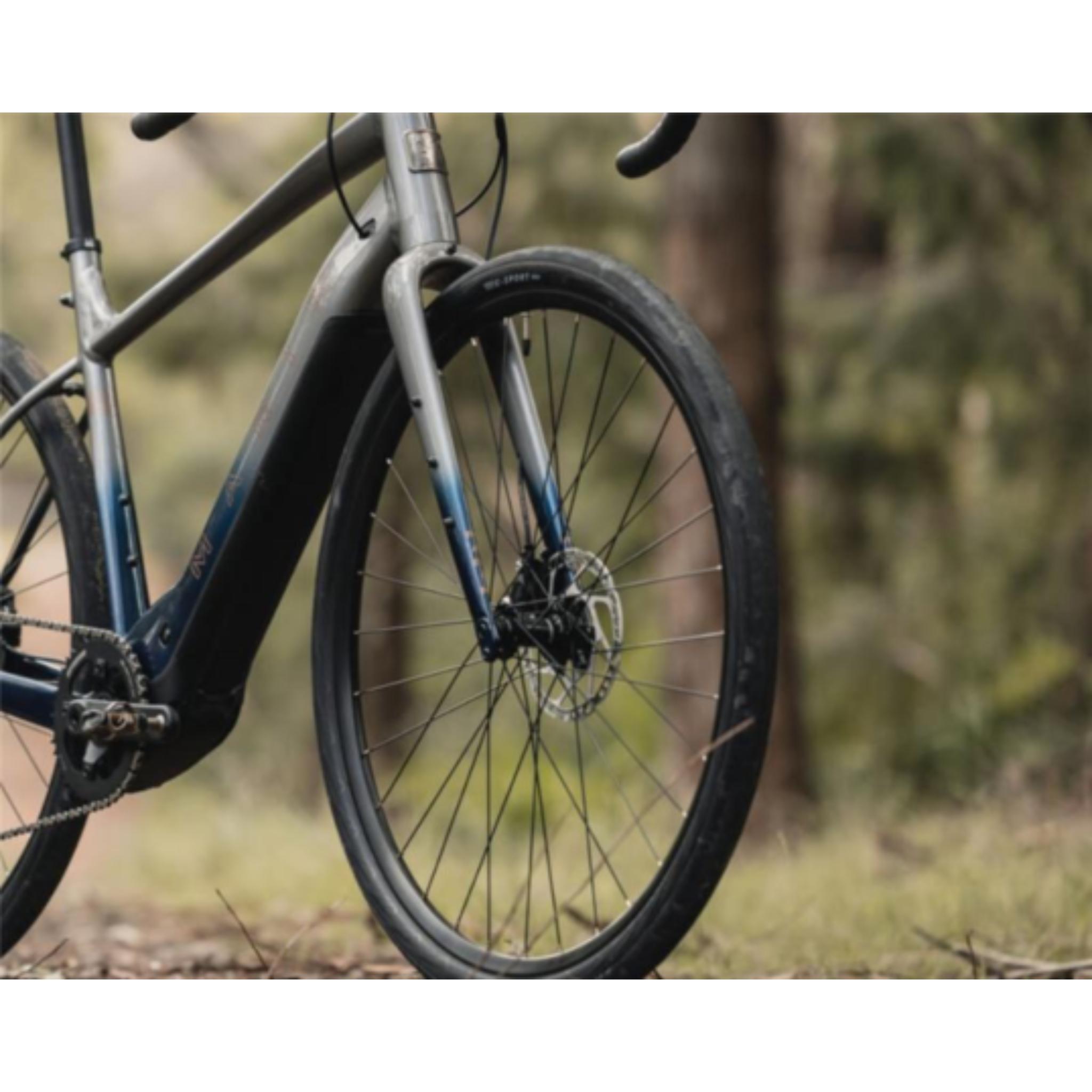

FORK - Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIMS - Marin Aluminium Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible
HUB REAR - Forged Aluminium Alloy, 142x12mm, Disc, 32H
HUB FRONT - Forged Aluminium Alloy, 100x12mm, Disc, 32H
SPOKES - 14g Black Stainless Steel
TIRES - Vee Tire Co., G-Sport, 700x44, Tubeless Compatible
DERAILLEUR REAR - Shimano GRX RD-RX822, 12-speed, Clutch
SHIFT LEVER - Shimano GRX STRX610, 12-speed
CRANKSET - Forged Alloy, 42T Steel Chainring

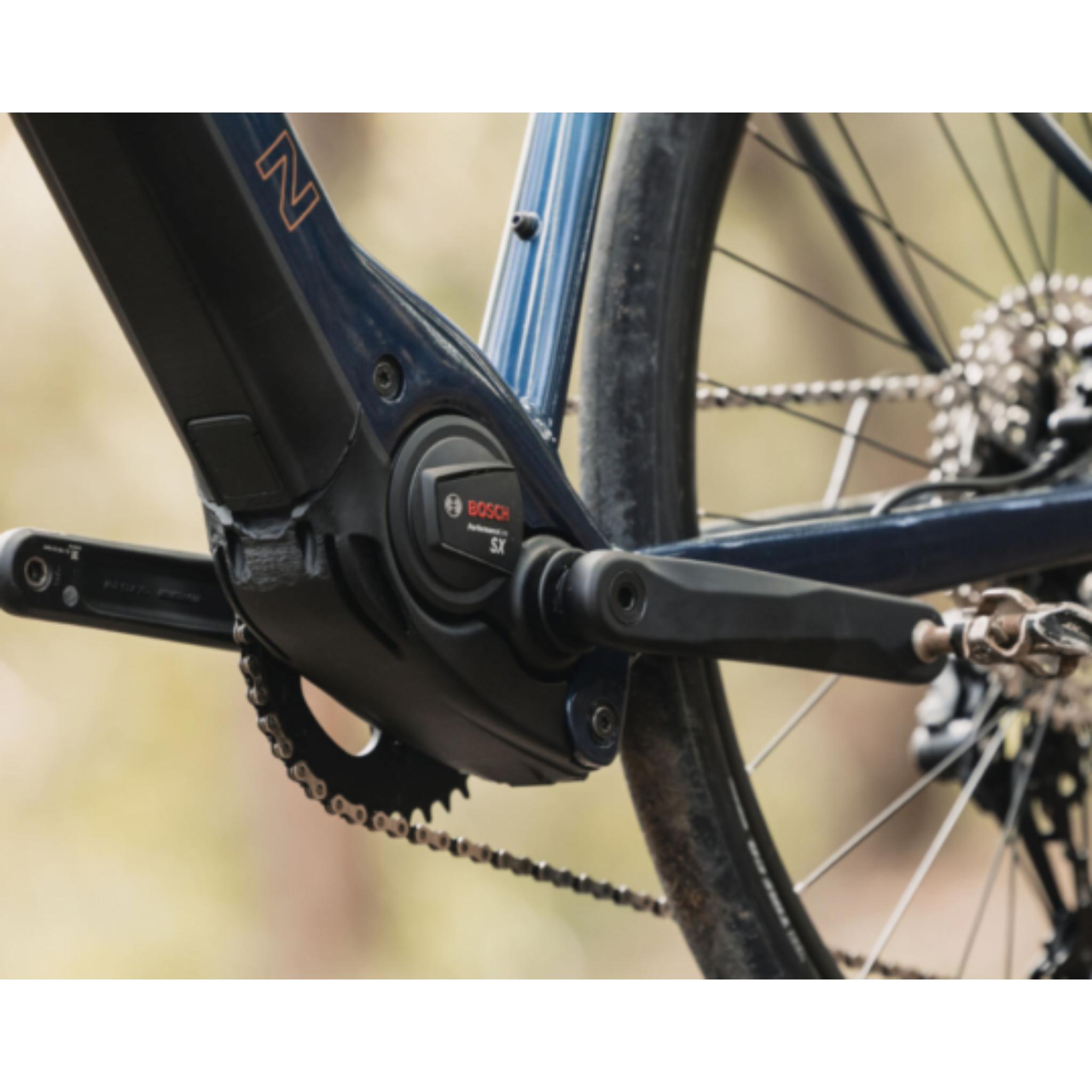

MOTOR - Bosch SX, 250W, 55Nm, Class 1 (North America - 20mph/32Kph, EU - 25Kph)
CHAIN - KMC E12S
CASSETTE - Shimano CSM6100, 10-51T
BRAKE, FRONT - Shimano GRX RX400, Flat-Mount Hydraulic Disc, 160mm Rotor
BRAKE, REAR - Shimano GRX RX400, Flat-Mount Hydraulic Disc, 160mm Rotor
BRAKE LEVERS - Shimano GRX STRX610

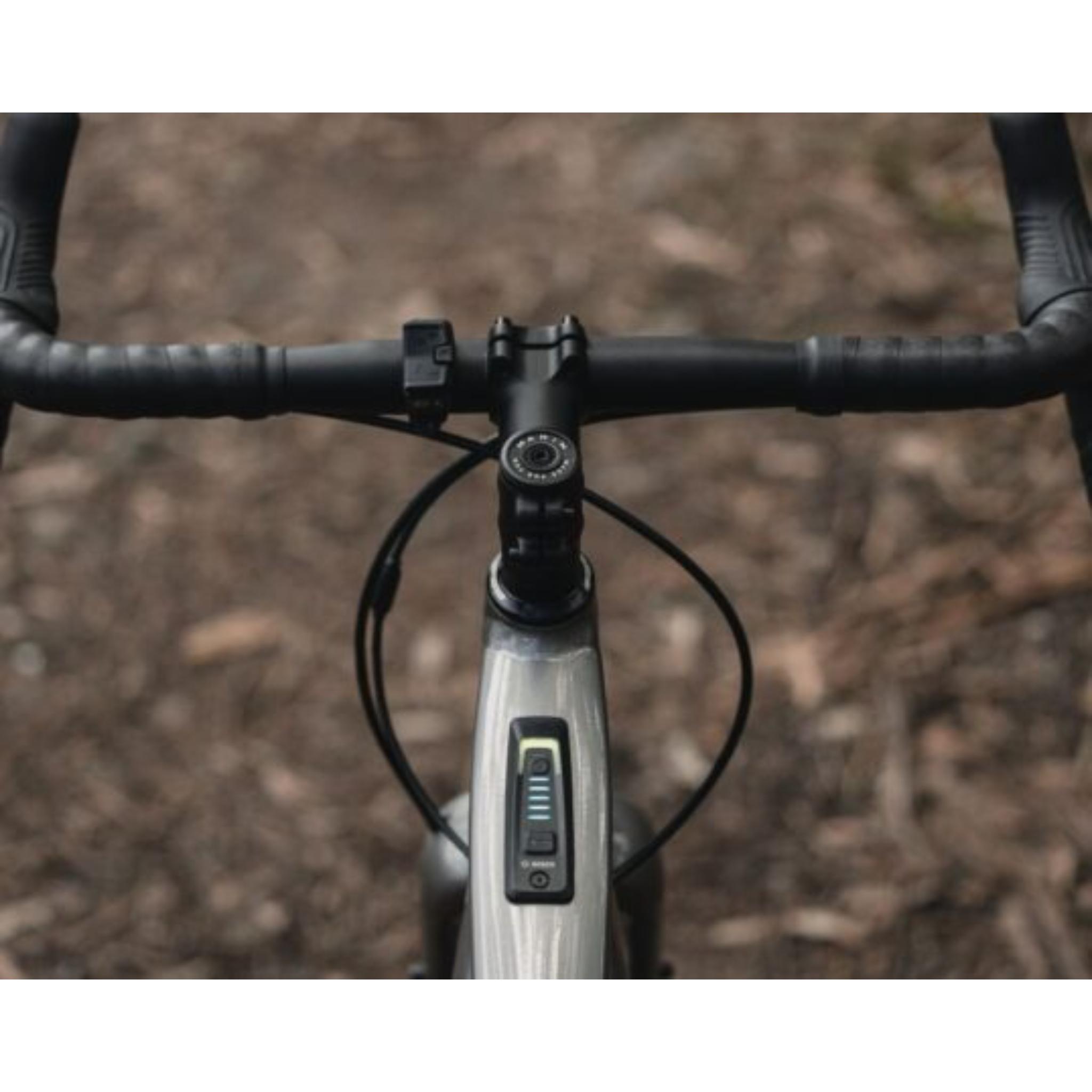

HANDLEBAR - Marin Butted Alloy, Compact 16º Flared Drop
STEM - Marin 3D Forged Alloy
GRIPS - Marin Adventure Tape
HEADSET - FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST - Marin Alloy, 27.2
SADDLE - Marin Beyond Road Concept Elite
PEDALS - Nylon Platform
KICKSTAND - Removable kickstand mount
BATTERY - Bosch CompactTube 400, 400Wh

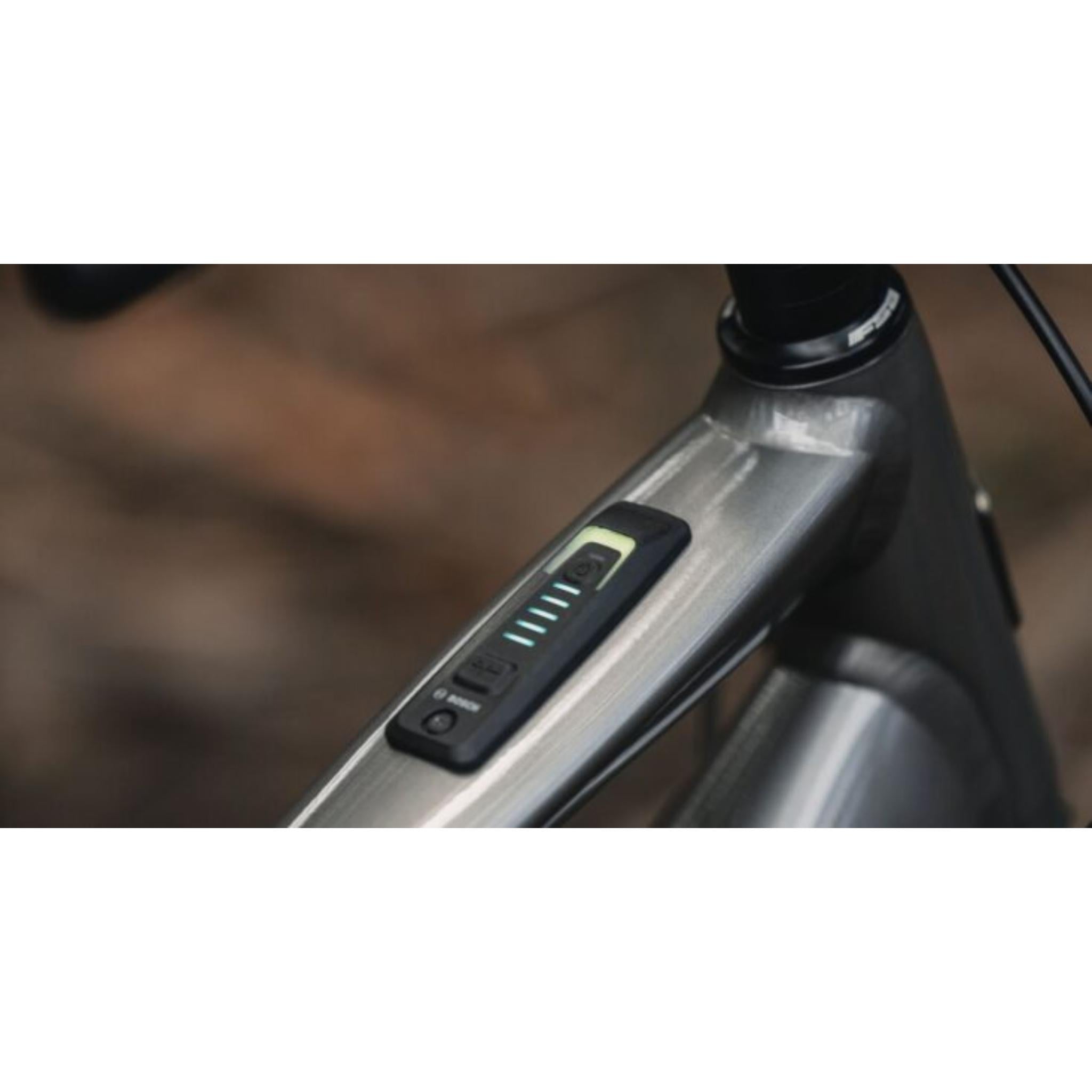

EXTRAS - Bosch MiniRemote HMI, Bluetooth
RANGE, CHARGING TIME - 14-85 miles/22-137km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 3.5 hours (estimated, under ideal conditions)
