Description

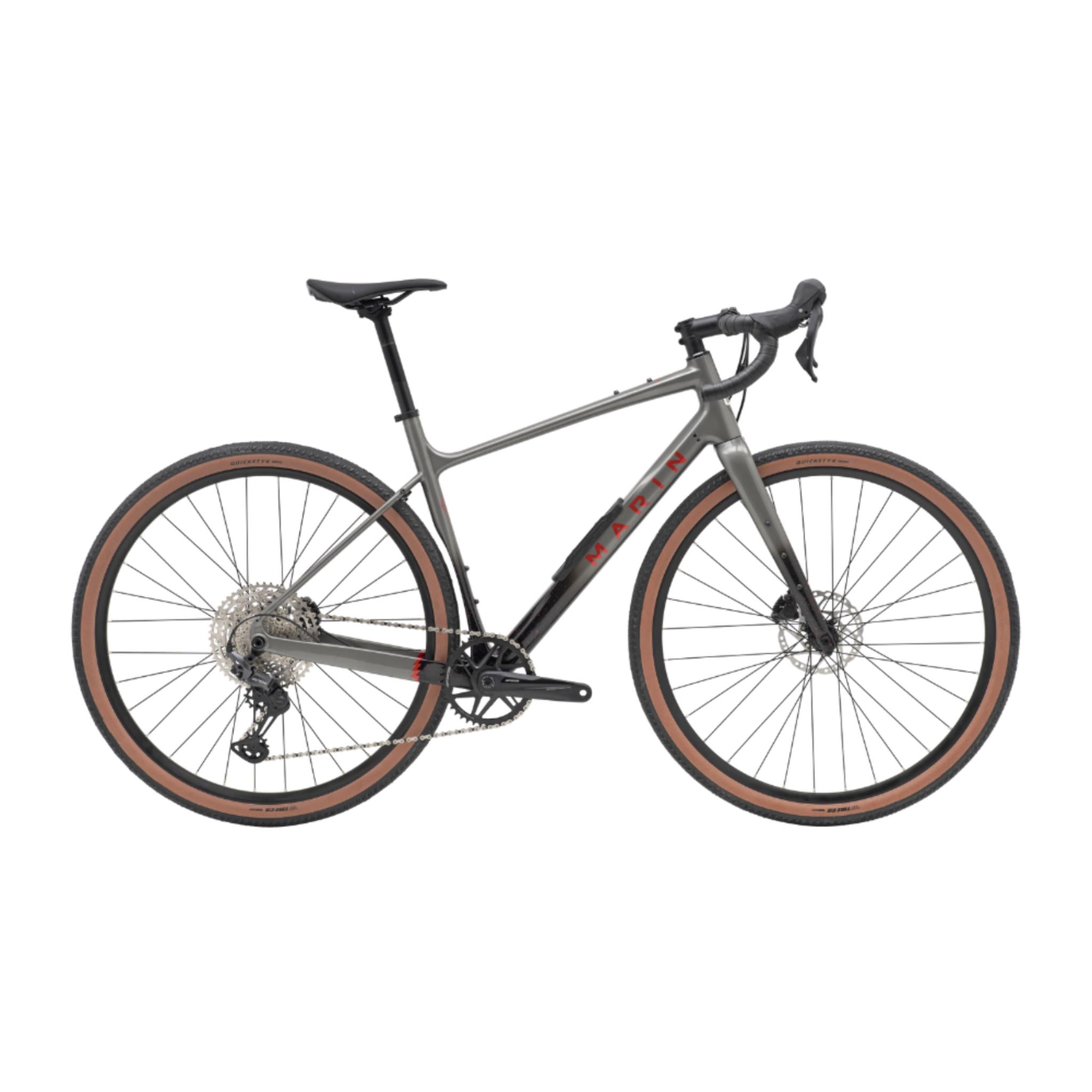

Fully loaded bike-packing, fast and light off-road adventures, gravel, CX racing or simply exploring your favourite tracks and trails. The Marin Headlands is a high-tech, high-spec carbon fibre gravel and adventure bike that's made to be lightning-fast, confidence-inspiring and super comfortable on all surfaces.
Marin's own unidirectional carbon fiber frame with added mountain bike-inspired geometry, loads of tire clearance and a whole heap of mounting points for gear and fenders to create a super versatile, super capable all-terrain dart of a bike. Go 700c with room for up to 45mm tires or 650b up to 47mm.
Gravel-specific Shimano GRX groupset, GRX hydraulic brakes, Vee Tire Co tires and Marin wheels and finishing kit all add up to a whole mountain of fun and adventure.
SIZING -
- 49cm: 4'11 - 5'3
- 52cm: 5'3 - 5'6
- 54cm: 5'6 - 5'9
- 56cm: 5'9 - 6'0
- 58cm: 6'0 - 6'2
- 60cm: 6'2 - 6'4
Specifications
-
Discipline Gravel
-
Material Carbon
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty 5 Years (frame)
FRAME - Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts
FORK - Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIM - Marin Aluminium Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible
HUB REAR - Forged Aluminium Alloy, Disc, 32H
HUB FRONT - Forged Aluminium Alloy, Disc, 32H
SPOKES - 14g Black Stainless Steel
TIRES - Vee Tire Co., QuikStyk, 700x45,Folding Bead, Tubeless Compatible
DERAILLEUR REAR - Shimano GRX RDX822 Shadow Plus w/ Clutch
SHIFT LEVER - Shimano GRX RX600
CRANKSET - FSA Gossamer Pro, 1x12, MegaExo Hollow CrMo Spindle, 42T
BOTTOM BRACKET - FSA MegaExo, BSA, Sealed Cartridge Bearings
CHAIN - KMC X12
CASSETTE - Shimano CSM6100, 12-Speed, 10/51T
BRAKES FRONT - Shimano GRX Hydraulic Disc, 160mm Rotor
BRAKES REAR - Shimano GRX Hydraulic Disc, 160mm Rotor
BRAKE LEVERS - Shimano GRX Hydraulic w/ Shifter
HANDLEBAR - Marin Butted Alloy, Compact 16º Flared Drop
STEM - Marin 3D Forged Alloy
GRIPS - Marin Shock Absorbing Tape
HEADSET - FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST - Marin Alloy, 27.2mm
SADDLE - Marin Beyond Road Concept
PEDALS - Not Included
EXTRAS - Bolt-On Thru-Axles F and R
