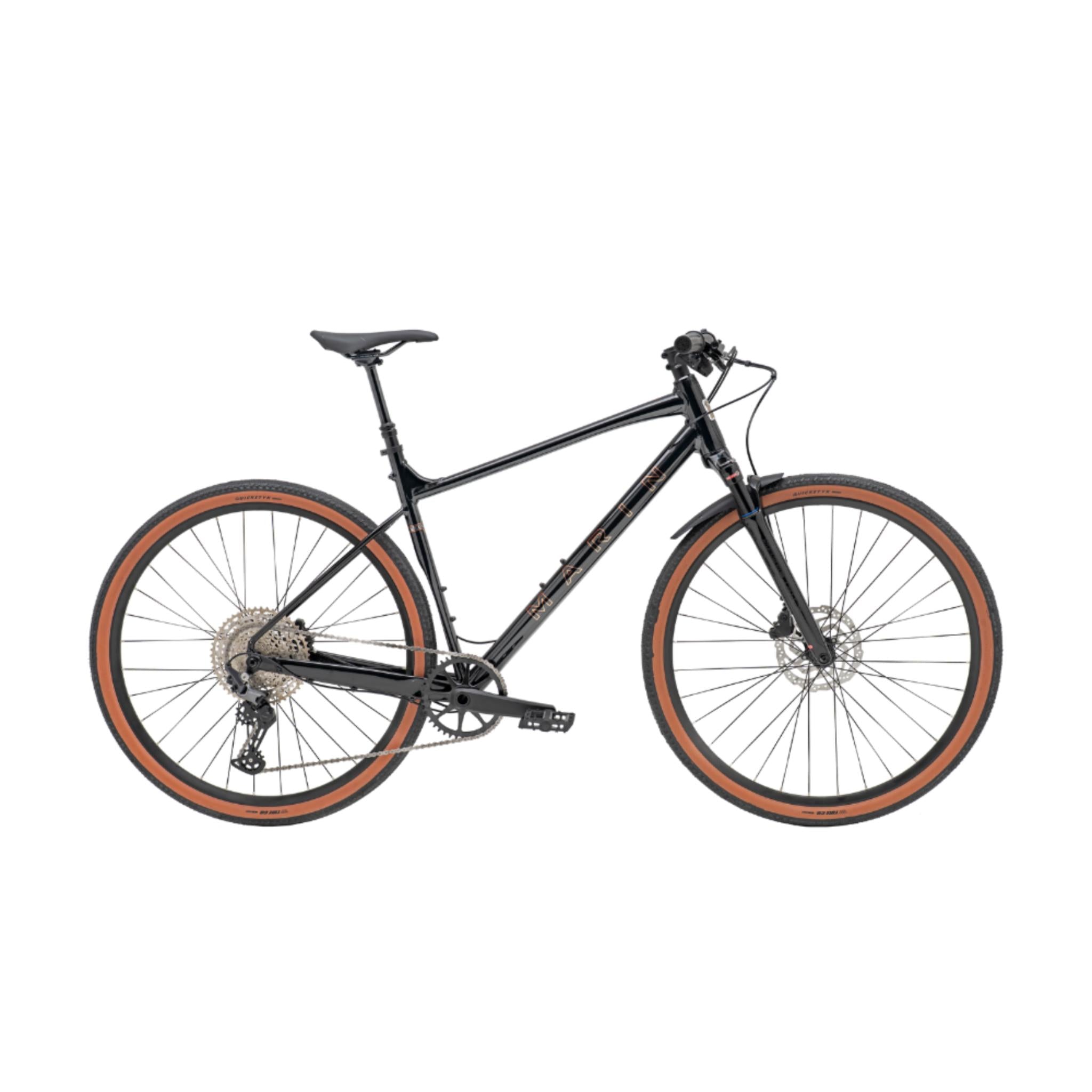

The DSX FS

The DSX is the mountain biker’s take on a gravel bike, featuring a familiar flat handlebar, reliable 1x drivetrain, generous tyre clearance, and dropper post routing for improved off-road control and confident descending on the road.

The DSX FS adds front suspension travel, making it ideal for tackling rough British roads or enjoying a quick blast through the woods on your way home.

The DSX is a perfect choice for riders looking to combine commuting with adventure riding, both on and off-road.

Sizing

• S: 5'3" – 5'6"

• M: 5'6" – 5'10"

• L: 5'10" – 6'2"

• XL: 6'2" – 6'5"

Product Specifications

• Frame: Series 3 DSX, suspension-adjusted geometry, 6061 aluminium, tapered head tube, relieved BB, internal cable routing, mudguard and rack mounts, flat mount disc, 142x12mm thru-axle

• Fork: SR Suntour GVX LOR, 60mm travel, air spring, rebound adjust, lockout, integrated fender mounts

• Rims: Marin aluminium double wall, 21mm internal, disc-specific, tubeless compatible

• Front Hub: Forged aluminium, 100x12mm, disc-specific, 32H

• Rear Hub: Forged aluminium, 142x12mm, disc-specific, 32H

• Tyres: Vee Tire Co. QuikStyk, 700x45, folding bead, tubeless compatible

• Rear Derailleur: Shimano Deore RD-M6100, 12-speed

• Shifter: Shimano Deore SL-M6100, 12-speed

• Crankset: Forged aluminium, 42T steel narrow-wide chainring

• Chain: KMC X12

• Brakes: Shimano BR-MT201/R300, hydraulic, flat mount, 160mm rotors (front & rear)

• Brake Levers: Shimano hydraulic

• Handlebar: Marin MiniRiser

• Stem: Marin 3D forged alloy

• Grips: Marin MTB

• Headset: FSA No.42 ACB, sealed cartridge bearings, 1 1/8” x 1 1/2”

• Seatpost: TranzX YSP38J dropper,

  • Size S: 70mm travel

  • Sizes M–XL: 110mm travel

  • 27.2mm diameter

• Saddle: Marin DSX

• Pedals: Nylon platform
