Description
Versatile adventure/gravel bike. A great option for weekend rides or daily commuting
The playful design of the DSX results in what Marin call t'he mountain biker’s gravel bike' with familiar flat handlebar, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
Hopping up to a higher-spec Series 3 aluminium frame, the Marin DSX 1 has a whole heap of upgrades over the base spec version. Bolt-thru axles add stiffness and a carbon fork drops the weight and adds even more mounting points for bikepacking bags. There’s also an 11-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.
SIZING -
- S: 5'3"-5'6"
- M: 5'6"-5'10"
- L: 5'10"-6'2"
- XL: 6'2"-6'5"
Specifications
-
Discipline Adventure/Commuting
-
Material Aluminium
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty 5 Years (frame)
FRAME - Series 3 DSX, 6061 Aluminium, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
FORK - Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIM - Marin Aluminium Double Wall, 21mm Inner, Disc Specific
HUB REAR - Forged Aluminium Alloy, 142x12mm, Disc, 32H
HUB FRONT - Forged Aluminium, 100x12mm, Disc, 32H
SPOKES NIPPLES - 14g Black Stainless Steel
TIRES - WTB Riddler, 700Cx45mm
DERAILLEUR REAR - Shimano Deore, RDM5100, 11-Speed
SHIFT LEVER - Shimano Deore, SLM5100, 11-Speed
CRANKSET - Forged Aluminium, 42T Steel Narrow Wide Chainring
BOTTOM BRACKET - Sealed Cartridge
CHAIN - KMC X11
CASSETTE - Shimano, CSM5100, 11-Speed, 11-51T
BRAKES FRONT - Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor
BRAKES REAR - Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor
BRAKE LEVERS - Tektro Hydraulic
HANDLEBAR - Marin MiniRiser
STEM - Marin 3D Forged Alloy
GRIPS - Marin MTB
HEADSET - FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST - Marin Alloy
SADDLE - Marin DSX
PEDALS - Marin Oso OEM Nylon Platform
EXTRAS - Bolt-On Thru-Axles F and R

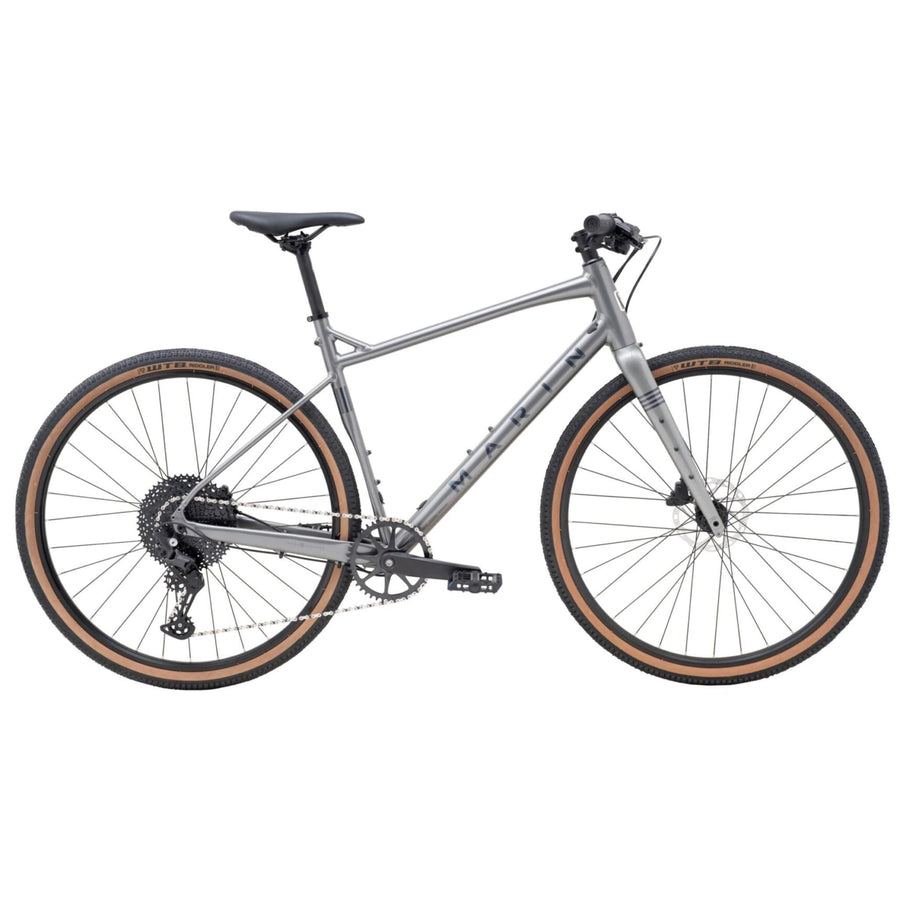

Marin DSX 1
Versatile adventure/gravel bike. A great option for weekend rides or daily commuting
The playful design of the DSX results in what Marin call t'he mountain biker’s gravel bike' with familiar...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Versatile adventure/gravel bike. A great option for weekend rides or daily commuting
The playful design of the DSX results in what Marin call t'he mountain biker’s gravel bike' with familiar flat handlebar, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
Hopping up to a higher-spec Series 3 aluminium frame, the Marin DSX 1 has a whole heap of upgrades over the base spec version. Bolt-thru axles add stiffness and a carbon fork drops the weight and adds even more mounting points for bikepacking bags. There’s also an 11-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.
SIZING -
- S: 5'3"-5'6"
- M: 5'6"-5'10"
- L: 5'10"-6'2"
- XL: 6'2"-6'5"
Specifications
-
Discipline Adventure/Commuting
-
Material Aluminium
-
Front Travel N/A
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty 5 Years (frame)
FRAME - Series 3 DSX, 6061 Aluminium, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
FORK - Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
RIM - Marin Aluminium Double Wall, 21mm Inner, Disc Specific
HUB REAR - Forged Aluminium Alloy, 142x12mm, Disc, 32H
HUB FRONT - Forged Aluminium, 100x12mm, Disc, 32H
SPOKES NIPPLES - 14g Black Stainless Steel
TIRES - WTB Riddler, 700Cx45mm
DERAILLEUR REAR - Shimano Deore, RDM5100, 11-Speed
SHIFT LEVER - Shimano Deore, SLM5100, 11-Speed
CRANKSET - Forged Aluminium, 42T Steel Narrow Wide Chainring
BOTTOM BRACKET - Sealed Cartridge
CHAIN - KMC X11
CASSETTE - Shimano, CSM5100, 11-Speed, 11-51T
BRAKES FRONT - Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor
BRAKES REAR - Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor
BRAKE LEVERS - Tektro Hydraulic
HANDLEBAR - Marin MiniRiser
STEM - Marin 3D Forged Alloy
GRIPS - Marin MTB
HEADSET - FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SEATPOST - Marin Alloy
SADDLE - Marin DSX
PEDALS - Marin Oso OEM Nylon Platform
EXTRAS - Bolt-On Thru-Axles F and R
