Description
Marin's Bobcat Trail is an outstanding value mountain bike and an excellent choice as a versatile everyday bike or entry to off-road riding. A modern frame design makes for a comfortable ride while putting your weight in the correct position for when speeds start to pick up.
The top of the range Bobcat Trail 5 boasts the highest level of build kit and is fitted with reliable components hungry for many miles of riding.
The small size comes with 27.5" wheels, the medium has the option for 27.5" or 29" wheels and the large and x-large size comes with 29" wheels. Choose 27.5 wheels for a nimble, agile ride, choose 29" wheels for maximum speed!
SIZING -
- S: 5'2 - 5'5
- M: 5'5 - 5'9
- L: 5'9 - 6'0
- XL: 6'0 - 6'4
Specifications
-
Discipline Trail
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel Hardtail
-
Wheel Size 27.5" or 29"
-
Warranty 5 Years (frame)
Frame - Series 2 6061 Aluminium, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Front Suspension - SR/Suntour XCR LOR-DS BOOST, Thru-Axle, 120mm Travel, Lockout, 42mm (27.5") and 46mm (29") Offsets
Rim - Marin Aluminium Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Rear - Forged Alloy, Disc, 32H
Hub Front - Forged Alloy, Disc, 32H
Spokes - 14g Black Stainless Steel
Tires - WTB Trail Boss Comp, 27.5/29x2.25”, Wire Bead
Derailleur Rear - Shimano CUES U6000GS, w/Clutch
Shift Lever - Shimano CUES 11-Speed
Crankset - Alloy Crank, Steel Narrow-Wide Chainring, 32T
Bottom Bracket - Sealed Cartridge Bearings, Square Taper
Chain - KMC LG
Cassette - Shimano CUES CSLG400, 11-Speed, 11-48T
Brakes Front - Tektro M280 Hydraulic Disc, 180mm Rotor
Brakes Rear - Tektro M280 Hydraulic Disc, 160mm Rotor
Brake Levers - Tektro M280 Hydraulic
Handlebar - Marin 31.8 Riser, 12mm Rise, 780mm Width
Stem - Marin Alloy, 31.8mm Clamp, 45mm
Grips - Marin MTB, Closed End
Seatpost - Marin Alloy, 30.9
Saddle - Marin MTB
Pedals - Nylon Platform

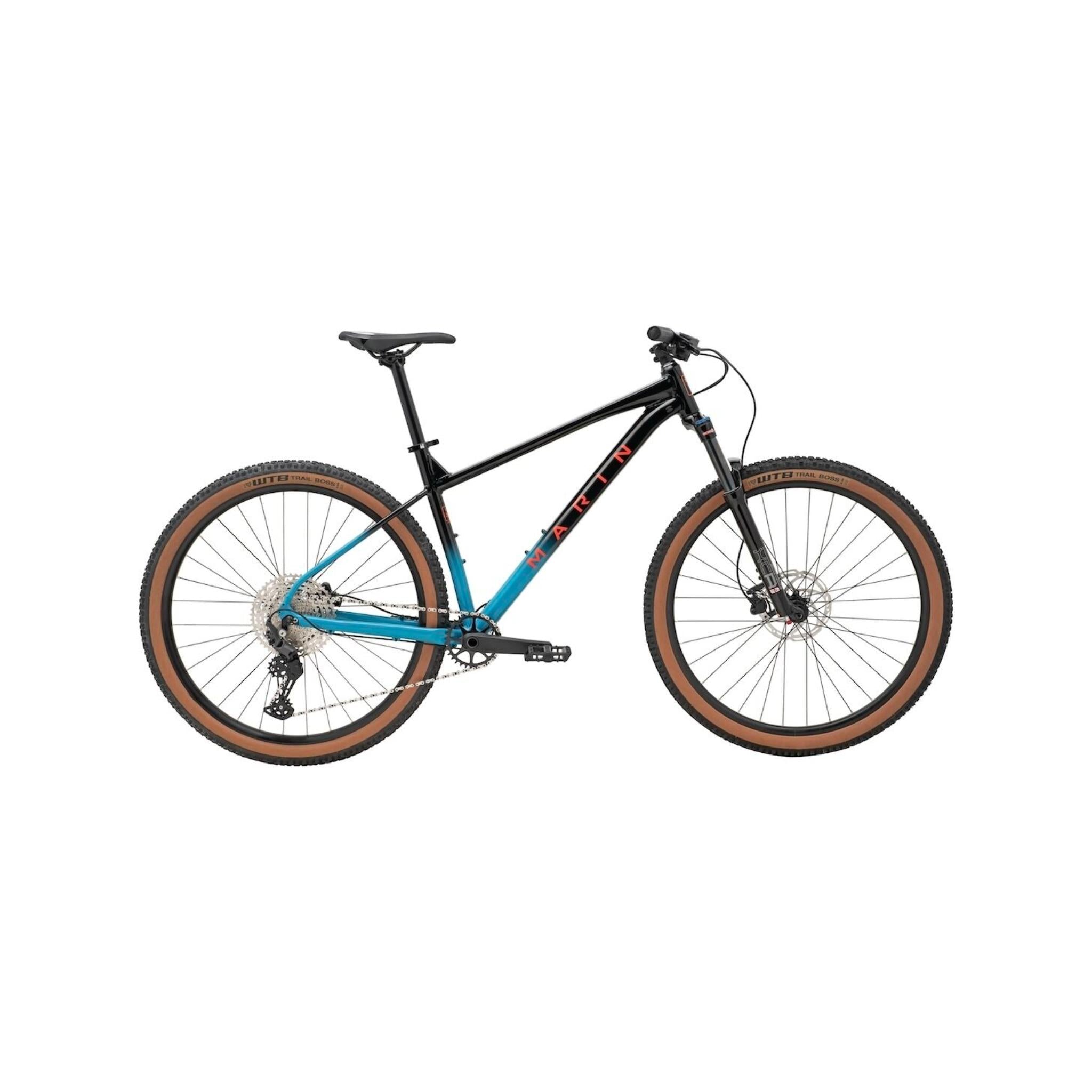

Marin Bobcat Trail 5 2025
Marin's Bobcat Trail is an outstanding value mountain bike and an excellent choice as a versatile everyday bike or entry to off-road riding. A modern frame design makes for a...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Marin's Bobcat Trail is an outstanding value mountain bike and an excellent choice as a versatile everyday bike or entry to off-road riding. A modern frame design makes for a comfortable ride while putting your weight in the correct position for when speeds start to pick up.
The top of the range Bobcat Trail 5 boasts the highest level of build kit and is fitted with reliable components hungry for many miles of riding.
The small size comes with 27.5" wheels, the medium has the option for 27.5" or 29" wheels and the large and x-large size comes with 29" wheels. Choose 27.5 wheels for a nimble, agile ride, choose 29" wheels for maximum speed!
SIZING -
- S: 5'2 - 5'5
- M: 5'5 - 5'9
- L: 5'9 - 6'0
- XL: 6'0 - 6'4
Specifications
-
Discipline Trail
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel Hardtail
-
Wheel Size 27.5" or 29"
-
Warranty 5 Years (frame)
Frame - Series 2 6061 Aluminium, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Front Suspension - SR/Suntour XCR LOR-DS BOOST, Thru-Axle, 120mm Travel, Lockout, 42mm (27.5") and 46mm (29") Offsets
Rim - Marin Aluminium Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Rear - Forged Alloy, Disc, 32H
Hub Front - Forged Alloy, Disc, 32H
Spokes - 14g Black Stainless Steel
Tires - WTB Trail Boss Comp, 27.5/29x2.25”, Wire Bead
Derailleur Rear - Shimano CUES U6000GS, w/Clutch
Shift Lever - Shimano CUES 11-Speed
Crankset - Alloy Crank, Steel Narrow-Wide Chainring, 32T
Bottom Bracket - Sealed Cartridge Bearings, Square Taper
Chain - KMC LG
Cassette - Shimano CUES CSLG400, 11-Speed, 11-48T
Brakes Front - Tektro M280 Hydraulic Disc, 180mm Rotor
Brakes Rear - Tektro M280 Hydraulic Disc, 160mm Rotor
Brake Levers - Tektro M280 Hydraulic
Handlebar - Marin 31.8 Riser, 12mm Rise, 780mm Width
Stem - Marin Alloy, 31.8mm Clamp, 45mm
Grips - Marin MTB, Closed End
Seatpost - Marin Alloy, 30.9
Saddle - Marin MTB
Pedals - Nylon Platform
