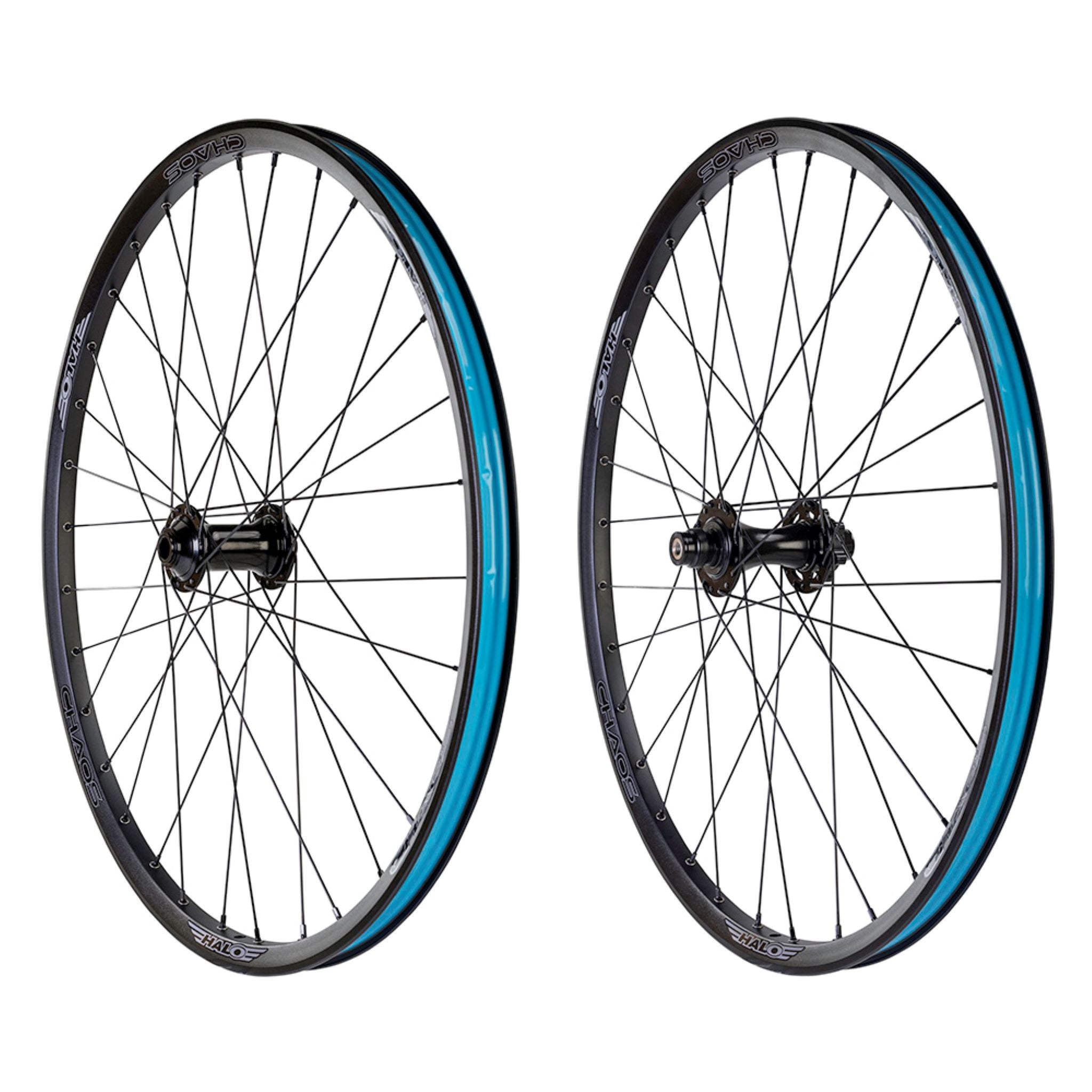

  • Halo Chaos Dirt Jump 26" Wheel
  • Halo Chaos Dirt Jump 26" Wheel
  • Halo Chaos Dirt Jump 26" Wheel

Description

Chaos Dirt Jump Wheels are the World Championship winning, benchmark wheels for dirt jumping.

Used and loved world over by riders and endorsed by international professionals Sam Pilgrim and Matt Jones. Chaos Dirt Jump Wheels are at the pinnacle of the sport that stand up to the hardest of use.

These wheels utilise our tried and tested Chaos rim which offers tubeless compatibility where required, as well as a 22.5mm internal (28mm external) width. These widths have been optimised for strength in addition to tyre profiling.

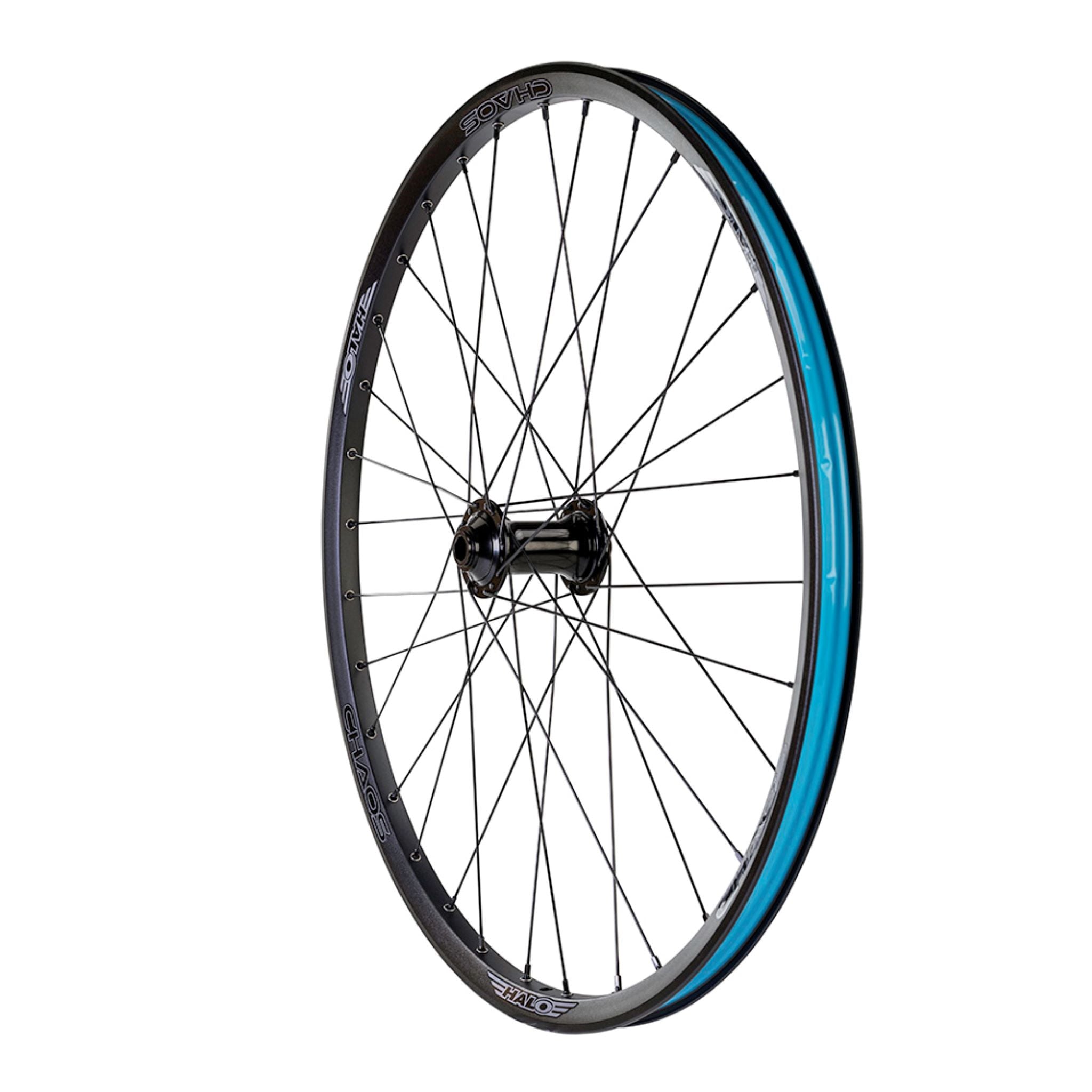

Front Wheel Further Information

The front wheel features the brakeless DJ Wideboy hub that offers wide spaced flanges for optimum lateral wheel strength.

15x100mm thru axle as standard.

Optional extra adaptors are available to fit with forks using:

  • 5/9x100mm QR
  • 20x100mm Thru-axle
  • 20x110mm Thru-axle

(Please see the ‘Halo Wide Boy front hub’ for more front hub option details)

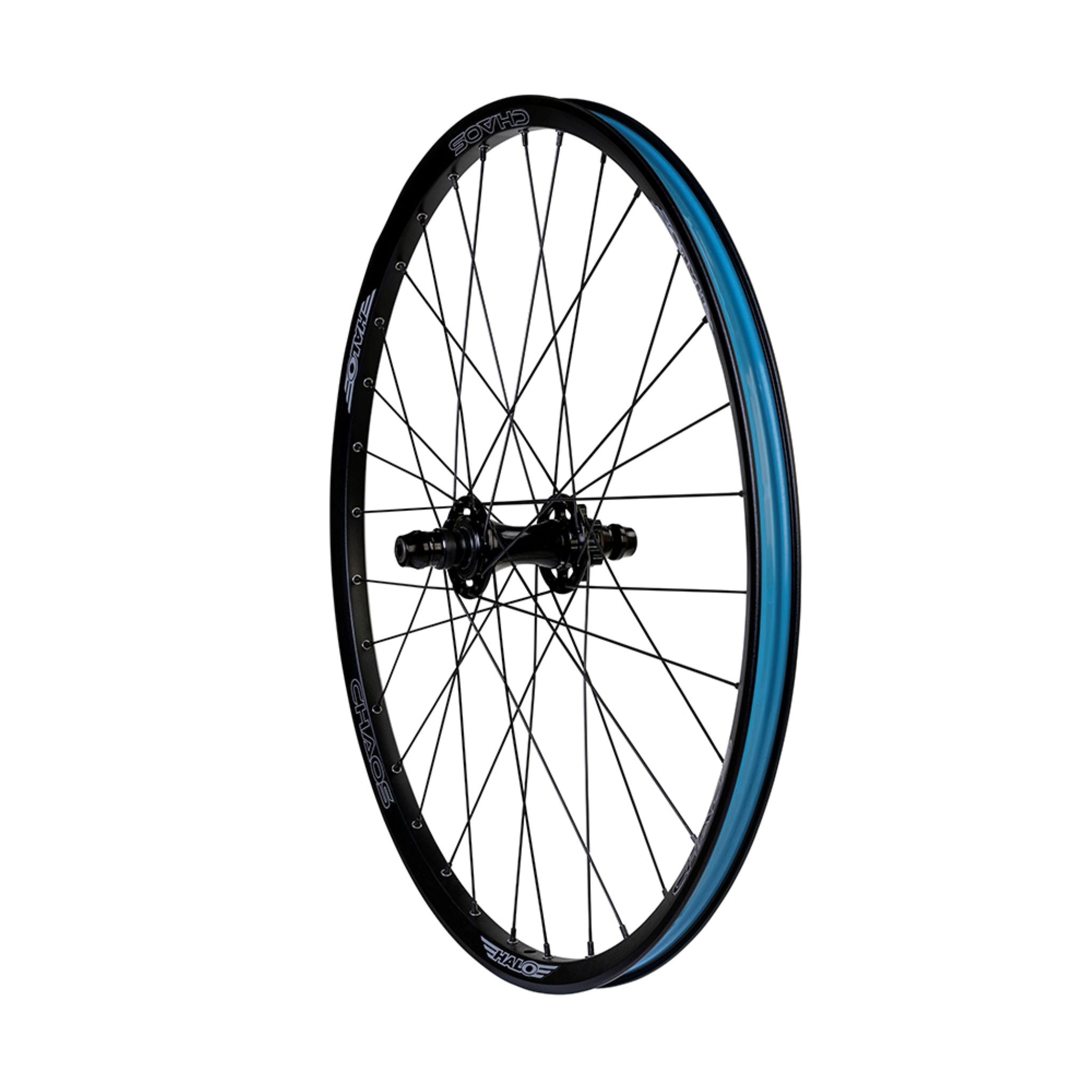

Rear Wheel Further Information

Sprockets

Our rear wheels no longer come with a sprocket included, so please choose an additional 'DJD Supadrive and Bushdrive Sprocket' for the DJD hub options or ‘Fat Foot Sprocket’ for the MTSS option to suit your bike.

Frame Compatibility:

All 3 rear hub types fit with 10x135mm slotted frame dropouts as standard using capped M10 Bolts.

The two DJD models also include 10-14mm adaptors to allow fitment into 14x135mm slotted frame dropouts.



DJD Rear SS Hub (Bushdrive)

This great value option features a 3 pawl, 30-point engagement drive mechanism, sealed main bearings and a bush bearing system in the micro-freehub.

The DJD Bushdrive freehub uses thread-on DJD sprockets (not included), available as 1/8" Single Speed chain width in 9, 10,11, 13, 14 and 16 teeth.



DJD Supadrive SS Hub

This high performance option features our 120-point Supadrive mechanism, sealed main bearings and a bush bearing system in the micro-freehub.

The DJD Supadrive freehub uses thread-on DJD sprockets (not included), available as 1/8" Single Speed chain width in 9, 10, 13, 14 and 16 teeth.



MT Supadrive SS Hub

This high performance option features our 120-point Supadrive mechanism and sealed bearings throughout.

Includes cassette spacer kit - 1x 5mm, 2x 2.5mm, 1x 0.5mm and Lock ring.

The MTSS must be used with Halo Fat Foot Sprockets using a splined fit (not included), available as 1/8" Single Speed chain width in 12, 13, 14, 15, 16, 17, 18, 19 and 20 teeth.

This is available in 135mm x M10 and 142mm x 12mm options



Alternative frame dropout conversions:

  • 12x135mm Thru-axle – select the DJD Bushdrive hub and use an axle conversion kit.

    DJD BD 12mm Axle Kit.  Item code: HUHADBA2

  • 12x148mm (Boost) Thru-axle – You will need  12x142mm Thru-axle Item code: HUHAZSVSR2, and add the Halo Boost adaptor kit: MT Supadrive Boost Disc Adaptor.  Item code: HXHASVTB





Specifications

  • Spokes Black double butted stainless spokes
  • Nipples Black ED coated brass nipples

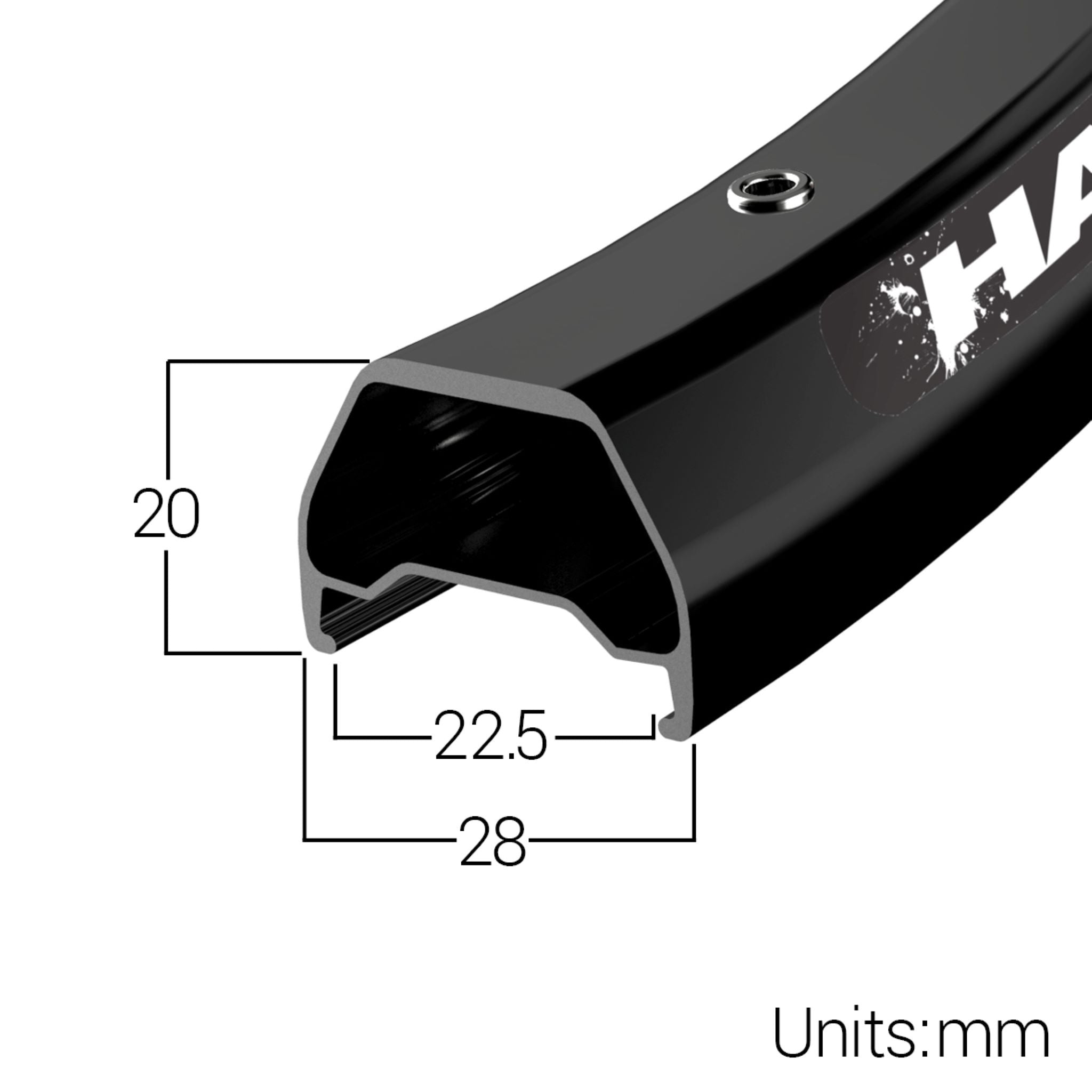

  • Rim Depth 20mm
  • Internal Rim Width 22.5mm
  • External Rim Width 28mm
  • Front Hub Spacing 110mm (20mm T-axle) or 100mm (QR or 15mm T-axle)
  • Rear spacing 135mm
  • Disc Mount IS 6-Bolt (rear only)
  • Recommended Tyre size 2- 2.5
  • Tubeless ready

Halo Chaos Dirt Jump 26" Wheel

SKU: WHHAH6JBK / Barcode: 5051699058266

Chaos Dirt Jump Wheels are the World Championship winning, benchmark wheels for dirt jumping.

Used and loved world over by riders and endorsed by international professionals Sam Pilgrim and Matt...

Regular price £254.99
Colour

Size

In stock with supplier: despatched in 2-3 days

90 Day Returns -

Description

Chaos Dirt Jump Wheels are the World Championship winning, benchmark wheels for dirt jumping.

Used and loved world over by riders and endorsed by international professionals Sam Pilgrim and Matt Jones. Chaos Dirt Jump Wheels are at the pinnacle of the sport that stand up to the hardest of use.

These wheels utilise our tried and tested Chaos rim which offers tubeless compatibility where required, as well as a 22.5mm internal (28mm external) width. These widths have been optimised for strength in addition to tyre profiling.

Front Wheel Further Information

The front wheel features the brakeless DJ Wideboy hub that offers wide spaced flanges for optimum lateral wheel strength.

15x100mm thru axle as standard.

Optional extra adaptors are available to fit with forks using:

  • 5/9x100mm QR
  • 20x100mm Thru-axle
  • 20x110mm Thru-axle

(Please see the ‘Halo Wide Boy front hub’ for more front hub option details)



Rear Wheel Further Information

Sprockets

Our rear wheels no longer come with a sprocket included, so please choose an additional 'DJD Supadrive and Bushdrive Sprocket' for the DJD hub options or ‘Fat Foot Sprocket’ for the MTSS option to suit your bike.

Frame Compatibility:

All 3 rear hub types fit with 10x135mm slotted frame dropouts as standard using capped M10 Bolts.

The two DJD models also include 10-14mm adaptors to allow fitment into 14x135mm slotted frame dropouts.



DJD Rear SS Hub (Bushdrive)

This great value option features a 3 pawl, 30-point engagement drive mechanism, sealed main bearings and a bush bearing system in the micro-freehub.

The DJD Bushdrive freehub uses thread-on DJD sprockets (not included), available as 1/8" Single Speed chain width in 9, 10,11, 13, 14 and 16 teeth.



DJD Supadrive SS Hub

This high performance option features our 120-point Supadrive mechanism, sealed main bearings and a bush bearing system in the micro-freehub.

The DJD Supadrive freehub uses thread-on DJD sprockets (not included), available as 1/8" Single Speed chain width in 9, 10, 13, 14 and 16 teeth.



MT Supadrive SS Hub

This high performance option features our 120-point Supadrive mechanism and sealed bearings throughout.

Includes cassette spacer kit - 1x 5mm, 2x 2.5mm, 1x 0.5mm and Lock ring.

The MTSS must be used with Halo Fat Foot Sprockets using a splined fit (not included), available as 1/8" Single Speed chain width in 12, 13, 14, 15, 16, 17, 18, 19 and 20 teeth.

This is available in 135mm x M10 and 142mm x 12mm options



Alternative frame dropout conversions:

  • 12x135mm Thru-axle – select the DJD Bushdrive hub and use an axle conversion kit.

    DJD BD 12mm Axle Kit.  Item code: HUHADBA2

  • 12x148mm (Boost) Thru-axle – You will need  12x142mm Thru-axle Item code: HUHAZSVSR2, and add the Halo Boost adaptor kit: MT Supadrive Boost Disc Adaptor.  Item code: HXHASVTB





Specifications

  • Spokes Black double butted stainless spokes
  • Nipples Black ED coated brass nipples
  • Rim Depth 20mm
  • Internal Rim Width 22.5mm
  • External Rim Width 28mm
  • Front Hub Spacing 110mm (20mm T-axle) or 100mm (QR or 15mm T-axle)
  • Rear spacing 135mm
  • Disc Mount IS 6-Bolt (rear only)
  • Recommended Tyre size 2- 2.5
  • Tubeless ready
