Description

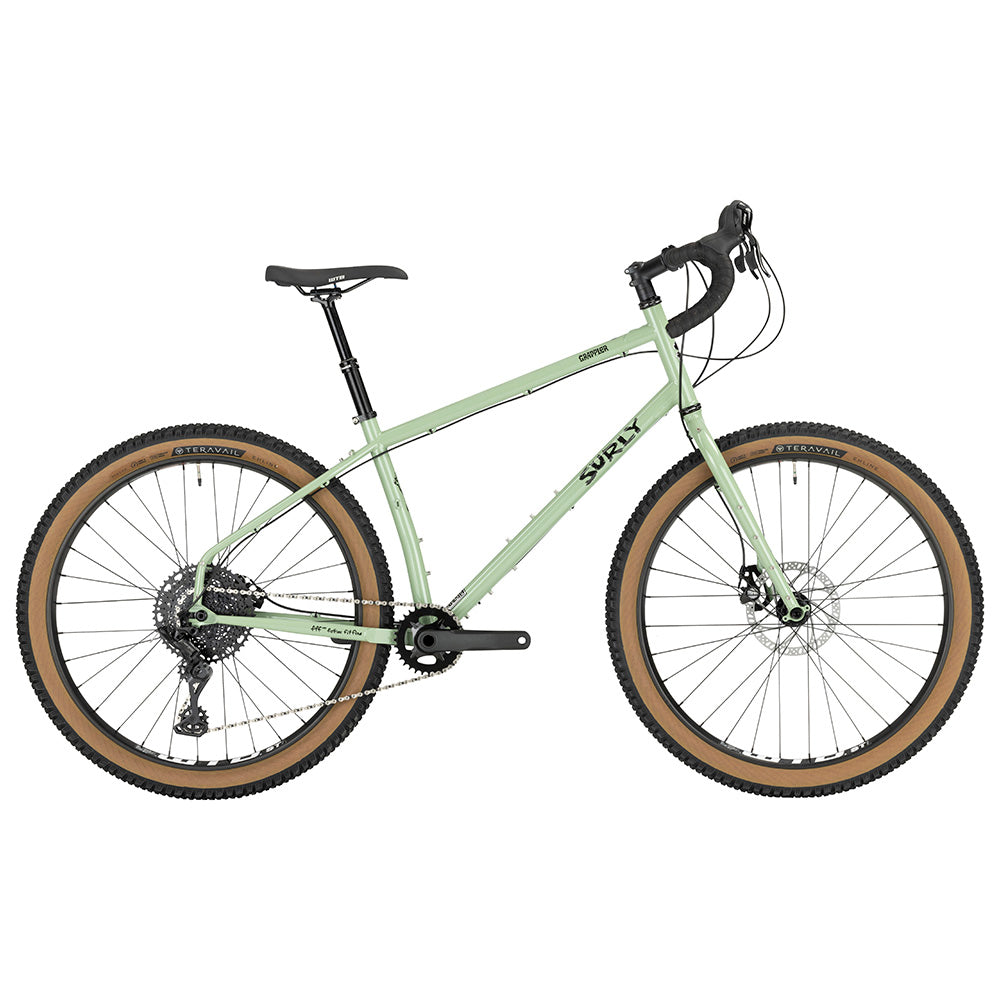

The Surly Grappler is a drop-bar trail bike built for single-track sessions, all day dirt rides, and backpacking excursions.

Off-road cyclists have long adapted drop bars for trail bikes to enhance their riding experience, and the Surly Grappler is designed specifically to address this need with greater precision. Its geometry is crafted to offer a stable and comfortable drop-bar position while delivering an engaging ride across mixed terrains.

The Grappler is built to accommodate wide tires, allowing for better traction and comfort on rugged surfaces. It also features a variety of mounting points for racks, fenders, and other accessories, making it ideal for carrying both daily essentials and overnight gear.

Whether you're tackling overgrown fire roads or exploring less-traveled paths, the Grappler is equipped to handle diverse conditions, providing a reliable and enjoyable ride. Its thoughtful design ensures that you can confidently take on challenging trails with all your gear in tow.

Features:

Featuring Surly's versatile Gnot-Boost spacing allowing riders to run 142mm or Boost 148mm rear hubs; thru-axles; stealth dropper post routing; non-suspension corrected
Custom dropouts ready to run single-speed or internally geared hub setups
Seatstay-mounted bottle bosses plus three-pack mounts at the top and bottom of the down tube
Clearance for 27.5 x 2.8" or 29 x 2.1" tyres (with or without mudguards)

Specification:

Frame: 100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork: 100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Headset: Cane Creek 40
Handlebar: Salsa Cowchipper 31.8mm
Stem: Promax DA-296, 31.8mm
Grips: Velo Black cork
Seatpost: TransX YSP15 Dropper, 360mm, 100mm travel
Saddle: WTB Volt 142
Front Derailleur: N/A
Rear Derailleur: microSHIFT M6205
STI Levers: microSHIFT AdventX Dual Control Levers
Crankset: Samox BSA 2PCS Boost 32t
Cassette: microSHIFT 11-48t
Bottom Bracket: Samox BSA
Brakes: Tektro Mira MD-C400
Rotors: Tektro 180/160
Tyres: Teravail Ehline, 27.5 x 2.5", 60tpi
Rims: WTB ST i40 TCS
Front Hubs: Novatec 15x110mm, 32h
Rear Hubs: Novatec 12x148mm, 32h

Complete bike spec subject to change.

You can find the Surly bike sizing here for reference.

Surly Grappler

Name: Surly Grappler
Brand: Surly
Price: 2199.99 GBP
Availability: InStock

SKU: 5SUHG220G

Barcode: 708752360587

The Surly Grappler is a drop-bar trail bike built for single-track sessions, all day dirt rides, and backpacking excursions.

Off-road cyclists have long adapted drop bars for trail bikes... Read more

£2,199.99
